| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FilterType | NumberofLines | Impedance@Frequency | Inductance@Frequency | CurrentRating(Max) | DCResistance(DCR)(Max) | VoltageRating-DC | VoltageRating-AC | OperatingTemperature | Ratings | ApprovalAgency | Features | MountingType | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTUF1015VF-202M1R0RAD LEAD CMC COIL 2 MH TH |
2,283 | 1.81 |
RFQ |
Datasheet |
Bulk | CTUF1015VF | Active | Power Line | 2 | - | - | 1A | 400mOhm | - | 250V | -20°C ~ 105°C | - | - | - | Through Hole | 0.748 L x 0.669 W (19.00mm x 17.00mm) | 0.886 (22.50mm) |
|
|
CTUF1015VF-102M1R6RAD LEAD CMC COIL 1 MH TH |
3,876 | 1.81 |
RFQ |
Datasheet |
Bulk | CTUF1015VF | Active | Power Line | 2 | - | - | 1.6A | 170mOhm | - | 250V | -20°C ~ 105°C | - | - | - | Through Hole | 0.748 L x 0.669 W (19.00mm x 17.00mm) | 0.886 (22.50mm) |
|
|
CTUF1015VF-102M1R0RAD LEAD CMC COIL 1 MH TH |
2,532 | 1.81 |
RFQ |
Datasheet |
Bulk | CTUF1015VF | Active | Power Line | 2 | - | - | 1A | 400mOhm | - | 250V | -20°C ~ 105°C | - | - | - | Through Hole | 0.748 L x 0.669 W (19.00mm x 17.00mm) | 0.886 (22.50mm) |
|
|
CTUF1015VF-801M1R5RAD LEAD CMC COIL 0.8 MH TH |
3,031 | 1.81 |
RFQ |
Datasheet |
Bulk | CTUF1015VF | Active | Power Line | 2 | - | - | 1.5A | 120mOhm | - | 250V | -20°C ~ 105°C | - | - | - | Through Hole | 0.748 L x 0.669 W (19.00mm x 17.00mm) | 0.886 (22.50mm) |
|
CTCMS3F-1600N1600UH COMMON MODE CHOKE |
2,681 | 1.88 |
RFQ |
Bulk | CTCMS3F | Obsolete | Power Line | 2 | - | 1.6 mH @ 100 kHz | 750mA | 286.5mOhm (Typ) | - | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.563 L x 0.563 W (14.30mm x 14.30mm) | 0.276 (7.00mm) | |
|
CTCMS2F-1300N1300UH COMMON MODE CHOKE |
2,168 | 1.88 |
RFQ |
Bulk | CTCMS2F | Obsolete | Power Line | 2 | - | 1.3 mH @ 100 kHz | 580mA | 245.5mOhm (Typ) | - | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.465 L x 0.465 W (11.80mm x 11.80mm) | 0.205 (5.20mm) | |
|
|
CTCMS3F-620N620UH COMMON MODE CHOKE |
2,400 | 1.88 |
RFQ |
Bulk | CTCMS3F | Obsolete | Power Line | 2 | - | 620 µH @ 100 kHz | 1.45A | 62.1mOhm (Typ) | - | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.563 L x 0.563 W (14.30mm x 14.30mm) | 0.276 (7.00mm) | |
|
|
CTCMS3F-105N105UH COMMON MODE CHOKE |
3,617 | 1.88 |
RFQ |
Bulk | CTCMS3F | Obsolete | Power Line | 2 | - | 105 µH @ 100 kHz | 3.95A | 7.92mOhm (Typ) | - | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.563 L x 0.563 W (14.30mm x 14.30mm) | 0.276 (7.00mm) | |
|
|
CTCMS3F-175N175UH COMMON MODE CHOKE |
3,625 | 1.88 |
RFQ |
Bulk | CTCMS3F | Obsolete | Power Line | 2 | - | 175 µH @ 100 kHz | 3.1A | 15.9mOhm (Typ) | - | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.563 L x 0.563 W (14.30mm x 14.30mm) | 0.276 (7.00mm) | |
|
|
CTCMS2F-95N95UH COMMON MODE CHOKE |
3,274 | 1.88 |
RFQ |
Bulk | CTCMS2F | Obsolete | Power Line | 2 | - | 95 µH @ 100 kHz | 2.8A | 7.965mOhm (Typ) | - | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.465 L x 0.465 W (11.80mm x 11.80mm) | 0.205 (5.20mm) | |
|
|
CTCMS3F-310N310UH COMMON MODE CHOKE |
3,496 | 1.88 |
RFQ |
Bulk | CTCMS3F | Obsolete | Power Line | 2 | - | 310 µH @ 100 kHz | 2.45A | 25.3mOhm (Typ) | - | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.563 L x 0.563 W (14.30mm x 14.30mm) | 0.276 (7.00mm) | |
|
|
CTCMS3F-35N35UH COMMON MODE CHOKE |
3,655 | 1.88 |
RFQ |
Bulk | CTCMS3F | Obsolete | Power Line | 2 | - | 35 µH @ 100 kHz | 5.7A | 4.63mOhm (Typ) | - | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.563 L x 0.563 W (14.30mm x 14.30mm) | 0.276 (7.00mm) | |
|
|
CTCMS3F-260N260UH COMMON MODE CHOKE |
3,788 | 1.88 |
RFQ |
Bulk | CTCMS3F | Obsolete | Power Line | 2 | - | 260 µH @ 100 kHz | 2.85A | 19.5mOhm (Typ) | - | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.563 L x 0.563 W (14.30mm x 14.30mm) | 0.276 (7.00mm) | |
|
|
CTCMS3F-75N75UH COMMON MODE CHOKE |
3,973 | 1.88 |
RFQ |
Bulk | CTCMS3F | Obsolete | Power Line | 2 | - | 75 µH @ 100 kHz | 4.75A | 6.52mOhm (Typ) | - | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.563 L x 0.563 W (14.30mm x 14.30mm) | 0.276 (7.00mm) | |
|
|
CTCMS2F-320N320UH COMMON MODE CHOKE |
2,365 | 1.88 |
RFQ |
Bulk | CTCMS2F | Obsolete | Power Line | 2 | - | 320 µH @ 100 kHz | 1.6A | 39.72mOhm (Typ) | - | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.465 L x 0.465 W (11.80mm x 11.80mm) | 0.205 (5.20mm) | |
|

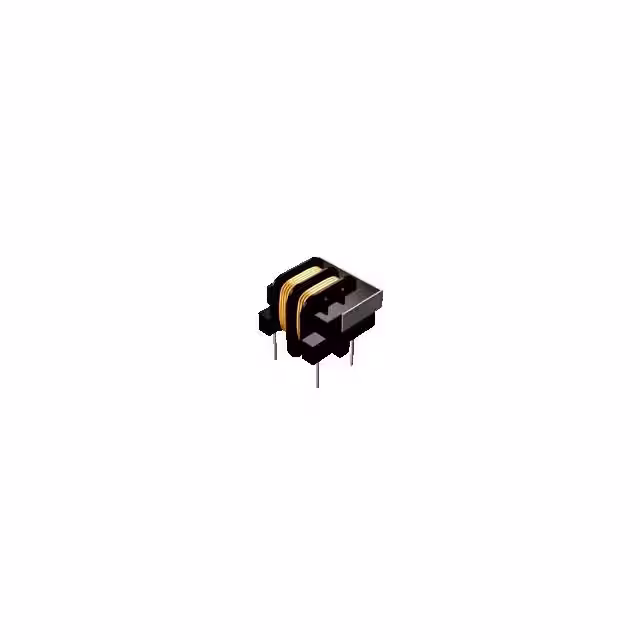

CTUF0917HF-282M0R52.8MH RADIAL LEAD CMC |
3,959 | 2.21 |
RFQ |
Datasheet |
Bulk | CTUF0917HF | Active | Power Line | 2 | - | - | 500mA | 1Ohm | - | 250V | -20°C ~ 105°C | - | - | - | Through Hole | 0.689 L x 0.610 W (17.50mm x 15.50mm) | 0.512 (13.00mm) |
|
|
CTUF0917HF-132M0R71.3MH RADIAL LEAD CMC |
2,686 | 2.21 |
RFQ |
Datasheet |
Bulk | CTUF0917HF | Active | Power Line | 2 | - | - | 700mA | 500mOhm | - | 250V | -20°C ~ 105°C | - | - | - | Through Hole | 0.689 L x 0.610 W (17.50mm x 15.50mm) | 0.512 (13.00mm) |
|
|
CTUF0917HF-601M1R00.6MH RADIAL LEAD CMC |
3,553 | 2.21 |
RFQ |
Datasheet |
Bulk | CTUF0917HF | Active | Power Line | 2 | - | - | 1A | 200mOhm | - | 250V | -20°C ~ 105°C | - | - | - | Through Hole | 0.689 L x 0.610 W (17.50mm x 15.50mm) | 0.512 (13.00mm) |
|
|
CTUF0917HF-103MR2510MH RADIAL LEAD CMC |
3,707 | 2.21 |
RFQ |
Datasheet |
Bulk | CTUF0917HF | Active | Power Line | 2 | - | - | 250mA | 3.5Ohm | - | 250V | -20°C ~ 105°C | - | - | - | Through Hole | 0.689 L x 0.610 W (17.50mm x 15.50mm) | 0.512 (13.00mm) |
|
|
CTUF0917HF-201M1R60.2MH RADIAL LEAD CMC |
3,876 | 2.21 |
RFQ |
Datasheet |
Bulk | CTUF0917HF | Active | Power Line | 2 | - | - | 1.6A | 100mOhm | - | 250V | -20°C ~ 105°C | - | - | - | Through Hole | 0.689 L x 0.610 W (17.50mm x 15.50mm) | 0.512 (13.00mm) |
