Common Mode Chokes(8428)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FilterType | NumberofLines | Impedance@Frequency | Inductance@Frequency | CurrentRating(Max) | DCResistance(DCR)(Max) | VoltageRating-DC | VoltageRating-AC | OperatingTemperature | Ratings | ApprovalAgency | Features | MountingType | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACMP-9050-222-TCMC 2200 2.5A 2LN SMD |
3,518 | 2.18 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | ACMP-9050 | Active | Power Line | 2 | 2.2 kOhms @ 100 MHz | - | 2.5A | 60mOhm | 125V | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.374 L x 0.276 W (9.50mm x 7.00mm) | 0.197 (5.00mm) |
|
|
ACMP-1264-231-TCMC 230 10A 2LN SMD |
2,505 | 2.18 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | ACMP-1264 | Active | Power Line | 2 | 230 Ohms @ 100 MHz | - | 10A | 4mOhm | 125V | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.492 L x 0.425 W (12.50mm x 10.80mm) | 0.252 (6.40mm) |
|
SRF0602-820YCMC 82UH 300MA 2LN 220 OHM SMD |
3,974 | 2.18 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SRF0602 | Active | Signal Line | 2 | 220 Ohms @ 3 MHz | 82 µH @ 10 kHz | 300mA | 20mOhm | 50V | - | -40°C ~ 105°C | - | - | - | Surface Mount | 0.256 L x 0.142 W (6.50mm x 3.60mm) | 0.071 (1.80mm) |
|
SSR10V-04910CMC 91MH 400MA 2LN TH |
2,353 | 1.19 |
RFQ |
Datasheet |
Bulk | SSR | Active | - | 2 | - | 91 mH @ 10 kHz | 400mA | 2.8Ohm | - | 250V | -25°C ~ 120°C | - | - | - | Through Hole | 0.925 L x 0.512 W (23.50mm x 13.00mm) | 0.827 (21.00mm) |
|
|
SSR10V-08220CMC 22MH 800MA 2LN TH |
3,844 | 1.19 |
RFQ |
Datasheet |
Bulk | SSR | Active | - | 2 | - | 22 mH @ 10 kHz | 800mA | 650mOhm | - | 250V | -25°C ~ 120°C | - | - | - | Through Hole | 0.925 L x 0.512 W (23.50mm x 13.00mm) | 0.827 (21.00mm) |
|
SSR10H-11140CMC 14MH 1.1A 2LN TH |
2,162 | 1.22 |
RFQ |
Datasheet |
Bulk | SSR | Active | - | 2 | - | 14 mH @ 10 kHz | 1.1A | 370mOhm | - | 250V | -25°C ~ 120°C | - | - | - | Through Hole | - | 0.531 (13.50mm) |
|
SSR10HS-05495CMC 49.5MH 500MA 2LN TH |
3,279 | 1.22 |
RFQ |
Datasheet |
Bulk | SSR | Active | - | 2 | - | 49.5 mH @ 10 kHz | 500mA | 1.6Ohm | - | 250V | -25°C ~ 120°C | - | - | - | Through Hole | - | 0.531 (13.50mm) |
|
|
SSR10HS-06385CMC 38.5MH 600MA 2LN TH |
3,906 | 1.22 |
RFQ |
Datasheet |
Bulk | SSR | Active | - | 2 | - | 38.5 mH @ 10 kHz | 600mA | 1.2Ohm | - | 250V | -25°C ~ 120°C | - | - | - | Through Hole | - | 0.531 (13.50mm) |
|
SSR10HS-07265CMC 26.5MH 700MA 2LN TH |
3,692 | 1.22 |
RFQ |
Datasheet |
Bulk | SSR | Active | - | 2 | - | 26.5 mH @ 10 kHz | 700mA | 850mOhm | - | 250V | -25°C ~ 120°C | - | - | - | Through Hole | - | 0.531 (13.50mm) |
|
SS21V-040520CMC 52MH 400MA 2LN TH |
2,744 | 1.35 |
RFQ |
Datasheet |
Bulk | SS | Active | Power Line | 2 | - | 52 mH @ 1 kHz | 400mA | 5.4Ohm | - | 250V | -25°C ~ 120°C | - | - | - | Through Hole | 0.807 L x 0.650 W (20.50mm x 16.50mm) | 1.004 (25.50mm) |
|
|
SS21V-050360CMC 36MH 500MA 2LN TH |
2,646 | 1.35 |
RFQ |
Datasheet |
Bulk | SS | Active | Power Line | 2 | - | 36 mH @ 1 kHz | 500mA | 2.4Ohm | - | 250V | -25°C ~ 120°C | - | - | - | Through Hole | 0.807 L x 0.650 W (20.50mm x 16.50mm) | 1.004 (25.50mm) |
|
|
SS21V-070179CMC 17.9MH 700MA 2LN TH |
2,995 | 1.35 |
RFQ |
Datasheet |
Bulk | SS | Active | Power Line | 2 | - | 17.9 mH @ 1 kHz | 700mA | 1.1Ohm | - | 250V | -25°C ~ 120°C | - | - | - | Through Hole | 0.807 L x 0.650 W (20.50mm x 16.50mm) | 1.004 (25.50mm) |
|
|
SS21V-110067CMC 6.7MH 1.1A 2LN TH |
3,037 | 1.35 |
RFQ |
Datasheet |
Bulk | SS | Active | Power Line | 2 | - | 6.7 mH @ 1 kHz | 1.1A | 450mOhm | - | 250V | -25°C ~ 120°C | - | - | - | Through Hole | 0.807 L x 0.650 W (20.50mm x 16.50mm) | 1.004 (25.50mm) |
|
|
SS21V-130044CMC 4.4MH 1.3A 2LN TH |
2,201 | 1.35 |
RFQ |
Datasheet |
Bulk | SS | Active | Power Line | 2 | - | 4.4 mH @ 1 kHz | 1.3A | 350mOhm | - | 250V | -25°C ~ 120°C | - | - | - | Through Hole | 0.807 L x 0.650 W (20.50mm x 16.50mm) | 1.004 (25.50mm) |
|
|
SS21V-250015CMC 1.5MH 2.5A 2LN TH |
3,896 | 1.35 |
RFQ |
Datasheet |
Bulk | SS | Active | Power Line | 2 | - | 1.5 mH @ 1 kHz | 2.5A | 100mOhm | - | 250V | -25°C ~ 120°C | - | - | - | Through Hole | 0.807 L x 0.650 W (20.50mm x 16.50mm) | 1.004 (25.50mm) |
|
|
DLW5BSZ801TQ2LCMC 1.5A 2LN 800 OHM SMD |
2,874 | 2.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DLW5B | Active | Signal Line | 2 | 800 Ohms @ 100 MHz | - | 1.5A | 56mOhm | 50V | - | -40°C ~ 105°C | - | - | - | Surface Mount | 0.197 L x 0.197 W (5.00mm x 5.00mm) | 0.177 (4.50mm) |
|
|
SS21V-R040770CMC 77MH 400MA 2LN TH |
2,684 | 1.43 |
RFQ |
Datasheet |
Bulk | SS | Active | Power Line | 2 | - | 77 mH @ 1 kHz | 400mA | 5.4Ohm | - | 250V | -25°C ~ 120°C | - | - | - | Through Hole | 0.807 L x 0.650 W (20.50mm x 16.50mm) | 1.004 (25.50mm) |
|
|
SS21V-R200036CMC 3.6MH 2A 2LN TH |
2,799 | 1.43 |
RFQ |
Datasheet |
Bulk | SS | Active | Power Line | 2 | - | 3.6 mH @ 1 kHz | 2A | 150mOhm | - | 250V | -25°C ~ 120°C | - | - | - | Through Hole | 0.807 L x 0.650 W (20.50mm x 16.50mm) | 1.004 (25.50mm) |
|
750314977CMC 6.8MH 1.3A 2LN TH |
3,943 | 1.59 |
RFQ |
Datasheet |
Tray | MID-DC16US | Active | - | 2 | - | 6.8 mH @ 10 kHz | 1.3A | 314mOhm | - | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.900 L x 0.550 W (22.86mm x 13.97mm) | 0.551 (14.00mm) |
|

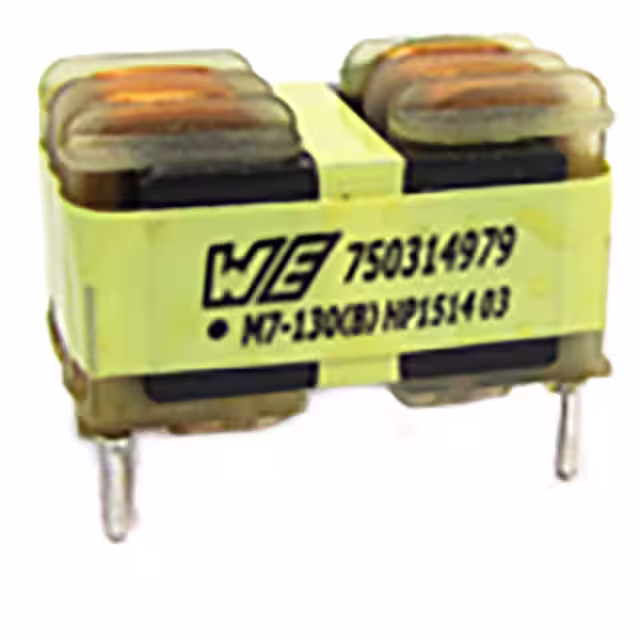

750314979CMC 15MH 850MA 2LN TH |
3,316 | 1.59 |
RFQ |
Datasheet |
Tray | MID-DC16US | Active | - | 2 | - | 15 mH @ 10 kHz | 850mA | 684mOhm | - | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.550 L x 0.900 W (13.97mm x 22.86mm) | 0.551 (14.00mm) |
