| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FilterType | NumberofLines | Impedance@Frequency | Inductance@Frequency | CurrentRating(Max) | DCResistance(DCR)(Max) | VoltageRating-DC | VoltageRating-AC | OperatingTemperature | Ratings | ApprovalAgency | Features | MountingType | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM7560-684CMC 680UH 3.5A 2LN TH |
3,654 | 17.28 |
RFQ |
Datasheet |
Bulk | CM7560 | Active | - | 2 | - | 680 µH @ 1 kHz | 3.5A | 40mOhm | - | - | -55°C ~ 125°C | - | - | - | Through Hole | 1.071 L x 0.858 W (27.20mm x 21.80mm) | 0.861 (21.86mm) |
|
CM7560-824CMC 820UH 2.8A 2LN TH |
3,939 | 17.28 |
RFQ |
Datasheet |
Bulk | CM7560 | Active | - | 2 | - | 820 µH @ 1 kHz | 2.8A | 60mOhm | - | - | -55°C ~ 125°C | - | - | - | Through Hole | 1.071 L x 0.858 W (27.20mm x 21.80mm) | 0.861 (21.86mm) |
|
CM7560-105CMC 1MH 2.8A 2LN TH |
2,735 | 17.28 |
RFQ |
Datasheet |
Bulk | CM7560 | Active | - | 2 | - | 1 mH @ 1 kHz | 2.8A | 65mOhm | - | - | -55°C ~ 125°C | - | - | - | Through Hole | 1.071 L x 0.858 W (27.20mm x 21.80mm) | 0.861 (21.86mm) |
|
CM7560-125CMC 1.2MH 2.2A 2LN TH |
3,855 | 17.28 |
RFQ |
Datasheet |
Bulk | CM7560 | Active | - | 2 | - | 1.2 mH @ 1 kHz | 2.2A | 95mOhm | - | - | -55°C ~ 125°C | - | - | - | Through Hole | 1.071 L x 0.858 W (27.20mm x 21.80mm) | 0.861 (21.86mm) |
|
CM7560-155CMC 1.5MH 1.7A 2LN TH |
3,073 | 17.28 |
RFQ |
Datasheet |
Bulk | CM7560 | Active | - | 2 | - | 1.5 mH @ 1 kHz | 1.7A | 115mOhm | - | - | -55°C ~ 125°C | - | - | - | Through Hole | 1.071 L x 0.858 W (27.20mm x 21.80mm) | 0.861 (21.86mm) |
|
CM7560-185CMC 1.8MH 1.7A 2LN TH |
3,797 | 17.28 |
RFQ |
Datasheet |
Bulk | CM7560 | Active | - | 2 | - | 1.8 mH @ 1 kHz | 1.7A | 125mOhm | - | - | -55°C ~ 125°C | - | - | - | Through Hole | 1.071 L x 0.858 W (27.20mm x 21.80mm) | 0.861 (21.86mm) |
|
CM7560-225CMC 2.2MH 1.4A 2LN TH |
3,769 | 17.28 |
RFQ |
Datasheet |
Bulk | CM7560 | Active | - | 2 | - | 2.2 mH @ 1 kHz | 1.4A | 170mOhm | - | - | -55°C ~ 125°C | - | - | - | Through Hole | 1.071 L x 0.858 W (27.20mm x 21.80mm) | 0.861 (21.86mm) |
|
CM7560-275CMC 2.7MH 1.4A 2LN TH |
3,451 | 17.28 |
RFQ |
Datasheet |
Bulk | CM7560 | Active | - | 2 | - | 2.7 mH @ 1 kHz | 1.4A | 180mOhm | - | - | -55°C ~ 125°C | - | - | - | Through Hole | 1.071 L x 0.858 W (27.20mm x 21.80mm) | 0.861 (21.86mm) |
|

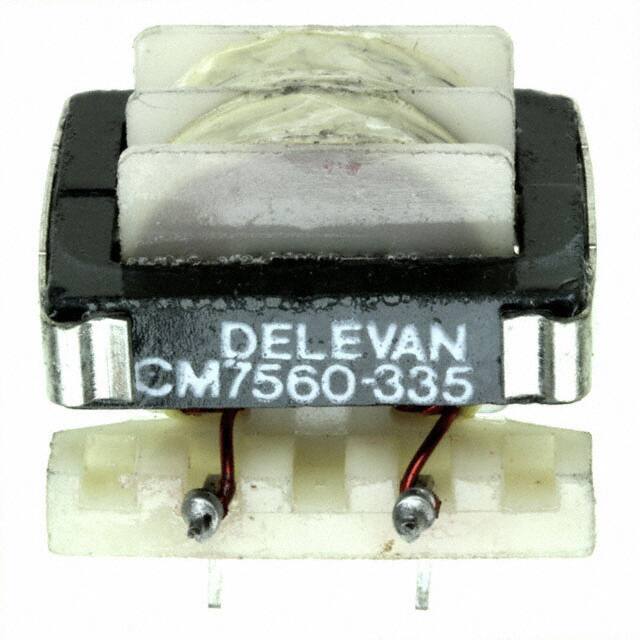

CM7560-335CMC 3.3MH 1.1A 2LN TH |
3,948 | 17.28 |
RFQ |
Datasheet |
Bulk | CM7560 | Active | - | 2 | - | 3.3 mH @ 1 kHz | 1.1A | 320mOhm | - | - | -55°C ~ 125°C | - | - | - | Through Hole | 1.071 L x 0.858 W (27.20mm x 21.80mm) | 0.861 (21.86mm) |
|
CM7560-395CMC 3.9MH 1.1A 2LN TH |
3,390 | 17.28 |
RFQ |
Datasheet |
Bulk | CM7560 | Active | - | 2 | - | 3.9 mH @ 1 kHz | 1.1A | 400mOhm | - | - | -55°C ~ 125°C | - | - | - | Through Hole | 1.071 L x 0.858 W (27.20mm x 21.80mm) | 0.861 (21.86mm) |
|
CM7560-475CMC 4.7MH 880MA 2LN TH |
3,103 | 17.28 |
RFQ |
Datasheet |
Bulk | CM7560 | Active | - | 2 | - | 4.7 mH @ 1 kHz | 880mA | 450mOhm | - | - | -55°C ~ 125°C | - | - | - | Through Hole | 1.071 L x 0.858 W (27.20mm x 21.80mm) | 0.861 (21.86mm) |
|
CM7560-565CMC 5.6MH 880MA 2LN TH |
3,345 | 17.28 |
RFQ |
Datasheet |
Bulk | CM7560 | Active | - | 2 | - | 5.6 mH @ 1 kHz | 880mA | 500mOhm | - | - | -55°C ~ 125°C | - | - | - | Through Hole | 1.071 L x 0.858 W (27.20mm x 21.80mm) | 0.861 (21.86mm) |
|
CM7560-685CMC 6.8MH 880MA 2LN TH |
3,418 | 17.28 |
RFQ |
Datasheet |
Bulk | CM7560 | Active | - | 2 | - | 6.8 mH @ 1 kHz | 880mA | 600mOhm | - | - | -55°C ~ 125°C | - | - | - | Through Hole | 1.071 L x 0.858 W (27.20mm x 21.80mm) | 0.861 (21.86mm) |
|
CM7560-825CMC 8.2MH 880MA 2LN TH |
3,056 | 17.28 |
RFQ |
Datasheet |
Bulk | CM7560 | Active | - | 2 | - | 8.2 mH @ 1 kHz | 880mA | 750mOhm | - | - | -55°C ~ 125°C | - | - | - | Through Hole | 1.071 L x 0.858 W (27.20mm x 21.80mm) | 0.861 (21.86mm) |
|
CM7560-184CMC 180UH 4.5A 2LN TH |
3,024 | 17.28 |
RFQ |
Datasheet |
Bulk | CM7560 | Active | - | 2 | - | 180 µH @ 1 kHz | 4.5A | 19mOhm | - | - | -55°C ~ 125°C | - | - | - | Through Hole | 1.071 L x 0.858 W (27.20mm x 21.80mm) | 0.861 (21.86mm) |
|
CM7560R-104CMC 100UH 5.5A 2LN TH |
3,102 | 18.58 |
RFQ |
Datasheet |
Bulk | CM7560R | Active | - | 2 | - | 100 µH @ 1 kHz | 5.5A | 13mOhm | - | - | -55°C ~ 125°C | - | - | - | Through Hole | 1.071 L x 0.858 W (27.20mm x 21.80mm) | 0.861 (21.86mm) |
|
|
CM7560R-105CMC 1MH 2.8A 2LN TH |
3,540 | 18.58 |
RFQ |
Datasheet |
Bulk | CM7560R | Active | - | 2 | - | 1 mH @ 1 kHz | 2.8A | 65mOhm | - | - | -55°C ~ 125°C | - | - | - | Through Hole | 1.071 L x 0.858 W (27.20mm x 21.80mm) | 0.861 (21.86mm) |
|
|
CM7560R-124CMC 120UH 5.5A 2LN TH |
2,397 | 18.58 |
RFQ |
Datasheet |
Bulk | CM7560R | Active | - | 2 | - | 120 µH @ 1 kHz | 5.5A | 15mOhm | - | - | -55°C ~ 125°C | - | - | - | Through Hole | 1.071 L x 0.858 W (27.20mm x 21.80mm) | 0.861 (21.86mm) |
|
|
CM7560R-125CMC 1.2MH 2.2A 2LN TH |
3,365 | 18.58 |
RFQ |
Datasheet |
Bulk | CM7560R | Active | - | 2 | - | 1.2 mH @ 1 kHz | 2.2A | 95mOhm | - | - | -55°C ~ 125°C | - | - | - | Through Hole | 1.071 L x 0.858 W (27.20mm x 21.80mm) | 0.861 (21.86mm) |
|
|
CM7560R-154CMC 150UH 5.5A 2LN TH |
3,631 | 18.58 |
RFQ |
Datasheet |
Bulk | CM7560R | Active | - | 2 | - | 150 µH @ 1 kHz | 5.5A | 15mOhm | - | - | -55°C ~ 125°C | - | - | - | Through Hole | 1.071 L x 0.858 W (27.20mm x 21.80mm) | 0.861 (21.86mm) |
