| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FilterType | NumberofLines | Impedance@Frequency | Inductance@Frequency | CurrentRating(Max) | DCResistance(DCR)(Max) | VoltageRating-DC | VoltageRating-AC | OperatingTemperature | Ratings | ApprovalAgency | Features | MountingType | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCK-076CMC 55UH 5.7A 2LN TH |
343 | 6.29 |
RFQ |
Datasheet |
Bag | - | Active | - | 2 | - | 55 µH @ 100 kHz | 5.7A | 8.5mOhm | 500V | - | -40°C ~ 105°C | - | - | - | Through Hole | 0.433 L x 0.433 W (11.00mm x 11.00mm) | 0.346 (8.80mm) |
|
TCK-122CMC SMD |
3,753 | 7.71 |
RFQ |
Datasheet |
Bag | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 0.276 L x 0.217 W (7.00mm x 5.50mm) | 0.200 (5.08mm) |
|
TCK-088CMC 521UH 2LN TH |
2,779 | 7.71 |
RFQ |
Datasheet |
Bag | - | Active | - | 2 | - | 521 µH @ 100 kHz | - | - | 500V | - | -40°C ~ 105°C | - | - | - | Through Hole | 0.630 L x 0.630 W (16.00mm x 16.00mm) | 0.492 (12.50mm) |
|
|
TCK-087CMC 224UH 2LN TH |
3,559 | 7.71 |
RFQ |
Datasheet |
Tube | - | Active | - | 2 | - | 224 µH @ 100 kHz | - | - | 500V | - | -40°C ~ 105°C | - | - | - | Through Hole | 0.630 L x 0.630 W (16.00mm x 16.00mm) | 0.492 (12.50mm) |
|

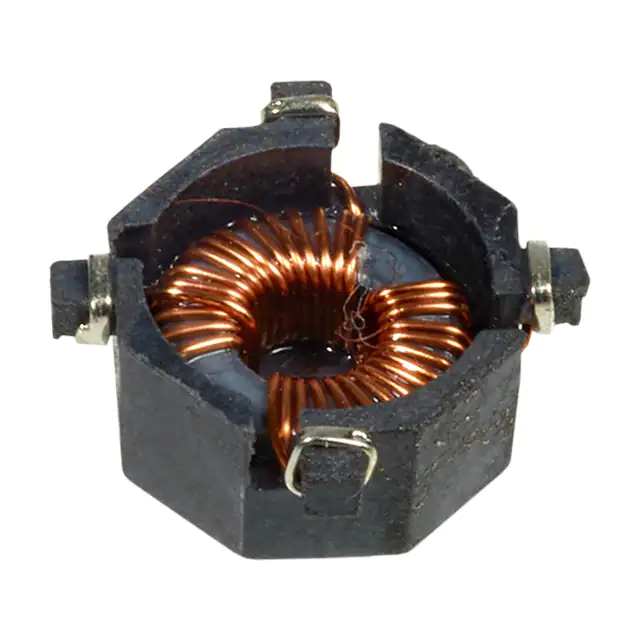

TCK-090CMC 470UH 1A 2LN SMD |
2,770 | 7.71 |
RFQ |
Datasheet |
Bag | - | Active | - | 2 | - | 470 µH @ 10 kHz | 1A | 60mOhm | 500V | - | -40°C ~ 105°C | - | - | - | Surface Mount | 0.465 L x 0.465 W (11.80mm x 11.80mm) | 0.197 (5.00mm) |
|
TCK-123CMC 1.219MH 4A 2LN TH |
2,638 | 7.71 |
RFQ |
Datasheet |
Bag | - | Active | - | 2 | - | 1.219 mH @ 100 kHz | 4A | - | 500V | - | -40°C ~ 105°C | - | - | - | Through Hole | - | 0.492 (12.50mm) |
|
TCK-127CMC 137UH 2LN TH |
3,415 | 7.95 |
RFQ |
Datasheet |
Bag | - | Active | - | 2 | - | 137 µH @ 10 kHz | - | 24mOhm | 500V | - | -40°C ~ 105°C | - | - | - | Through Hole | 0.335 L x 0.295 W (8.50mm x 7.50mm) | 0.413 (10.50mm) |
|
|
TCK-119CMC 419UH 780MA 2LN TH |
2,355 | 7.95 |
RFQ |
Datasheet |
Tube | - | Active | - | 2 | - | 419 µH @ 10 kHz | 780mA | - | 500V | - | -40°C ~ 105°C | - | - | - | Through Hole | 0.335 L x 0.295 W (8.50mm x 7.50mm) | 0.413 (10.50mm) |
|
TCK-162CMC 55.6UH 1A 4LN SMD |
2,042 | 4.18 |
RFQ |
Datasheet |
Bag | - | Active | - | 4 | - | 55.6 µH @ 100 kHz | 1A | 30mOhm | 500V | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.256 L x 0.236 W (6.50mm x 6.00mm) | 0.177 (4.50mm) |
|
|
TCK-099CMC 4.7UH 5A 2LN 23.3 MOHM SMD |
3,546 | 0.00 |
RFQ |
Bag | - | Obsolete | - | 2 | 23.3 mOhms @ 100 kHz | 4.7 µH @ 100 kHz | 5A | - | - | - | - | - | - | - | Surface Mount | 0.256 L x 0.256 W (6.50mm x 6.50mm) | - | |
|
|
TCK-100CMC TH |
3,735 | 0.00 |
RFQ |
Bag | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | Through Hole | - | - |
