| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FilterType | NumberofLines | Impedance@Frequency | Inductance@Frequency | CurrentRating(Max) | DCResistance(DCR)(Max) | VoltageRating-DC | VoltageRating-AC | OperatingTemperature | Ratings | ApprovalAgency | Features | MountingType | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

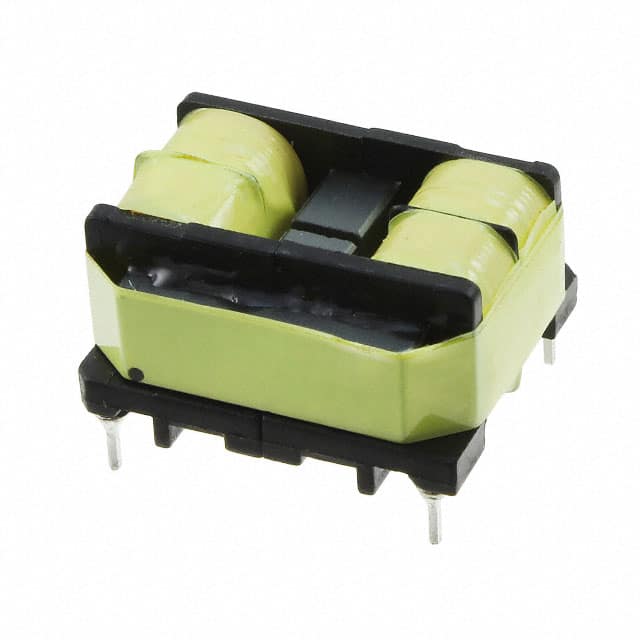

PA4040.002NLCMC 1.5A 2LN TH |
824 | 5.20 |
RFQ |
Datasheet |
Tray | PA4040 | Active | - | 2 | - | - | 1.5A | 120mOhm | - | - | -40°C ~ 125°C | - | - | - | Through Hole | 1.220 L x 0.980 W (31.00mm x 24.89mm) | 0.650 (16.50mm) |
|
|
PA4040.003NLCMC 2.5A 2LN TH |
824 | 5.20 |
RFQ |
Datasheet |
Tray | PA4040 | Active | - | 2 | - | - | 2.5A | 46mOhm | - | - | -40°C ~ 125°C | - | - | - | Through Hole | 1.220 L x 0.980 W (31.00mm x 24.89mm) | 0.650 (16.50mm) |
|
|
PA4040.001NLCMC 1A 2LN TH |
817 | 5.20 |
RFQ |
Datasheet |
Tray | PA4040 | Active | Power Line | 2 | - | - | 1A | 245mOhm | - | - | -40°C ~ 125°C | - | - | - | Through Hole | 1.220 L x 0.980 W (31.00mm x 24.89mm) | 0.650 (16.50mm) |
|

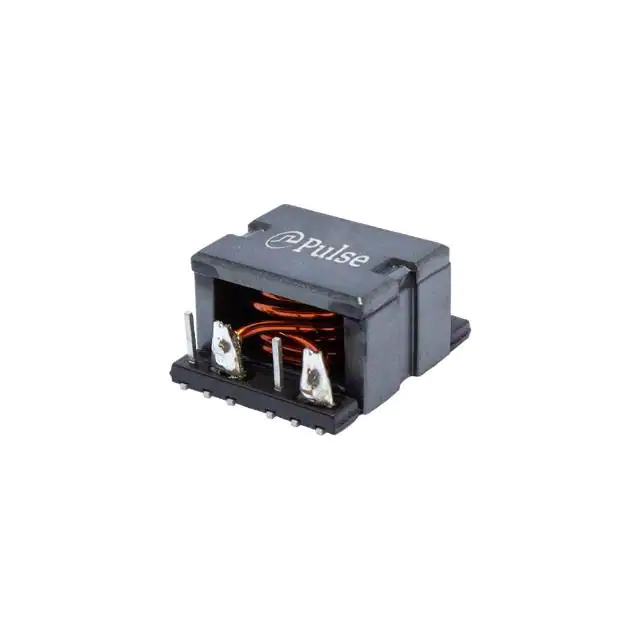

PH9407.304NLTCMC 14A 2LN 1.6KOHM SMD |
3,763 | 5.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PH9407 | Active | - | 2 | 1.6 kOhms @ 1.57 MHz | - | 14A | 4.8mOhm | - | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.961 L x 0.850 W (24.40mm x 21.60mm) | 0.630 (16.00mm) |
|
|
PH9407.404NLTCMC 12A 2LN 1.72KOHM SMD |
2,034 | 5.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PH9407 | Active | - | 2 | 1.72 kOhms @ 1.56 MHz | - | 12A | 5.3mOhm | - | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.961 L x 0.850 W (24.40mm x 21.60mm) | 0.665 (16.90mm) |
|
|
PH9407.504NLTCMC 10A 2LN 2.35KOHM SMD |
3,398 | 5.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PH9407 | Active | - | 2 | 2.35 kOhms @ 1.42 MHz | - | 10A | 7.8mOhm | - | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.961 L x 0.850 W (24.40mm x 21.60mm) | 0.665 (16.90mm) |
|
FE2X03-6-2NLCMC 4A 2LN TH |
3,756 | 5.92 |
RFQ |
Datasheet |
Tube | FE2X | Active | Power Line | 2 | - | - | 4A | 80mOhm | - | 250V | -40°C ~ 125°C | - | - | - | Through Hole | 1.276 L x 0.724 W (32.41mm x 18.39mm) | 1.394 (35.41mm) |
|
PA5141.305NLTCOMMON MODE CHOKE 260UH 26A |
3,489 | 6.06 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PA5141.XXXNL | Active | Signal Line | 2 | 1.05 kOhms @ 2.82 MHz | - | 26A | 2.1mOhm | - | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.957 L x 0.925 W (24.30mm x 23.50mm) | 0.894 (22.70mm) |
|
PA3747.106NLCMC 1.4A 2LN TH |
940 | 6.22 |
RFQ |
Datasheet |
Tray | PA3747 | Active | Power Line | 2 | - | - | 1.4A | 169mOhm | - | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.760 L x 0.717 W (19.30mm x 18.20mm) | 0.902 (22.90mm) |
|
|
PA3747.206NLCMC 1A 2LN TH |
940 | 6.22 |
RFQ |
Datasheet |
Tray | PA3747 | Active | - | 2 | - | - | 1A | 295mOhm | - | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.760 L x 0.717 W (19.30mm x 18.20mm) | 0.902 (22.90mm) |
|
|
PA3747.306NLCMC 750MA 2LN TH |
940 | 6.22 |
RFQ |
Datasheet |
Tray | PA3747 | Active | - | 2 | - | - | 750mA | 572mOhm | - | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.760 L x 0.717 W (19.30mm x 18.20mm) | 0.902 (22.90mm) |
|
|
PA3747.605NLCMC 1.55A 2LN TH |
940 | 6.22 |
RFQ |
Datasheet |
Tray | PA3747 | Active | - | 2 | - | - | 1.55A | 132mOhm | - | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.760 L x 0.717 W (19.30mm x 18.20mm) | 0.902 (22.90mm) |
|
|
PA3747.705NLCMC 1.5A 2LN TH |
940 | 6.22 |
RFQ |
Datasheet |
Tray | PA3747 | Active | Power Line | 2 | - | - | 1.5A | 134mOhm | - | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.760 L x 0.717 W (19.30mm x 18.20mm) | 0.902 (22.90mm) |
|
|
PA3747.905NLCMC 1.45A 2LN TH |
940 | 6.22 |
RFQ |
Datasheet |
Tray | PA3747 | Active | - | 2 | - | - | 1.45A | 154mOhm | - | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.760 L x 0.717 W (19.30mm x 18.20mm) | 0.902 (22.90mm) |
|
|
PA3747.505NLCMC 1.85A 2LN TH |
939 | 6.22 |
RFQ |
Datasheet |
Tray | PA3747 | Active | - | 2 | - | - | 1.85A | 103.5mOhm | - | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.760 L x 0.717 W (19.30mm x 18.20mm) | 0.902 (22.90mm) |
|
|
PA3747.305NLCMC 2.75A 2LN TH |
936 | 6.22 |
RFQ |
Datasheet |
Tray | PA3747 | Active | Power Line | 2 | - | - | 2.75A | 49.5mOhm | - | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.760 L x 0.717 W (19.30mm x 18.20mm) | 0.902 (22.90mm) |
|
|
PA3747.146NLCMC 1A 2LN TH |
925 | 6.22 |
RFQ |
Datasheet |
Tray | PA3747 | Active | - | 2 | - | - | 1A | 207mOhm | - | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.760 L x 0.717 W (19.30mm x 18.20mm) | 0.902 (22.90mm) |
|
|
PA3747.105NLCMC 5A 2LN TH |
590 | 6.22 |
RFQ |
Datasheet |
Tray | PA3747 | Active | - | 2 | - | - | 5A | 16mOhm | - | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.760 L x 0.717 W (19.30mm x 18.20mm) | 0.902 (22.90mm) |
|
PE-96178NLPE-96178NL |
2,457 | 4.12 |
RFQ |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
P0502NLCMC 14A 2LN SMD |
2,565 | 6.82 |
RFQ |
Datasheet |
Tube | - | Active | Power Line | 2 | - | - | 14A | 8mOhm | - | - | -40°C ~ 120°C | - | - | - | Surface Mount | 1.220 L x 1.000 W (30.99mm x 25.40mm) | 0.500 (12.70mm) |
