| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FilterType | NumberofLines | Impedance@Frequency | Inductance@Frequency | CurrentRating(Max) | DCResistance(DCR)(Max) | VoltageRating-DC | VoltageRating-AC | OperatingTemperature | Ratings | ApprovalAgency | Features | MountingType | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VCMB8102-RC2.5mH Min 2.4A Common Mode Choke |
2,990 | 6.75 |
RFQ |
Datasheet |
Box | - | Active | - | 2 | - | 2.5 mH @ 1 kHz | 2.4A | 90mOhm | - | - | -55°C ~ 105°C | - | - | - | Through Hole | 0.760 L x 0.425 W (19.30mm x 10.80mm) | 0.900 (22.86mm) |
|
VCM7111-RC.85mH @1KHz Common Mode Choke |
2,423 | 6.75 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | - | 2 | - | 850 µH @ 1 kHz | 3A | 0.03mOhm | - | - | -55°C ~ 105°C | - | - | - | Through Hole | 0.600 Dia x 0.450 W (15.24mm x 11.43mm) | - |
|
VCMBE8110-RC20mH Min, 2.9A Common Mode Choke |
3,758 | 6.95 |
RFQ |
Datasheet |
Box | - | Active | - | 2 | - | 20 mH @ 1 kHz | 2.9A | 210mOhm | - | - | -55°C ~ 105°C | - | - | - | Through Hole | 1.350 L x 0.800 W (34.29mm x 20.32mm) | 1.450 (36.83mm) |
|

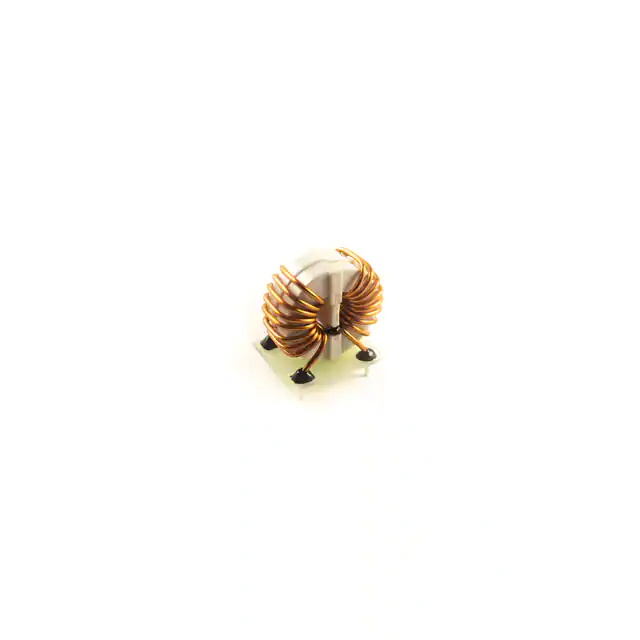

VCMB3023-601600uH V. Toroidal Choke |
2,507 | 7.25 |
RFQ |
Datasheet |
Tray | - | Active | - | 2 | - | 600 µH @ 10 kHz | 15A | 5.3mOhm (Typ) | - | - | -25°C ~ 120°C | - | - | - | Through Hole | 1.161 L x 0.906 W (29.50mm x 23.00mm) | 0.906 (23.00mm) |
|
AUU157-42275.3MH 20% LINE FILTER |
3,290 | 8.50 |
RFQ |
Datasheet |
Tray | - | Active | - | 2 | - | 5.3 mH @ 1 kHz | 1A | 369mOhm (Typ) | - | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.867 L x 0.709 W (22.02mm x 18.01mm) | 1.064 (27.03mm) |
|
AUU157-4706COMMON MODE LINE FILTER |
2,308 | 8.50 |
RFQ |
Datasheet |
Tray | - | Active | - | 2 | - | 10 mH @ 1 kHz | 1.5A | 220mOhm Max | - | - | -55°C ~ 105°C | - | - | - | Through Hole | 0.906 L x 0.768 W (23.00mm x 19.50mm) | 1.083 (27.50mm) |
|
VCMB4332-602-10A6mH +50%/-30% VM Comm Mode Choke |
2,570 | 8.50 |
RFQ |
Datasheet |
Box | - | Active | - | 2 | - | 6 mH @ 100 kHz | 10A | 12mOhm | - | - | -40°C ~ 100°C | - | - | - | Through Hole | 1.575 L x 1.024 W (40.00mm x 26.00mm) | 1.575 (40.00mm) |
|

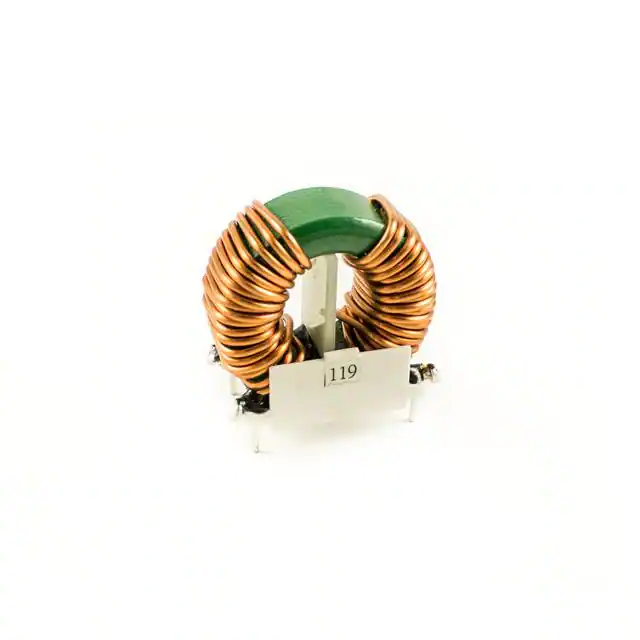

VCMB8119-RC4mH Min 14.5A Common Mode Choke |
3,522 | 8.75 |
RFQ |
Datasheet |
Tape & Reel (TR) | VCMB810 | Active | - | 2 | - | 4 mH @ 1 kHz | 14.5A | 12mOhm | - | - | -55°C ~ 105°C | - | - | - | Through Hole | 1.700 L x 0.900 W (43.18mm x 22.86mm) | 1.650 (41.91mm) |
|
|
VCMB8121-RC1.0mH Min 20A Common Mode Choke |
3,584 | 8.75 |
RFQ |
Datasheet |
Tape & Reel (TR) | VCMB810 | Active | - | 2 | - | 1 mH @ 1 kHz | 20A | 7mOhm | - | - | -55°C ~ 105°C | - | - | - | Through Hole | 1.700 L x 0.900 W (43.18mm x 22.86mm) | 1.650 (41.91mm) |
|
VCM7104-RC2.55MH, COMMON MODE CHOKE |
3,334 | 9.50 |
RFQ |
Datasheet |
Tray | - | Active | - | 2 | - | 2.55 mH @ 1 kHz | 1A | 100mOhm | - | - | -55°C ~ 105°C | - | - | - | Through Hole | 0.700 Dia x 0.450 L (17.78mm x 11.43mm) | - |
|
VCMB8110-RC20MH, COMMON MODE CHOKE |
3,150 | 9.50 |
RFQ |
Datasheet |
Tray | - | Active | - | 2 | - | 20 mH @ 1 kHz | 2.9A | 210mOhm | - | - | -55°C ~ 105°C | - | - | - | Through Hole | 1.350 L x 0.800 W (34.29mm x 20.32mm) | 1.450 (36.83mm) |
|
VCMB744826-501N0.5mH @100KHz Pwr Line Comm.Mode |
2,333 | 9.50 |
RFQ |
Datasheet |
Box | - | Active | Power Line | 2 | - | 500 µH @ 100 kHz | 35A | 2.3mOhm | - | 250V | -40°C ~ 125°C | - | - | - | Through Hole | 1.850 L x 0.925 W (47.00mm x 23.50mm) | 1.693 (43.00mm) |
|
|
VCM7105-RC4.25mH @1KHz Common Mode Choke |
3,543 | 9.50 |
RFQ |
Datasheet |
Box | VCM710 | Active | - | 2 | - | 4.25 mH @ 1 kHz | 1A | 125mOhm | - | - | -55°C ~ 105°C | - | - | - | Through Hole | 0.700 Dia (17.78mm) | 0.450 (11.43mm) |
|
VCMB82726-162N.6mH +/-30% Vert. Mount Toroid |
3,495 | 9.75 |
RFQ |
Datasheet |
Tape & Reel (TR) | VCMB82726 | Active | Power Line | 2 | - | 1.6 mH @ 10 kHz | 20A | 4.5mOhm | - | - | -40°C ~ 125°C | - | - | - | Through Hole | 1.772 L x 0.984 W (45.00mm x 25.00mm) | 1.614 (41.00mm) |
|
VCM5222-743-15A7.43mH Toroidal Comm. Mode Choke |
3,099 | 10.25 |
RFQ |
Datasheet |
Tray | VCM5222-743-15A | Active | - | 2 | - | 7.43 mH @ 10 kHz | 15A | 30mOhm | - | - | -40°C ~ 125°C | - | - | - | Through Hole | 2.051 Dia (52.10mm) | 2.051 (52.10mm) |
