| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2015699-1CBL ASSY UMCC PLUG-PLUG 3.937 |
26,167 | 1.53 |
RFQ |
Datasheet |
Bag | UMCC | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C |
|
2015357-3CBL ASSY UMCC PLUG-PLUG 3.937 |
23,993 | 2.65 |
RFQ |
Datasheet |
Bag | UMCC | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
|
2015357-4CBL ASSY UMCC PLUG-PLUG 7.874 |
8,361 | 2.65 |
RFQ |
Datasheet |
Bag | UMCC | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
2016682-4RF CA,SMA BK TO UMCC GEN1,1.13,L |
1,072 | 5.57 |
RFQ |
Datasheet |
Box | - | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -45°C ~ 85°C |
|
2032439-1CBL ASSY SMA-UMCC PLUG 7.874 |
930 | 9.41 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC) to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
2032440-1CBL ASSY SMA-UMCC 7.874 |
10,252 | 11.10 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C |
|

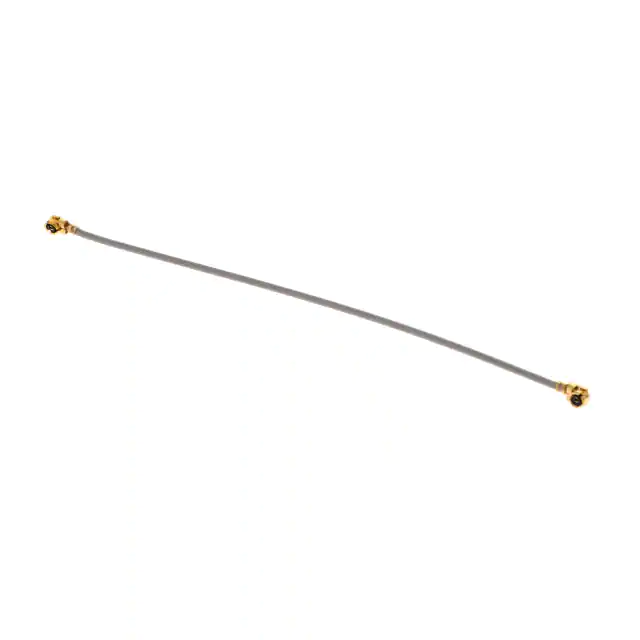

2118651-6RF CA,UMCC GEN1-GEN1,1.13,L90,GY |
10,366 | 0.99 |
RFQ |
Datasheet |
Bag | UMCC | Active | U.FL (UMCC), IPEX MHF1 to U.FL (UMCC), IPEX MHF1 | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.543 (90.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | - |
|
2015698-2CABLE ASSY UMCC PLUG-PLUG II .1M |
13,566 | 1.61 |
RFQ |
Datasheet |
Bag | UMCC | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C |
|
2016677-4RF CA,UMCC TO UMCC,0.81MM CABLE |
333 | 333.00 |
RFQ |
Datasheet |
Bag | UMCC | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.150 (80.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
2016693-2RF CA,RP-SMA BULKHEAD TO UMCC I |
1,899 | 1899.00 |
RFQ |
Datasheet |
Box | - | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | Shielded |
|
2016695-2RF CA,RP-SMA BULKHEAD TO UMCC IV |
4,530 | 5.47 |
RFQ |
Datasheet |
Box | - | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -45°C ~ 85°C |
|
|
2016693-4RF CA,RP-SMA BULKHEAD TO UMCC I |
4,229 | 4229.00 |
RFQ |
Datasheet |
Box | - | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | Shielded |
|
|
2016694-2RF CA,SMA BULKHEAD TO UMCC IV,L1 |
891 | 5.47 |
RFQ |
Datasheet |
Box | - | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -45°C ~ 85°C |
|
|
2016682-2RF CA,SMA BK TO UMCC GEN1,1.13,L |
1,849 | 5.50 |
RFQ |
Datasheet |
Box | - | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 85°C |
|
1064540-1CBL ASSY SSMT JACK 12 |
241 | 8.87 |
RFQ |
Datasheet |
Bag | - | Active | SSMT to Cable | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 12.00 (304.80mm) | - | - | - | 50 Ohms | 6 GHz | Blue | Shielded | -40°C ~ 125°C |
|
1064524-1CBL ASSY SSMT JACK-JACK 3.937 |
347 | 13.93 |
RFQ |
Datasheet |
Bag,Bag | - | Active | SSMT to SSMT | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | - | - | - | 50 Ohms | 6 GHz | Blue | Shielded | -40°C ~ 125°C |
|
1064535-1CBL ASSY SSMT JACK 3.937 |
1,050 | 12.28 |
RFQ |
Datasheet |
Bag | - | Active | SSMT to Cable | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 3.937 (100.00mm) | - | - | - | 50 Ohms | 6 GHz | Blue | Shielded | -40°C ~ 125°C |
|
1064538-1CBL ASSY SSMT JACK 7.874 |
326 | 9.73 |
RFQ |
Datasheet |
Bag | - | Active | SSMT to Cable | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 7.874 (200.00mm) | - | - | - | 50 Ohms | 6 GHz | Blue | Shielded | -40°C ~ 125°C |
|
1064542-1CBL ASSY SSMT JACK 20.08 |
131 | 15.71 |
RFQ |
Datasheet |
Bag | - | Active | SSMT to Cable | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 20.08 (510.00mm) | - | - | - | 50 Ohms | 6 GHz | Blue | Shielded | -40°C ~ 125°C |
|
2016695-4RF CA,RP-SMA BULKHEAD TO MHF4 |
4,960 | 5.50 |
RFQ |
Datasheet |
Box | - | Active | RP-SMA to IPEX MHF4 | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | IPEX MHF4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -45°C ~ 85°C |
