Coaxial Cables (RF)(65506)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

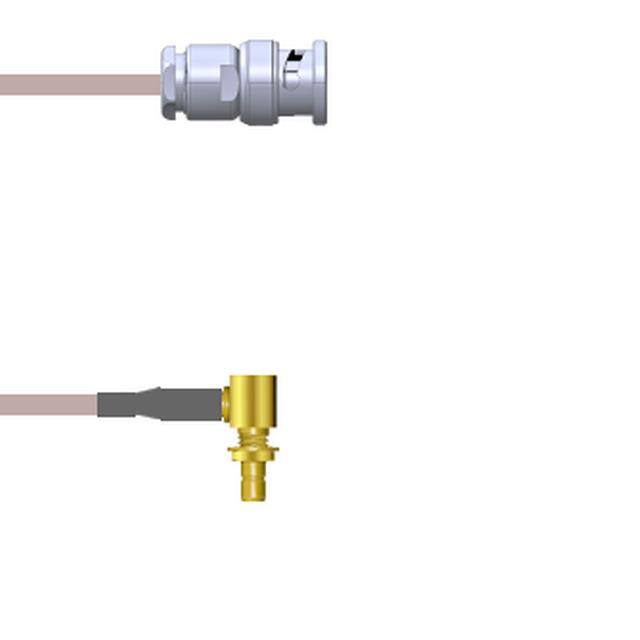

Q-0J03H0005036iCBL ASY BNC-SMB P-J RG316 36 |
2,889 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Plug | Male | Free Hanging (In-Line) | - | SMB Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 36.00 (914.40mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

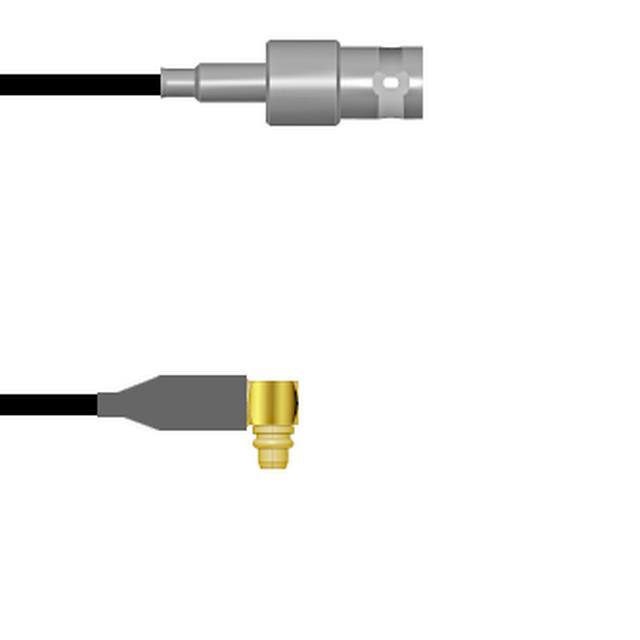

Q-0301N0003108iCBL ASY BNC-MMCX J TO P RG174 9' |
2,360 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Jack | Female | - | - | MMCX Plug, Right Angle | Male | - | - | 108.0 (2.7m) 9.0' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|
Q-2C0440005048iCBL ASSY SMP-N PLUG RG316 4' |
3,135 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMP to N-Type | SMP Plug | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 48.0 (1.2m) 4.0' | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

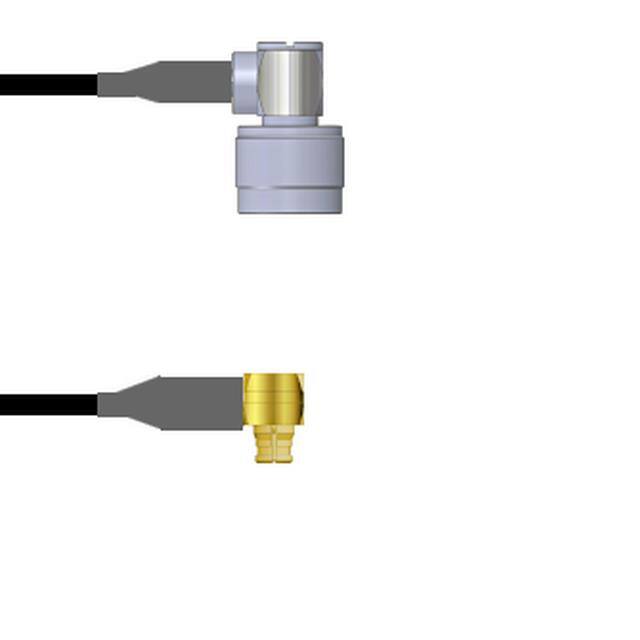

Q-2C0420003003MCBL ASSY SMP-N PLUG RG174 3M |
2,592 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMP to N-Type | SMP Plug, Right Angle | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 118.1 (3.0m) 9.8' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

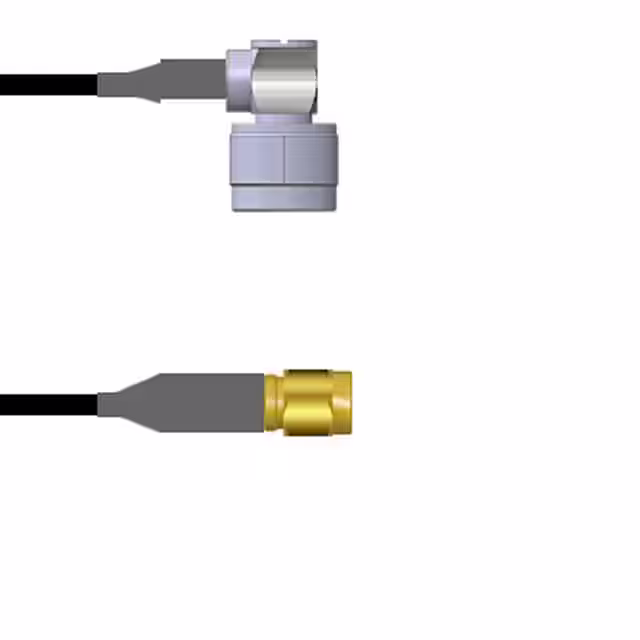

Q-2F0690008012iCBL ASSY RP-SMA TO N PL RG58 12 |
3,555 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to N-Type | RP-SMA Plug | Female | - | - | N-Type Plug, Right Angle | Male | - | - | 12.00 (304.80mm) | RG-58 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

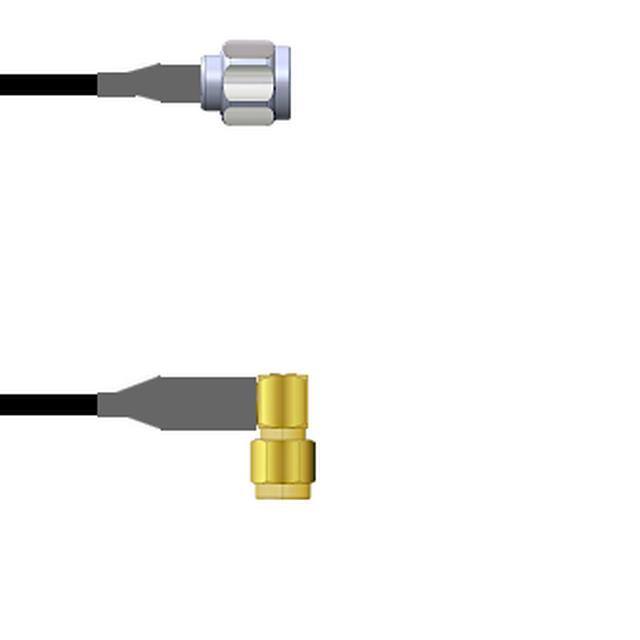

Q-2O037000D012iCBL ASSY SMA-N PLUG 12 |
4,000 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 12.00 (304.80mm) | LMR 195 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

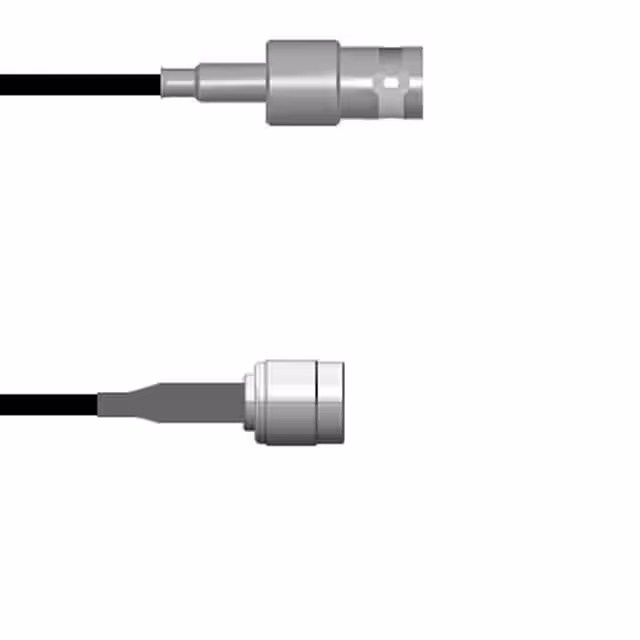

Q-030520003108iCBL ASY BNC-TNC J TO P RG174 9' |
3,334 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Jack | Female | - | - | TNC Plug | Male | - | - | 108.0 (2.7m) 9.0' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

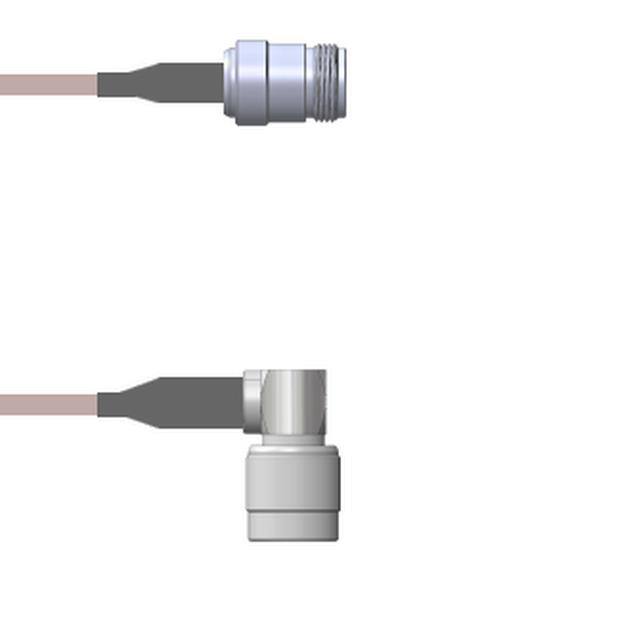

Q-2404X000H108iCBL ASY N TO TNC J TO P RG142 9' |
2,670 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | - | - | TNC Plug, Right Angle | Male | - | - | 108.0 (2.7m) 9.0' | RG-142 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

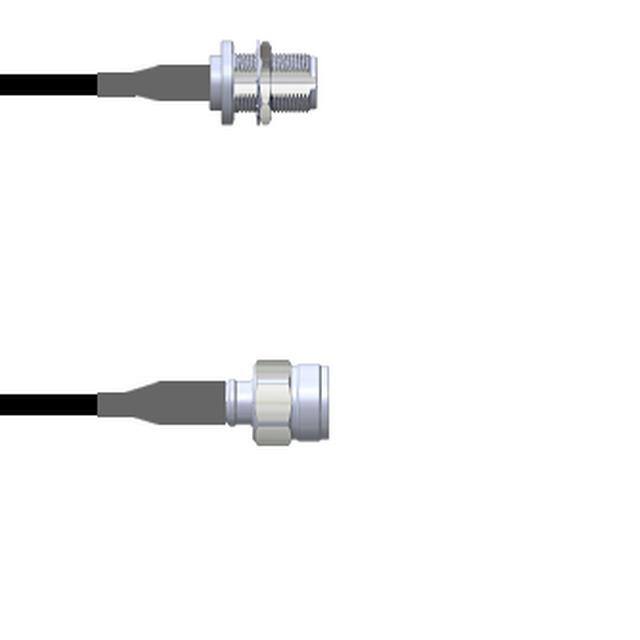

Q-26059000M1.5MCBL ASSY N TO TNC JK TO PLG 1.5M |
3,348 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 59.1 (1.5m) 4.9' | LMR 240 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

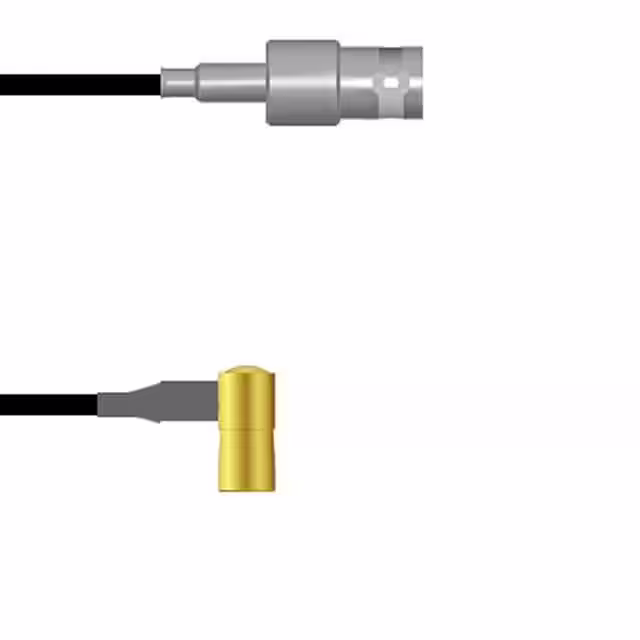

Q-0303S0003002MCBL ASY BNC-SMB J TO P RG174 2M |
2,728 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Jack | Female | - | - | SMB Plug, Right Angle | Male | - | - | 78.7 (2.0m) 6.6' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

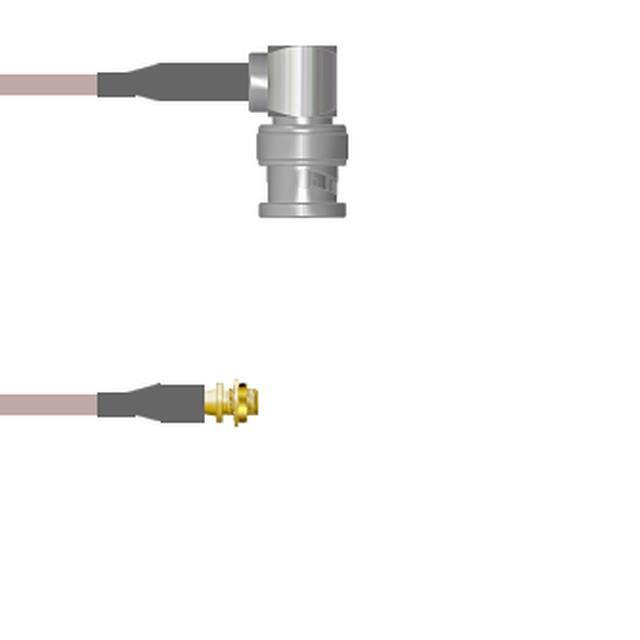

Q-0D01I0005048iCBL ASY BNC-MMCX P-J RG316 4' |
3,598 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | MMCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 48.0 (1.2m) 4.0' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

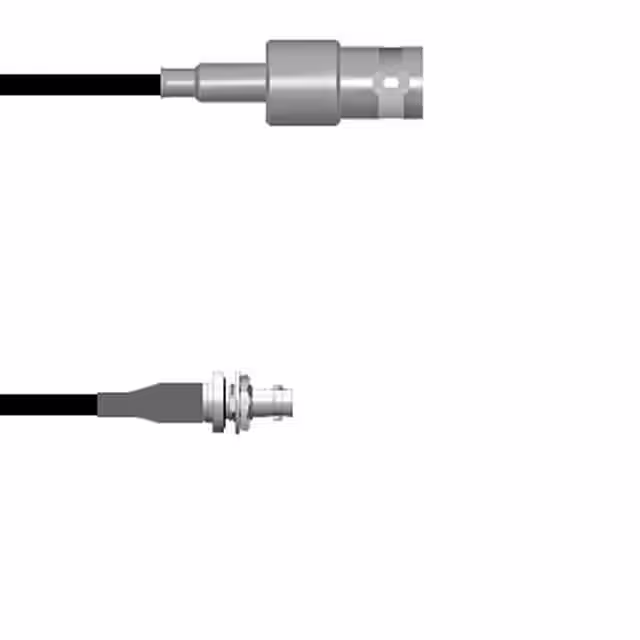

Q-0300P00031.5MCBL ASY BNC-HD-BNC JK RG174 1.5M |
3,806 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 59.1 (1.5m) 4.9' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

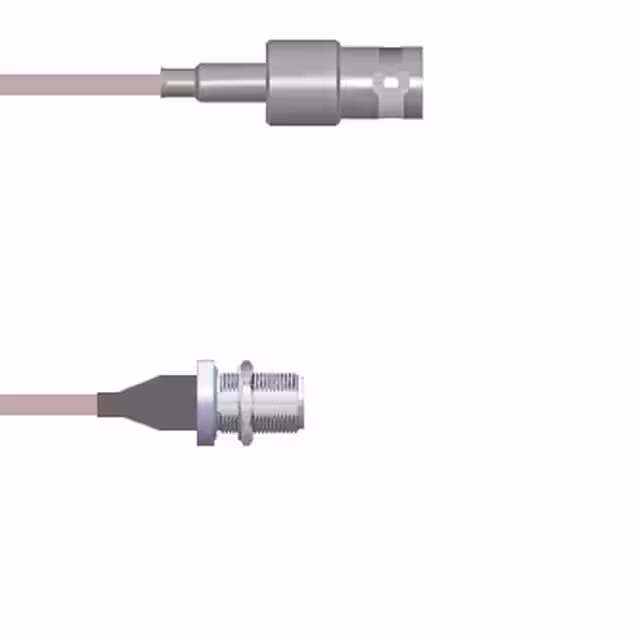

Q-0301U0005003iCBL ASSY BNC-N-TYP JACK RG316 3 |
2,236 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 3.000 (76.20mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

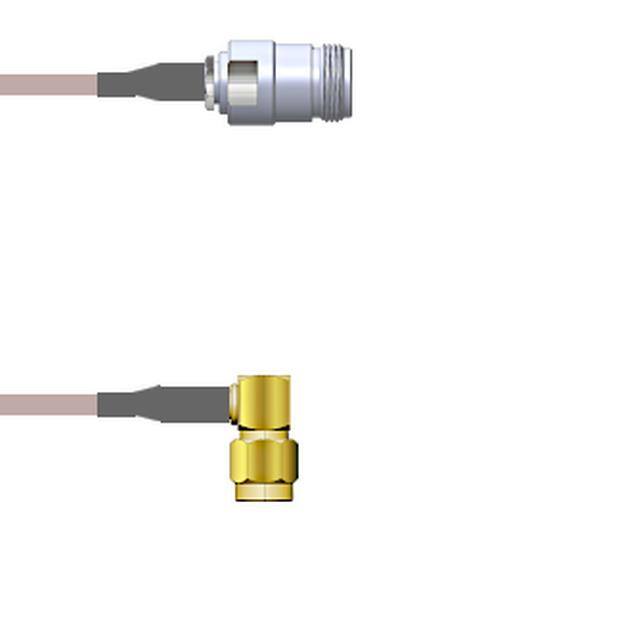

Q-1V035000R006iCBL ASY SMA-N P-J RG316 DB 6 |
3,762 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug, Right Angle | Male | - | - | N-Type Jack | Female | - | - | 6.000 (152.40mm) | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

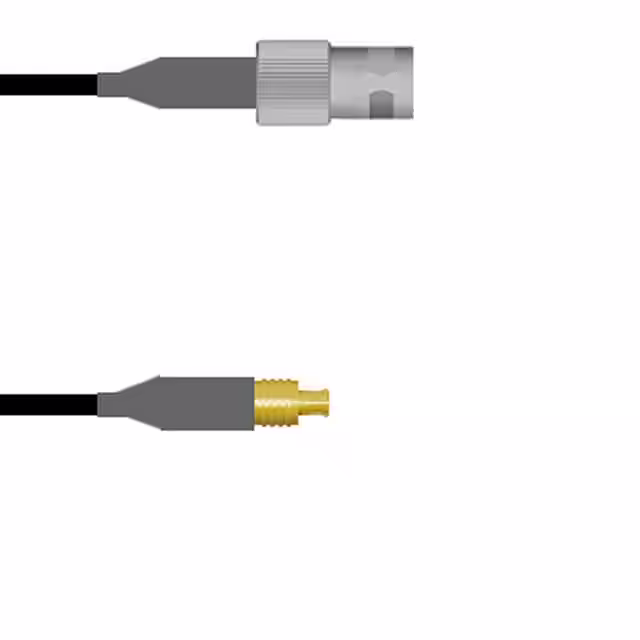

Q-0901E0008.25MCBL ASSY BNC-MCX J-P RG58 9.843 |
2,103 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Jack | Female | - | - | MCX Plug | Male | - | - | 9.843 (250.00mm) | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

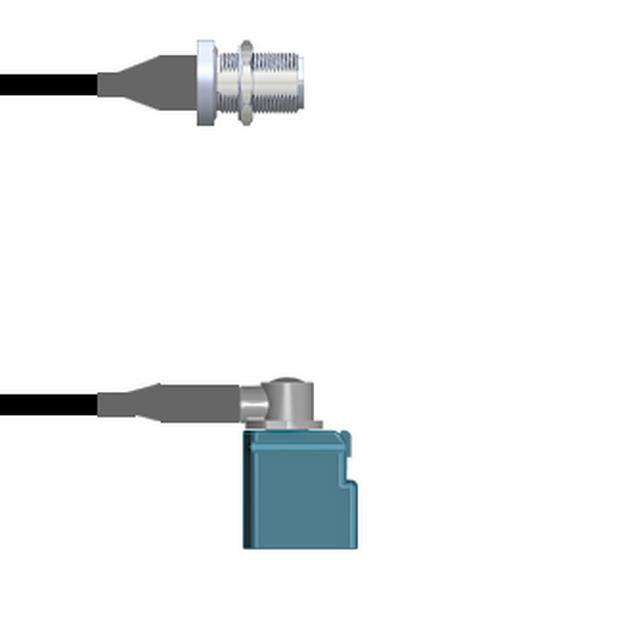

Q-1U05C0003084iCBL ASSY N-FAKRA JACK RG174 7' |
3,230 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to Fakra | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Fakra Jack, Right Angle | Female | Free Hanging (In-Line) | - | 84.0 (2.1m) 7.0' | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - |
|

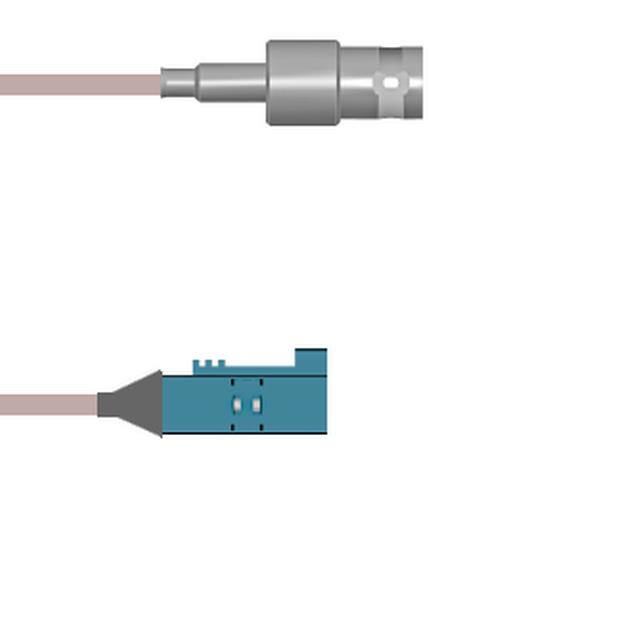

Q-0305E0005024iCBL ASSY BNC-FAKRA JCK RG316 24 |
3,841 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to Fakra | BNC Jack | Female | - | - | Fakra Jack | Female | - | - | 24.00 (609.60mm) | RG-316 | - | - | 50 Ohms | 3 GHz | Copper | Shielded | - |
|

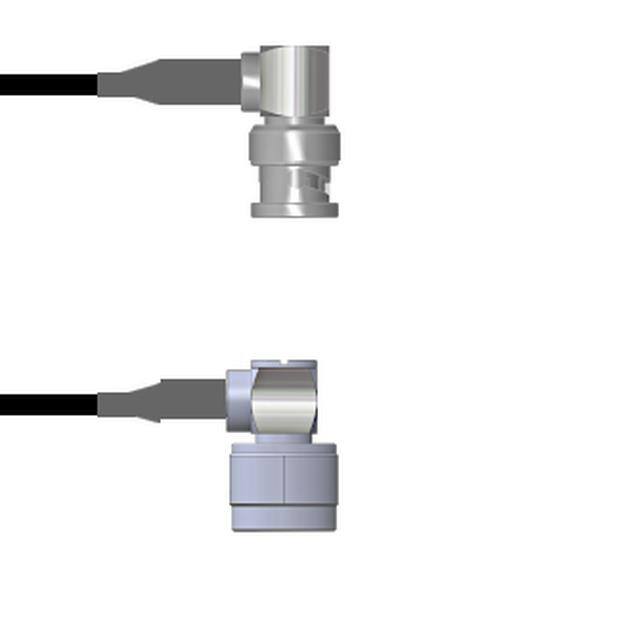

Q-0E02F00082.5MCBL ASSY BNC-N-TYP PLG RG58 2.5M |
3,513 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Plug, Right Angle | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 98.4 (2.5m) 8.2' | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

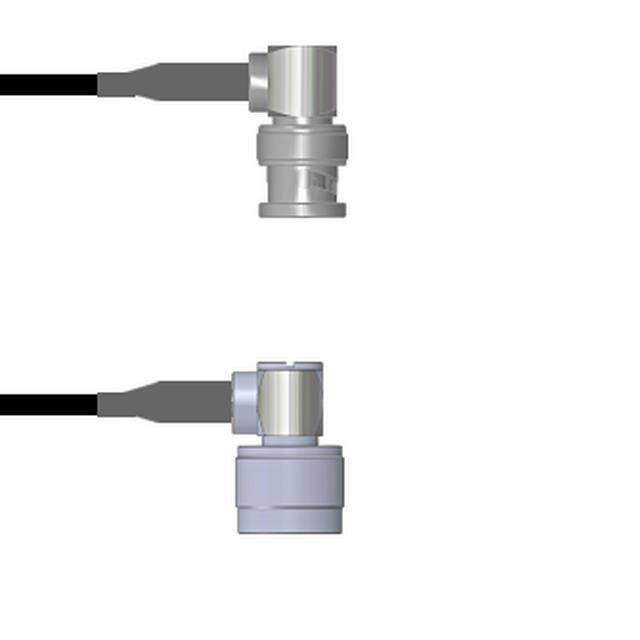

Q-0D02C0003048iCBL ASSY BNC-N-TYP PLUG RG174 4' |
2,044 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Plug, Right Angle | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 48.0 (1.2m) 4.0' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

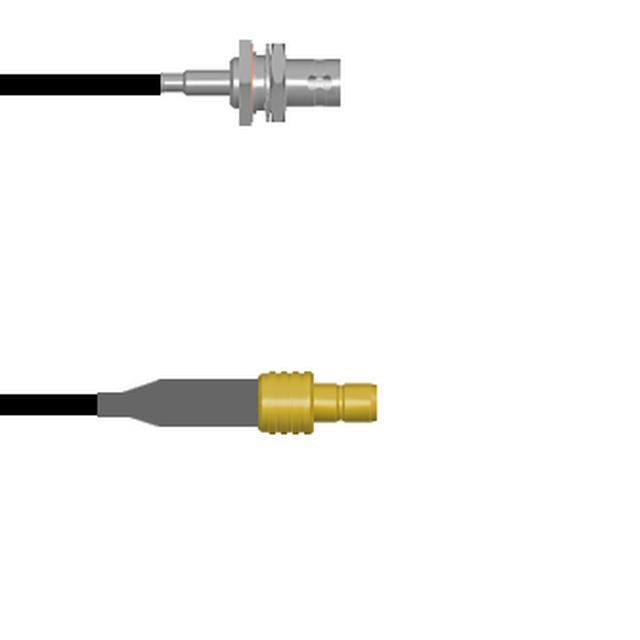

Q-0403L00030.5MCBL ASSY BNC-SMB JK RG174 19.69 |
3,680 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Jack | Female | Free Hanging (In-Line) | - | 19.69 (500.00mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
