Coaxial Cables (RF)(65506)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
135100-01-06.00SMA STRAIGHT PLUG TO BLUNT CUT R |
2,722 | 11.53 |
RFQ |
Datasheet |
Bag | - | Active | SMA to Cable | SMA Plug | Male | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 6.000 (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|
CSI-SGFI-300-UFFRCBL ASSY SMA-UMCC 11.811 |
1,964 | 11.54 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811 (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | - |
|
CCMX2-MM-RG178-24CBL ASSY MMCX PLUG RG178 24 |
2,798 | 11.87 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to MMCX | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C |
|

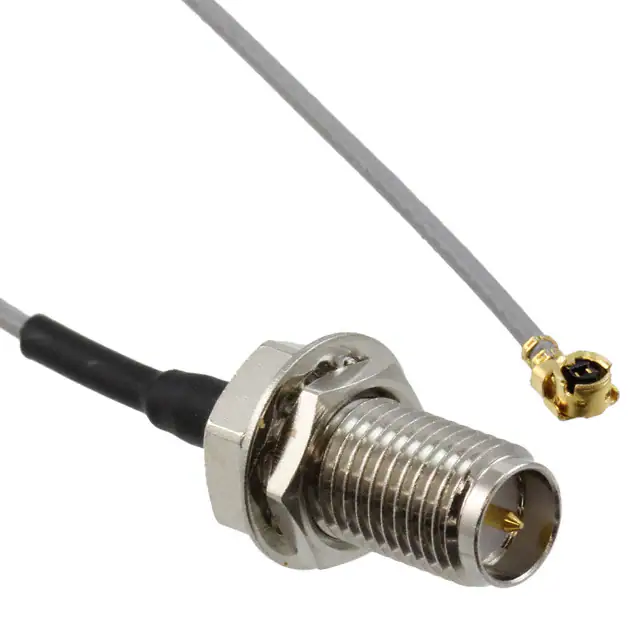

CSI-RSFB-200-UFFRCBL ASSY RP-SMA-UMCC 7.874 |
2,013 | 11.92 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | - |
|

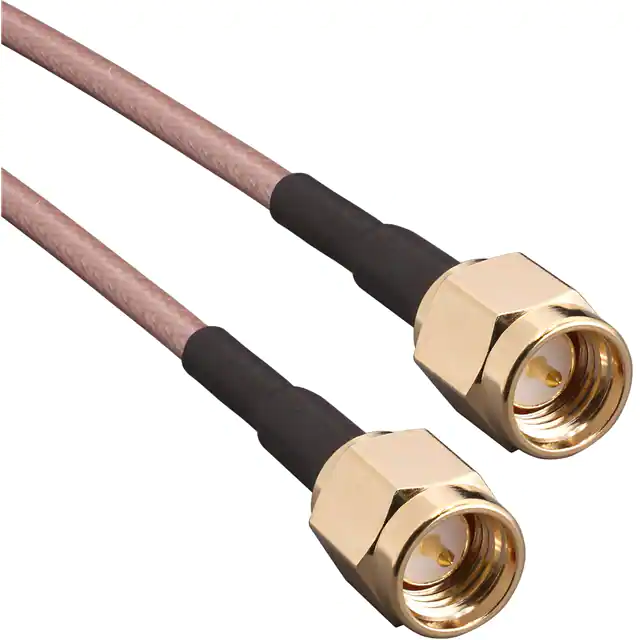

CSE-SGAM-152-SGAMCBL ASSY SMA PLUG RG316 6.000 |
318 | 12.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 8 GHz | Copper | - | 105°C |
|
415-0057-024CBL ASSY BNC PLUG-PLUG RG59 24 |
276 | 12.07 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-59 | 75 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | Shielded | - |
|
CABLE 375 RF-150-A-2CBL ASSY MHF1-SMA 5.906 |
332 | 12.13 |
RFQ |
Datasheet |
Bag | Nautilus | Active | IPEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906 (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 85°C |
|
CABLE 378 RF-200-A-1CBL ASSY RP-SMA-MHF4L 7.874 |
162 | 12.24 |
RFQ |
Datasheet |
Bag | Nautilus | Active | RP-SMA to IPEX MHF4L | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | IPEX MHF4L Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C |
|
CABLE 385 RF-200-A-2CBL ASSY MHF4L-SMA 7.874 |
3,226 | 12.27 |
RFQ |
Datasheet |
Bag | Nautilus | Active | SMA to IPEX MHF4L | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | IPEX MHF4L Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C |
|
CCMX-MM-RG178-24CBL ASSY MMCX PLUG RG178 24 |
3,463 | 12.29 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C |
|
CCSMX1-FBM-RG178-24CBL ASSY SMA-MMCX RG178 24 |
211 | 12.38 |
RFQ |
Datasheet |
Bag | - | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C |
|
|
CSE-SGAM-305-SGAMCBL ASSY SMA PLUG RG316 12.00 |
848 | 12.44 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | 8 GHz | Copper | - | 105°C |
|
|
415-0057-036CBL ASSY BNC PLUG-PLUG RG59 36 |
526 | 12.49 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | RG-59 | 75 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | Shielded | - |
|
59-012-1MCBL ASSY BNC PLUG-PLUG RG59 12 |
159 | 12.53 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-59 | 75 Ohms | - | 75 Ohms | - | Black | Shielded | 80°C |
|

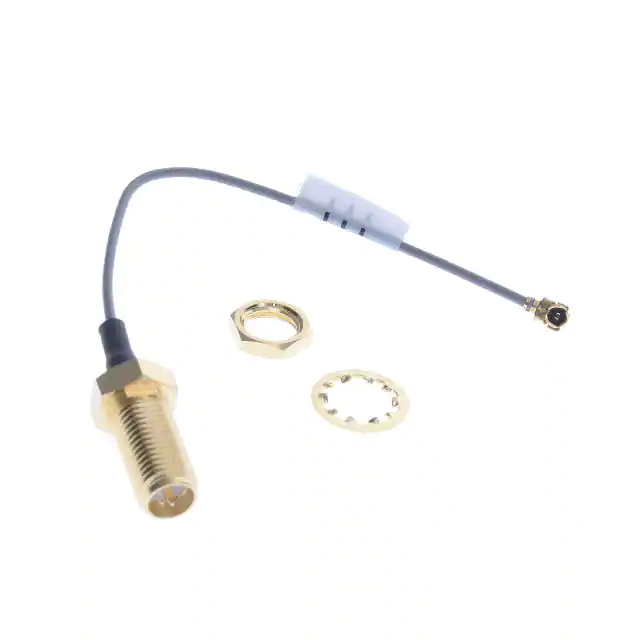

MH113-MH1RP-01BJ2-0100MICRO HIGH FREQ RF CABLES |
127 | 12.55 |
RFQ |
Datasheet |
Bag | MH113 | Active | U.FL (UMCC), IPEX MHF1 to SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C |
|
CCSMA-MM-RG174-6CBL ASSY SMA PLUG-PLUG RG174 6 |
2,388 | 12.88 |
RFQ |
Datasheet |
Bulk | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C |
|

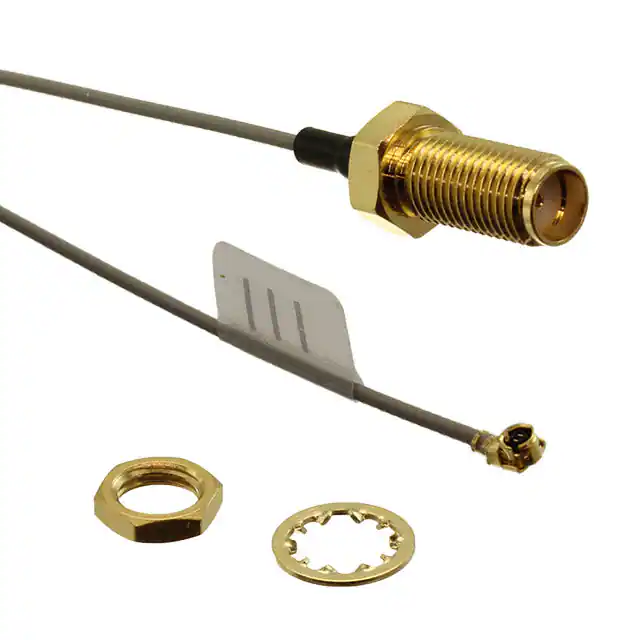

MH113-MH1RP-01BJ1-0150CBL ASSEM RF 1.13MM |
2,829 | 12.89 |
RFQ |
Datasheet |
Bag | MH113 | Active | U.FL (UMCC), IPEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906 (150.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C |
|
BU-4150028036CBL ASSY SMA-BNC PLUG RG316 36 |
163 | 12.90 |
RFQ |
Datasheet |
Bulk | BU | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | -65°C ~ 150°C |
|

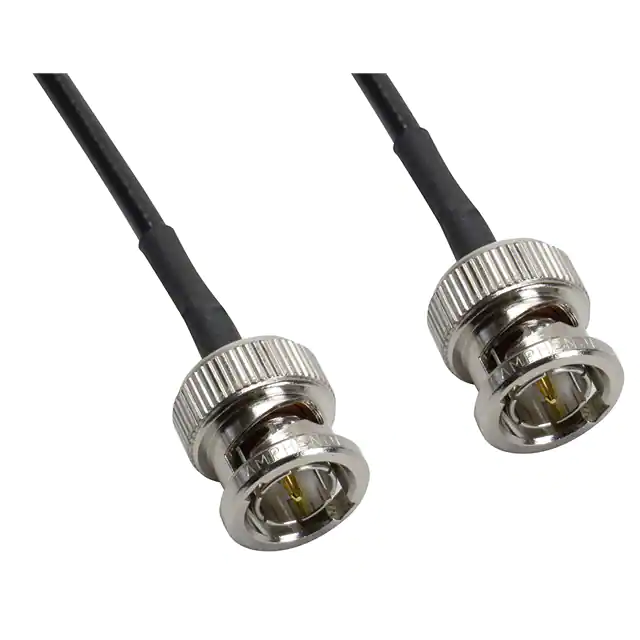

CO-174BNCX200-001CBL ASSY BNC PLUG RG174 12 |
387 | 12.91 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-174 | 50 Ohms | - | - | 6 GHz | Black | Shielded | -40°C ~ 85°C |
|
115101-19-06.00CBL ASSY BNC PLUG-PLUG RG58 6 |
850 | 12.98 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - |
