| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Q-0300D0003003iCBL ASSY BNC JCK TO PLG RG174 3 |
2,041 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | - | - | BNC Plug, Right Angle | Male | - | - | 3.000 (76.20mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|
Q-040710003001MCBL ASSY RP-SMA-BNC JCK RG174 1M |
2,067 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to BNC | RP-SMA Jack | Male | Free Hanging (In-Line) | - | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 39.4 (1.0m) 3.3' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

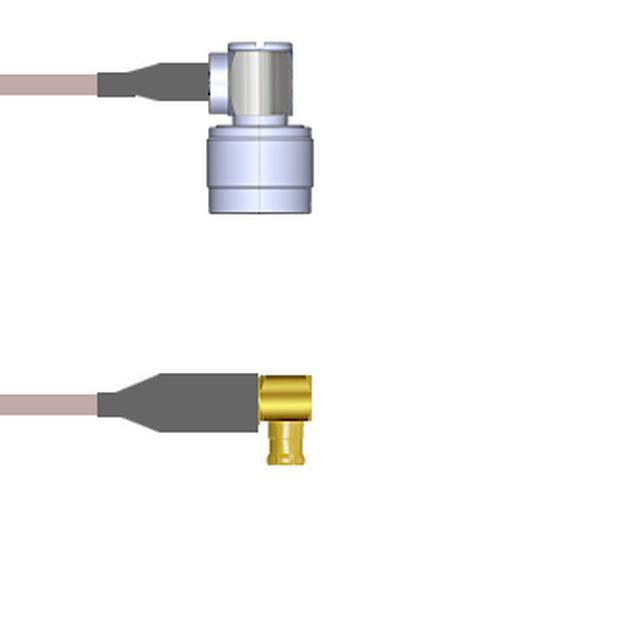

Q-2D017000R.75MCBL ASSY MCX-N PLUG RG316 29.53 |
2,212 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Plug, Right Angle | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 29.53 (750.00mm) | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|
Q-61061000K009iCBL ASSY BNC PLUG 9 |
2,858 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | - | - | BNC Plug | Male | - | - | 9.000 (228.60mm) | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - |
|
Q-2C0140005060iCBL ASY MCX-N JK TO PLG RG316 5' |
3,655 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Jack | Female | - | - | N-Type Plug, Right Angle | Male | - | - | 60.0 (1.5m) 5.0' | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|
Q-0103K0001108iCBL ASSY BNC-SMB JACK RG178 9' |
3,701 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 108.0 (2.7m) 9.0' | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-2F05D0008024iCBL ASY N-FAKRA P-J RG58 24 |
3,539 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to Fakra | N-Type Plug, Right Angle | Male | - | - | Fakra Jack, Right Angle | Female | - | - | 24.00 (609.60mm) | RG-58 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - |
|

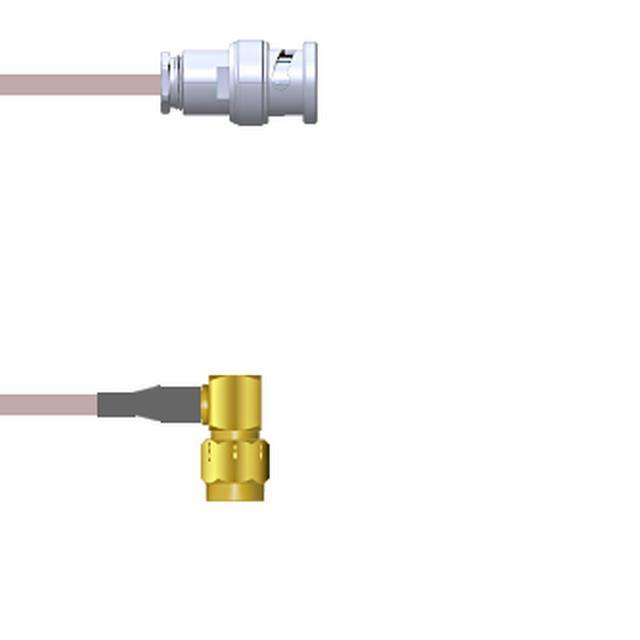

Q-0I03300012.5MCBL ASSY BNC-SMA PLUG RG178 2.5M |
2,593 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Plug | Male | - | - | SMA Plug, Right Angle | Male | - | - | 98.4 (2.5m) 8.2' | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-2G019000H002MCBL ASSY MCX-N PLUG RG142 2M |
2,346 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Plug, Right Angle | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 78.7 (2.0m) 6.6' | RG-142 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|
Q-0D01N0003006iCBL ASSY BNC-MMCX PLUG RG174 6 |
3,953 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Plug, Right Angle | Male | - | - | MMCX Plug, Right Angle | Male | - | - | 6.000 (152.40mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

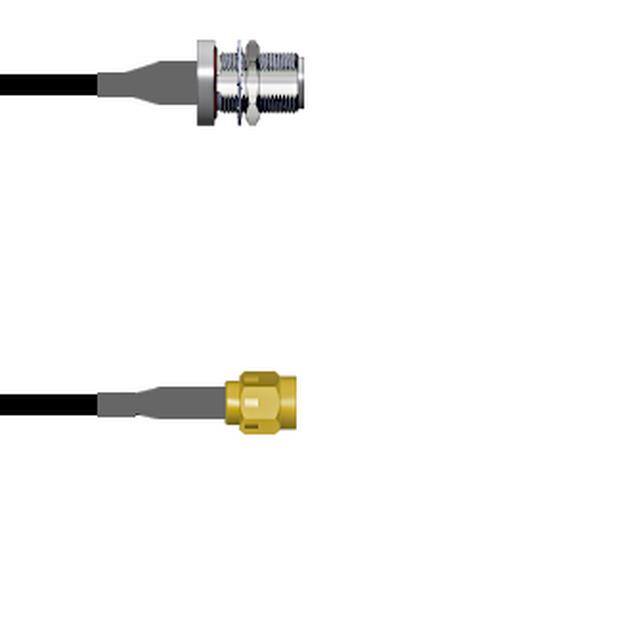

Q-1T03B00032.5MCBL ASY SMA-N P-J RG174 2.5M |
2,726 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 98.4 (2.5m) 8.2' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|
Q-0D00D0005084iCBL ASSY BNC PLUG RG316 7' |
3,770 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug, Right Angle | Male | - | - | BNC Plug, Right Angle | Male | - | - | 84.0 (2.1m) 7.0' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-2C02I0005006iCBL ASSY N-TYPE PLUG RG316 6 |
2,673 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Plug, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 6.000 (152.40mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|
Q-090690008048iCBL ASY RP-SMA-BNC P-J RG58 4' |
2,056 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to BNC | RP-SMA Plug | Female | - | - | BNC Jack | Female | - | - | 48.0 (1.2m) 4.0' | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

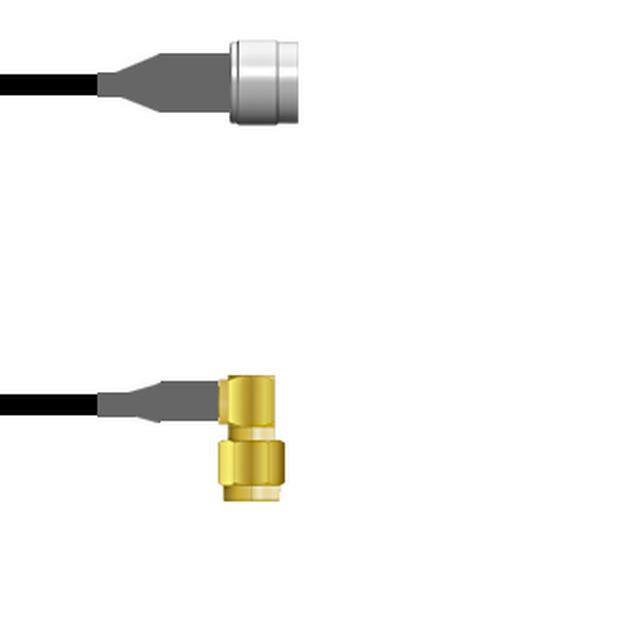

Q-2I0340003.75MCBL ASSY SMA-N PLUG RG174 29.53 |
2,258 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 29.53 (750.00mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|
Q-090690008018iCBL ASSY RP-SMA-BNC P-J RG58 18 |
3,126 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to BNC | RP-SMA Plug | Female | - | - | BNC Jack | Female | - | - | 18.00 (457.20mm) | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|
Q-0J01T0003036iCBL ASSY BNC-N-TYPE RG174 36 |
2,853 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 36.00 (914.40mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|
Q-0305C0005003MCBL ASSY BNC-FAKRA JACK RG316 3M |
2,888 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to Fakra | BNC Jack | Female | - | - | Fakra Jack, Right Angle | Female | - | - | 118.1 (3.0m) 9.8' | RG-316 | - | - | 50 Ohms | 3 GHz | Copper | Shielded | - |
|
Q-0D0520005.25MCBL ASSY BNC-TNC PL RG316 9.843 |
3,879 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Plug, Right Angle | Male | - | - | TNC Plug | Male | - | - | 9.843 (250.00mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

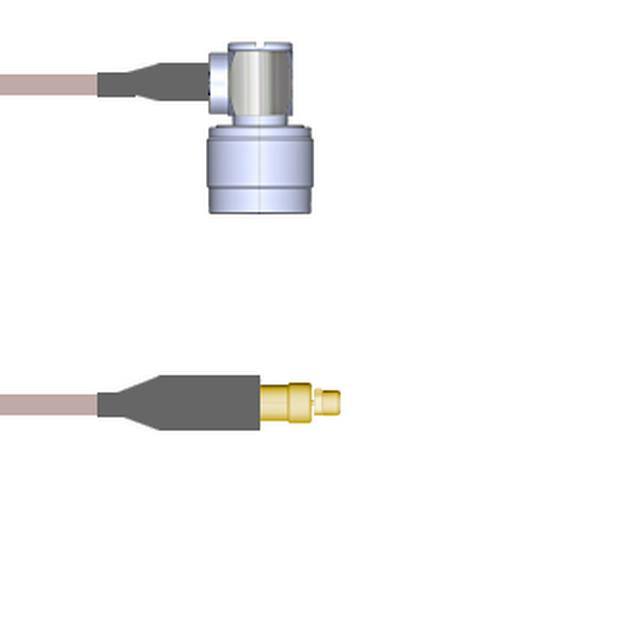

Q-2D01R000R084iCBL ASSY MMCX-N PLUG RG316 DB 7' |
2,732 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to N-Type | MMCX Plug | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 84.0 (2.1m) 7.0' | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
