| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

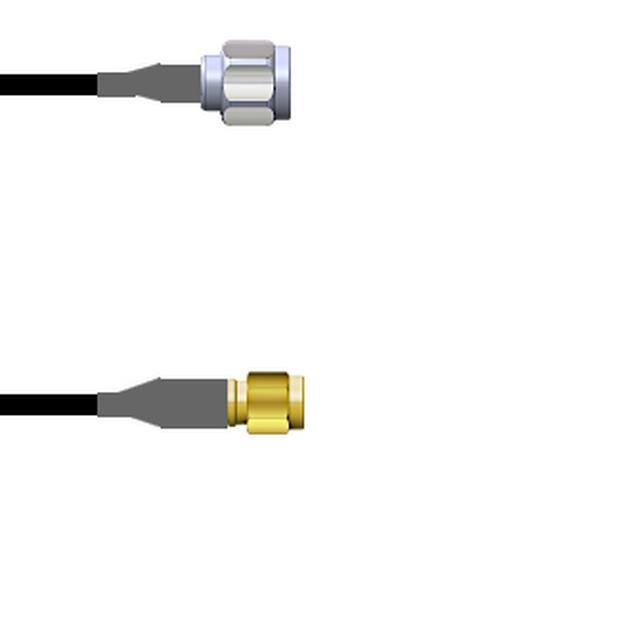

Q-2O03E000D.75MCBL ASSY SMA-N PLUG 29.53 |
3,816 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug | Male | - | - | N-Type Plug | Male | - | - | 29.53 (750.00mm) | LMR 195 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|
Q-1W0690008072iCBL ASSY RP-SMA TO N P-J RG58 6' |
3,669 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to N-Type | RP-SMA Plug | Female | - | - | N-Type Jack | Female | - | - | 72.0 (1.8m) 6.0' | RG-58 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

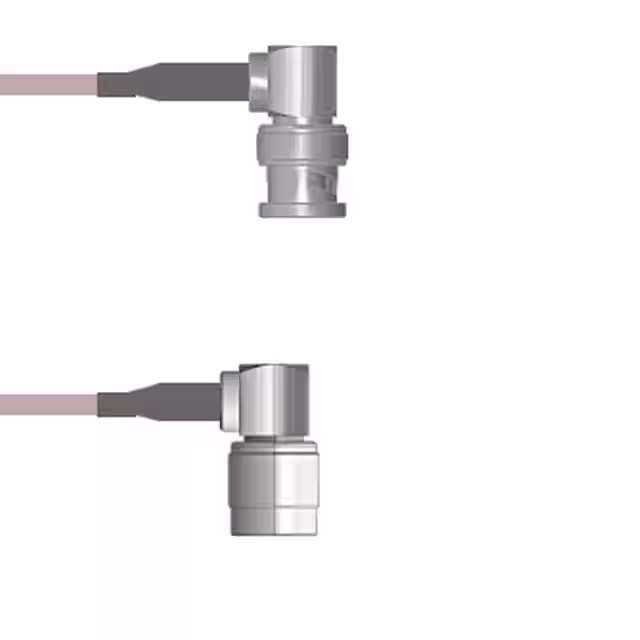

Q-0D04T0005.75MCBL ASSY BNC-TNC PL RG316 29.53 |
2,900 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Plug, Right Angle | Male | - | - | TNC Plug, Right Angle | Male | - | - | 29.53 (750.00mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

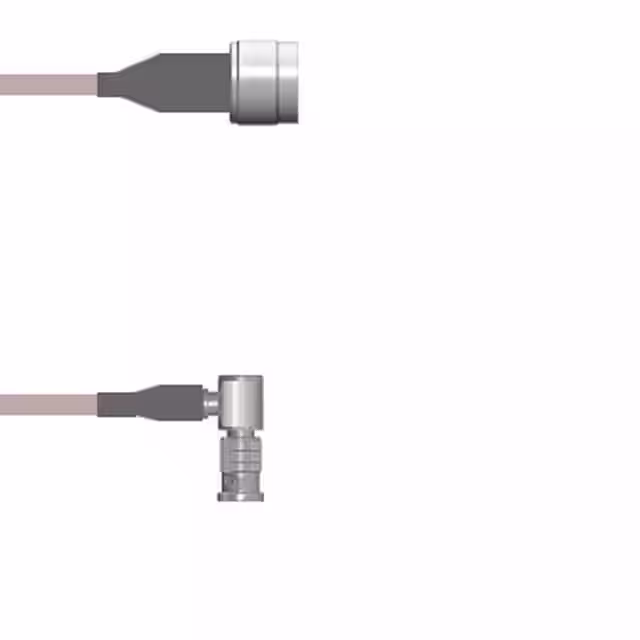

Q-2I05G0005048iCBL ASSY HD-BNC TO N PL RG316 4' |
3,493 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to N-Type | HD-BNC Plug, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 48.0 (1.2m) 4.0' | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

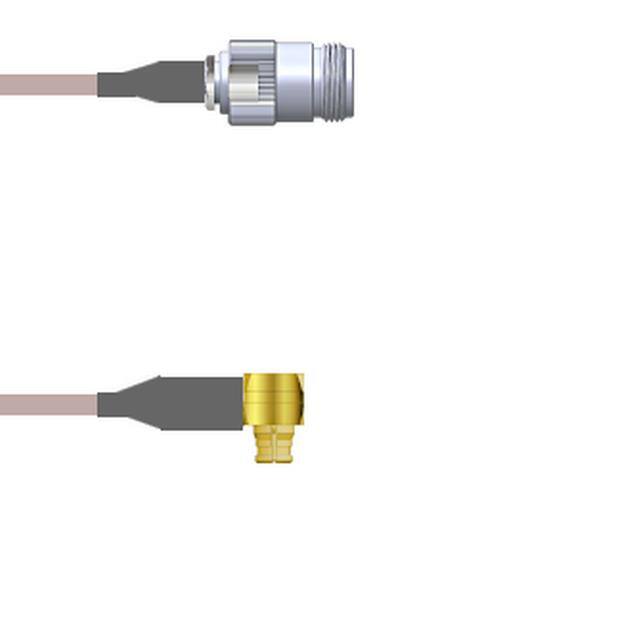

Q-2004200052.5MCBL ASY SMP-N P-J RG316 2.5M |
2,764 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMP to N-Type | SMP Plug, Right Angle | Male | - | - | N-Type Jack | Female | - | - | 98.4 (2.5m) 8.2' | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

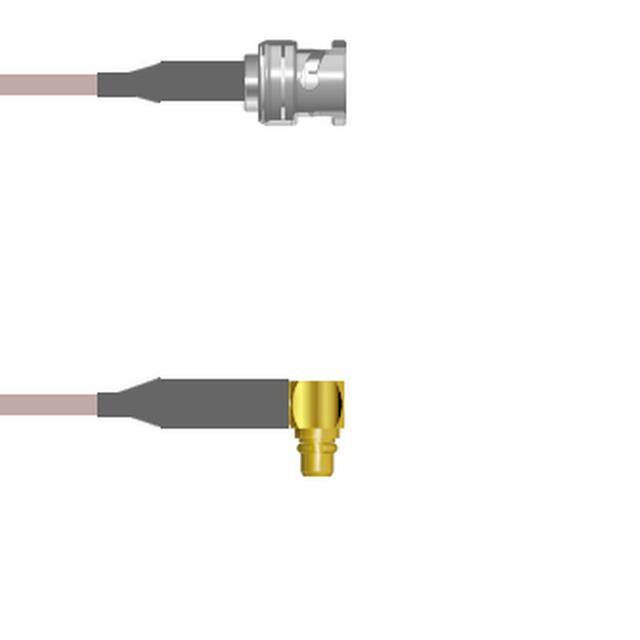

Q-0K01O000R003MCBL ASSY BNC-MMCX PL RG316 DB 3M |
3,340 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Plug | Male | - | - | MMCX Plug, Right Angle | Male | - | - | 118.1 (3.0m) 9.8' | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-2I0340005036iCBL ASSY SMA-N PLUG RG316 36 |
2,410 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 36.00 (914.40mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|
Q-0D03B0003024iCBL ASSY BNC-SMA PLUG RG174 24 |
2,031 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Plug, Right Angle | Male | - | - | SMA Plug | Male | - | - | 24.00 (609.60mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

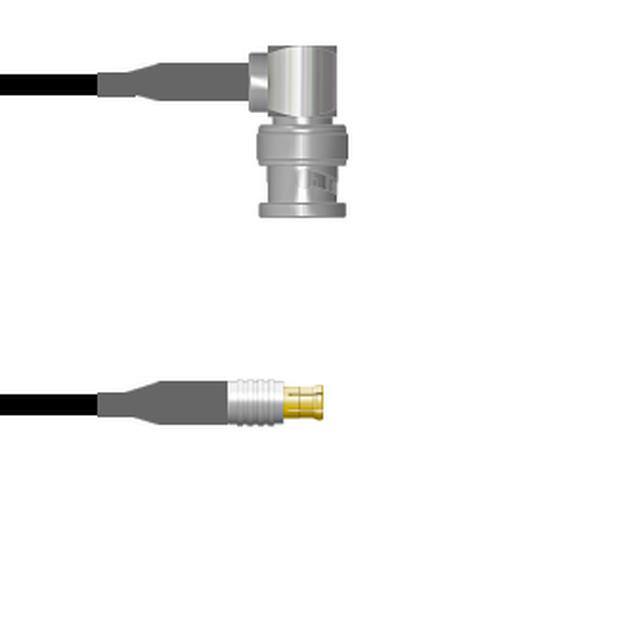

Q-0D01F0003108iCBL ASSY BNC-MCX PLUG RG174 9' |
2,922 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Plug, Right Angle | Male | - | - | MCX Plug | Male | - | - | 108.0 (2.7m) 9.0' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

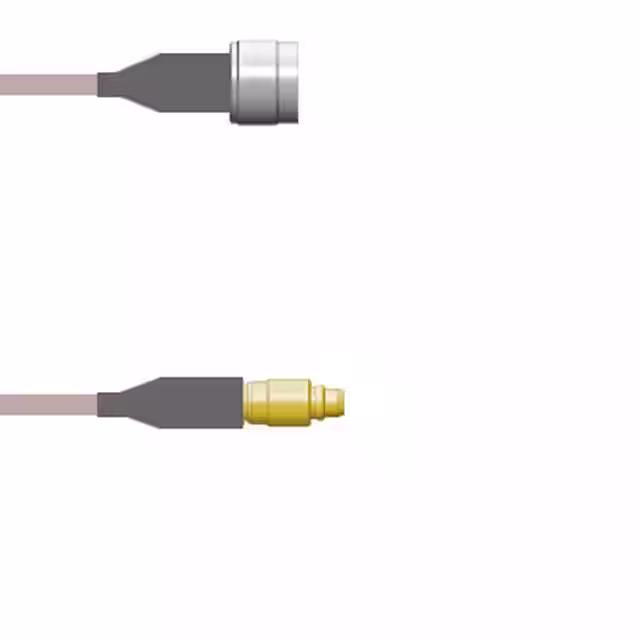

Q-2I01Q00052.5MCBL ASSY MMCX-N PLUG RG316 2.5M |
2,519 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to N-Type | MMCX Plug | Male | - | - | N-Type Plug | Male | - | - | 98.4 (2.5m) 8.2' | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

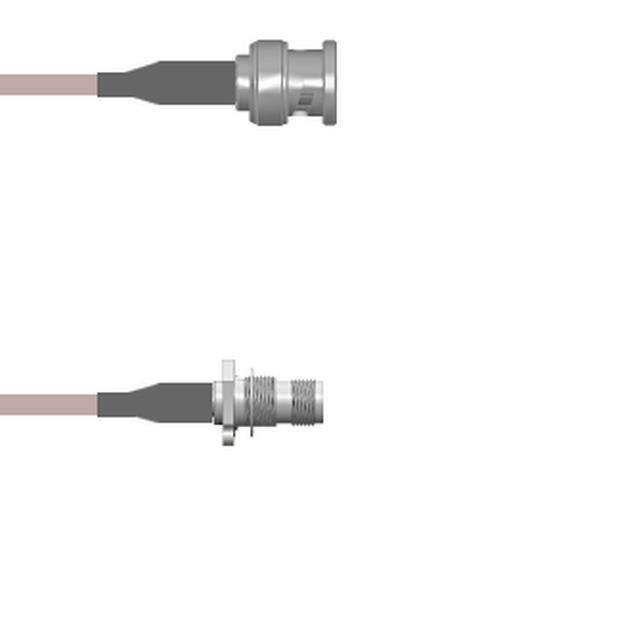

Q-0M04O000H1.5MCBL ASY BNC-TNC P-J RG142 1.5M |
3,828 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 59.1 (1.5m) 4.9' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

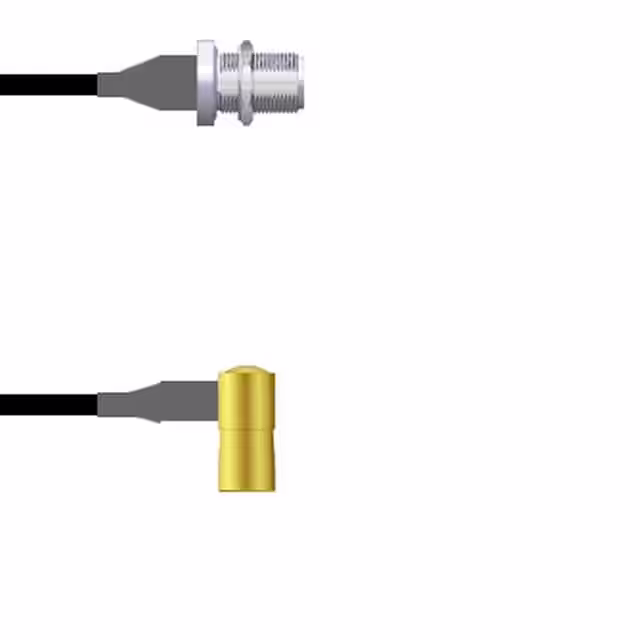

Q-1U03S0003009iCBL ASY SMB-N PLG TO JK RG174 9 |
3,582 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 9.000 (228.60mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

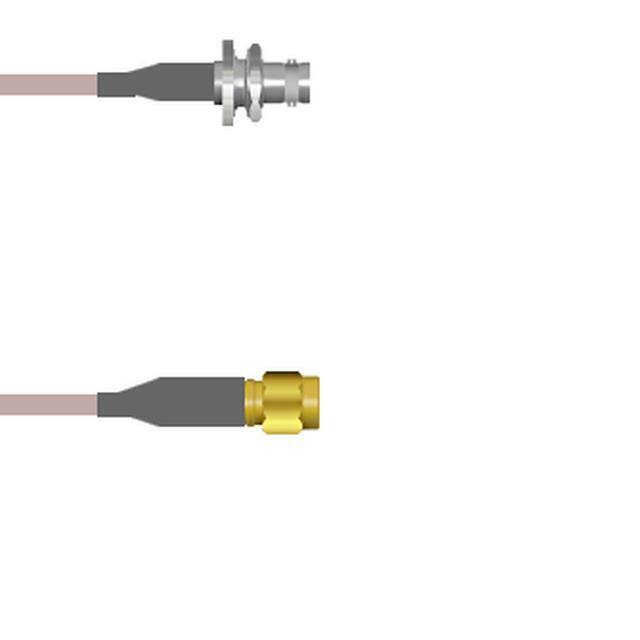

Q-0A03F000H0.5MCBL ASSY BNC-SMA RG142 19.69 |
2,429 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 19.69 (500.00mm) | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

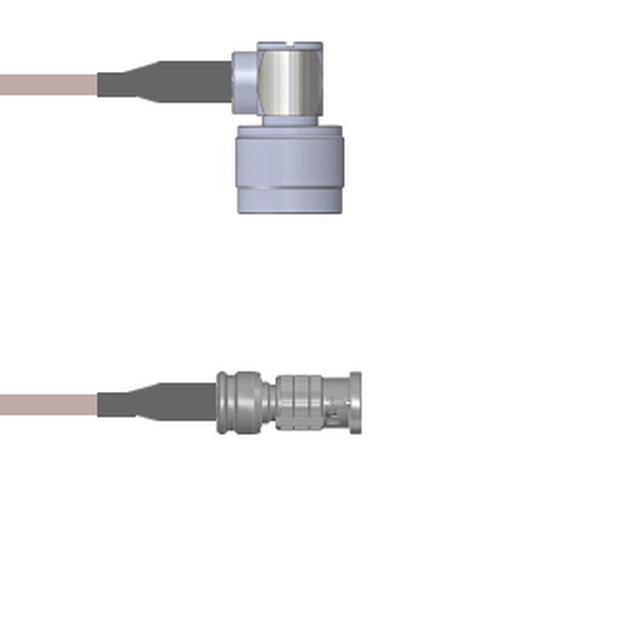

Q-2C05H00052.5MCB ASY HD-BNC TO N PL RG316 2.5M |
3,397 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to N-Type | HD-BNC Plug | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 98.4 (2.5m) 8.2' | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

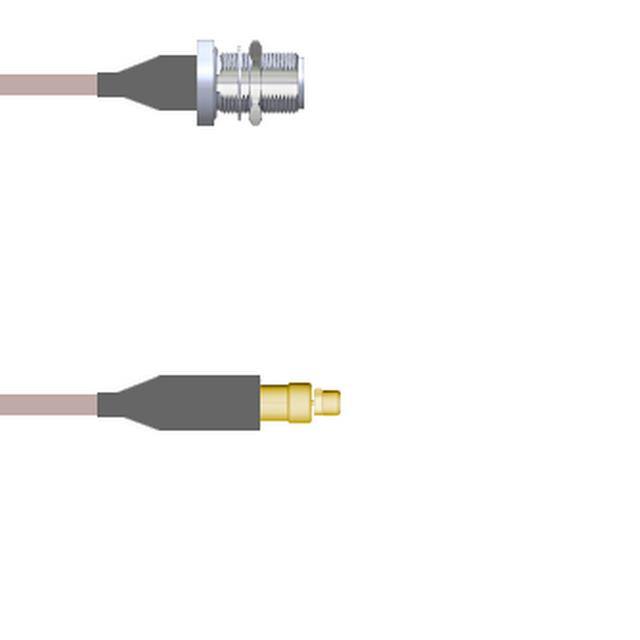

Q-2201R000R1.5MCBL ASSY MMCX-N RG316 DB 1.5M |
3,696 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to N-Type | MMCX Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 59.1 (1.5m) 4.9' | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

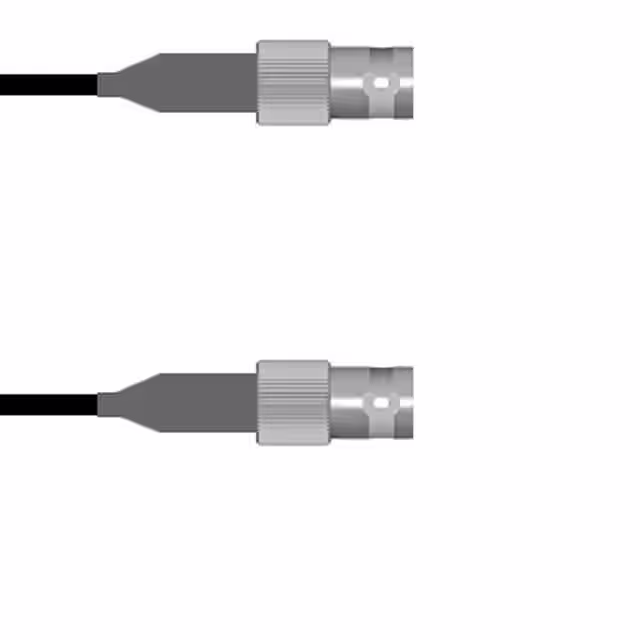

Q-0C00C001A002MCBL ASSY BNC JACK RG59 2M |
2,292 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | - | - | BNC Jack | Female | - | - | 78.7 (2.0m) 6.6' | RG-59 | - | - | 75 Ohms | 4 GHz | Black | Shielded | - |
|

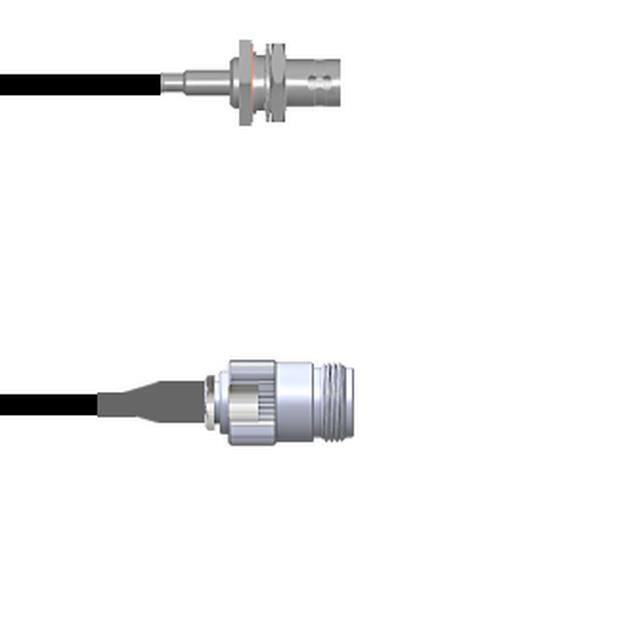

Q-040200003048iCBL ASSY BNC-N-TYP JACK RG174 4' |
2,373 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Free Hanging (In-Line) | - | 48.0 (1.2m) 4.0' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

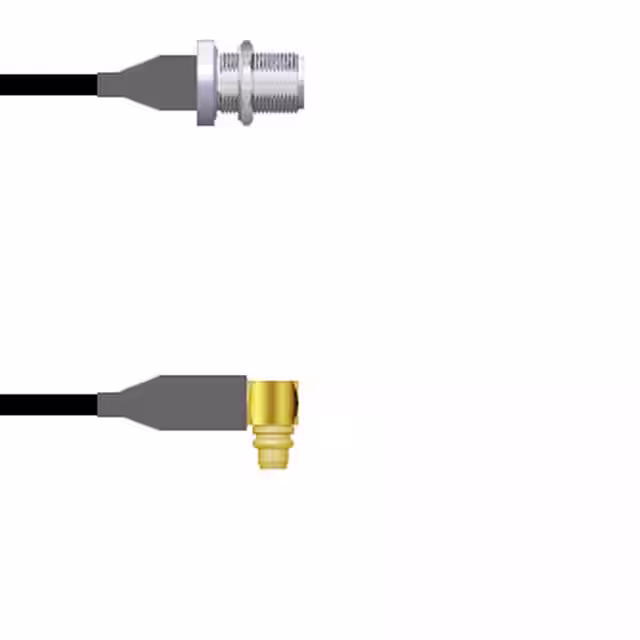

Q-1U01N0003060iCBL ASSY MMCX-N P TO J RG174 5' |
2,988 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to N-Type | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 60.0 (1.5m) 5.0' | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

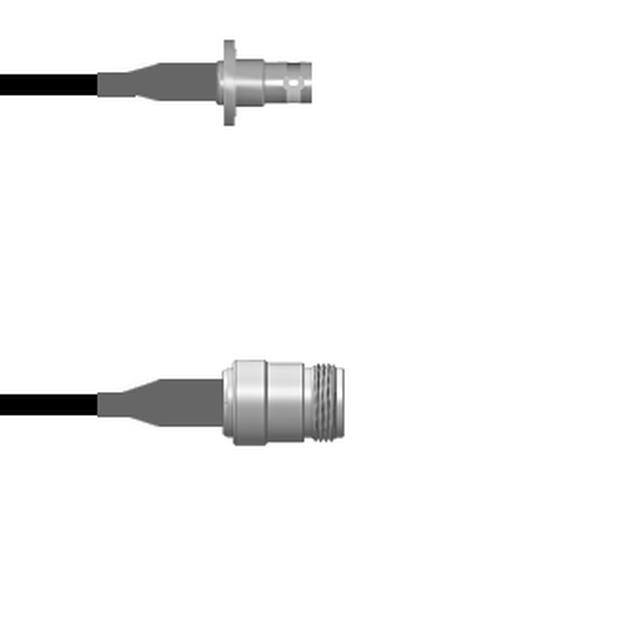

Q-0801W0008018iCBL ASSY BNC-N-TYP JACK RG58 18 |
3,823 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Free Hanging (In-Line) | - | 18.00 (457.20mm) | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

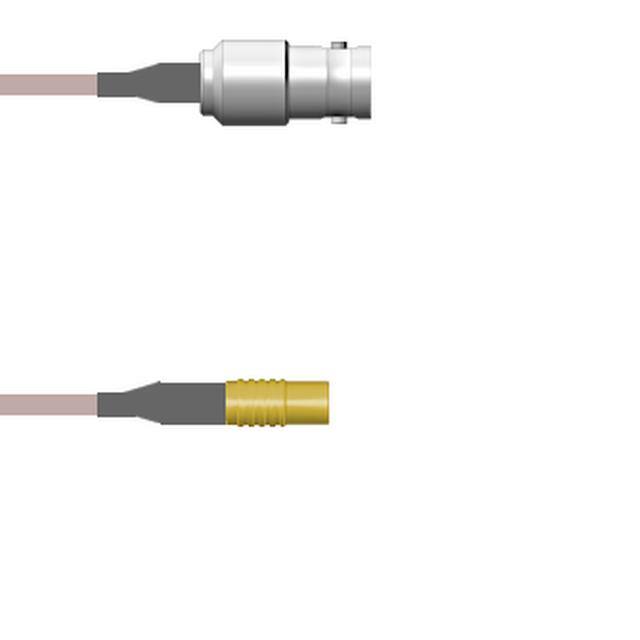

Q-0200Z0001009iCBL ASSY BNC-MCX JACK RG178 9 |
2,148 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Jack | Female | - | - | MCX Jack | Female | - | - | 9.000 (228.60mm) | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
