| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

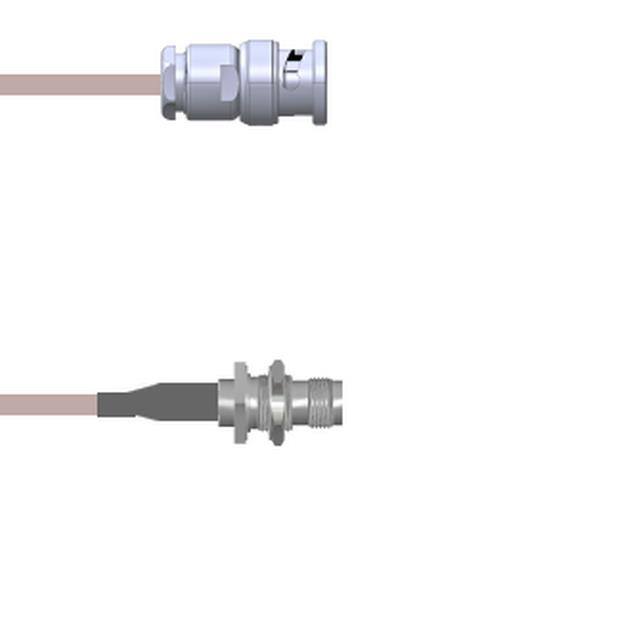

Q-0J04F0005048iCBL ASY BNC-TNC P-J RG316 4' |
3,819 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 48.0 (1.2m) 4.0' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

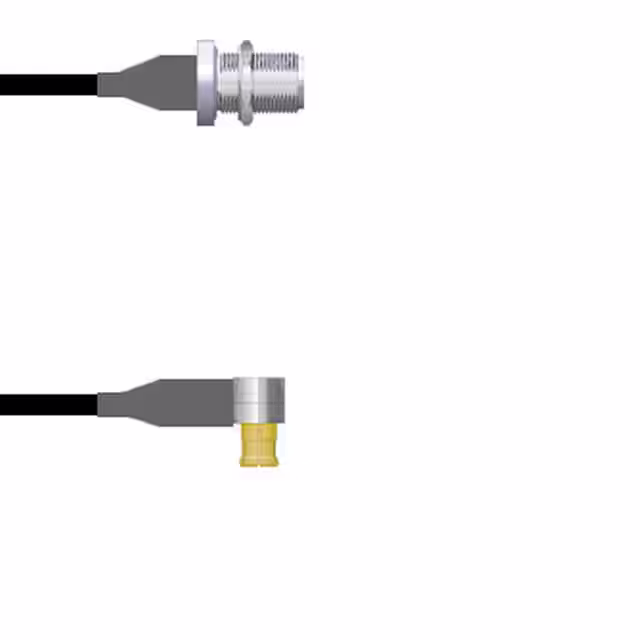

Q-1U01A0003084iCBL ASY MCX-N PLG TO JK RG174 7' |
2,653 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 84.0 (2.1m) 7.0' | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

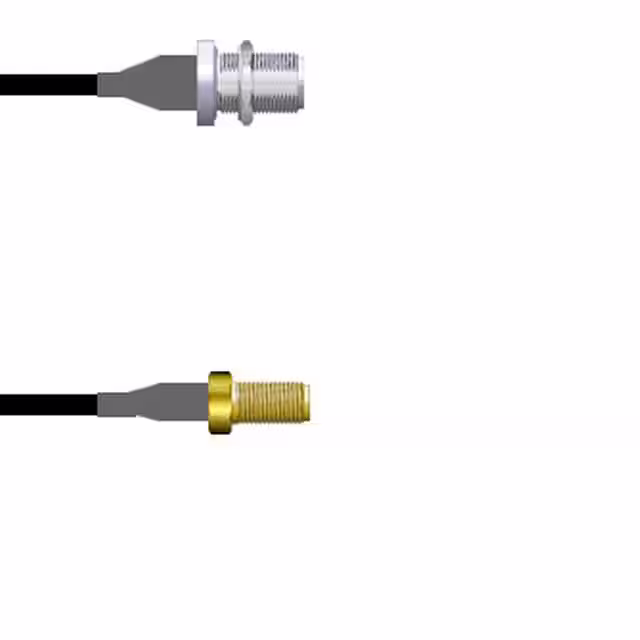

Q-1U02V0003018iCBL ASSY SMA-N JACK RG174 18 |
3,809 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 18.00 (457.20mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|
Q-2103T000R006iCBL ASY SMB-N P-J RG316 DB 6 |
3,084 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Plug, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 6.000 (152.40mm) | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

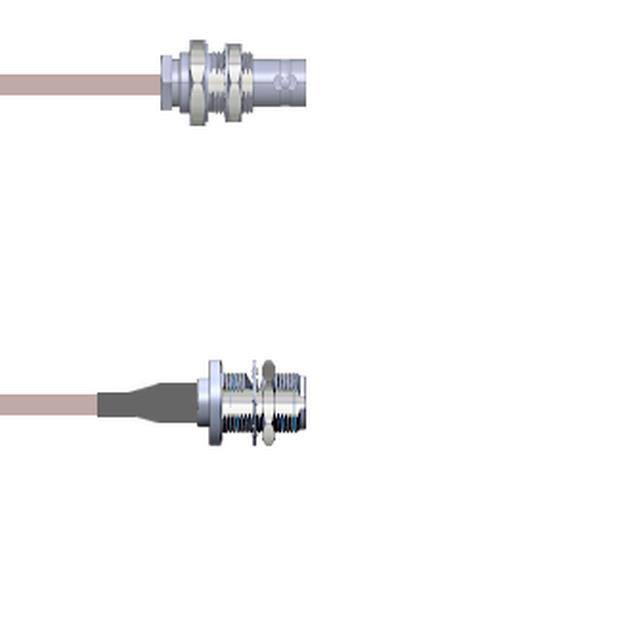

Q-07021000R024iCBL ASY BNC-N-TYP J RG316 DB 24 |
3,996 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00 (609.60mm) | RG-316 DB | - | - | 50 Ohms | 2 GHz | Copper | Shielded | - |
|

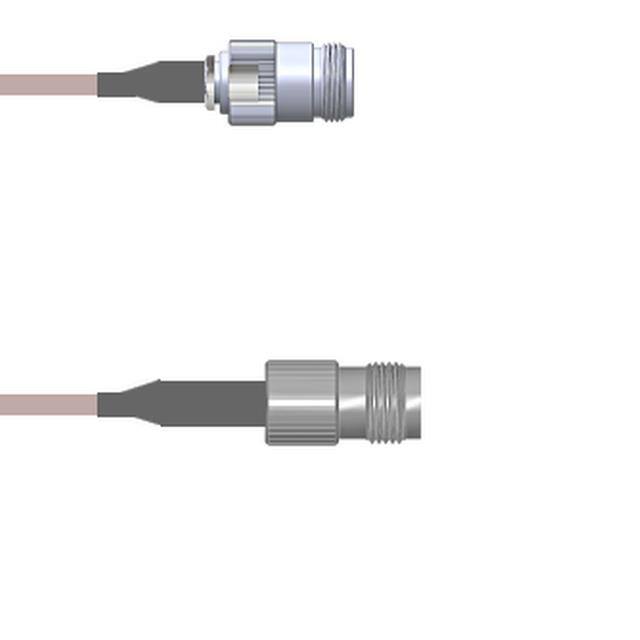

Q-2004G0005006iCBL ASSY N TO TNC JACK RG316 6 |
2,725 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | - | - | TNC Jack | Female | - | - | 6.000 (152.40mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

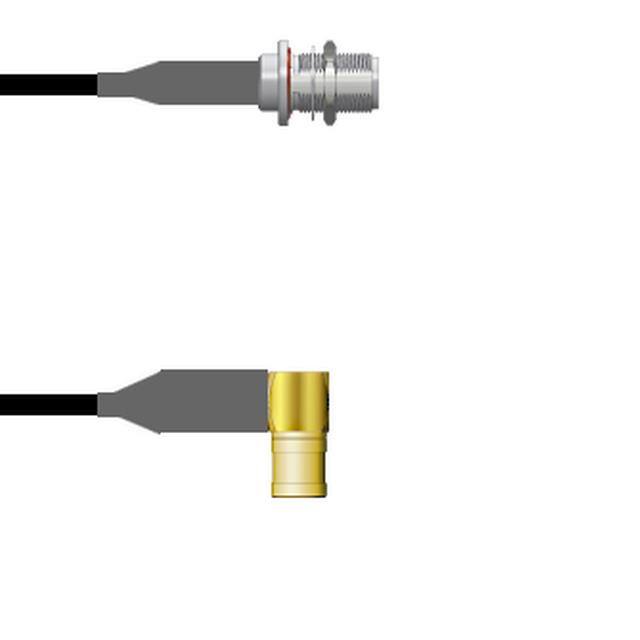

Q-1X03U0008006iCBL ASSY SMB-N PLG TO JK RG58 6 |
3,637 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 6.000 (152.40mm) | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

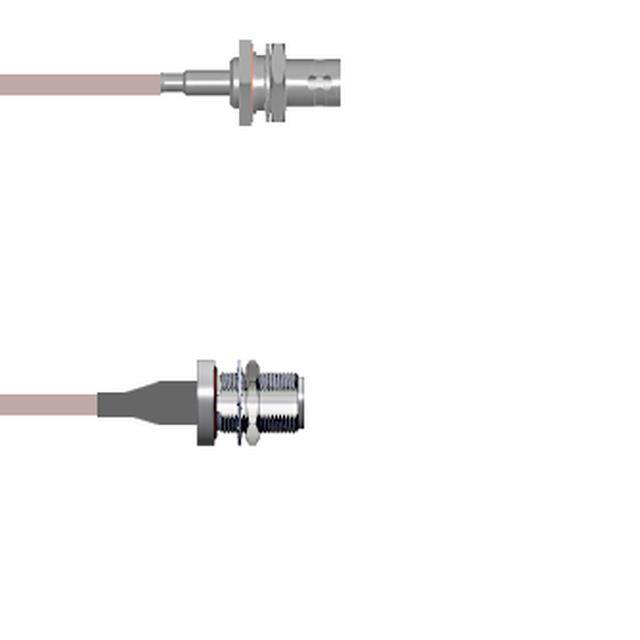

Q-0401T0005012iCBL ASSY BNC-N-TYP JCK RG316 12 |
2,012 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00 (304.80mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

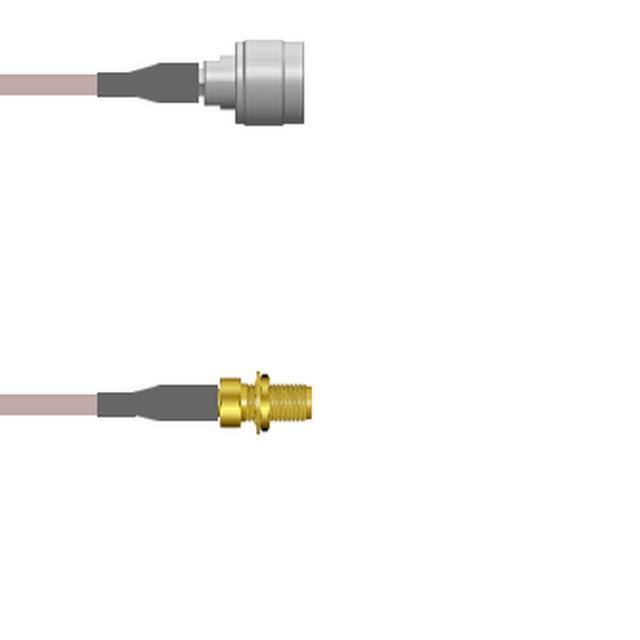

Q-2M02X000R003iCBL ASY SMA-N J TO P RG316 DB 3 |
3,149 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 3.000 (76.20mm) | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

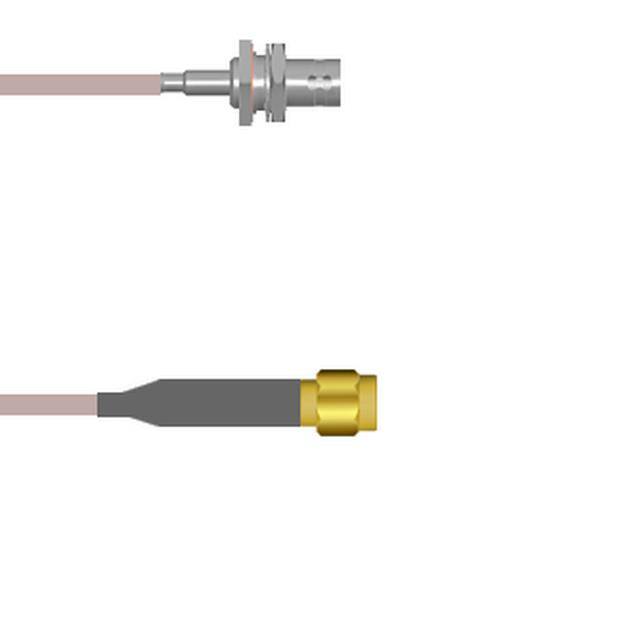

Q-0406800050.5MCBL ASSY RP-SMA-BNC RG316 19.69 |
3,708 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to BNC | RP-SMA Plug | Female | Panel Mount | Bulkhead - Front Side Nut | BNC Jack | Female | Free Hanging (In-Line) | - | 19.69 (500.00mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

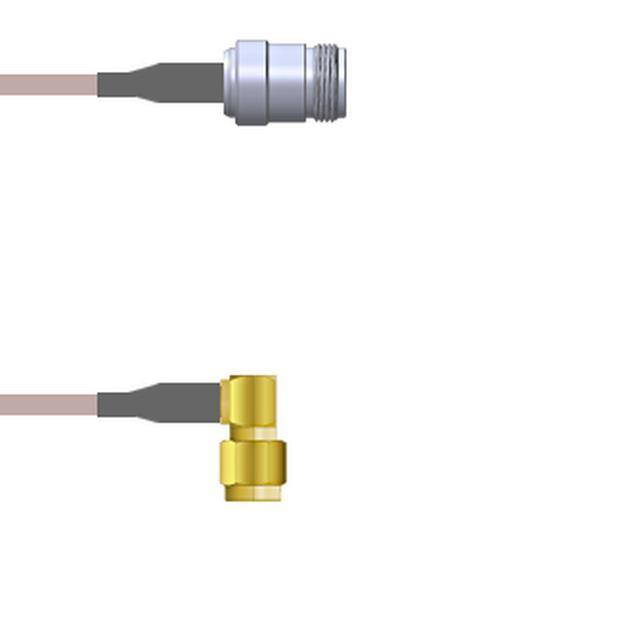

Q-24038000H048iCBL ASY SMA-N PLG TO JK RG142 4' |
3,092 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug, Right Angle | Male | - | - | N-Type Jack | Female | - | - | 48.0 (1.2m) 4.0' | RG-142 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

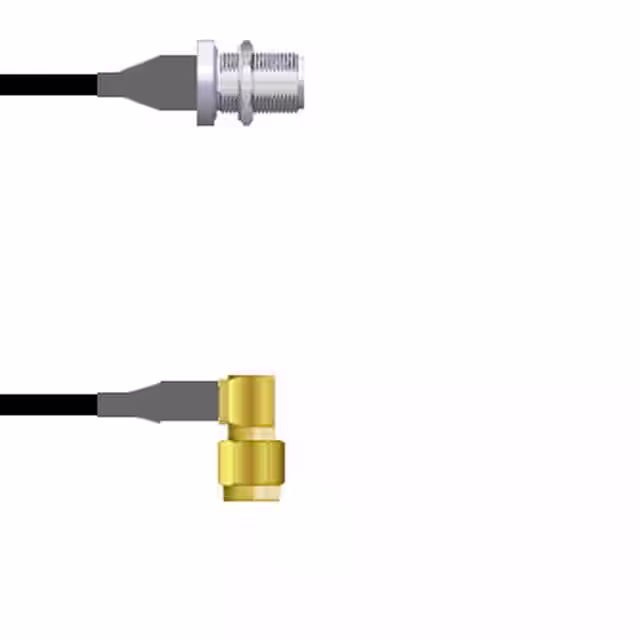

Q-1U0340003.25MCBL ASY SMA-N P-J RG174 9.843 |
2,339 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 9.843 (250.00mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|
Q-0903P00081.5MCBL ASSY BNC-SMB JACK RG58 1.5M |
2,416 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Jack | Female | - | - | SMB Jack | Female | - | - | 59.1 (1.5m) 4.9' | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

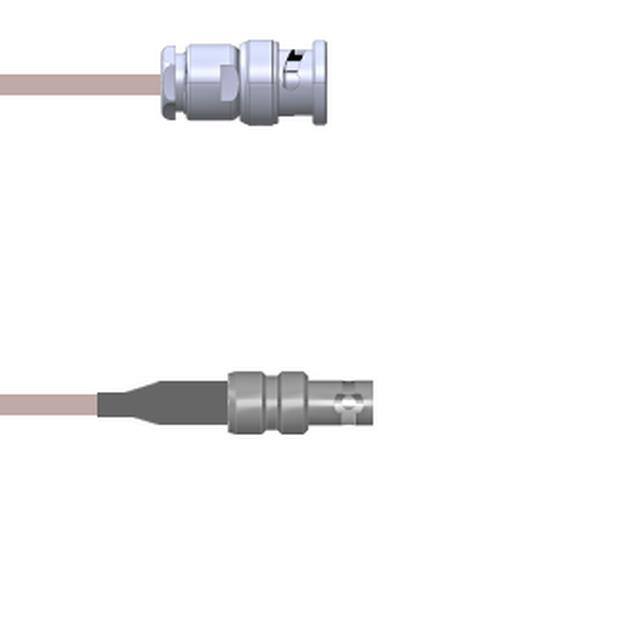

Q-0J00Q0005060iCBL ASSY BNC-HD-BNC P-J RG316 5' |
3,066 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Plug | Male | - | - | HD-BNC Jack | Female | - | - | 60.0 (1.5m) 5.0' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

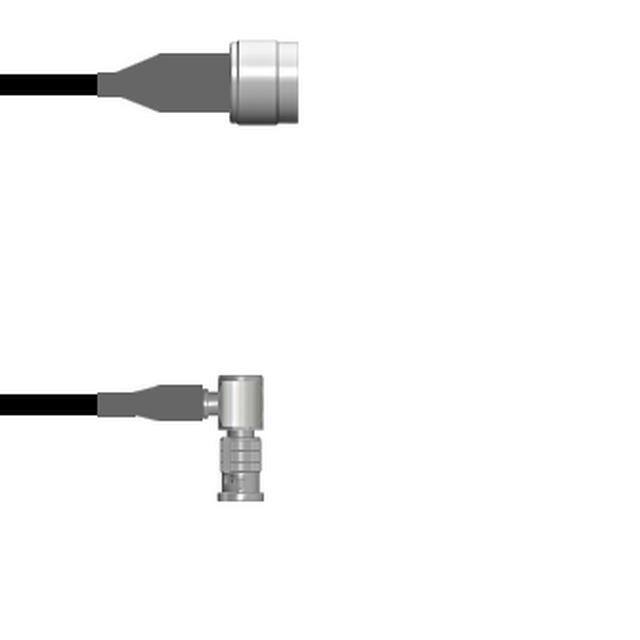

Q-2I05G0003.25MCBL ASY HD-BNC TO N RG174 9.843 |
2,081 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to N-Type | HD-BNC Plug, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 9.843 (250.00mm) | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

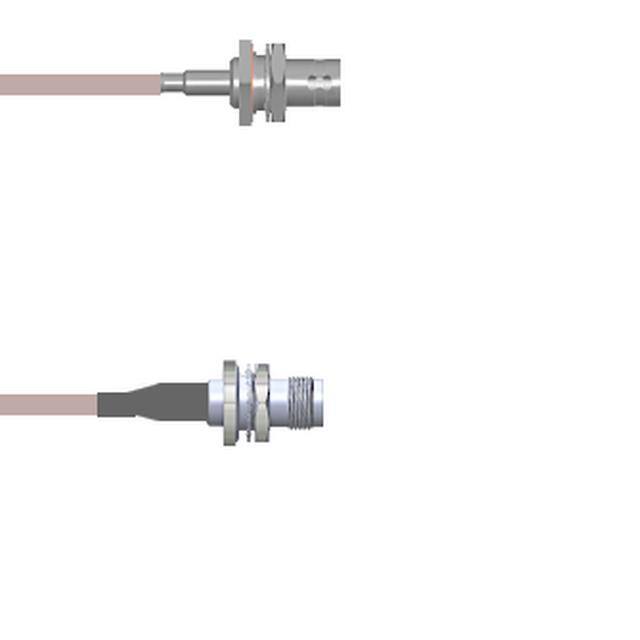

Q-0404E0005108iCBL ASSY BNC-TNC JACK RG316 9' |
3,205 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 108.0 (2.7m) 9.0' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

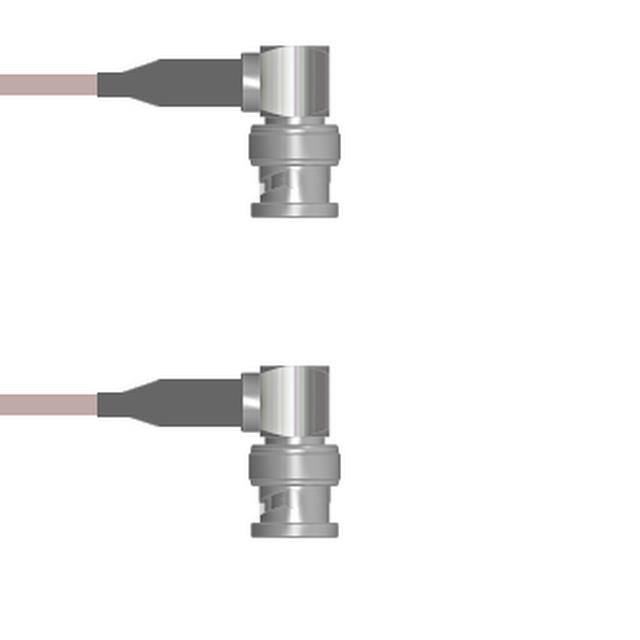

Q-0F00F000H018iCBL ASSY BNC PLUG RG142 18 |
3,785 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug, Right Angle | Male | - | - | BNC Plug, Right Angle | Male | - | - | 18.00 (457.20mm) | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

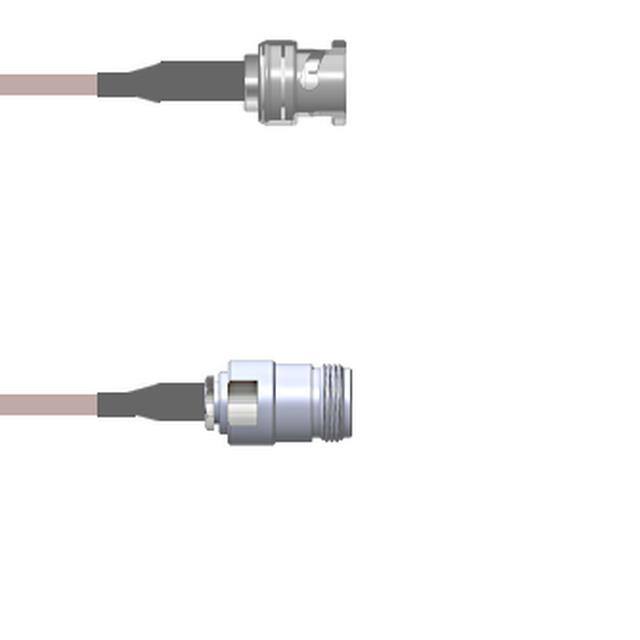

Q-0K01V000R001MCBL ASSY BNC-N-TYPE RG316 DB 1M |
3,307 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Plug | Male | - | - | N-Type Jack | Female | - | - | 39.4 (1.0m) 3.3' | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

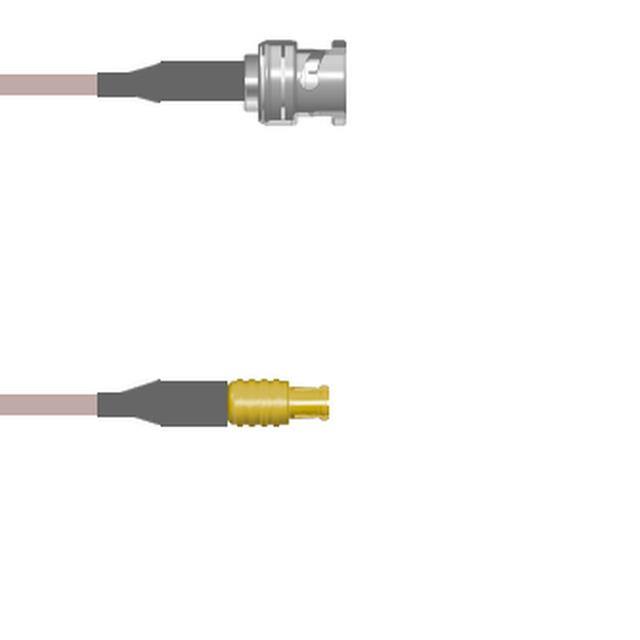

Q-0K01D000R084iCBL ASSY BNC-MCX PLG RG316 DB 7' |
3,180 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Plug | Male | - | - | MCX Plug | Male | - | - | 84.0 (2.1m) 7.0' | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

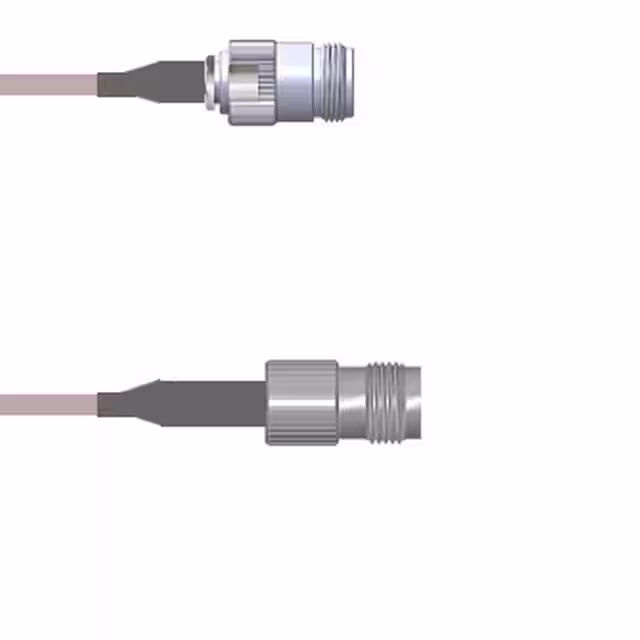

Q-2004G0005018iCBL ASSY N TO TNC JACK RG316 18 |
3,978 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | - | - | TNC Jack | Female | - | - | 18.00 (457.20mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
