| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

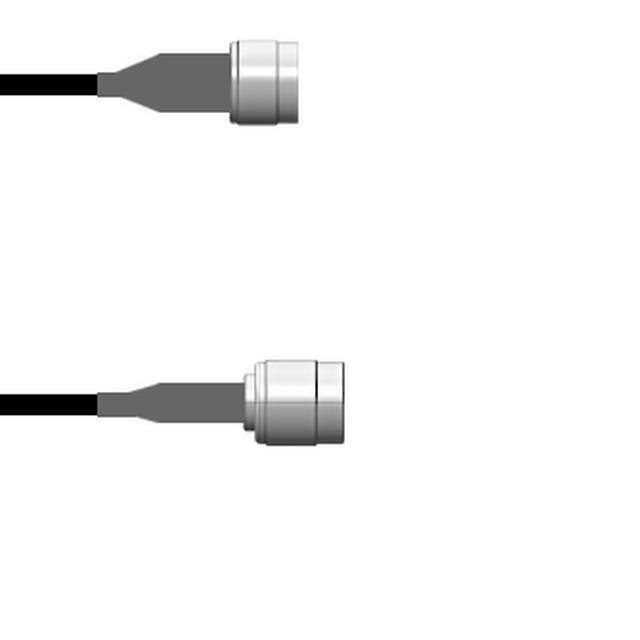

Q-2I0520003084iCBL ASSY N TO TNC PLUG RG174 7' |
3,426 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug | Male | - | - | TNC Plug | Male | - | - | 84.0 (2.1m) 7.0' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

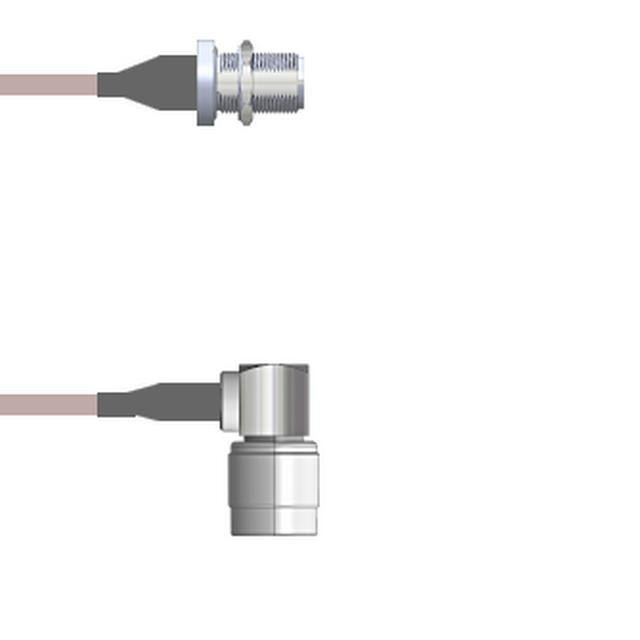

Q-1U04T0005018iCBL ASY N-TNC J-P RG316 18 |
2,132 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00 (457.20mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

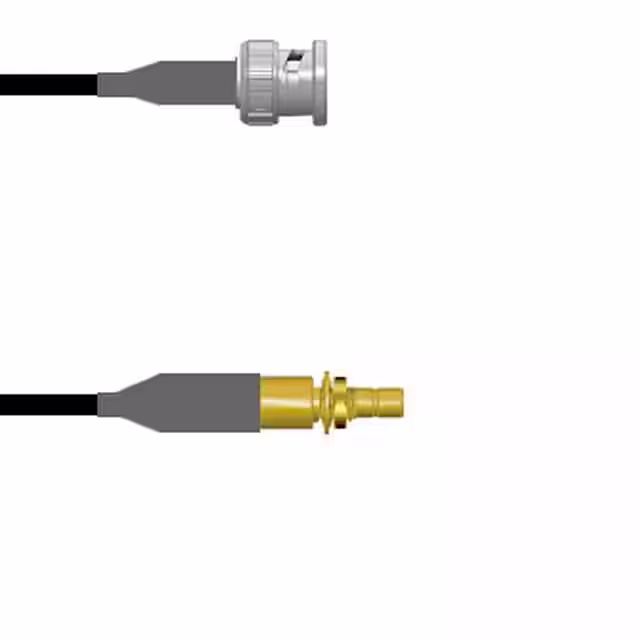

Q-0L03Q0008036iCBL ASY BNC-SMB P-J RG58 36 |
2,381 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Plug | Male | Free Hanging (In-Line) | - | SMB Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 36.00 (914.40mm) | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

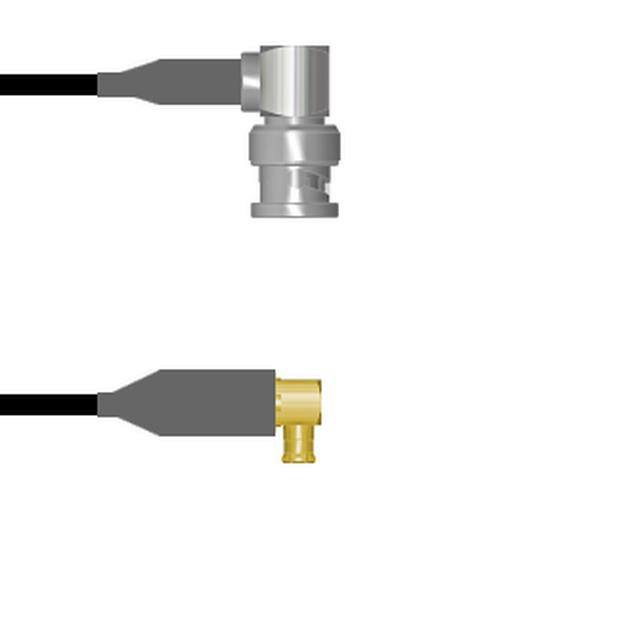

Q-0E0180008006iCBL ASSY BNC-MCX PLUG RG58 6 |
3,509 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Plug, Right Angle | Male | - | - | MCX Plug, Right Angle | Male | - | - | 6.000 (152.40mm) | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

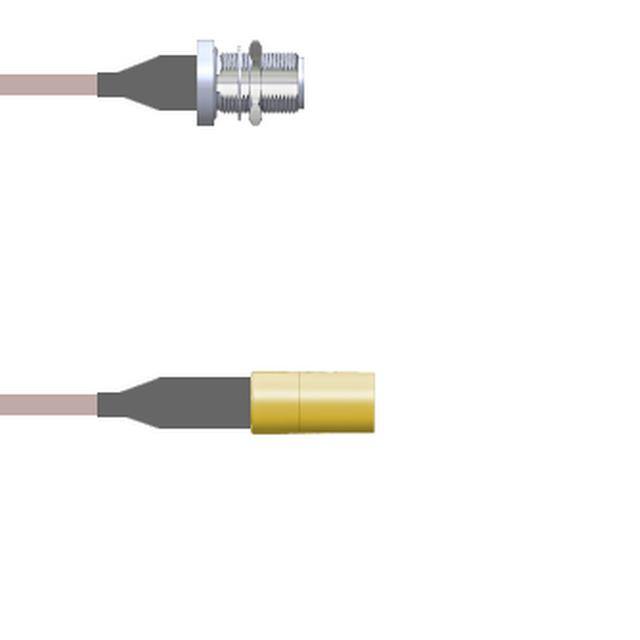

Q-2203Z000R012iCBL ASY SMB-N P-J RG316 DB 12 |
2,401 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Plug | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00 (304.80mm) | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

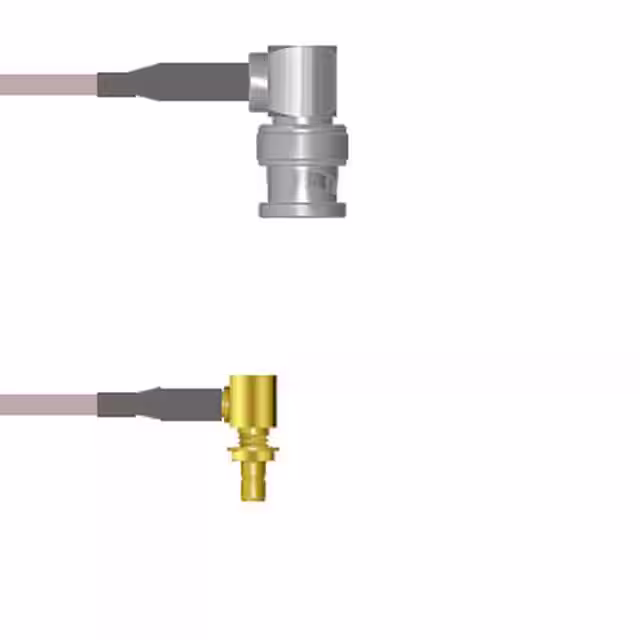

Q-0D03H0005009iCBL ASY BNC-SMB P-J RG316 9 |
3,477 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMB Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 9.000 (228.60mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

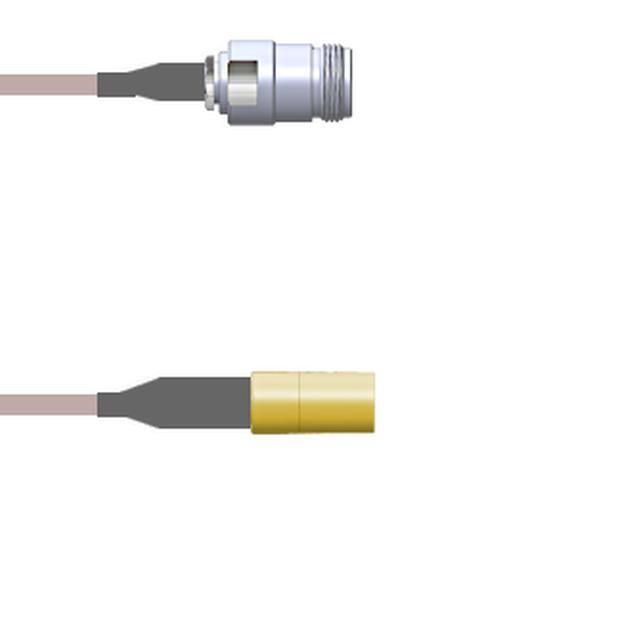

Q-1V03Z000R003iCBL ASY SMB-N P-J RG316 DB 3 |
2,182 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Plug | Female | - | - | N-Type Jack | Female | - | - | 3.000 (76.20mm) | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

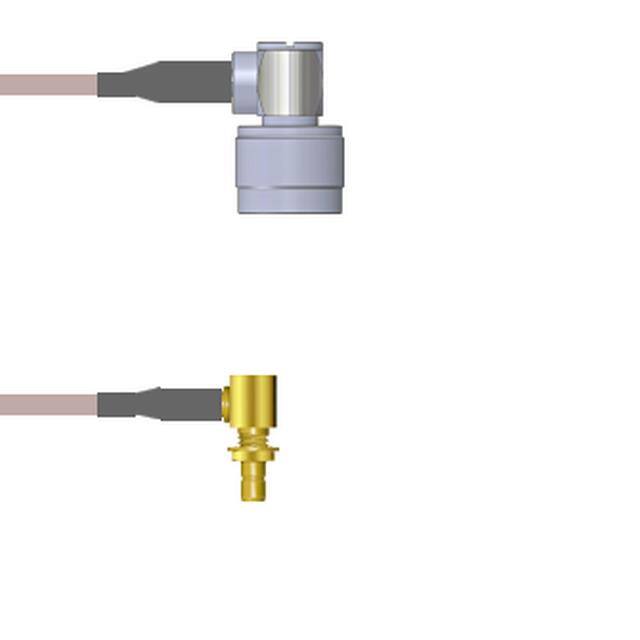

Q-2C03H00050.5MCBL ASY SMB-N J-P RG316 19.69 |
2,478 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Jack, Right Angle | Male | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 19.69 (500.00mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

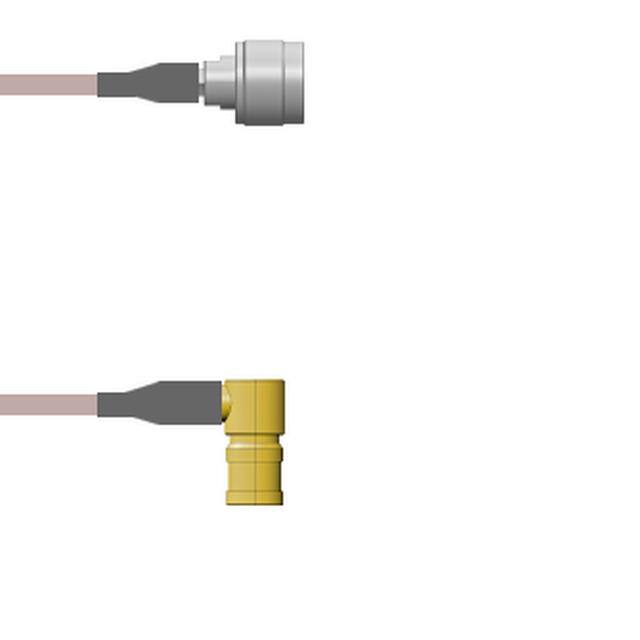

Q-2M03T000R003MCBL ASSY SMB-N PLUG RG316 DB 3M |
3,846 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 118.1 (3.0m) 9.8' | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-1T02P0005009iCBL ASSY SMA-N JACK RG316 9 |
3,794 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 9.000 (228.60mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

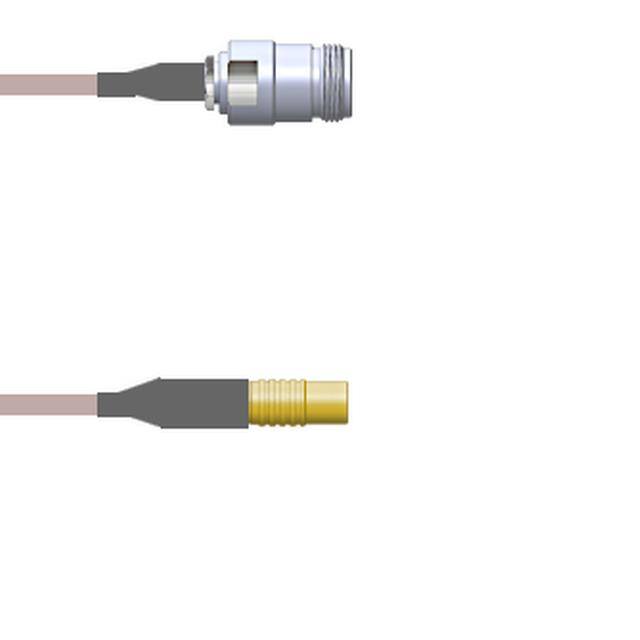

Q-1V013000R072iCBL ASSY MCX-N JACK RG316 DB 6' |
3,434 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Jack | Female | - | - | N-Type Jack | Female | - | - | 72.0 (1.8m) 6.0' | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

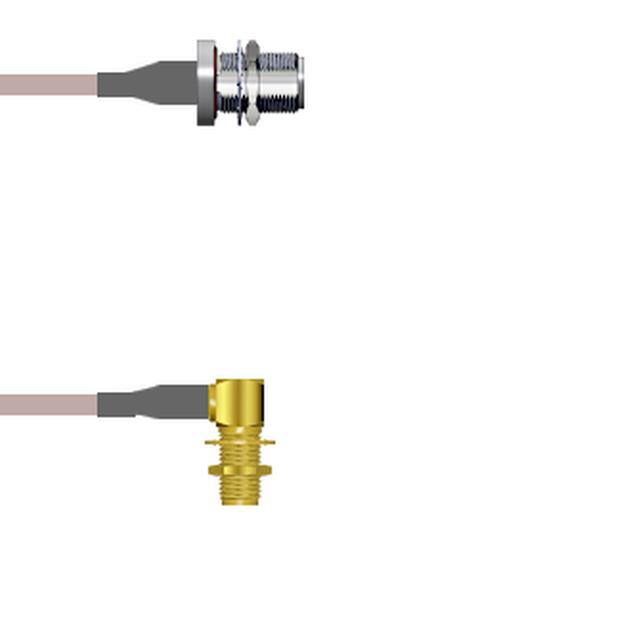

Q-1T02P0005024iCBL ASSY SMA-N JACK RG316 24 |
3,785 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00 (609.60mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

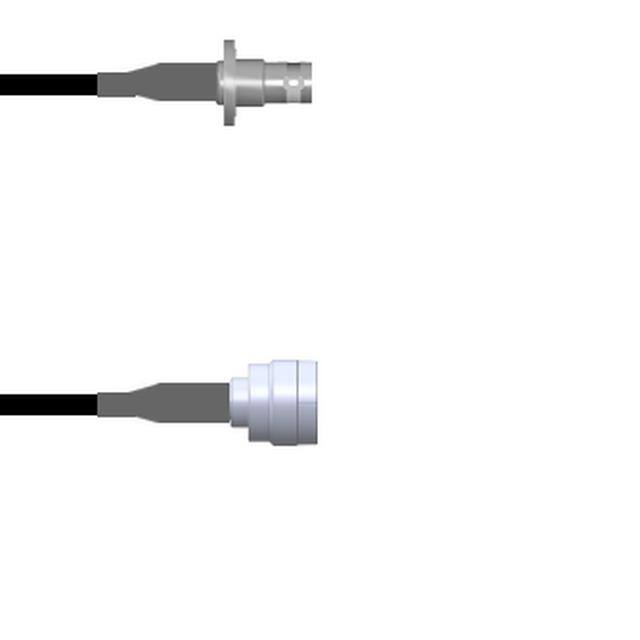

Q-080550008060iCBL ASSY BNC-TNC J TO P RG58 5' |
2,626 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 60.0 (1.5m) 5.0' | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

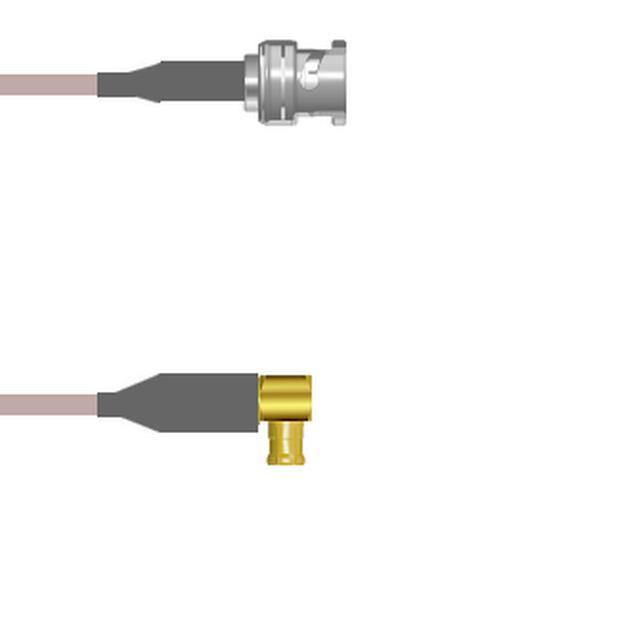

Q-0K017000R002MCBL ASSY BNC-MCX PLG RG316 DB 2M |
3,774 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Plug | Male | - | - | MCX Plug, Right Angle | Male | - | - | 78.7 (2.0m) 6.6' | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

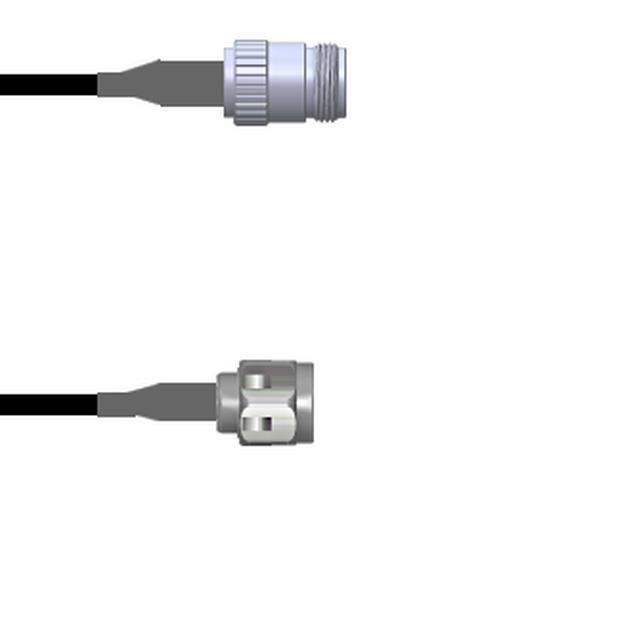

Q-2702K000M048iCBL ASSY N-TYPE JACK TO PLUG 4' |
2,992 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Jack | Female | - | - | N-Type Plug | Male | - | - | 48.0 (1.2m) 4.0' | LMR 240 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

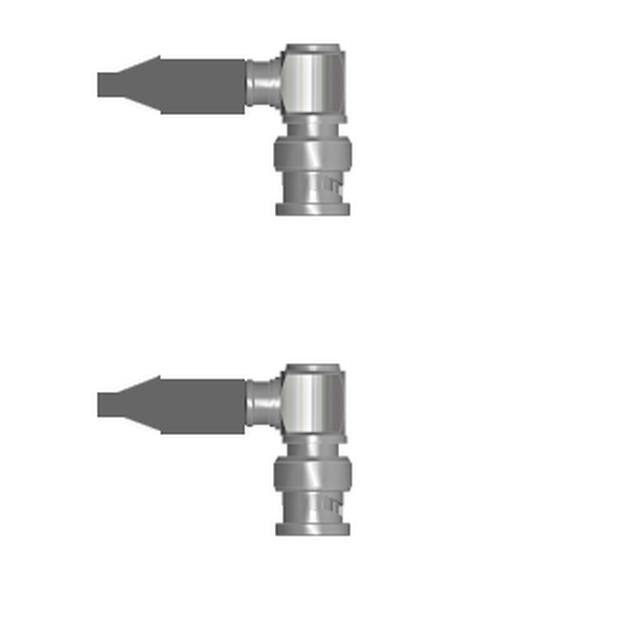

Q-62062000K003iCBL ASSY BNC PLUG 3 |
3,636 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug, Right Angle | Male | - | - | BNC Plug, Right Angle | Male | - | - | 3.000 (76.20mm) | Belden 4855R | - | - | 75 Ohms | 18 GHz | Black | Shielded | - |
|

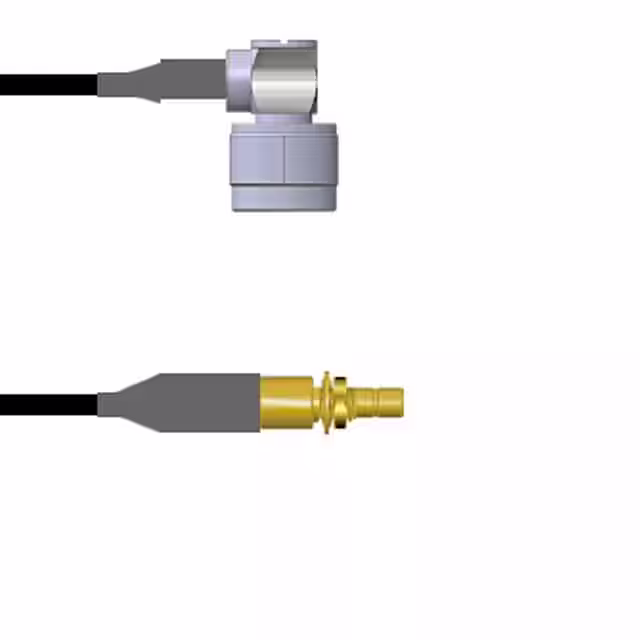

Q-2F03Q0008036iCBL ASY SMB-N JK TO PLG RG58 36 |
3,206 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Jack | Male | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

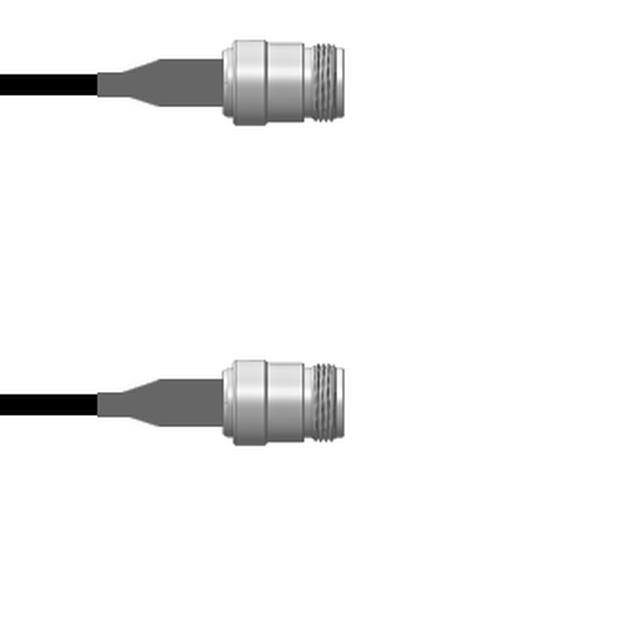

Q-1W01W0008072iCBL ASSY N-TYPE JACK RG58 6' |
3,122 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Jack | Female | - | - | N-Type Jack | Female | - | - | 72.0 (1.8m) 6.0' | RG-58 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

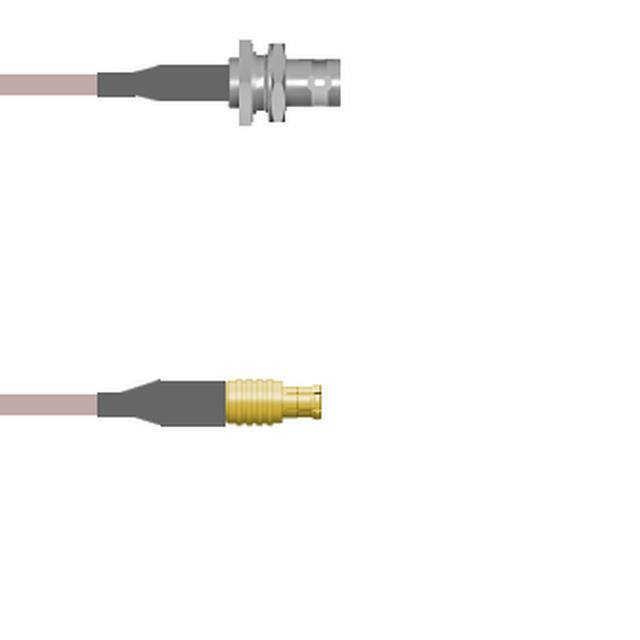

Q-0601C000S036iCBL ASY BNC-MCX J TO P RG179 36 |
3,991 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | RG-179 | - | - | 75 Ohms | 4 GHz | Copper | Shielded | - |
|

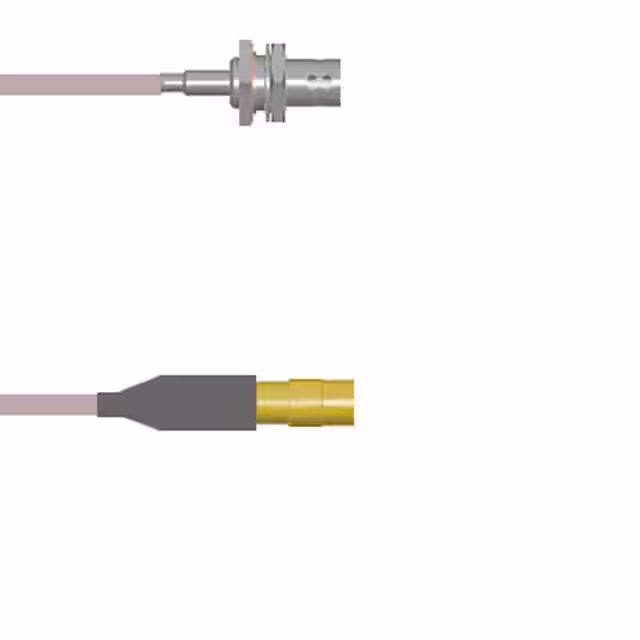

Q-0401J0005108iCBL ASSY BNC-MMCX JACK RG316 9' |
2,588 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Jack | Female | Free Hanging (In-Line) | - | 108.0 (2.7m) 9.0' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
