| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

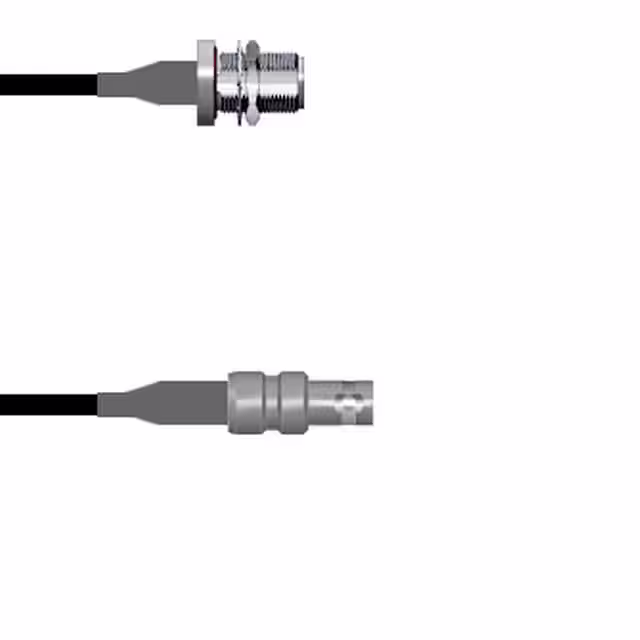

Q-1T00Q0003024iCBL ASSY HD-BNC-N JK RG174 24 |
3,402 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to N-Type | HD-BNC Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00 (609.60mm) | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

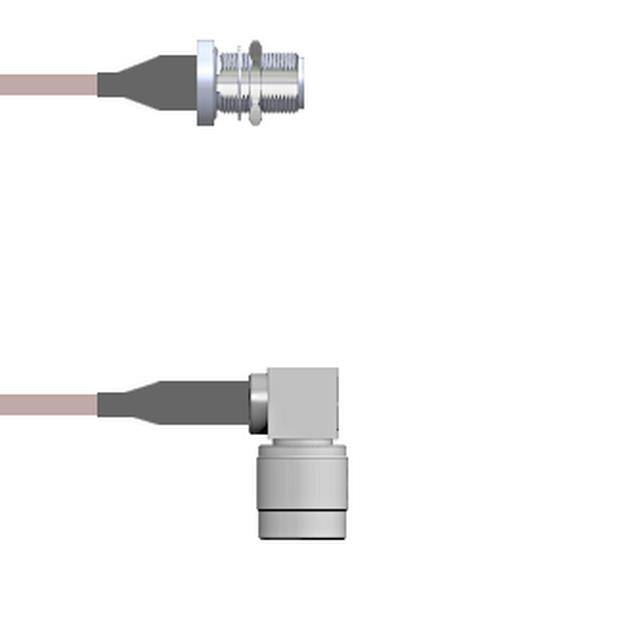

Q-2204U000R.75MCBL ASY N TO TNC RG316 DB 29.53 |
2,087 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 29.53 (750.00mm) | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

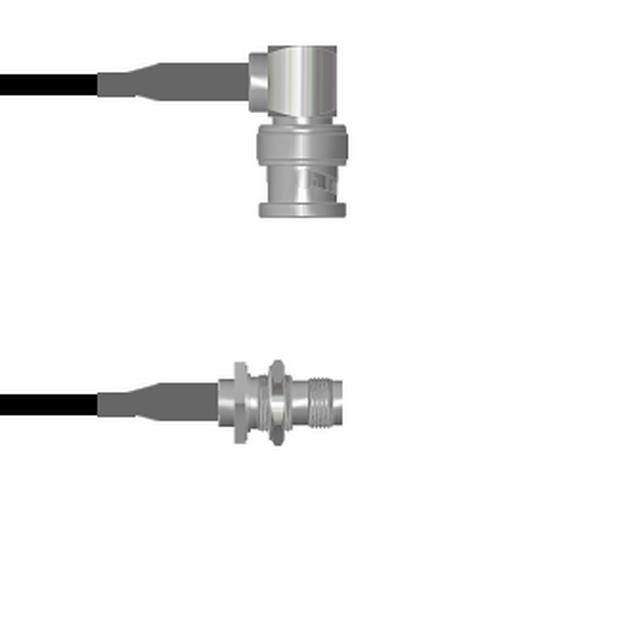

Q-0D04F0003060iCBL ASY BNC-TNC P-J RG174 5' |
2,227 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 60.0 (1.5m) 5.0' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

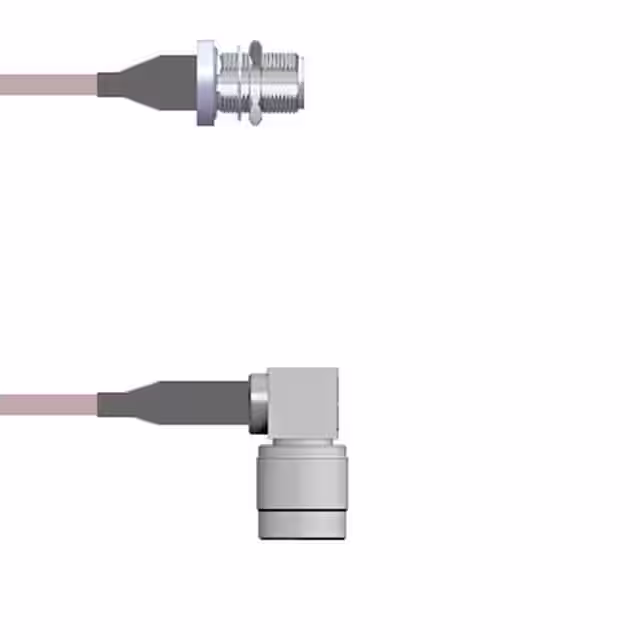

Q-2204U000R0.5MCBL ASY N TO TNC RG316 DB 19.69 |
2,876 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 19.69 (500.00mm) | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

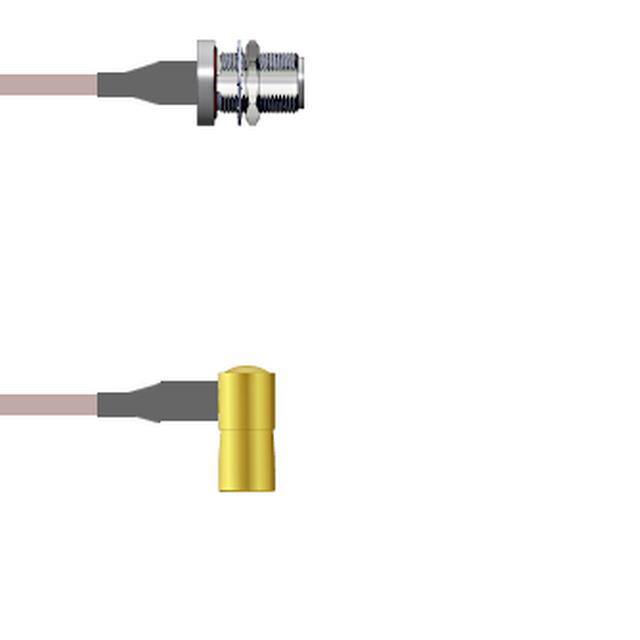

Q-1T03S0005060iCBL ASY SMB-N PLG TO JK RG316 5' |
3,700 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 60.0 (1.5m) 5.0' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

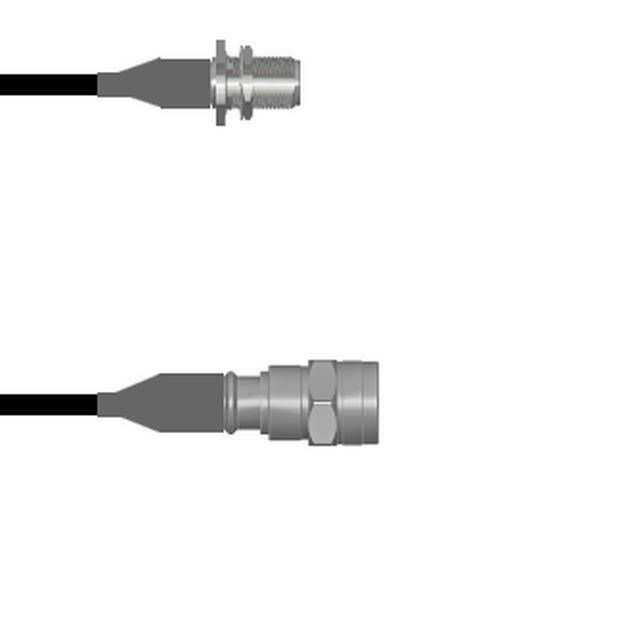

Q-2802L00132.5MCBL ASSY N-TYPE JACK TO PLG 2.5M |
3,873 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 98.4 (2.5m) 8.2' | LMR 400 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

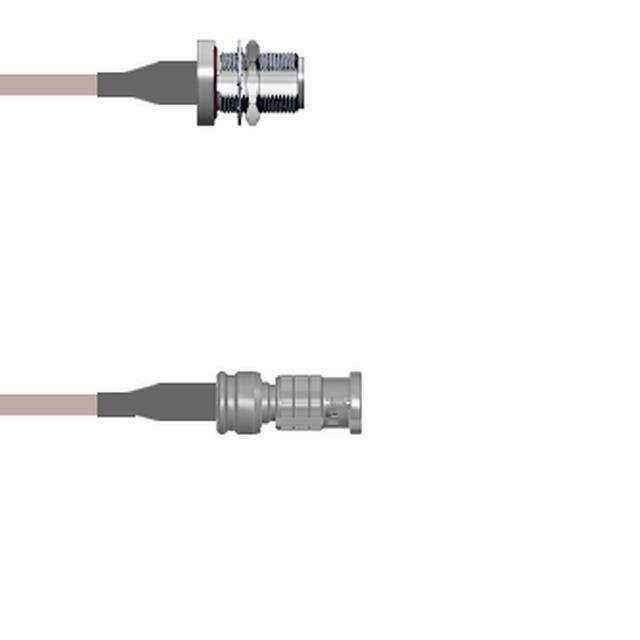

Q-1T05H0005024iCBL ASSY HD-BNC TO N RG316 24 |
2,263 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to N-Type | HD-BNC Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00 (609.60mm) | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

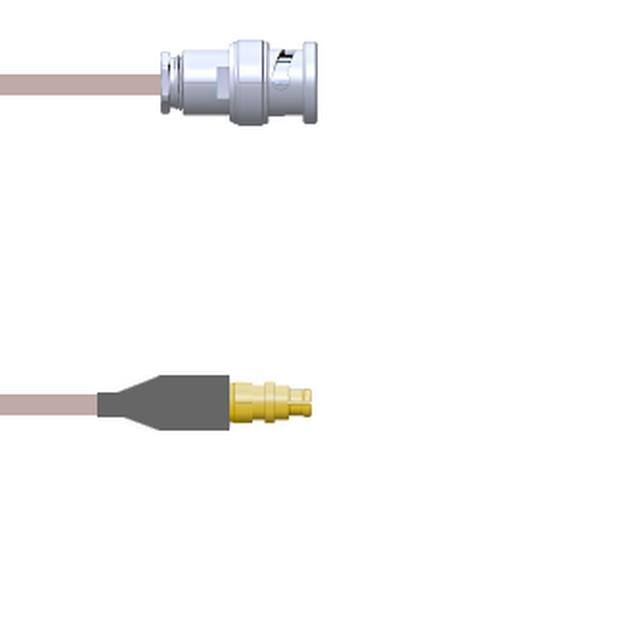

Q-0I0470001072iCBL ASSY BNC-SMPM PLUG RG178 6' |
3,696 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMPM | BNC Plug | Male | - | - | SMPM Plug | Male | - | - | 72.0 (1.8m) 6.0' | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

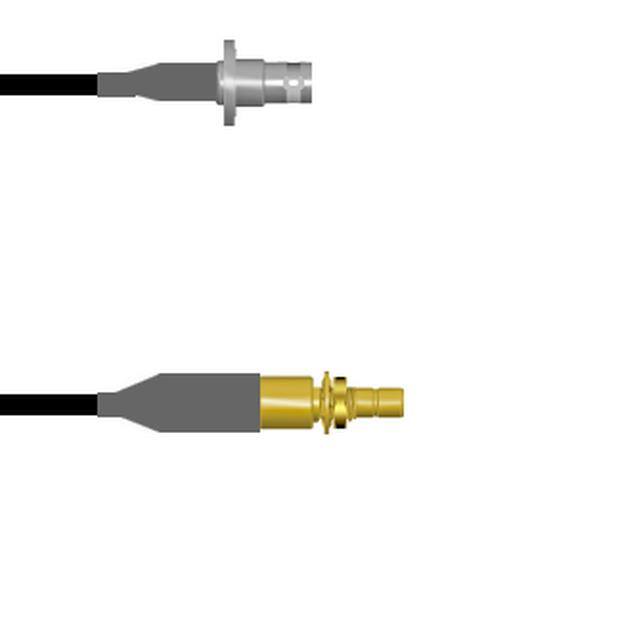

Q-0803Q00080.5MCBL ASSY BNC-SMB JCK RG58 19.69 |
3,690 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 19.69 (500.00mm) | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

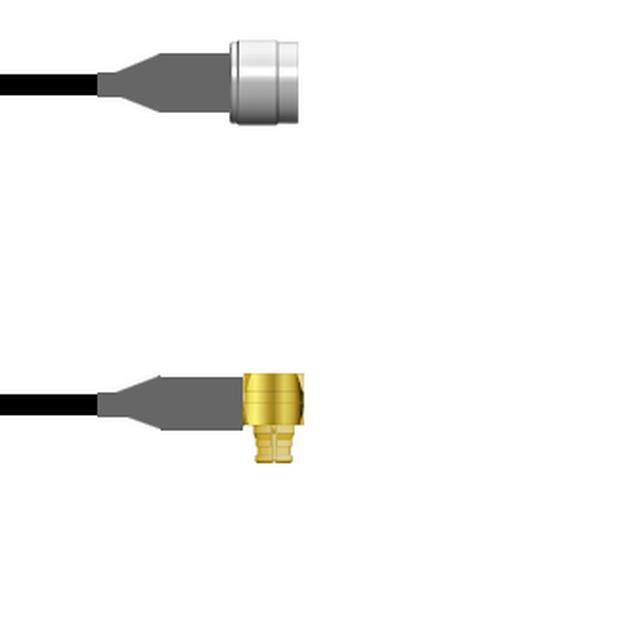

Q-2I04200030.5MCBL ASSY SMP-N PLUG RG174 19.69 |
3,361 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMP to N-Type | SMP Plug, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 19.69 (500.00mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|
Q-0H016000S.25MCBL ASSY BNC-MCX PL RG179 9.843 |
3,736 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Plug, Right Angle | Male | - | - | MCX Plug, Right Angle | Male | - | - | 9.843 (250.00mm) | RG-179 | - | - | 75 Ohms | 4 GHz | Copper | Shielded | - |
|

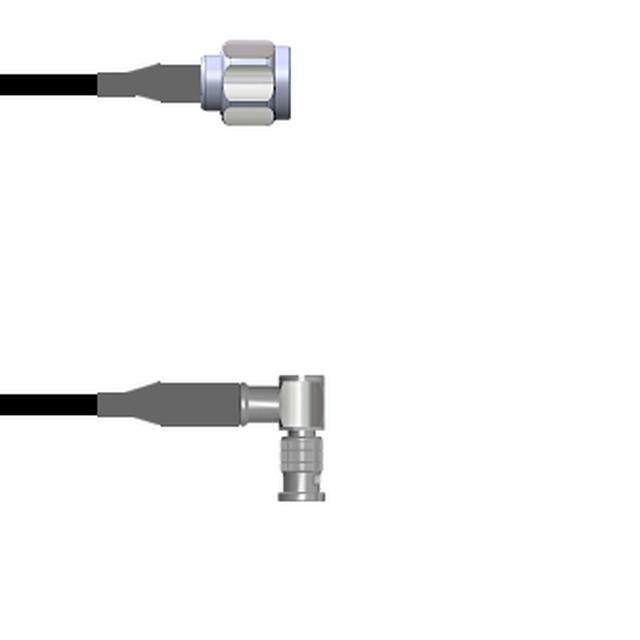

Q-2O00U000D006iCBL ASSY HD-BNC TO N PLUG 6 |
2,598 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to N-Type | HD-BNC Plug, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 6.000 (152.40mm) | LMR 195 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

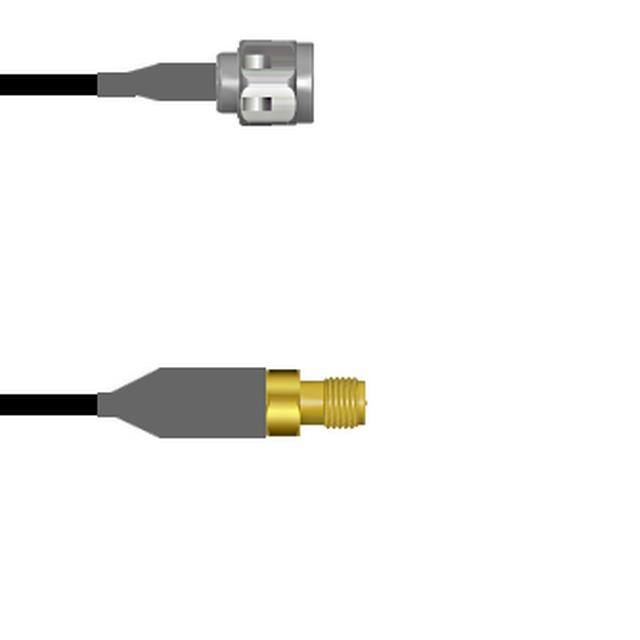

Q-2K070000M003MCBL ASY RP-SMA TO N JK TO PLG 3M |
3,780 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to N-Type | RP-SMA Jack | Male | - | - | N-Type Plug | Male | - | - | 118.1 (3.0m) 9.8' | LMR 240 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

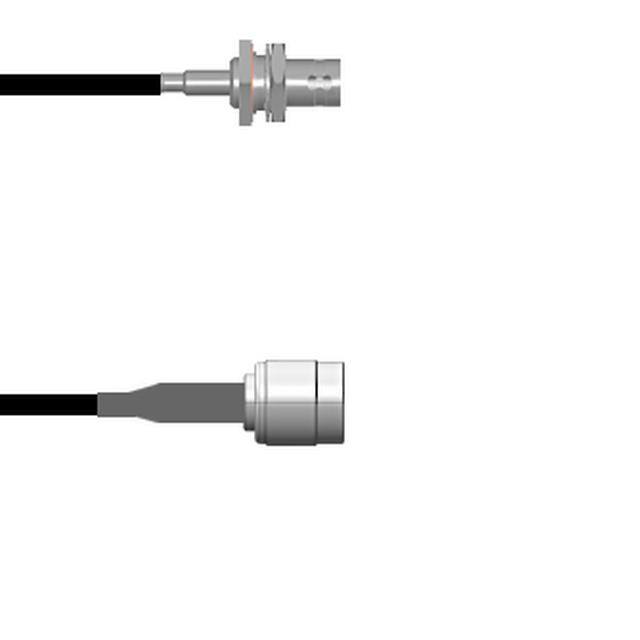

Q-040520003.25MCBL ASSY BNC-TNC RG174 9.843 |
3,108 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 9.843 (250.00mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

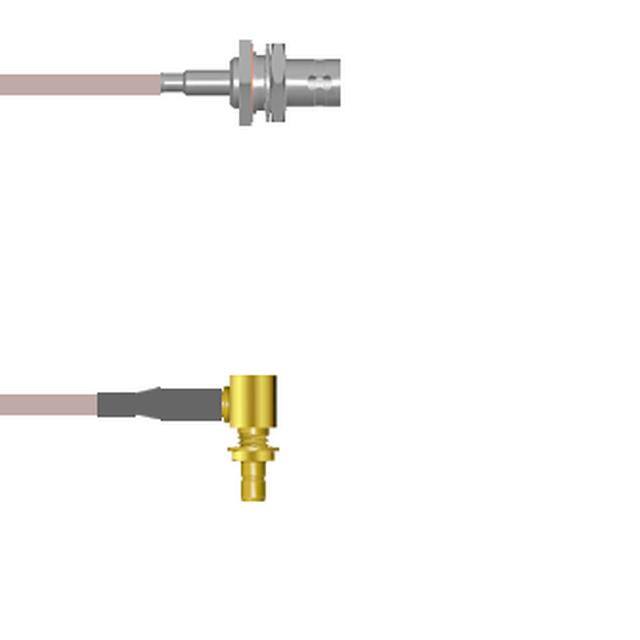

Q-0403H0005036iCBL ASSY BNC-SMB JACK RG316 36 |
2,201 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 36.00 (914.40mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

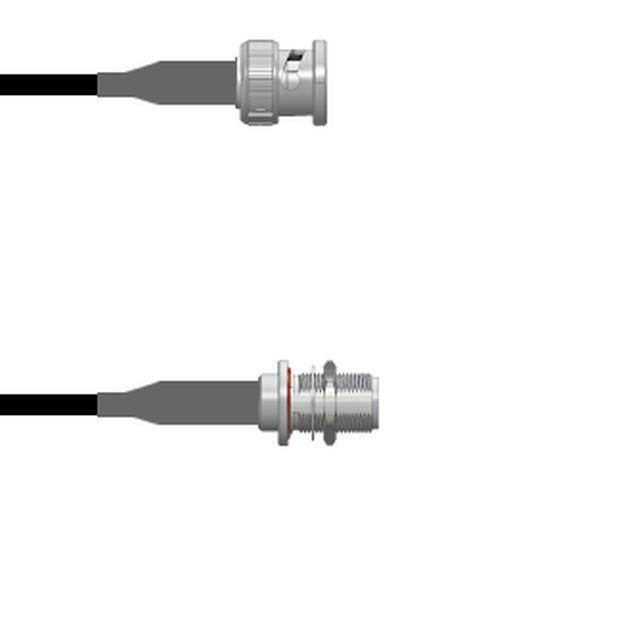

Q-0L01X0008072iCBL ASY BNC-N-TYPE P-J RG58 6' |
3,682 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 72.0 (1.8m) 6.0' | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

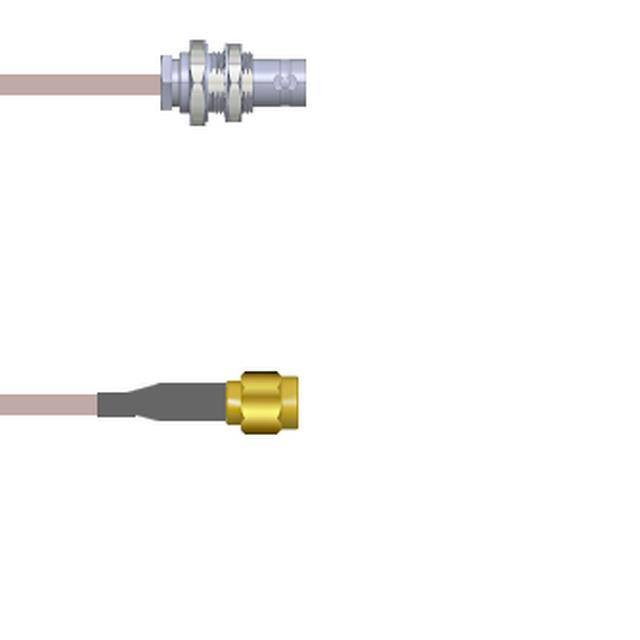

Q-0703C000R108iCBL ASSY BNC-SMA J-P RG316 DB 9' |
3,804 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 108.0 (2.7m) 9.0' | RG-316 DB | - | - | 50 Ohms | 2 GHz | Copper | Shielded | - |
|

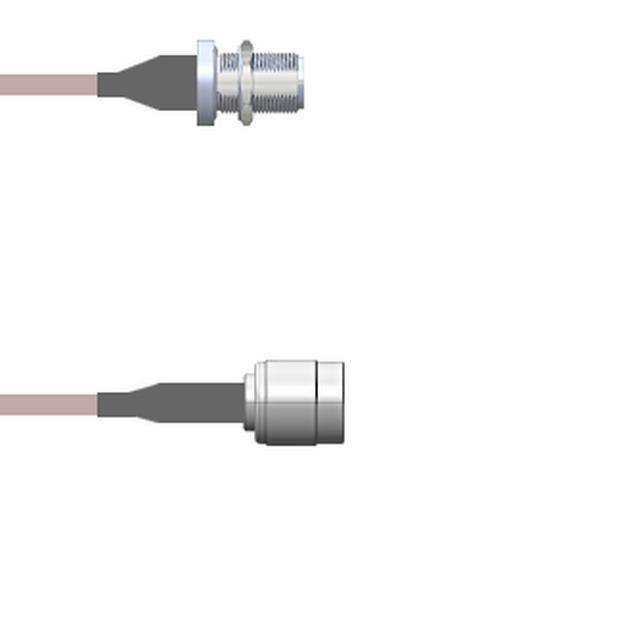

Q-1U0520005009iCBL ASY N TO TNC J TO P RG316 9 |
3,974 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 9.000 (228.60mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

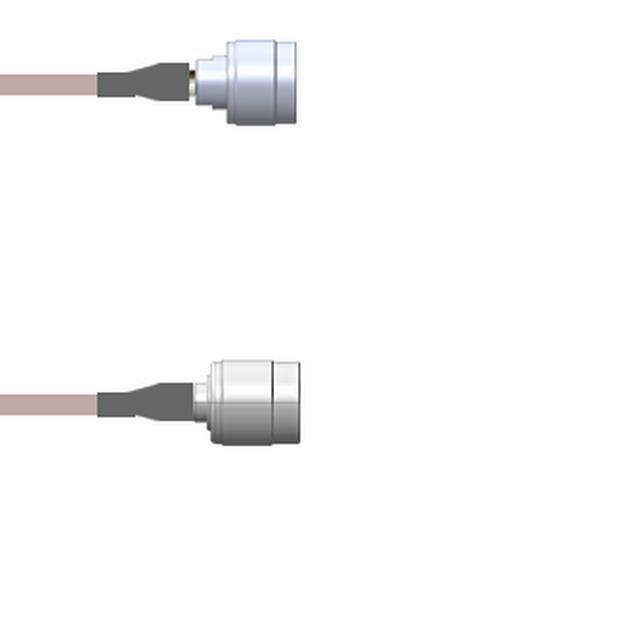

Q-2H05100012.5MCBL ASSY N TO TNC PLG RG178 2.5M |
2,458 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug | Male | - | - | TNC Plug | Male | - | - | 98.4 (2.5m) 8.2' | RG-178 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

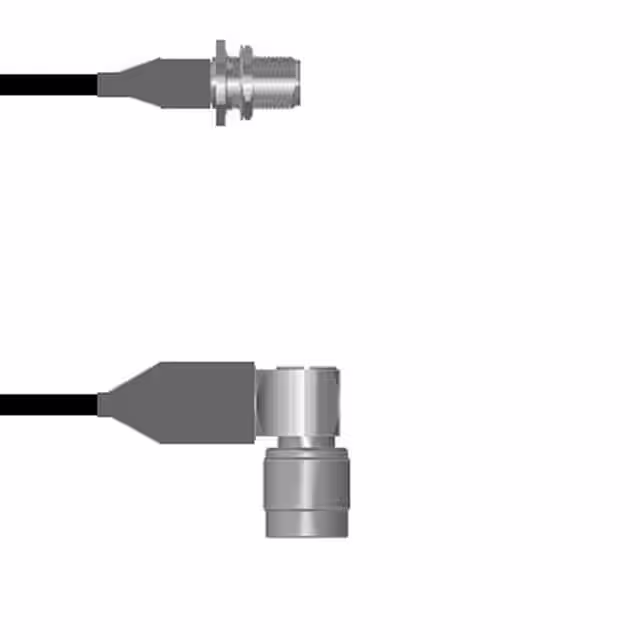

Q-280500013048iCBL ASSY N TO TNC JACK TO PLG 4' |
2,367 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0 (1.2m) 4.0' | LMR 400 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
