| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

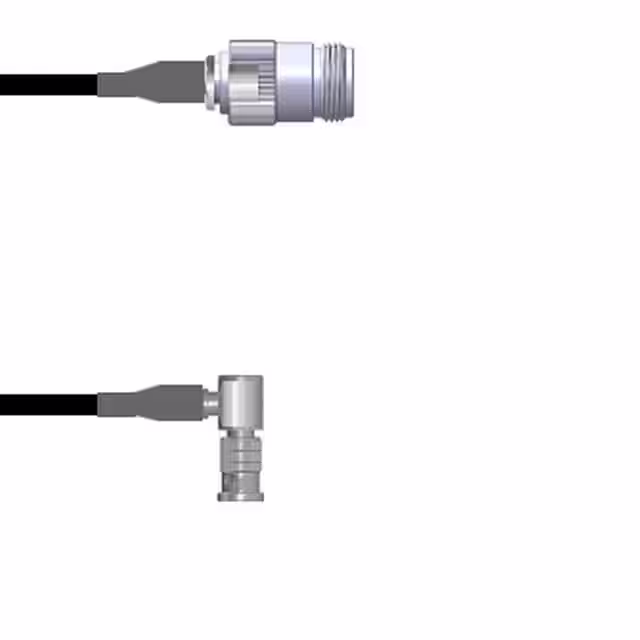

Q-2005G0003036iCBL ASSY HD-BNC TO N RG174 36 |
2,947 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to N-Type | HD-BNC Plug, Right Angle | Male | - | - | N-Type Jack | Female | - | - | 36.00 (914.40mm) | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

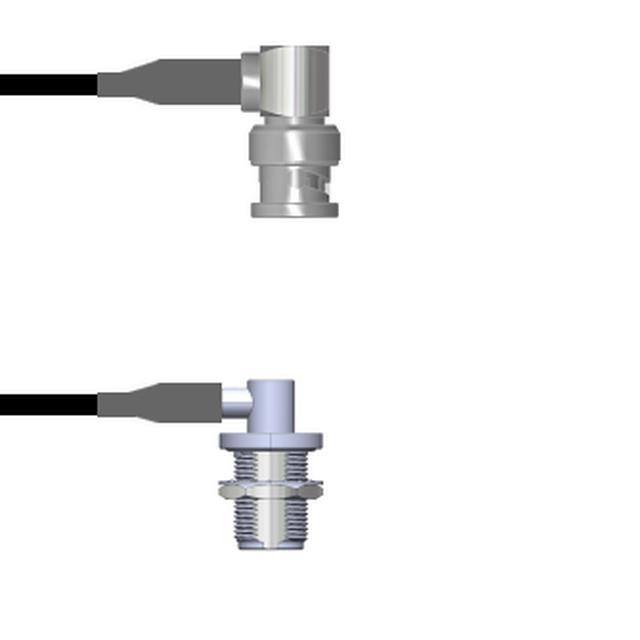

Q-0E01S00080.5MCBL ASSY BNC-N-TYPE RG58 19.69 |
2,839 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 19.69 (500.00mm) | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

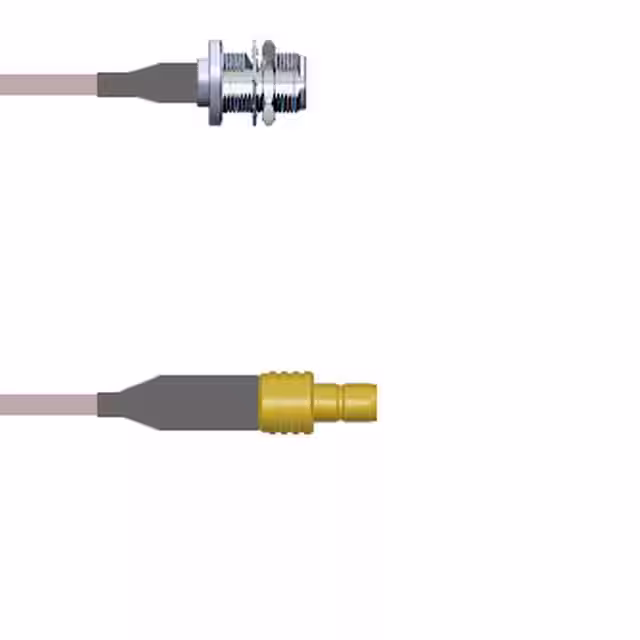

Q-2103N000R048iCBL ASSY SMB-N JACK RG316 DB 4' |
3,355 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Jack | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 48.0 (1.2m) 4.0' | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

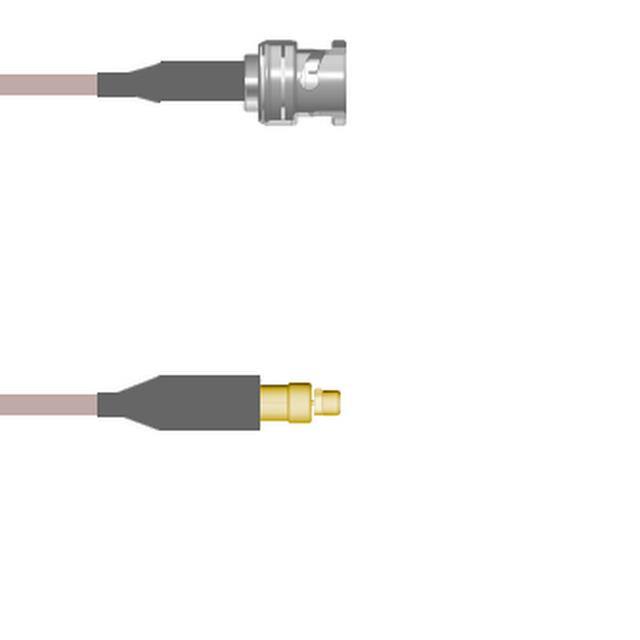

Q-0K01R000R084iCBL ASSY BNC-MMCX PL RG316 DB 7' |
2,258 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Plug | Male | - | - | MMCX Plug | Male | - | - | 84.0 (2.1m) 7.0' | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

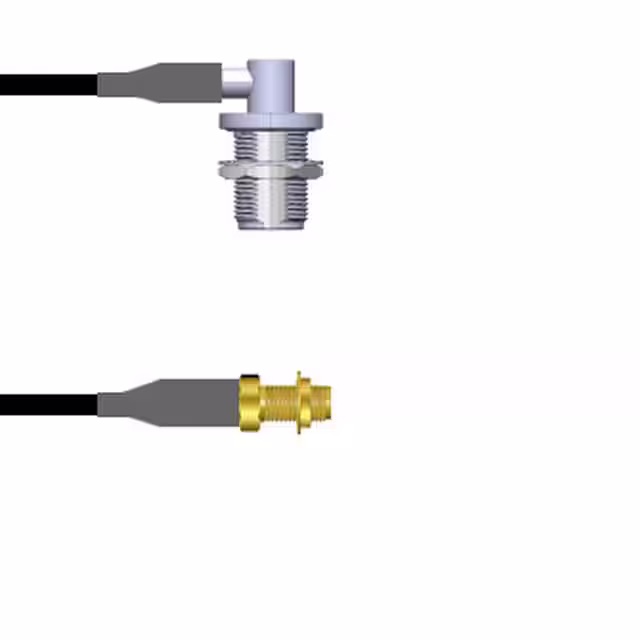

Q-1S02Y0008.75MCBL ASSY SMA-N JACK RG58 29.53 |
3,222 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 29.53 (750.00mm) | RG-58 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

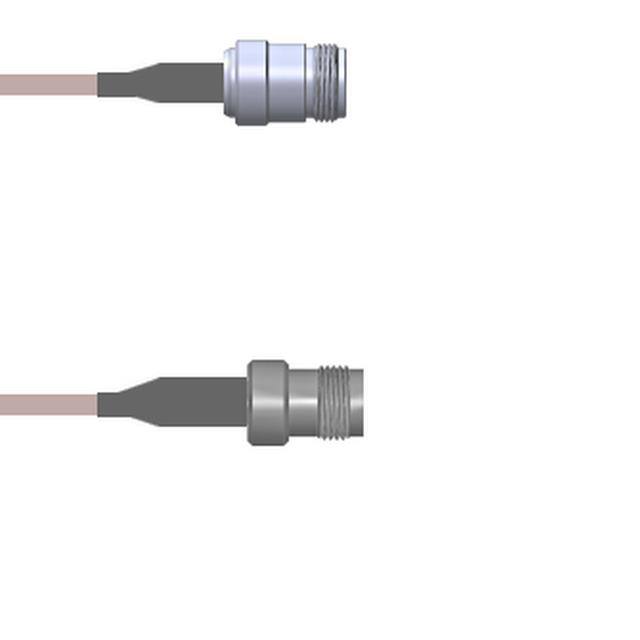

Q-2404N000H072iCBL ASSY N TO TNC JACK RG142 6' |
3,338 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | - | - | TNC Jack | Female | - | - | 72.0 (1.8m) 6.0' | RG-142 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

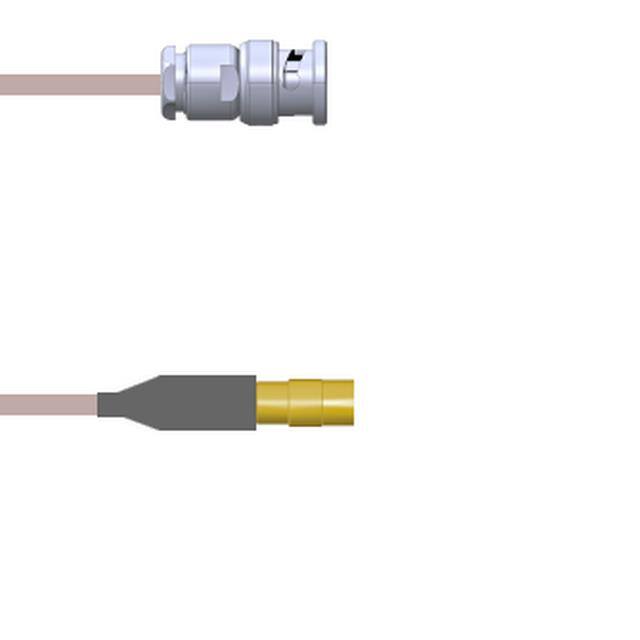

Q-0J01J0005012iCBL ASY BNC-MMCX P-J RG316 12 |
3,025 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Plug | Male | - | - | MMCX Jack | Female | - | - | 12.00 (304.80mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

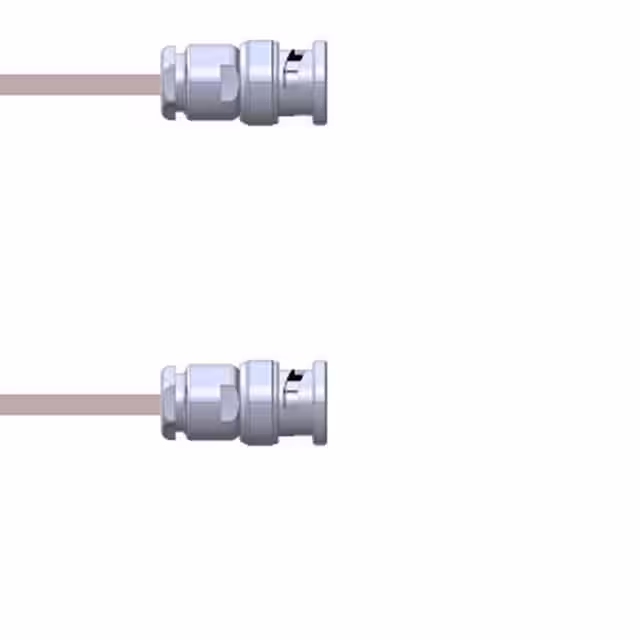

Q-0J00J00052.5MCBL ASSY BNC PLUG RG316 2.5M |
3,110 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | - | - | BNC Plug | Male | - | - | 98.4 (2.5m) 8.2' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

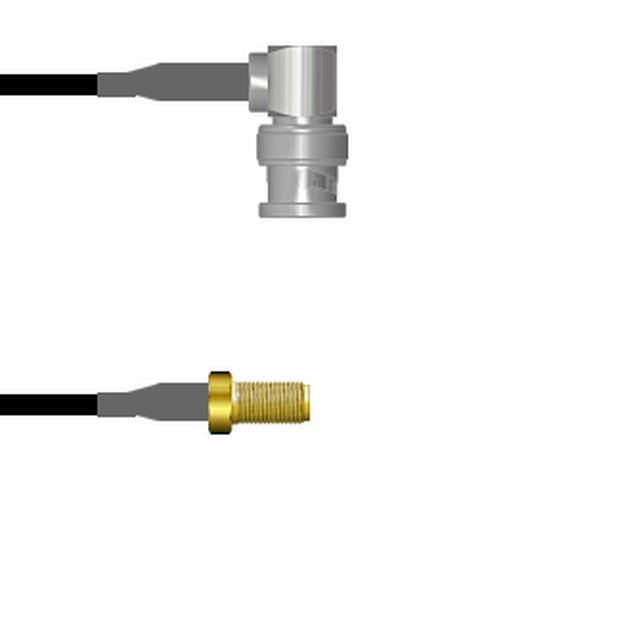

Q-0D02V0003.25MCBL ASSY BNC-SMA RG174 9.843 |
2,477 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Plug, Right Angle | Male | - | - | SMA Jack | Female | - | - | 9.843 (250.00mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

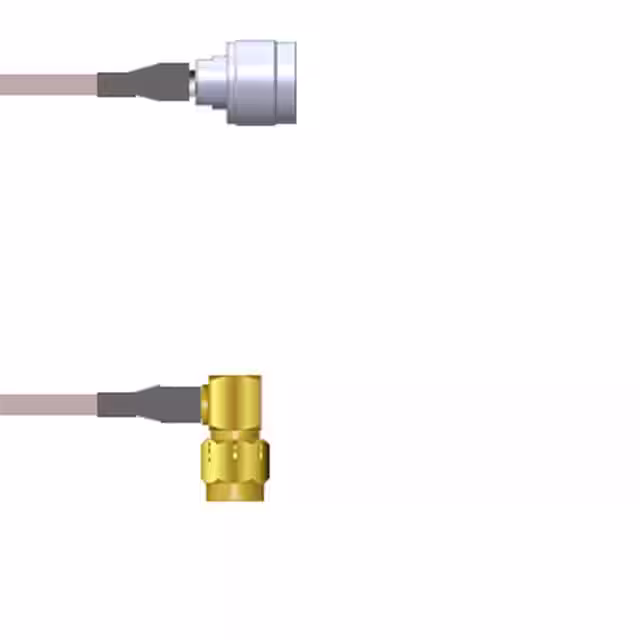

Q-2H0330001001MCBL ASSY SMA-N PLUG RG178 1M |
3,052 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 39.4 (1.0m) 3.3' | RG-178 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

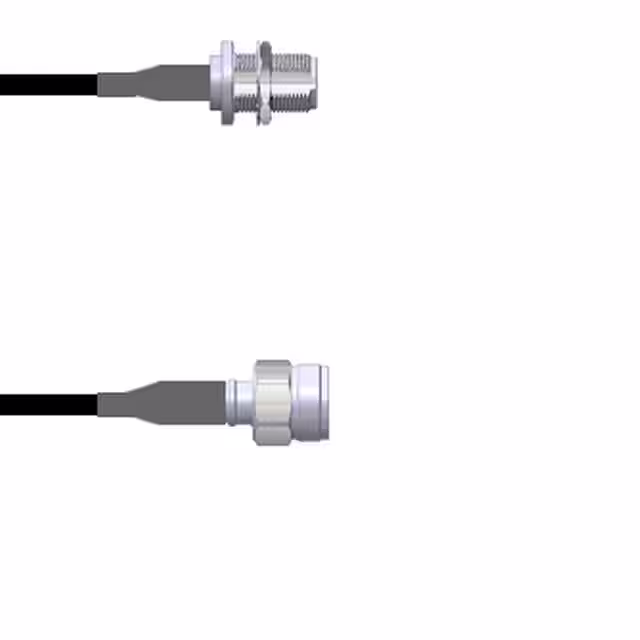

Q-26059000M060iCBL ASSY N TO TNC JACK TO PLG 5' |
3,832 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 60.0 (1.5m) 5.0' | LMR 240 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|
Q-030110005006iCBL ASSY BNC-MCX JACK RG316 6 |
2,004 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Jack | Female | - | - | MCX Jack | Female | - | - | 6.000 (152.40mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

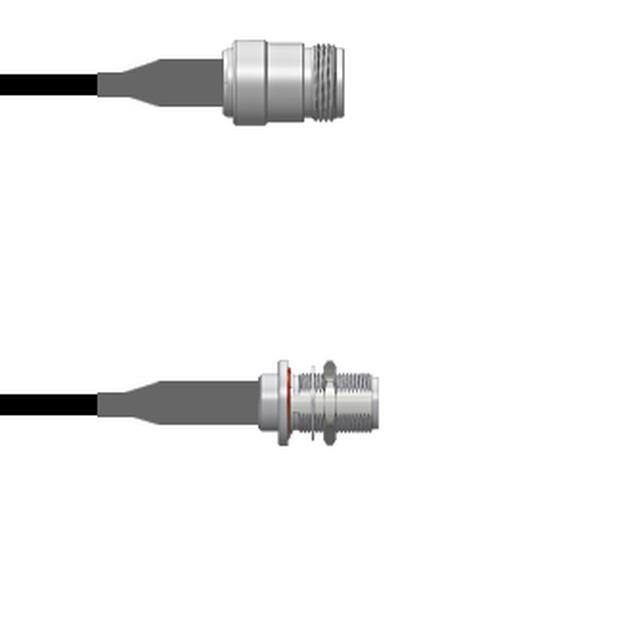

Q-1W01X0008018iCBL ASSY N-TYPE JACK RG58 18 |
2,522 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 18.00 (457.20mm) | RG-58 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

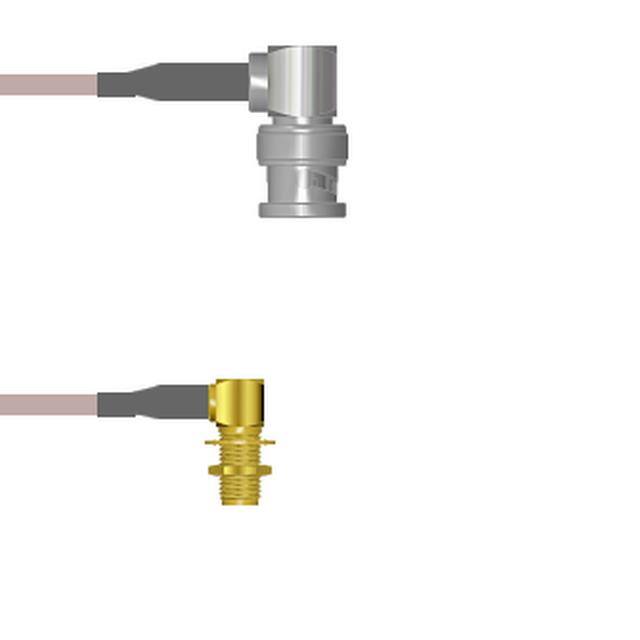

Q-0D02P0005002MCBL ASY BNC-SMA P-J RG316 2M |
2,598 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 78.7 (2.0m) 6.6' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

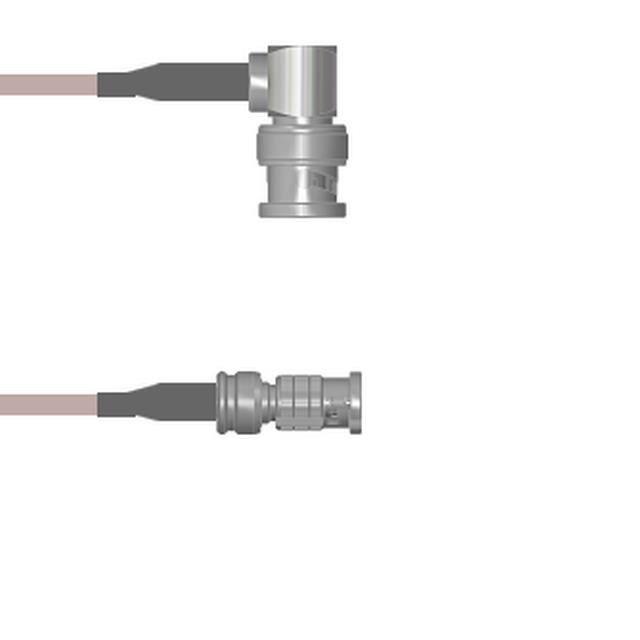

Q-0D05H0005024iCBL ASSY BNC-HD-BNC PL RG316 24 |
3,425 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Plug, Right Angle | Male | - | - | HD-BNC Plug | Male | - | - | 24.00 (609.60mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

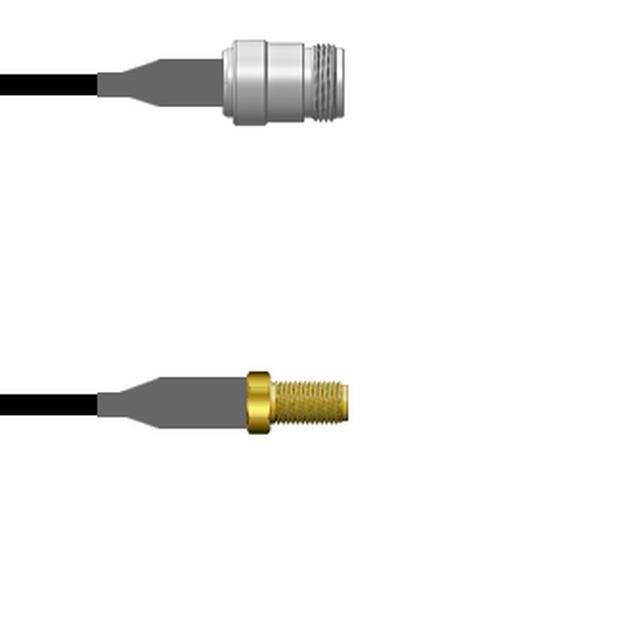

Q-1W02Z0008048iCBL ASSY SMA-N JACK RG58 4' |
3,330 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 48.0 (1.2m) 4.0' | RG-58 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

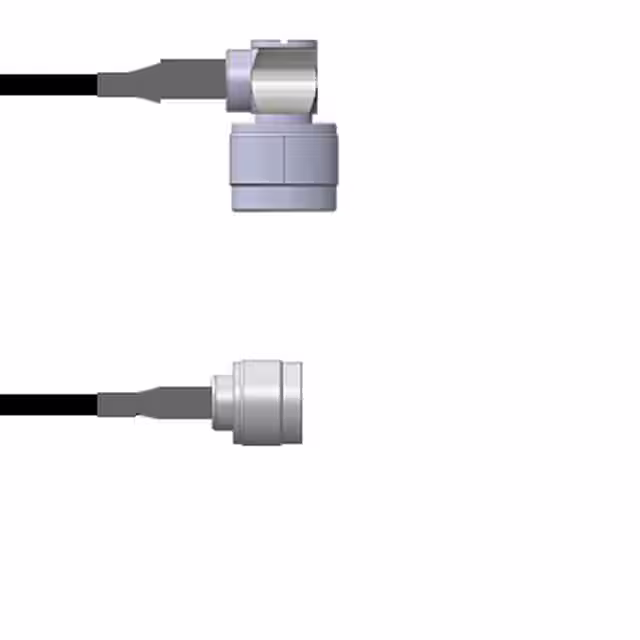

Q-2F02N0008.75MCBL ASSY N-TYPE PLUG RG58 29.53 |
2,376 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Plug, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 29.53 (750.00mm) | RG-58 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

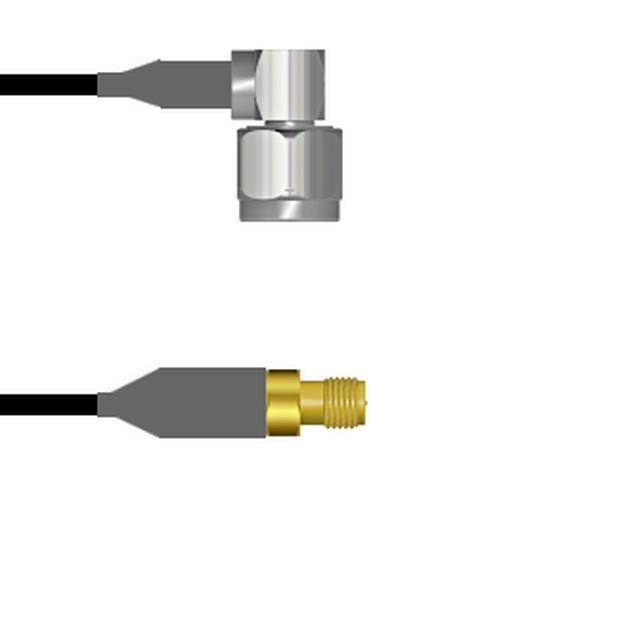

Q-2A070000M1.5MCBL ASY RP-SMA TO N J TO P 1.5M |
3,890 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to N-Type | RP-SMA Jack | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 59.1 (1.5m) 4.9' | LMR 240 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

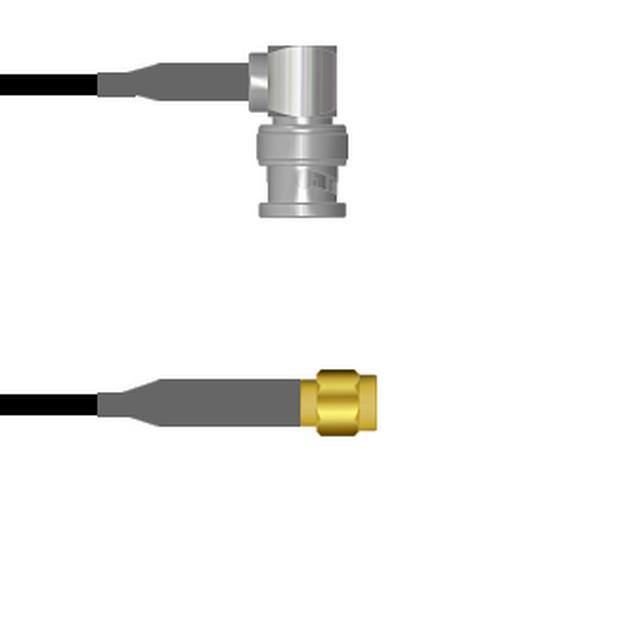

Q-0D06800030.5MCB ASY RP-SMA-BNC P RG174 19.69 |
2,324 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to BNC | RP-SMA Plug | Female | - | - | BNC Plug, Right Angle | Male | - | - | 19.69 (500.00mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

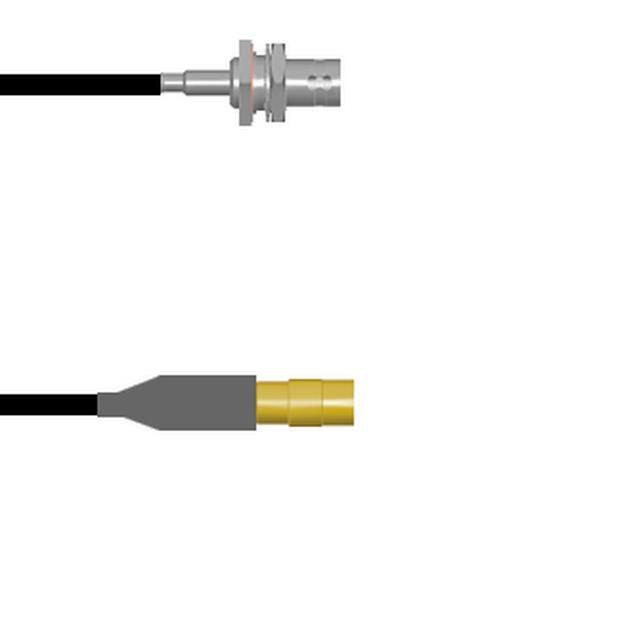

Q-0401J0003036iCBL ASSY BNC-MMCX JACK RG174 36 |
3,947 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Jack | Female | Free Hanging (In-Line) | - | 36.00 (914.40mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
