| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

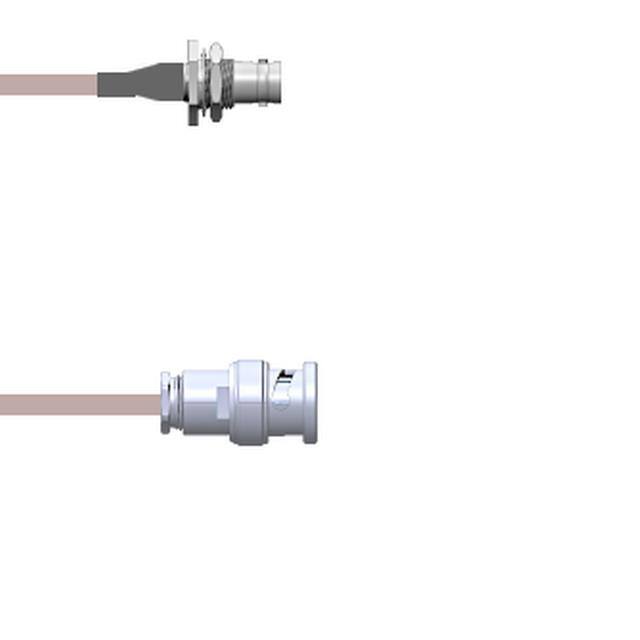

Q-0100I0001072iCBL ASSY BNC JCK TO PLG RG178 6' |
2,682 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | BNC Plug | Male | Free Hanging (In-Line) | - | 72.0 (1.8m) 6.0' | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - |
|

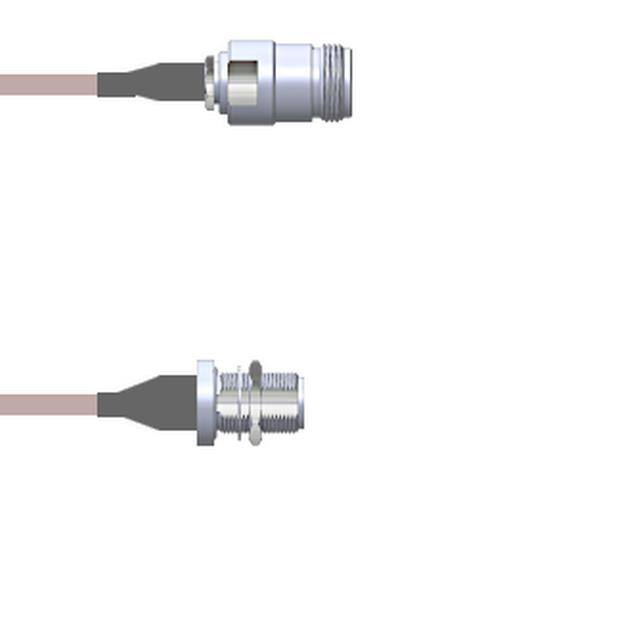

Q-1V022000R060iCBL ASSY N-TYPE JACK RG316 DB 5' |
2,890 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Free Hanging (In-Line) | - | 60.0 (1.5m) 5.0' | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

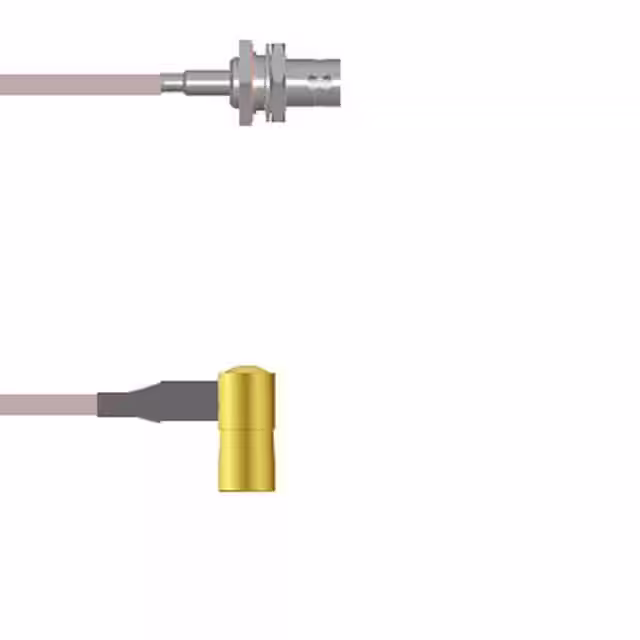

Q-0403S0005018iCBL ASY BNC-SMB J TO P RG316 18 |
2,403 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00 (457.20mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

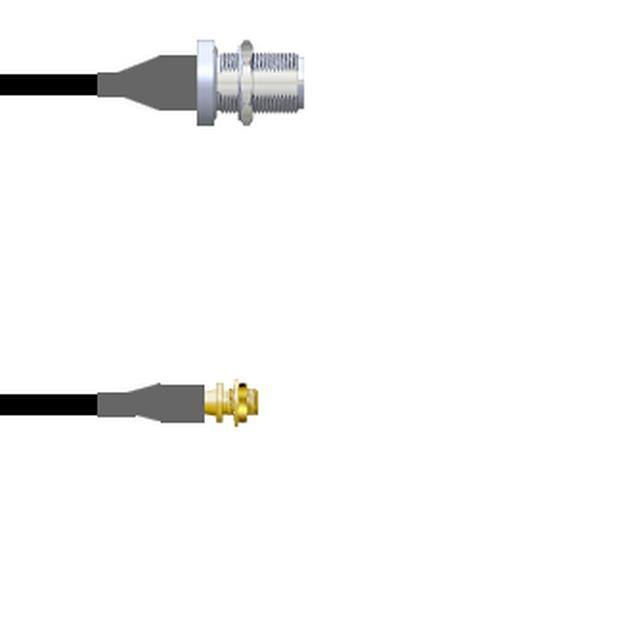

Q-1U01I0003009iCBL ASSY MMCX-N JACK RG174 9 |
3,344 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to N-Type | MMCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 9.000 (228.60mm) | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

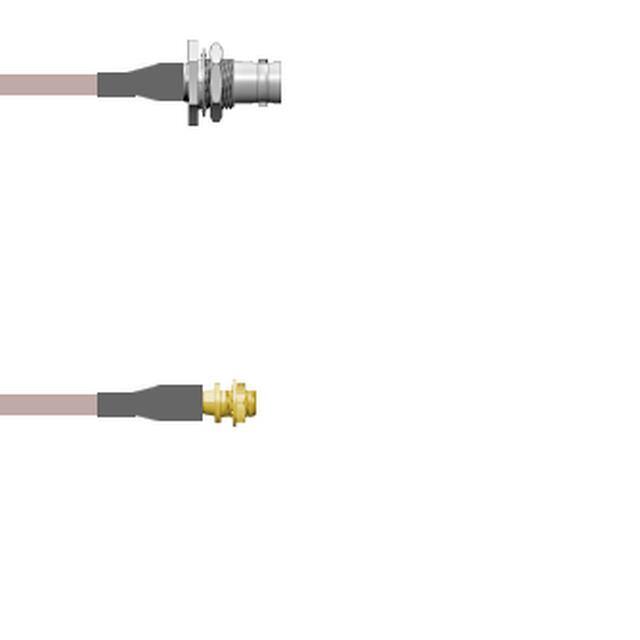

Q-0101H0001060iCBL ASSY BNC-MMCX JACK RG178 5' |
3,514 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 60.0 (1.5m) 5.0' | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

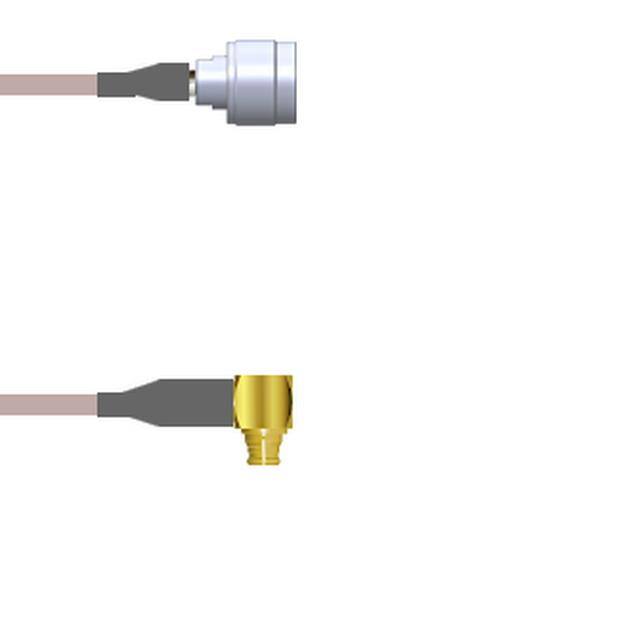

Q-2H0410001108iCBL ASSY SMP-N PLUG RG178 9' |
3,537 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMP to N-Type | SMP Plug, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 108.0 (2.7m) 9.0' | RG-178 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

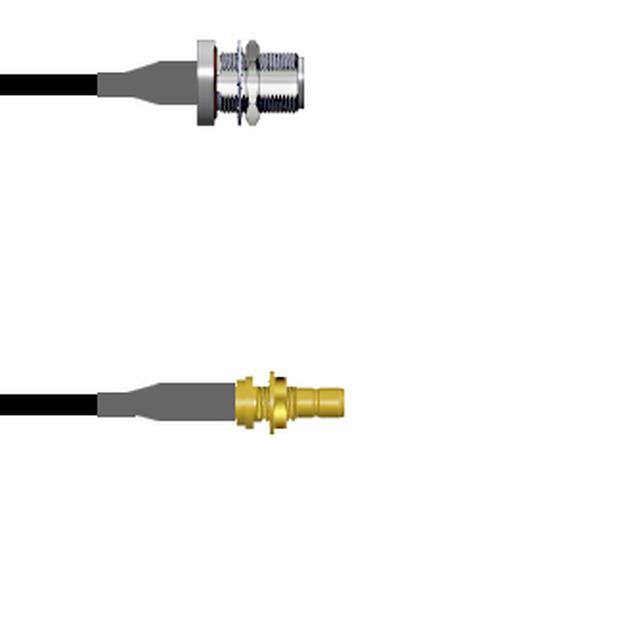

Q-1T03M0003036iCBL ASSY SMB-N JACK RG174 36 |
3,145 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Jack | Male | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 36.00 (914.40mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

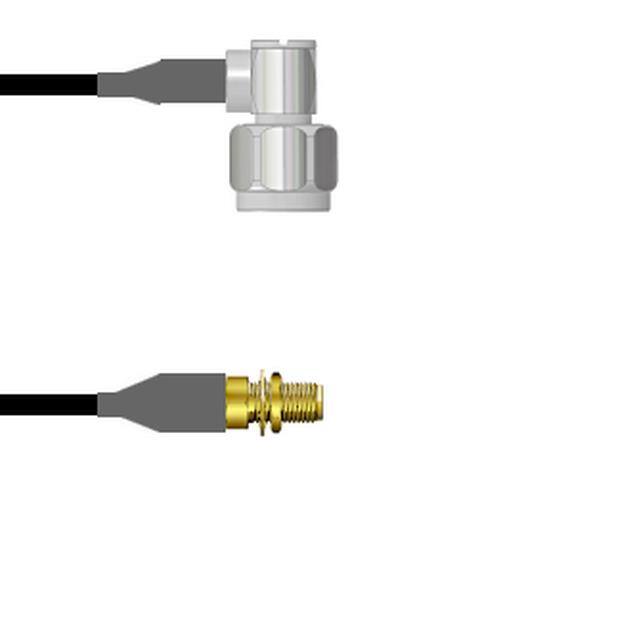

Q-2E030000D003MCBL ASSY SMA-N JACK TO PLUG 3M |
3,111 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 118.1 (3.0m) 9.8' | LMR 195 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

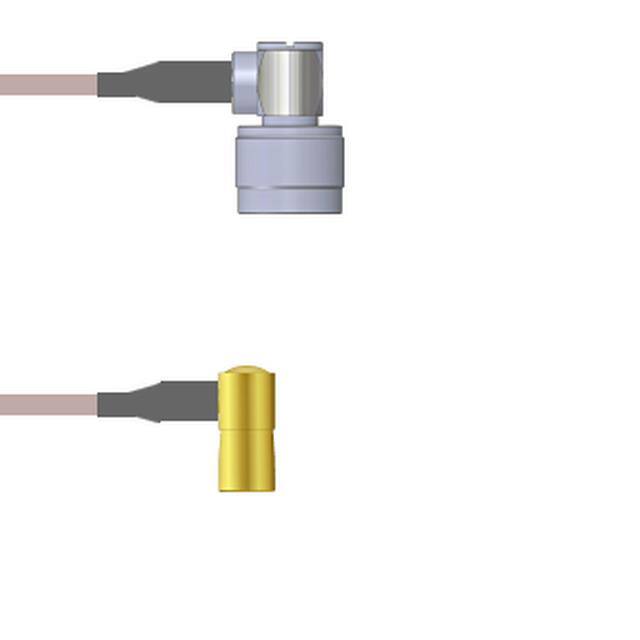

Q-2C03S0005001MCBL ASSY SMB-N PLUG RG316 1M |
2,123 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Plug, Right Angle | Female | - | - | N-Type Plug, Right Angle | Male | - | - | 39.4 (1.0m) 3.3' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

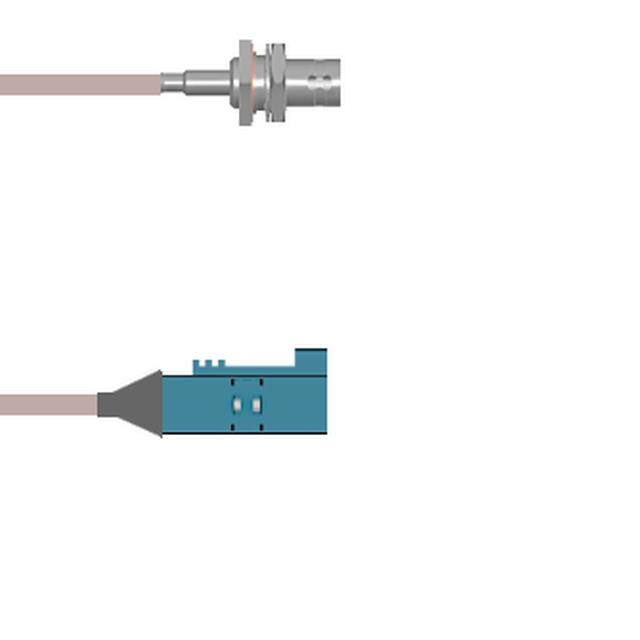

Q-0405E0005024iCBL ASSY BNC-FAKRA JCK RG316 24 |
3,281 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to Fakra | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Fakra Jack | Female | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-316 | - | - | 50 Ohms | 3 GHz | Copper | Shielded | - |
|

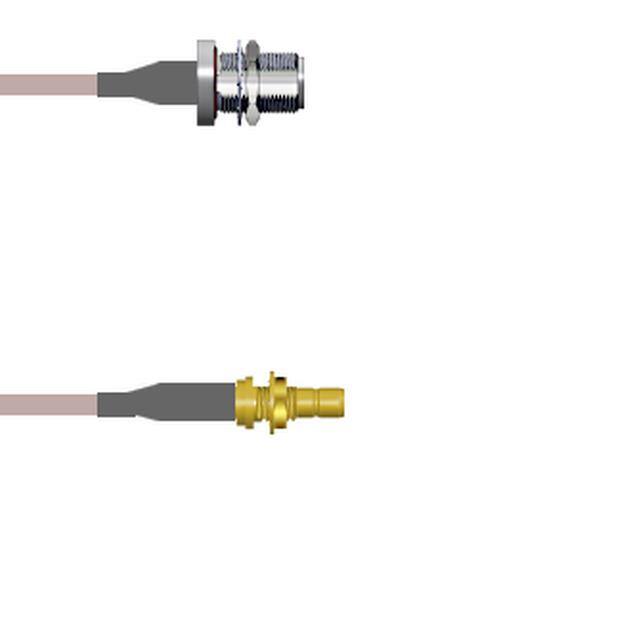

Q-1T03M0005.25MCBL ASSY SMB-N JACK RG316 9.843 |
2,035 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Jack | Male | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 9.843 (250.00mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

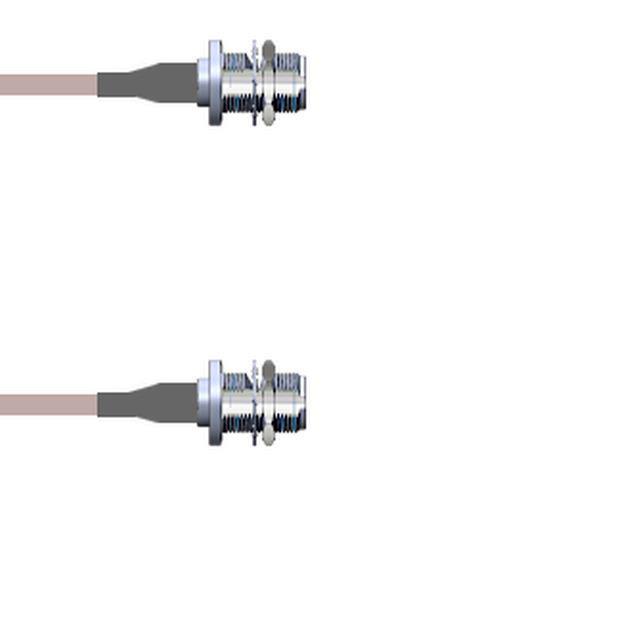

Q-21021000R072iCBL ASSY N-TYPE JACK RG316 DB 6' |
2,332 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 72.0 (1.8m) 6.0' | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|
Q-2D01K000R006iCBL ASY MMCX-N J-P RG316 DB 6 |
3,556 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to N-Type | MMCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

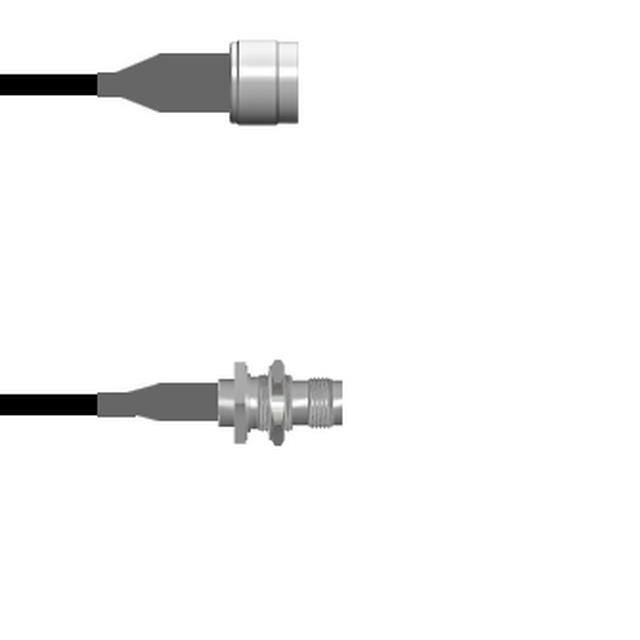

Q-2I04F0003048iCBL ASY N TO TNC P-J RG174 4' |
2,785 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 48.0 (1.2m) 4.0' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

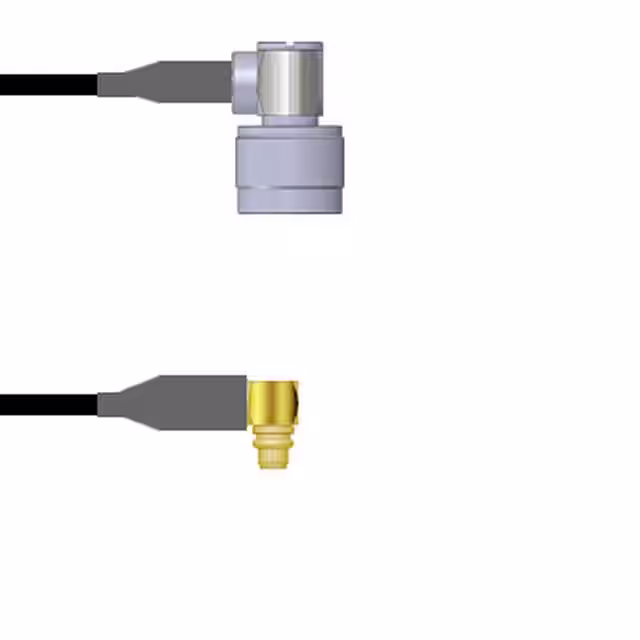

Q-2C01N0003002MCBL ASSY MMCX-N PLUG RG174 2M |
3,256 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to N-Type | MMCX Plug, Right Angle | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 78.7 (2.0m) 6.6' | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

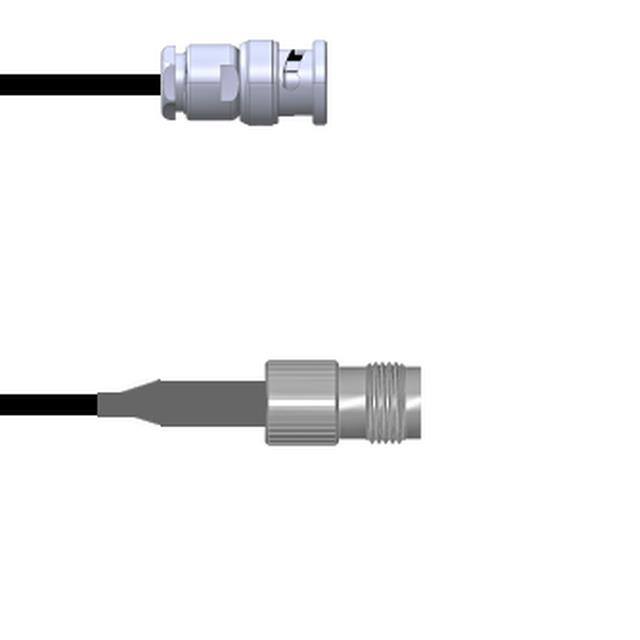

Q-0J04G0003048iCBL ASY BNC-TNC P-J RG174 4' |
3,924 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Plug | Male | - | - | TNC Jack | Female | - | - | 48.0 (1.2m) 4.0' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

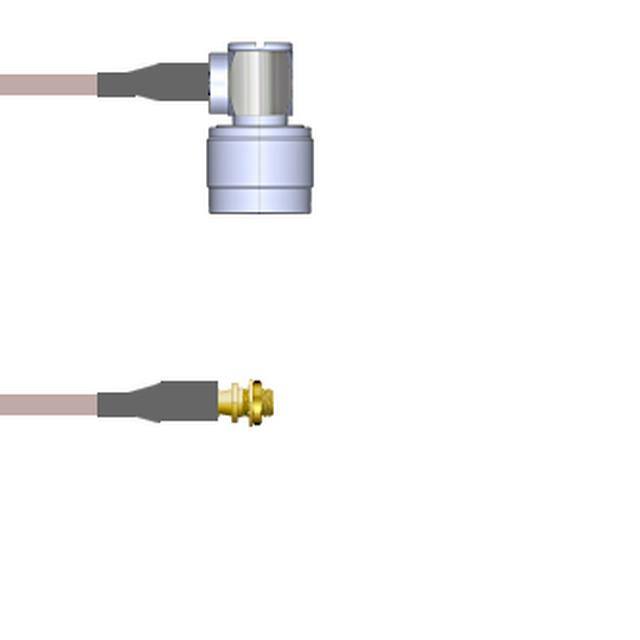

Q-2D01K000R108iCBL ASY MMCX-N J-P RG316 DB 9' |
3,852 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to N-Type | MMCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 108.0 (2.7m) 9.0' | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

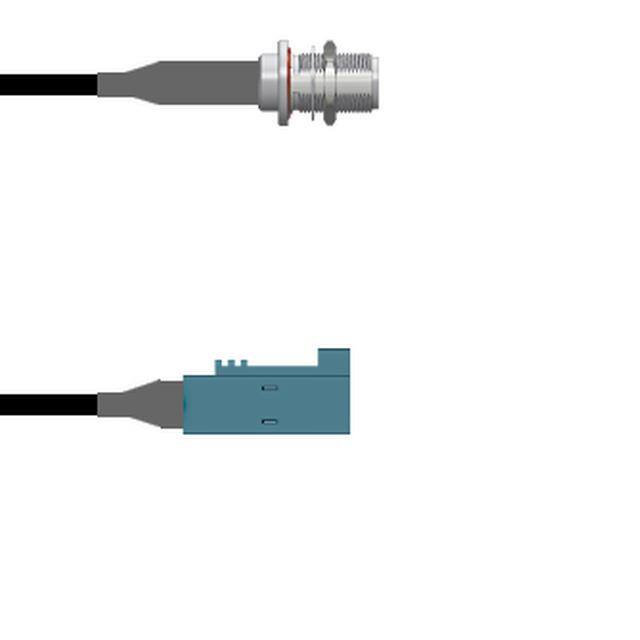

Q-1X05F0008006iCBL ASSY N-FAKRA JACK RG58 6 |
3,486 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to Fakra | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Fakra Jack | Female | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-58 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - |
|

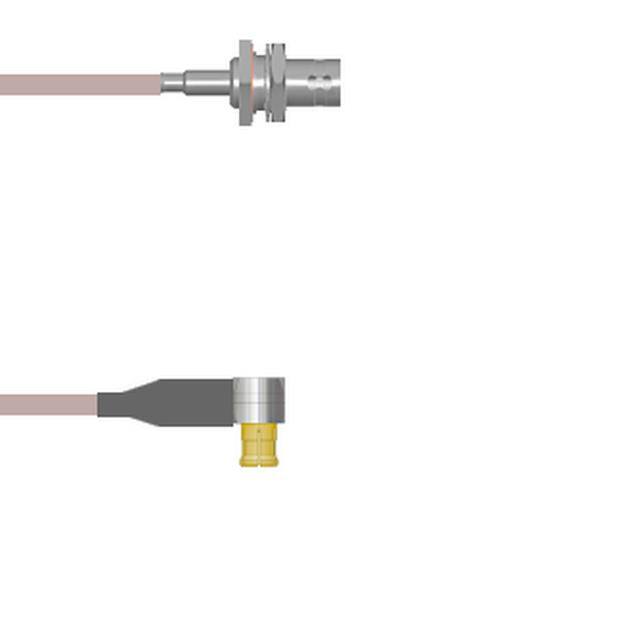

Q-0401A0005036iCBL ASY BNC-MCX J TO P RG316 36 |
3,877 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-0D0480005036iCBL ASY BNC-TNC P-J RG316 36 |
2,928 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 36.00 (914.40mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
