| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

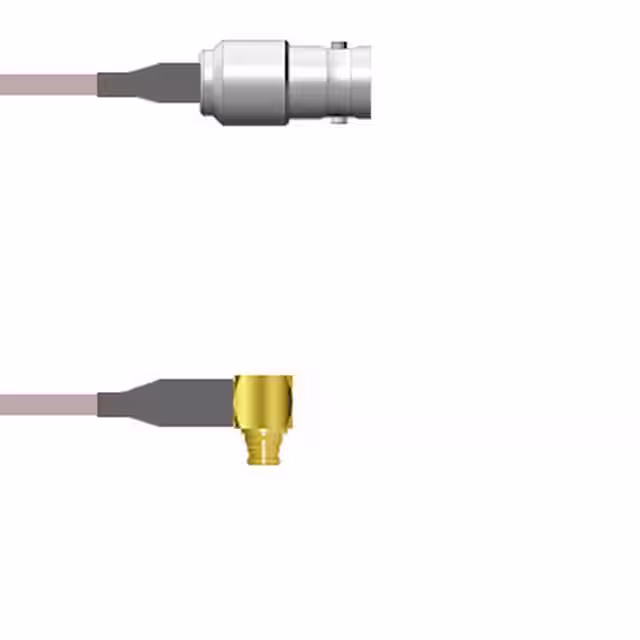

Q-020410001.25MCBL ASSY BNC-SMP RG178 9.843 |
3,489 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMP | BNC Jack | Female | - | - | SMP Plug, Right Angle | Male | - | - | 9.843 (250.00mm) | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

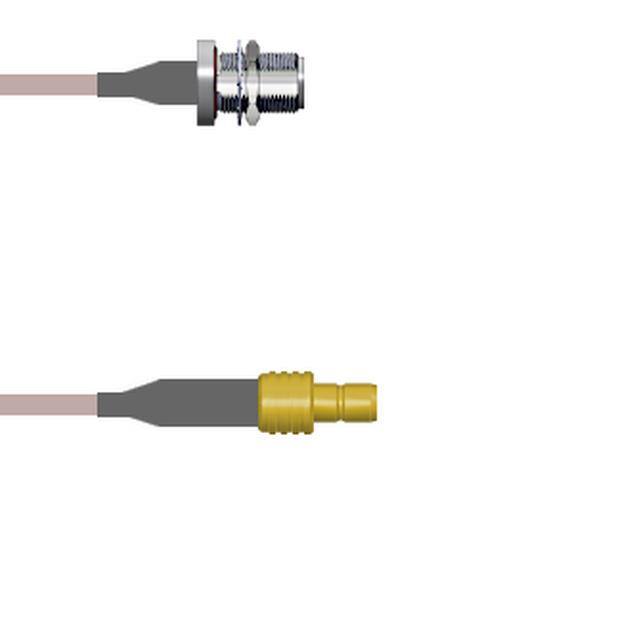

Q-1T03L0005072iCBL ASSY SMB-N JACK RG316 6' |
3,400 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Jack | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 72.0 (1.8m) 6.0' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

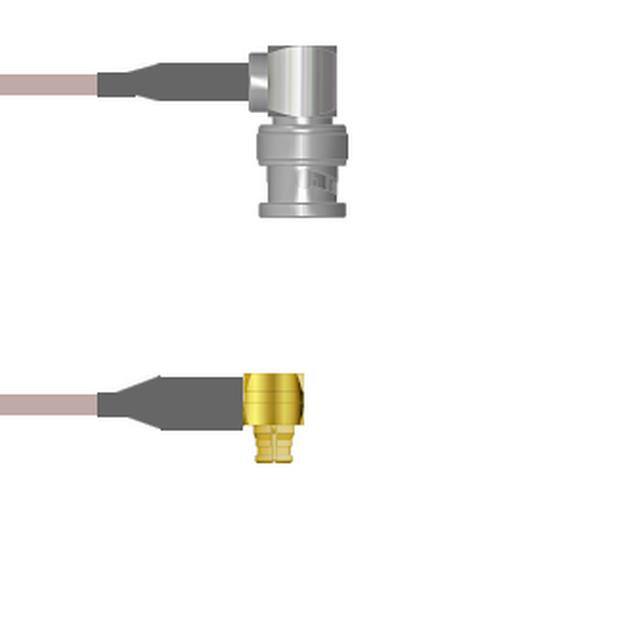

Q-0D0420005.25MCBL ASSY BNC-SMP PL RG316 9.843 |
2,530 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMP | BNC Plug, Right Angle | Male | - | - | SMP Plug, Right Angle | Male | - | - | 9.843 (250.00mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

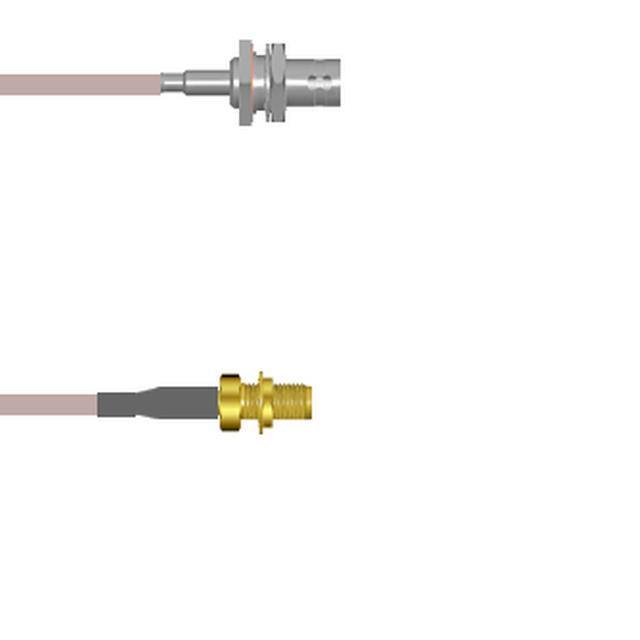

Q-0402W0005084iCBL ASSY BNC-SMA JACK RG316 7' |
2,450 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 84.0 (2.1m) 7.0' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

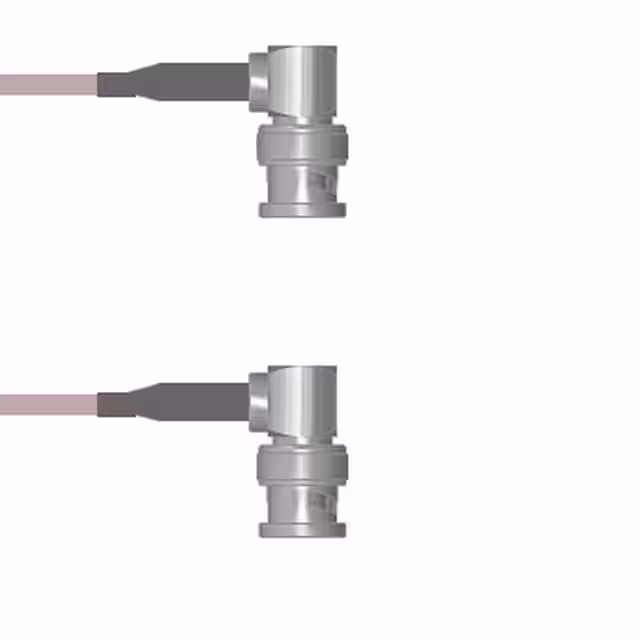

Q-0D00D0005006iCBL ASSY BNC PLUG RG316 6 |
2,661 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug, Right Angle | Male | - | - | BNC Plug, Right Angle | Male | - | - | 6.000 (152.40mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

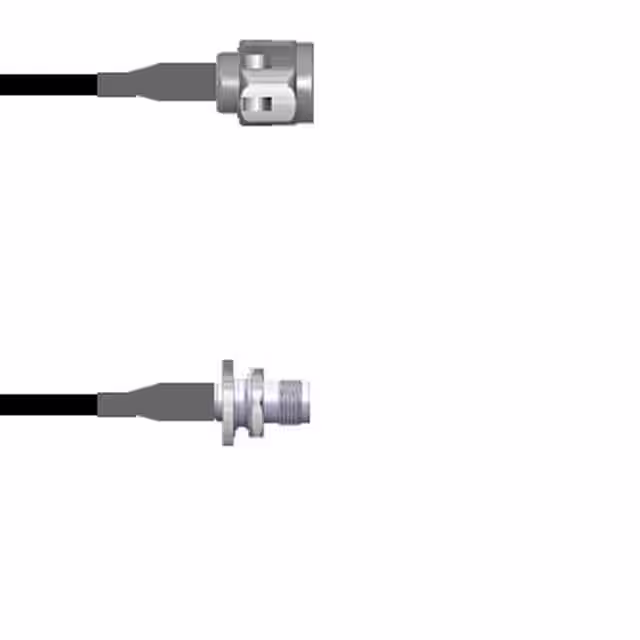

Q-2K04S000M108iCBL ASSY N TO TNC PLUG TO JCK 9' |
3,957 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 108.0 (2.7m) 9.0' | LMR 240 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

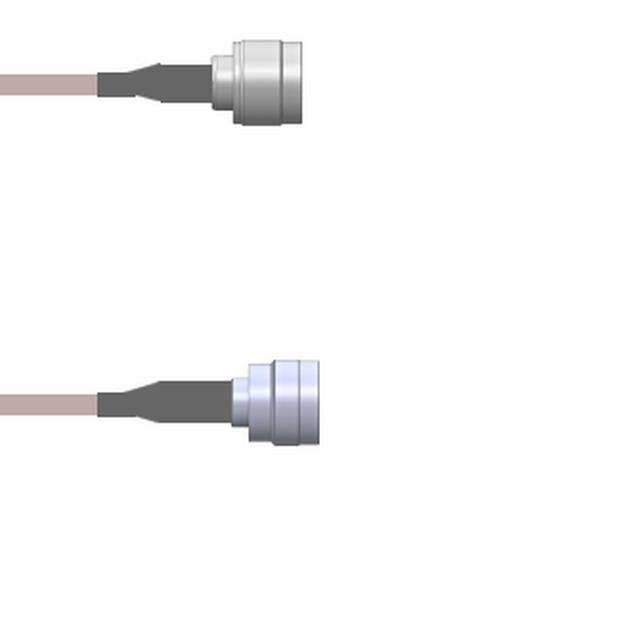

Q-2J056000H018iCBL ASSY N TO TNC PLUG RG142 18 |
3,800 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug | Male | - | - | TNC Plug | Male | - | - | 18.00 (457.20mm) | RG-142 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

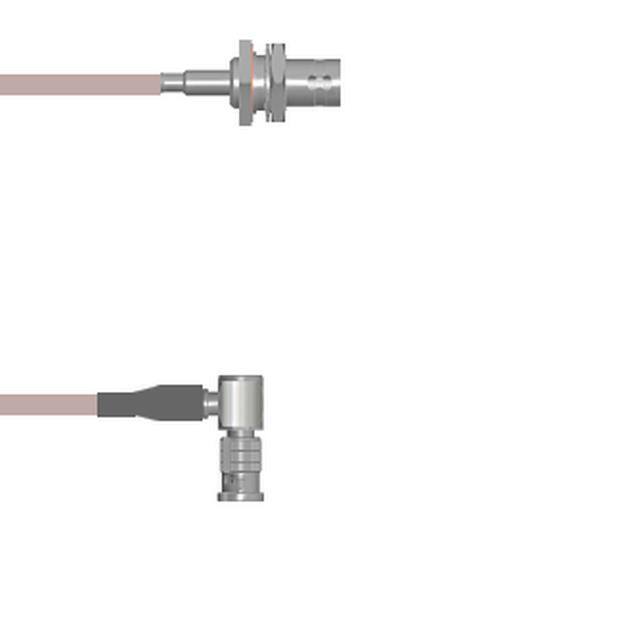

Q-0405G00052.5MCBL ASSY BNC-HD-BNC RG316 2.5M |
3,128 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | HD-BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 98.4 (2.5m) 8.2' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

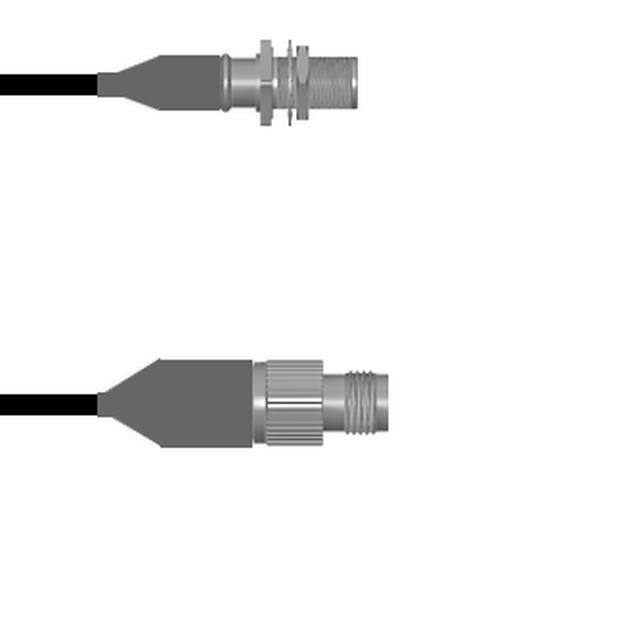

Q-1Y0730013009iCBL ASSY N TO TNC JACK 9 |
2,239 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Free Hanging (In-Line) | - | 9.000 (228.60mm) | LMR 400 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

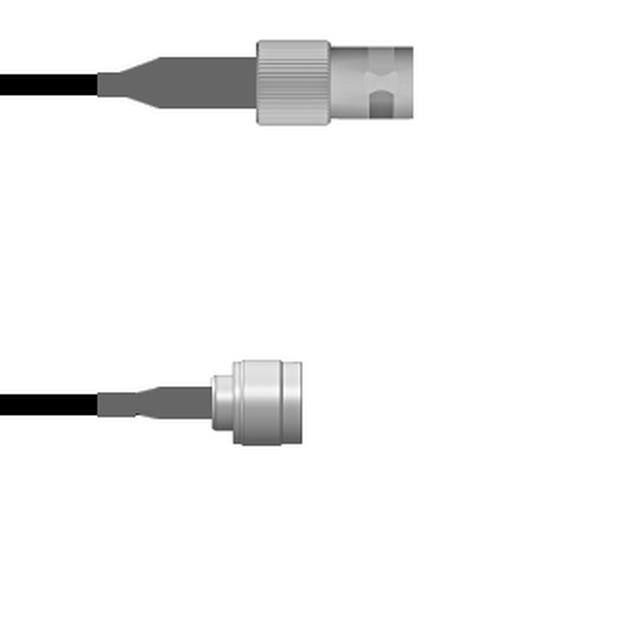

Q-0902N0008002MCBL ASY BNC-N-TYPE J-P RG58 2M |
3,812 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Jack | Female | - | - | N-Type Plug | Male | - | - | 78.7 (2.0m) 6.6' | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

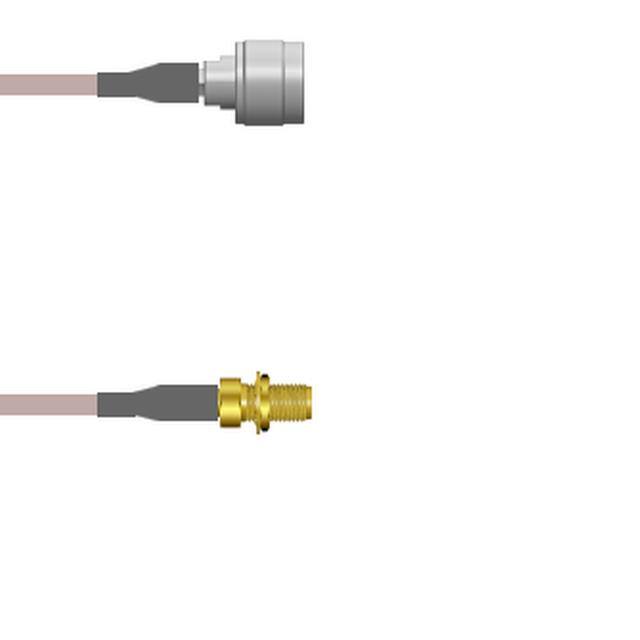

Q-2M02X000R003MCBL ASY SMA-N J TO P RG316 DB 3M |
2,344 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 118.1 (3.0m) 9.8' | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

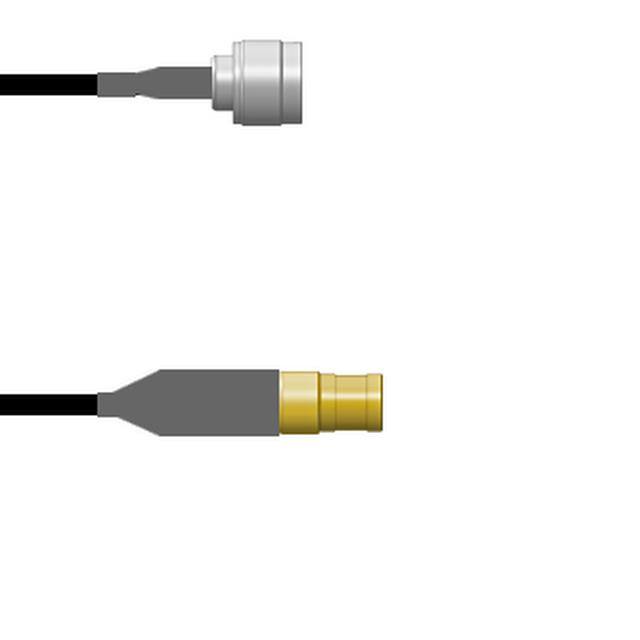

Q-2N03X0008060iCBL ASSY SMB-N PLUG RG58 5' |
2,283 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Plug | Female | - | - | N-Type Plug | Male | - | - | 60.0 (1.5m) 5.0' | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

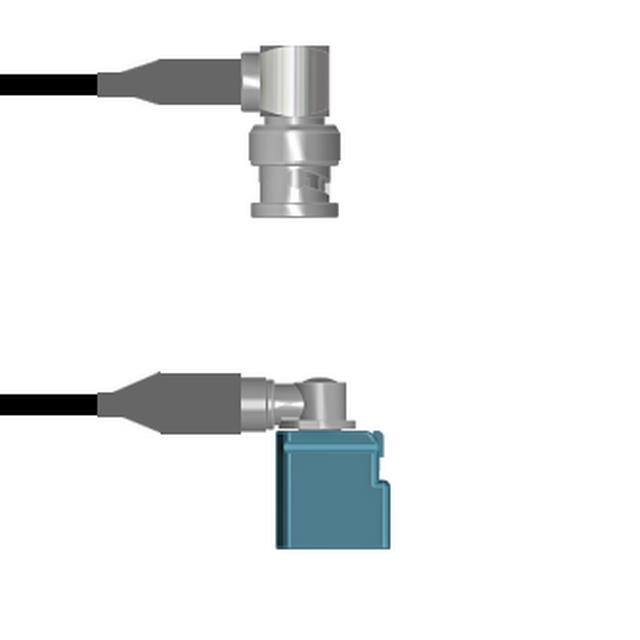

Q-0E05D0008084iCBL ASY BNC-FAKRA P-J RG58 7' |
2,383 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to Fakra | BNC Plug, Right Angle | Male | - | - | Fakra Jack, Right Angle | Female | - | - | 84.0 (2.1m) 7.0' | RG-58 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - |
|

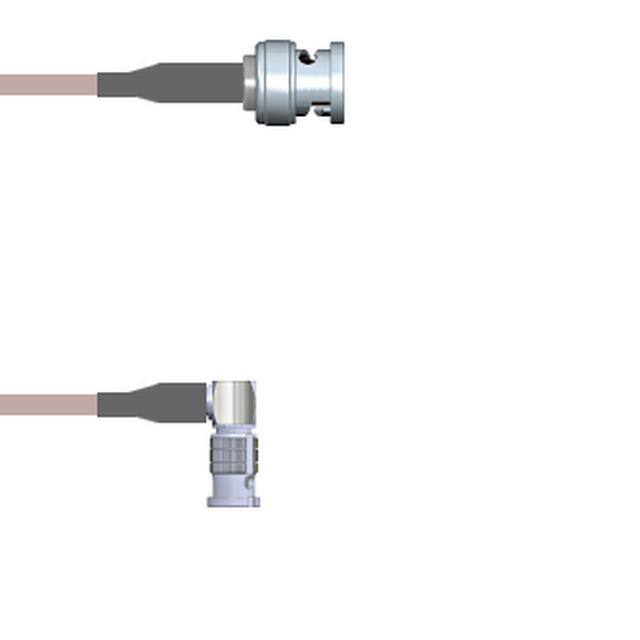

Q-0O00T000S006iCBL ASSY BNC-HD-BNC PLG RG179 6 |
3,065 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Plug | Male | - | - | HD-BNC Plug, Right Angle | Male | - | - | 6.000 (152.40mm) | RG-179 | - | - | 75 Ohms | 4 GHz | Copper | Shielded | - |
|

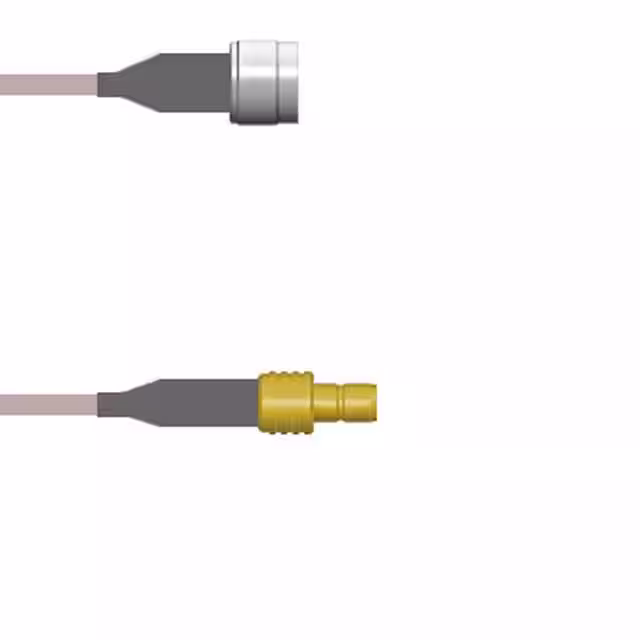

Q-2I03L0005006iCBL ASY SMB-N JK TO PLG RG316 6 |
2,175 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Jack | Male | - | - | N-Type Plug | Male | - | - | 6.000 (152.40mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

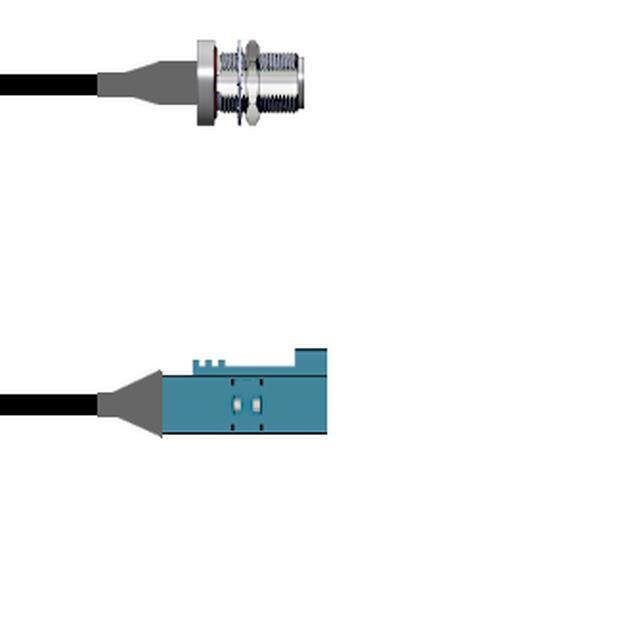

Q-1T05E00030.5MCBL ASSY N-FAKRA JK RG174 19.69 |
3,680 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to Fakra | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Fakra Jack | Female | Free Hanging (In-Line) | - | 19.69 (500.00mm) | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - |
|

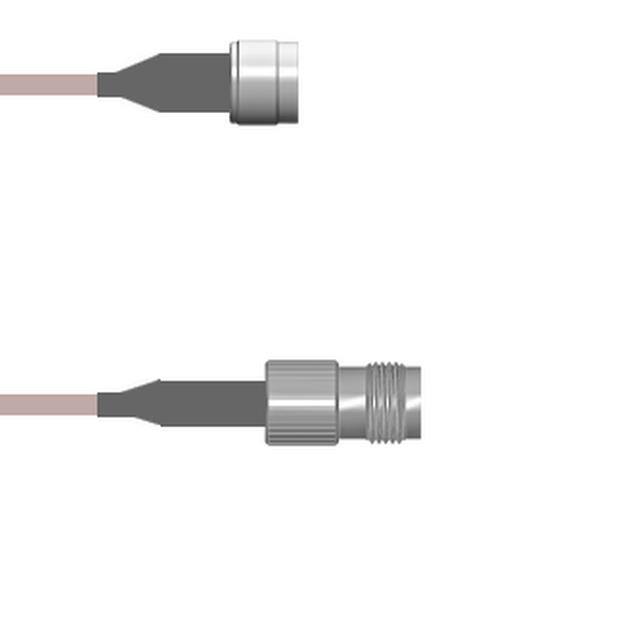

Q-2I04G0005084iCBL ASY N TO TNC P-J RG316 7' |
3,877 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug | Male | - | - | TNC Jack | Female | - | - | 84.0 (2.1m) 7.0' | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

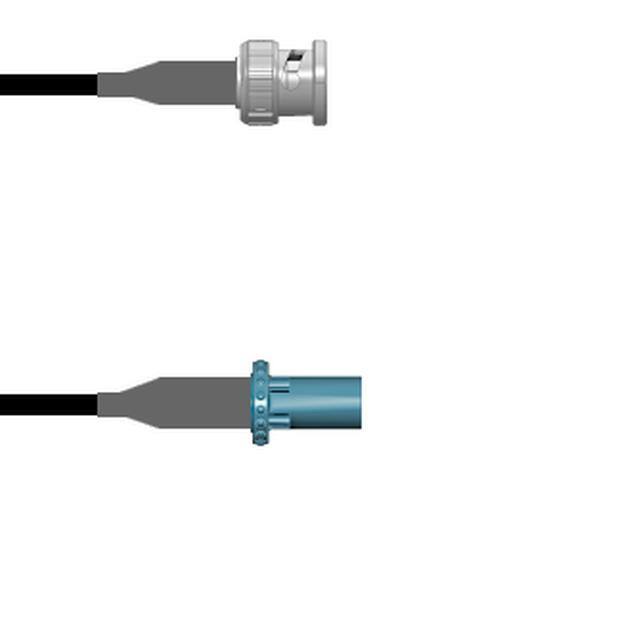

Q-0L05B00081.5MCBL ASSY BNC-FAKRA PLG RG58 1.5M |
2,346 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to Fakra | BNC Plug | Male | - | - | Fakra Plug | Male | - | - | 59.1 (1.5m) 4.9' | RG-58 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - |
|

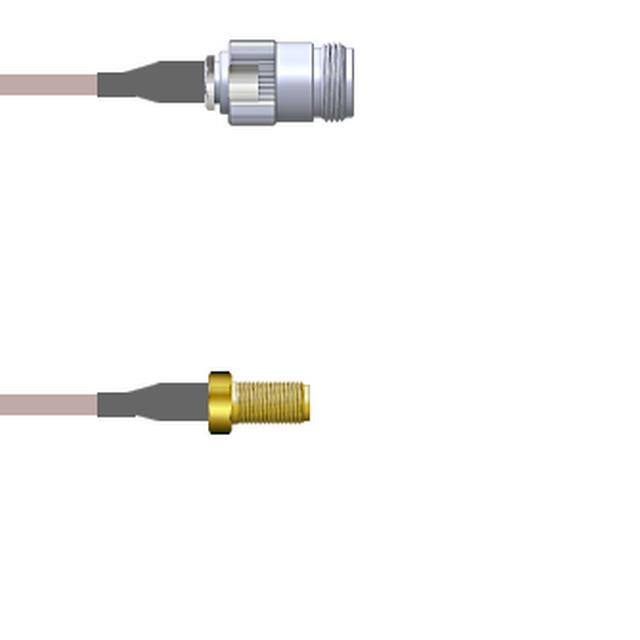

Q-2002V0005012iCBL ASSY SMA-N JACK RG316 12 |
2,096 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack | Female | - | - | N-Type Jack | Female | - | - | 12.00 (304.80mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|
Q-2005200031.5MCBL ASSY N TO TNC J-P RG174 1.5M |
3,444 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | - | - | TNC Plug | Male | - | - | 59.1 (1.5m) 4.9' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
