| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

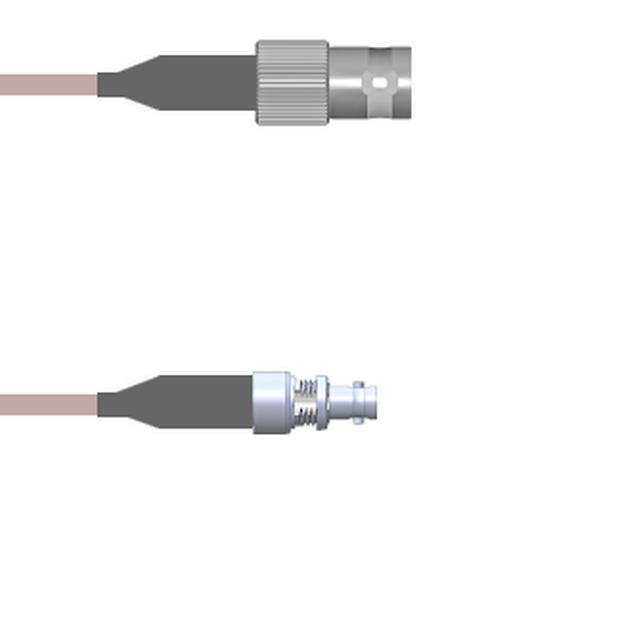

Q-0B00S000H001MCBL ASSY BNC-HD-BNC JCK RG142 1M |
2,391 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 39.4 (1.0m) 3.3' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

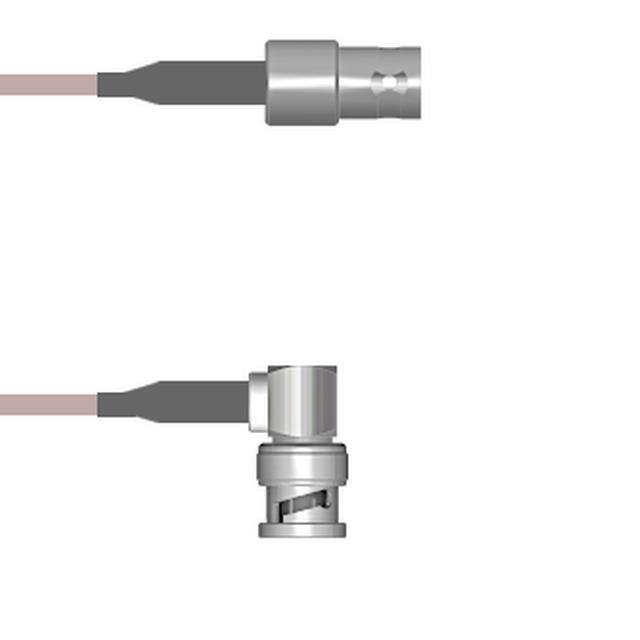

Q-0500H000S072iCBL ASSY BNC JCK TO PLG RG179 6' |
2,722 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | - | - | BNC Plug, Right Angle | Male | - | - | 72.0 (1.8m) 6.0' | RG-179 | - | - | 75 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-1T0340003024iCBL ASSY SMA-N P TO J RG174 24 |
2,436 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00 (609.60mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|
Q-1Y0280013084iCBL ASSY N-TYPE JACK 7' |
2,015 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 84.0 (2.1m) 7.0' | LMR 400 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|
Q-0701K000R001MCBL ASSY BNC-MMCX JK RG316 DB 1M |
2,765 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 39.4 (1.0m) 3.3' | RG-316 DB | - | - | 50 Ohms | 2 GHz | Copper | Shielded | - |
|
Q-0104C0001084iCBL ASSY BNC-TNC JACK RG178 7' |
3,782 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 84.0 (2.1m) 7.0' | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

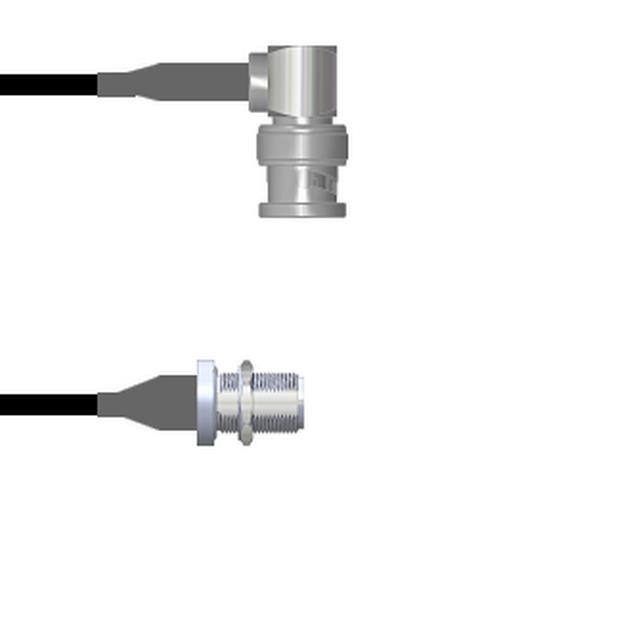

Q-0D01U00032.5MCBL ASSY BNC-N-TYPE RG174 2.5M |
2,615 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 98.4 (2.5m) 8.2' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

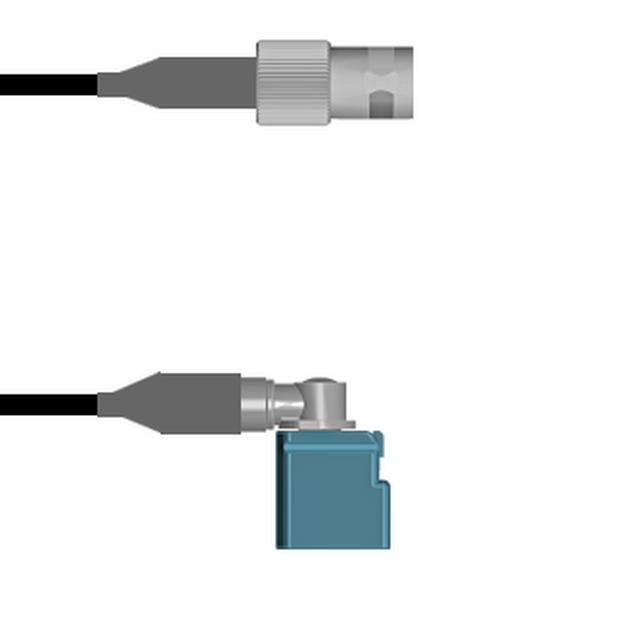

Q-0905D0008.25MCBL ASY BNC-FAKRA JK RG58 9.843 |
3,730 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to Fakra | BNC Jack | Female | - | - | Fakra Jack, Right Angle | Female | - | - | 9.843 (250.00mm) | RG-58 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - |
|

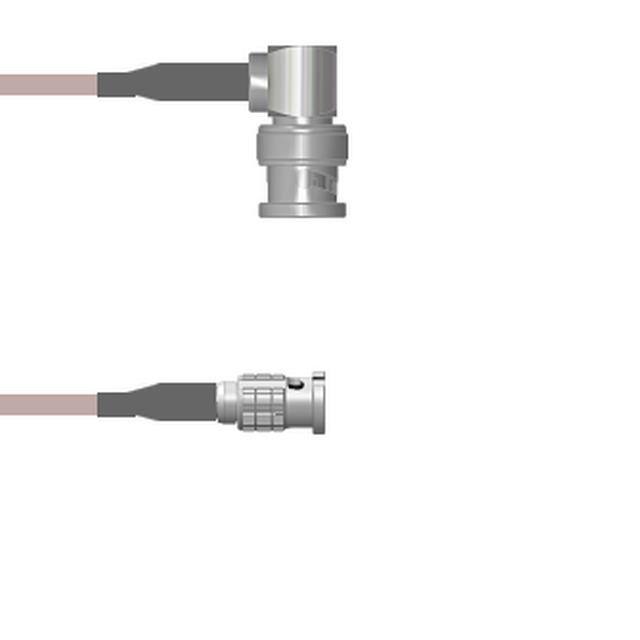

Q-0D00V0005.25MCB ASY BNC-HD-BNC P RG316 9.843 |
2,806 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Plug, Right Angle | Male | - | - | HD-BNC Plug | Male | - | - | 9.843 (250.00mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

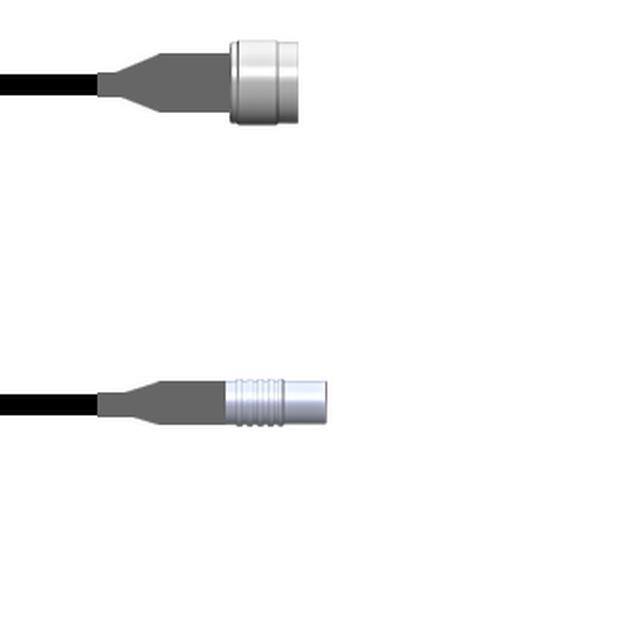

Q-2I01400032.5MCBL ASY MCX-N J TO P RG174 2.5M |
2,837 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Jack | Female | - | - | N-Type Plug | Male | - | - | 98.4 (2.5m) 8.2' | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|
Q-0J0110003036iCBL ASY BNC-MCX P-J RG174 36 |
3,768 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Plug | Male | Free Hanging (In-Line) | - | MCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 36.00 (914.40mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|
Q-0B00S000H0.5MCB ASY BNC-HD-BNC J RG142 19.69 |
2,328 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 19.69 (500.00mm) | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

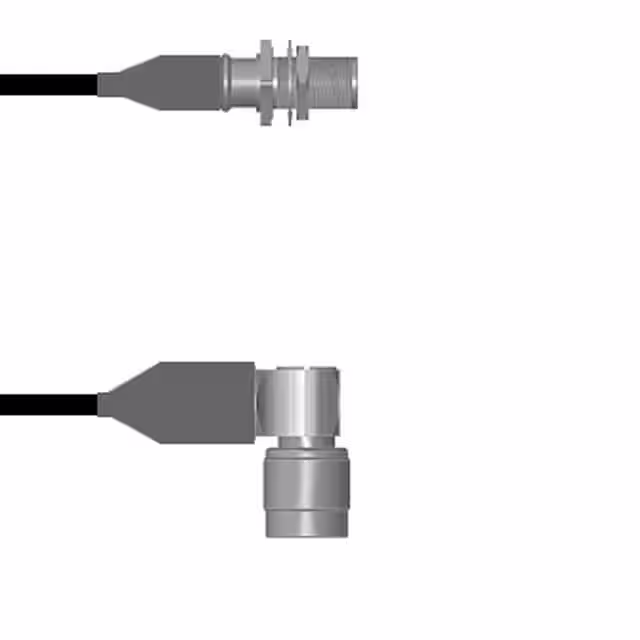

Q-1Y0500013036iCBL ASSY N TO TNC JCK TO PLG 36 |
2,335 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | LMR 400 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

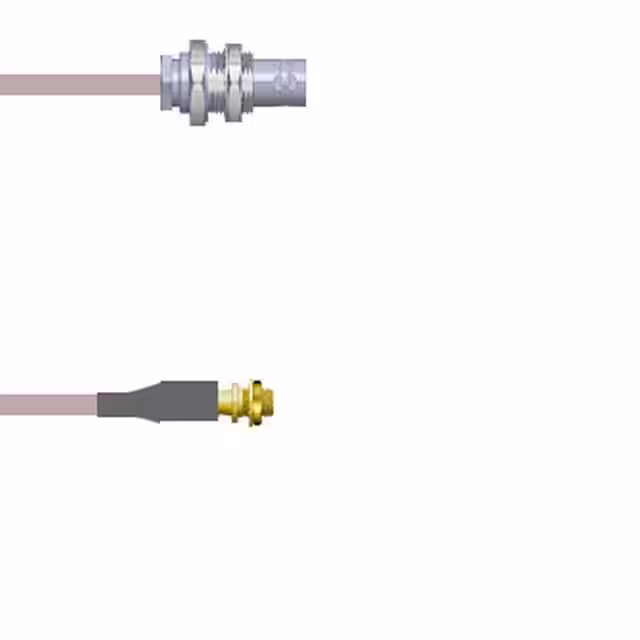

Q-0701K000R009iCBL ASSY BNC-MMCX JK RG316 DB 9 |
2,691 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 9.000 (228.60mm) | RG-316 DB | - | - | 50 Ohms | 2 GHz | Copper | Shielded | - |
|

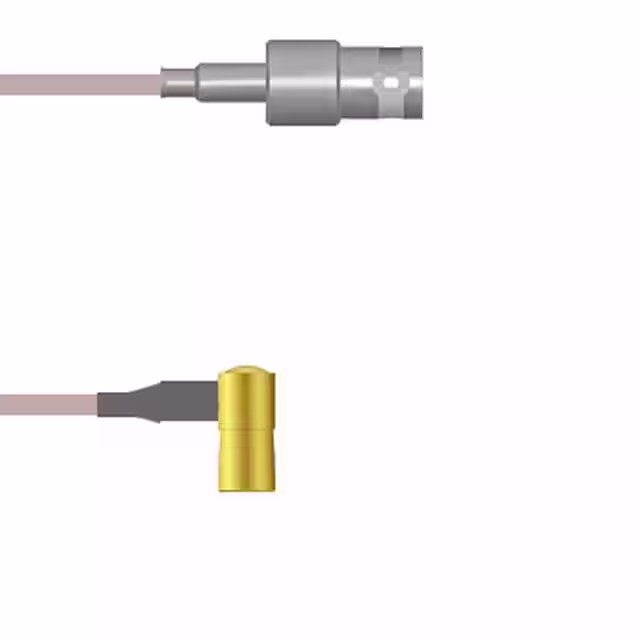

Q-0303S0005009iCBL ASY BNC-SMB J TO P RG316 9 |
2,449 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Jack | Female | - | - | SMB Plug, Right Angle | Male | - | - | 9.000 (228.60mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-2J03F000H006iCBL ASSY SMA-N PLUG RG142 6 |
2,173 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug | Male | - | - | N-Type Plug | Male | - | - | 6.000 (152.40mm) | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | 11 GHz | Copper | Shielded | - |
|
Q-2002W0003009iCBL ASSY SMA-N JACK RG174 9 |
3,518 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Free Hanging (In-Line) | - | 9.000 (228.60mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

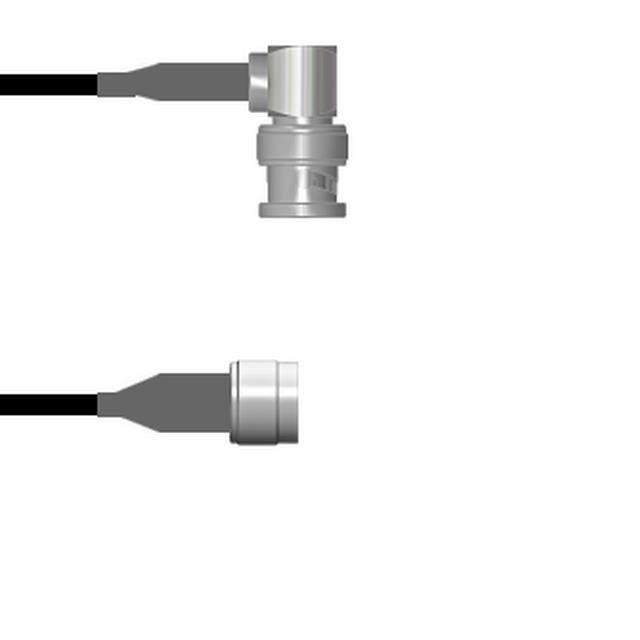

Q-0D02I0003003MCBL ASSY BNC-N-TYP PLUG RG174 3M |
3,072 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Plug, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 118.1 (3.0m) 9.8' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|
Q-0I02U0001048iCBL ASY BNC-SMA P-J RG178 4' |
2,805 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 48.0 (1.2m) 4.0' | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-0D01U0003072iCBL ASSY BNC-N-TYPE P-J RG174 6' |
2,809 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 72.0 (1.8m) 6.0' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
