| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

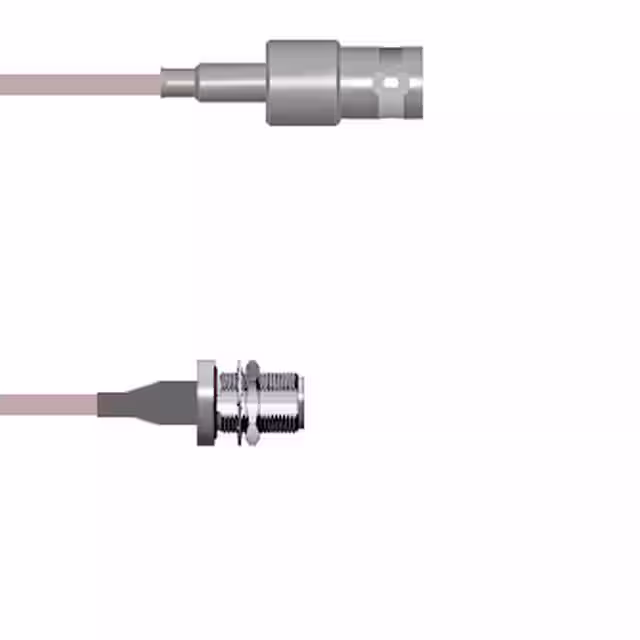

Q-0301T0005084iCBL ASSY BNC-N-TYP JACK RG316 7' |
2,754 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 84.0 (2.1m) 7.0' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

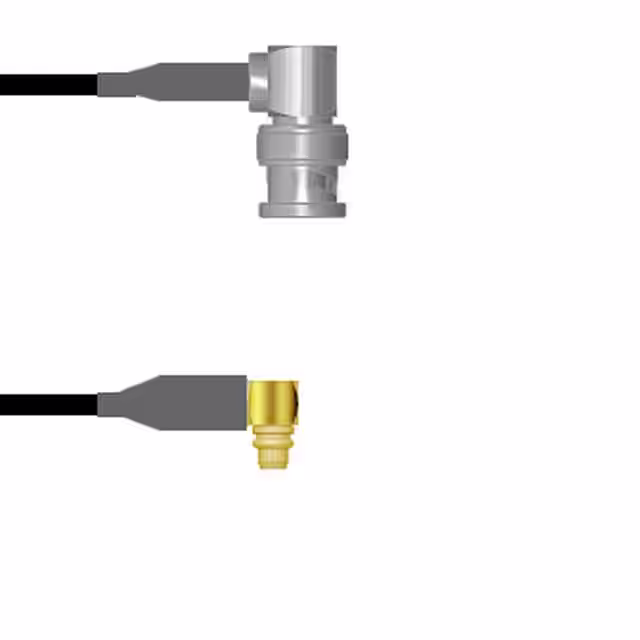

Q-0D01N00032.5MCBL ASSY BNC-MMCX PLG RG174 2.5M |
2,162 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Plug, Right Angle | Male | - | - | MMCX Plug, Right Angle | Male | - | - | 98.4 (2.5m) 8.2' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

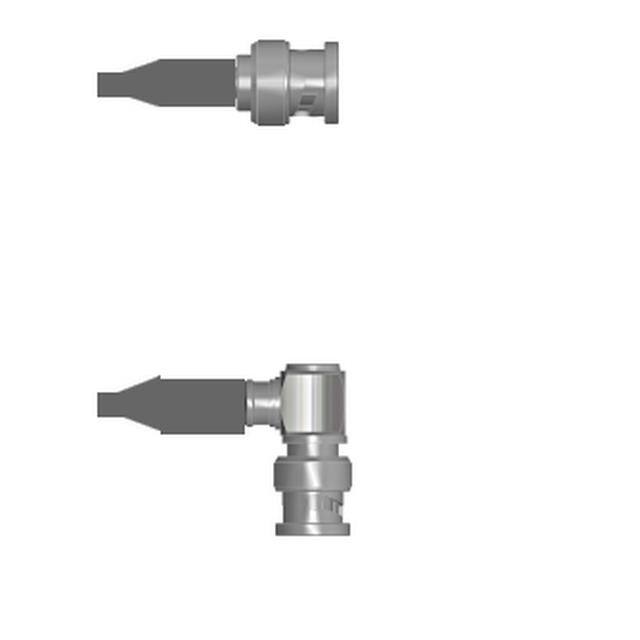

Q-61062000K.25MCBL ASSY BNC PLUG 9.843 |
2,551 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | - | - | BNC Plug, Right Angle | Male | - | - | 9.843 (250.00mm) | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - |
|

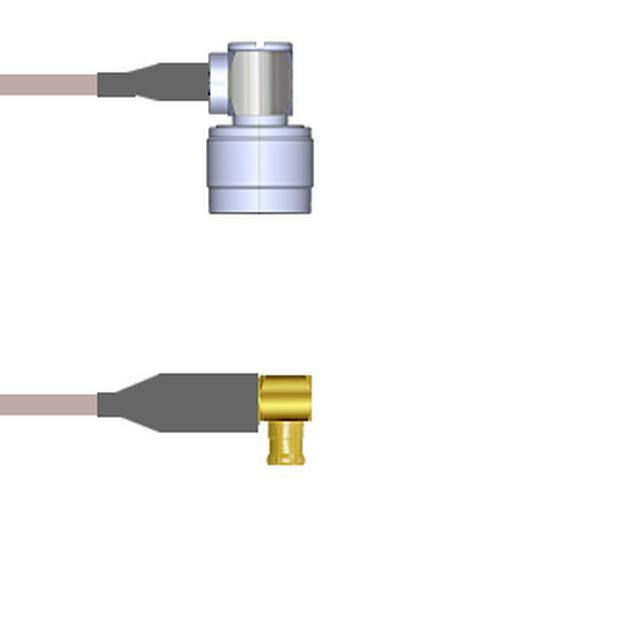

Q-2D017000R084iCBL ASSY MCX-N PLUG RG316 DB 7' |
2,269 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Plug, Right Angle | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 84.0 (2.1m) 7.0' | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

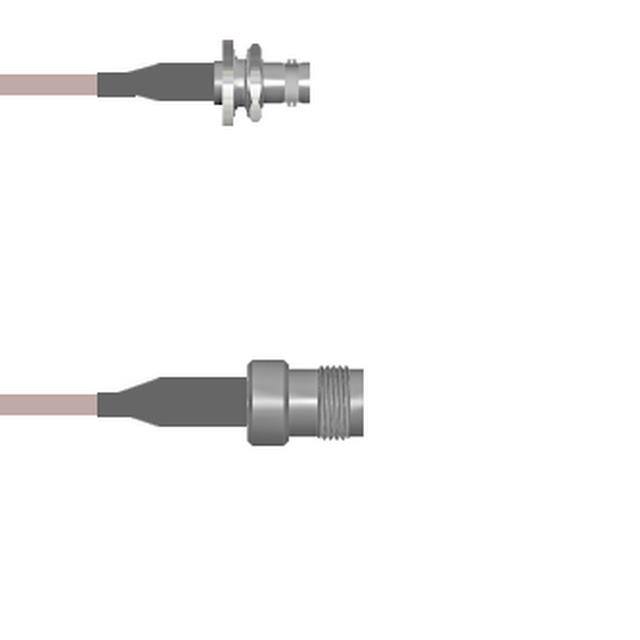

Q-0A04N000H009iCBL ASSY BNC-TNC JACK RG142 9 |
3,691 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Free Hanging (In-Line) | - | 9.000 (228.60mm) | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

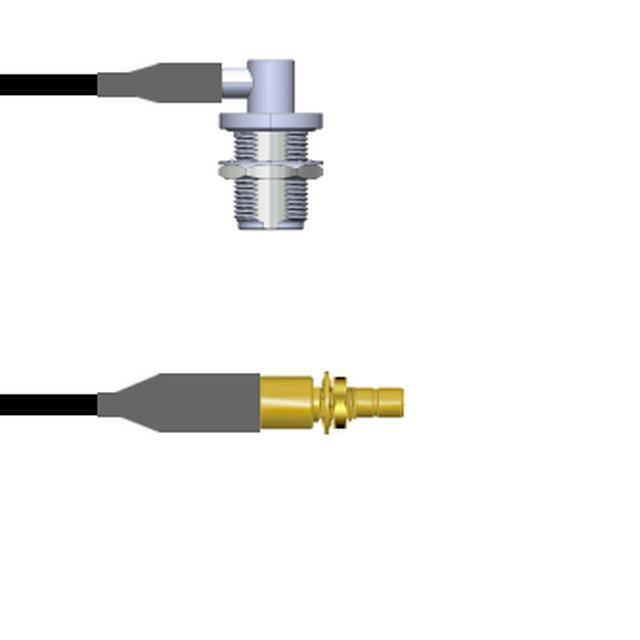

Q-1S03Q0008009iCBL ASSY SMB-N JACK RG58 9 |
3,649 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Jack | Male | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 9.000 (228.60mm) | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

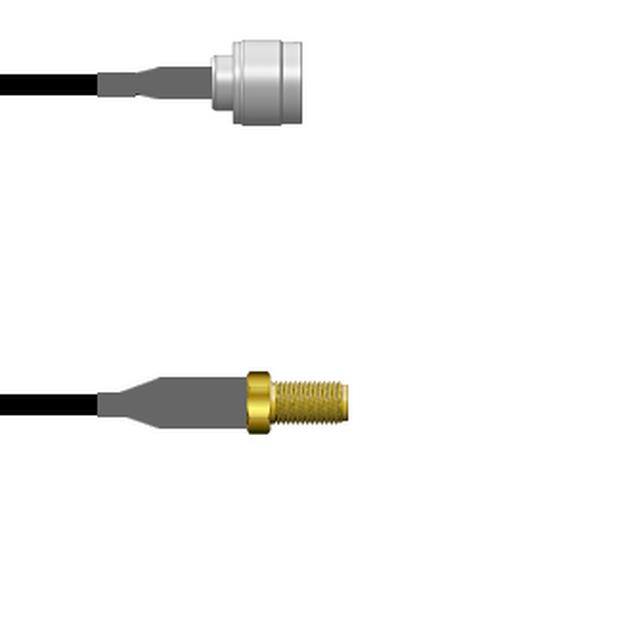

Q-2N02Z0008072iCBL ASSY SMA-N JK TO PLG RG58 6' |
3,172 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack | Female | - | - | N-Type Plug | Male | - | - | 72.0 (1.8m) 6.0' | RG-58 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

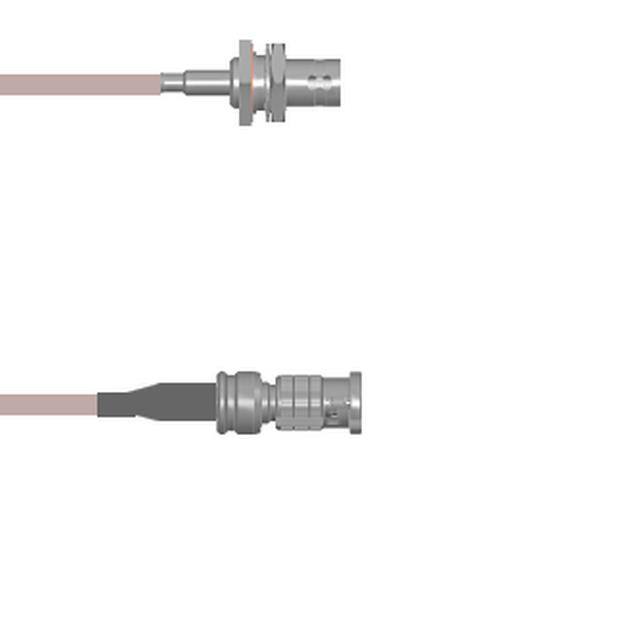

Q-0405H0005002MCBL ASSY BNC-HD-BNC J-P RG316 2M |
2,912 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 78.7 (2.0m) 6.6' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

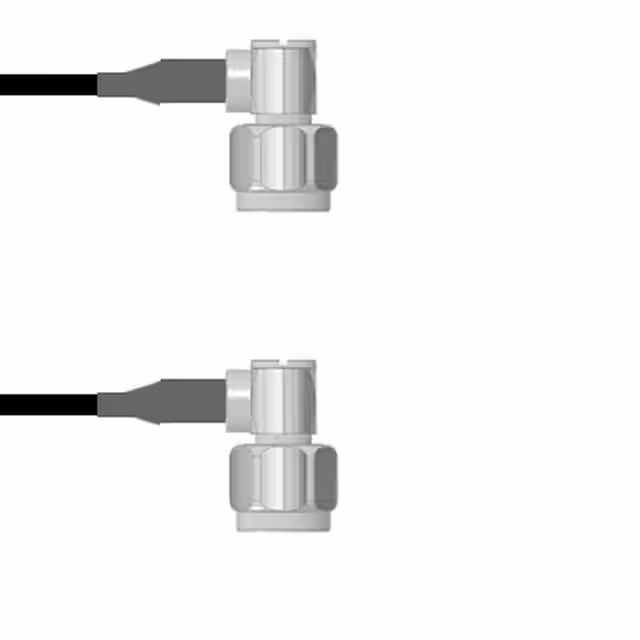

Q-2E02E000D084iCBL ASSY N-TYPE PLUG 7' |
3,046 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Plug, Right Angle | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 84.0 (2.1m) 7.0' | LMR 195 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

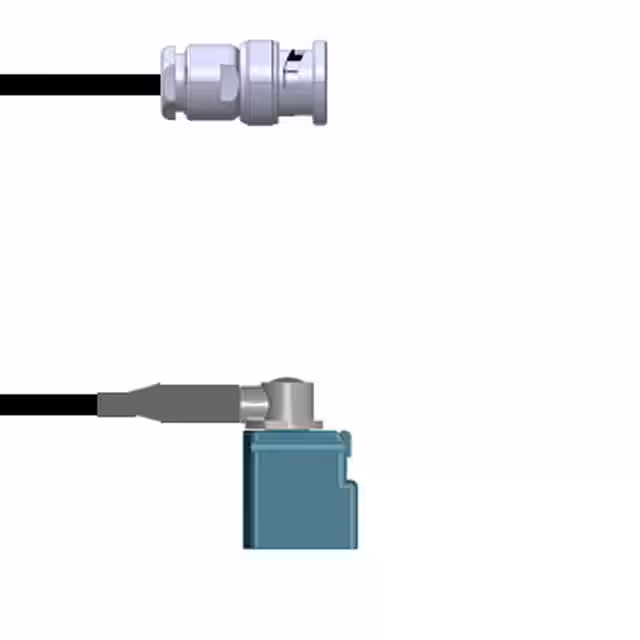

Q-0J05C0003.75MCBL ASSY BNC-FAKRA RG174 29.53 |
2,492 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to Fakra | BNC Plug | Male | - | - | Fakra Jack, Right Angle | Female | - | - | 29.53 (750.00mm) | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - |
|

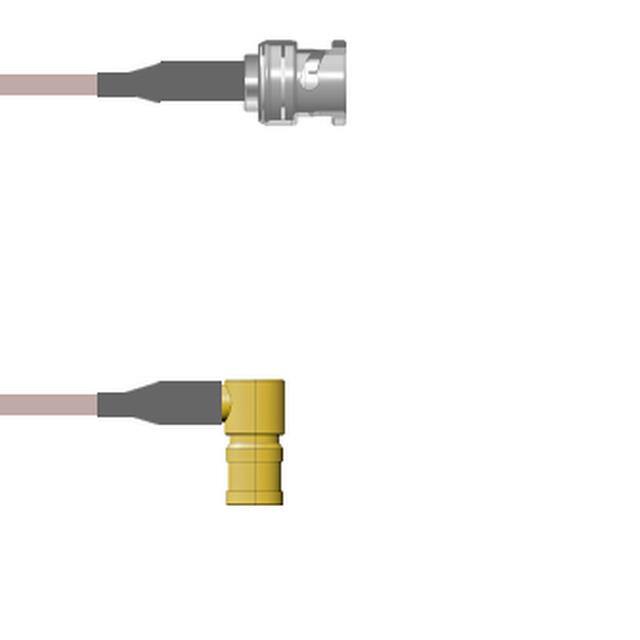

Q-0K03T000R0.5MCB ASY BNC-SMB P RG316 DB 19.69 |
3,321 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Plug | Male | - | - | SMB Plug, Right Angle | Male | - | - | 19.69 (500.00mm) | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

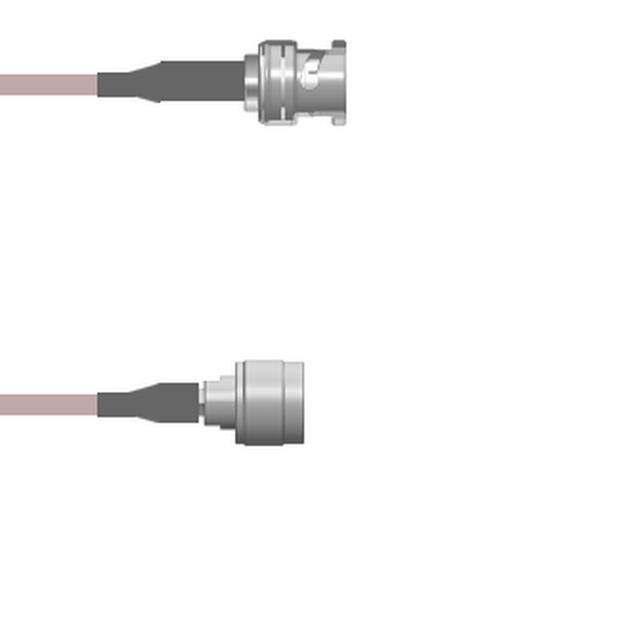

Q-0K02M000R0.5MCBL ASY BNC-N PL RG316 DB 19.69 |
3,131 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Plug | Male | - | - | N-Type Plug | Male | - | - | 19.69 (500.00mm) | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-1T02P00050.5MCBL ASSY SMA-N JACK RG316 19.69 |
3,690 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 19.69 (500.00mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

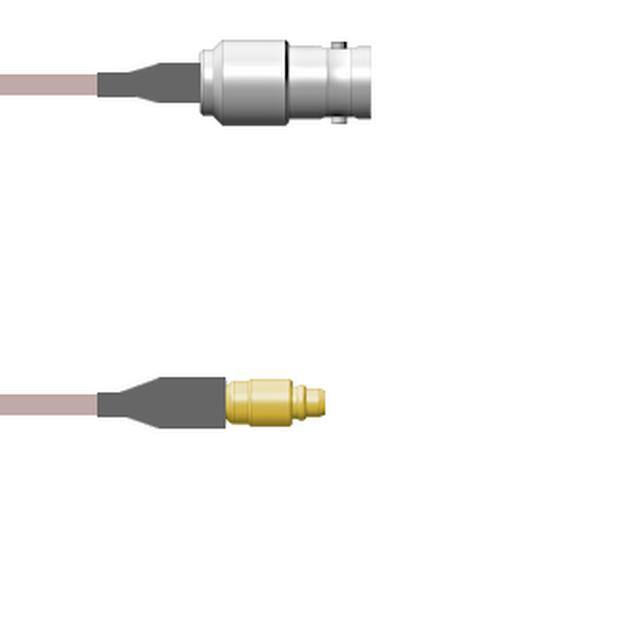

Q-0201P0001.75MCBL ASSY BNC-MMCX RG178 29.53 |
3,057 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Jack | Female | - | - | MMCX Plug | Male | - | - | 29.53 (750.00mm) | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

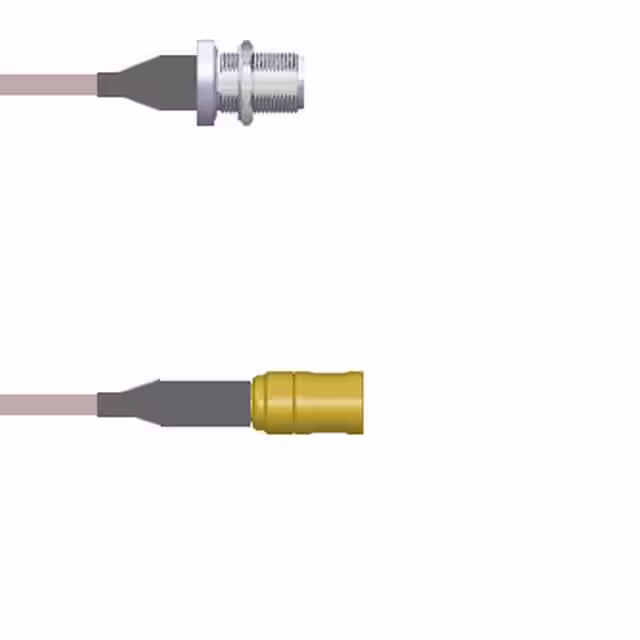

Q-1U03W00050.5MCBL ASY SMB-N P-J RG316 19.69 |
2,217 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Plug | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 19.69 (500.00mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

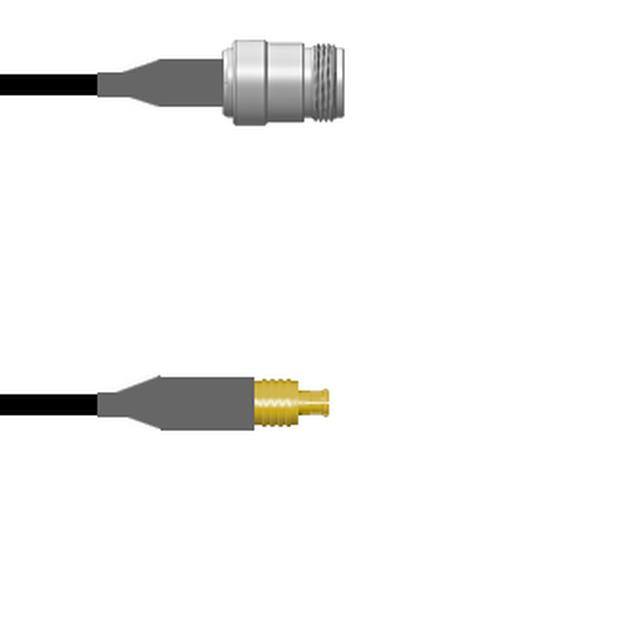

Q-1W01E00082.5MCBL ASSY MCX-N P TO J RG58 2.5M |
3,911 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Plug | Male | - | - | N-Type Jack | Female | - | - | 98.4 (2.5m) 8.2' | RG-58 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

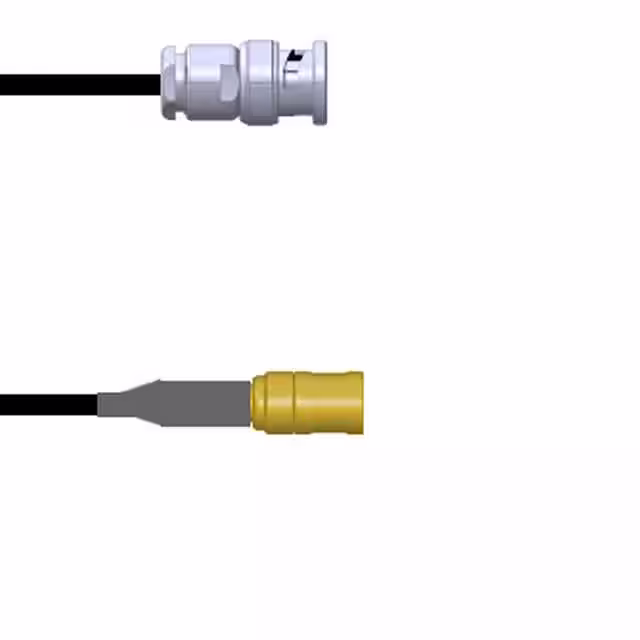

Q-0J03W0003003MCBL ASSY BNC-SMB PLUG RG174 3M |
2,905 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Plug | Male | - | - | SMB Plug | Male | - | - | 118.1 (3.0m) 9.8' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

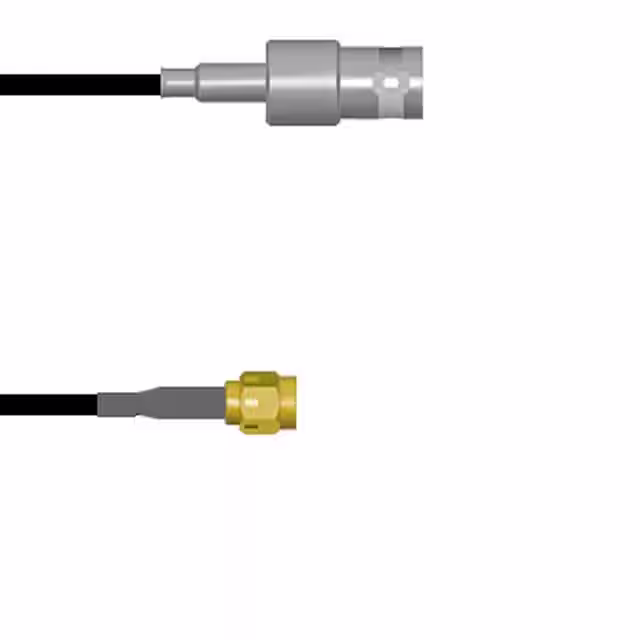

Q-0303B0003036iCBL ASY BNC-SMA J TO P RG174 36 |
2,793 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Jack | Female | - | - | SMA Plug | Male | - | - | 36.00 (914.40mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|
Q-2002C0005072iCBL ASSY N-TYPE J TO P RG316 6' |
3,250 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Jack | Female | - | - | N-Type Plug, Right Angle | Male | - | - | 72.0 (1.8m) 6.0' | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

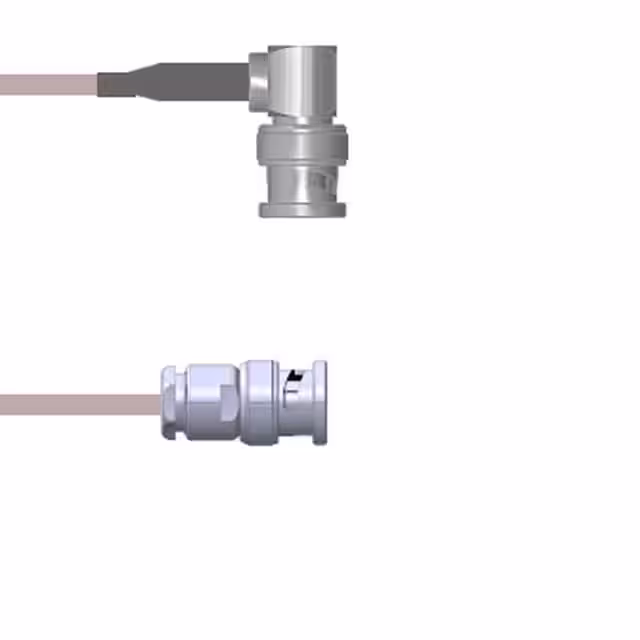

Q-0D00J0005.25MCBL ASSY BNC PLUG RG316 9.843 |
3,869 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug, Right Angle | Male | - | - | BNC Plug | Male | - | - | 9.843 (250.00mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
