| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

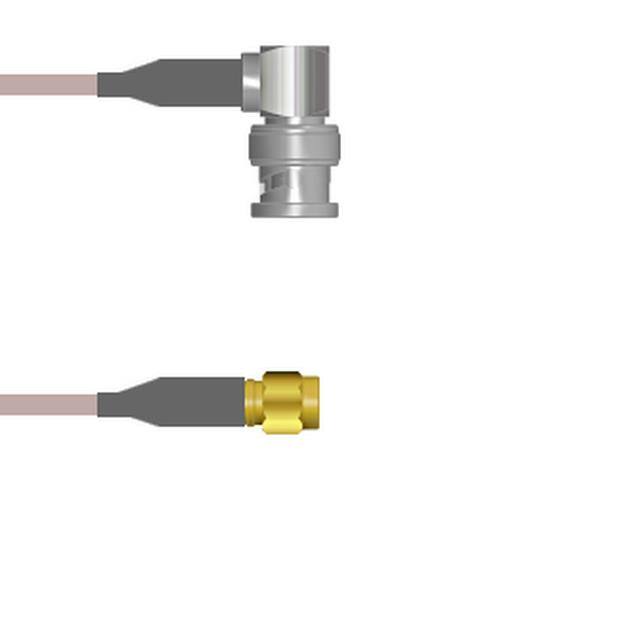

Q-0F03F000H024iCBL ASSY BNC-SMA PLUG RG142 24 |
3,430 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Plug, Right Angle | Male | - | - | SMA Plug | Male | - | - | 24.00 (609.60mm) | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

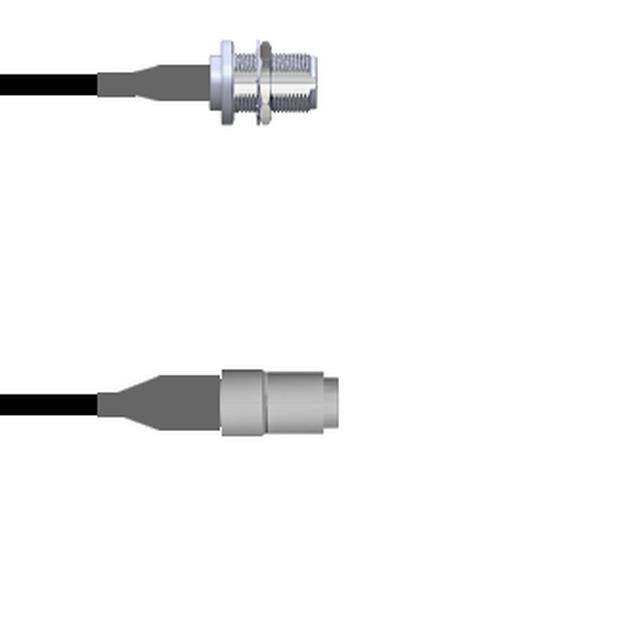

Q-26066000M002MCBL ASSY N-TYPE PLUG TO JACK 2M |
2,818 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | 1.0/2.3 to N-Type | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 78.7 (2.0m) 6.6' | LMR 240 | - | - | 50 Ohms | 2.5 GHz | Black | Shielded | - |
|
Q-2I02W0003012iCBL ASSY SMA-N J TO P RG174 12 |
3,801 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | Shielded | - |
|

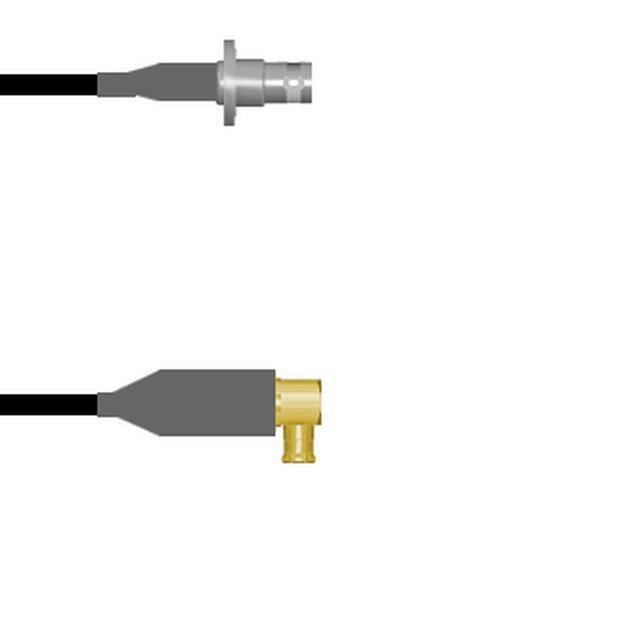

Q-0801800080.5MCBL ASSY BNC-MCX J-P RG58 19.69 |
2,552 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 19.69 (500.00mm) | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

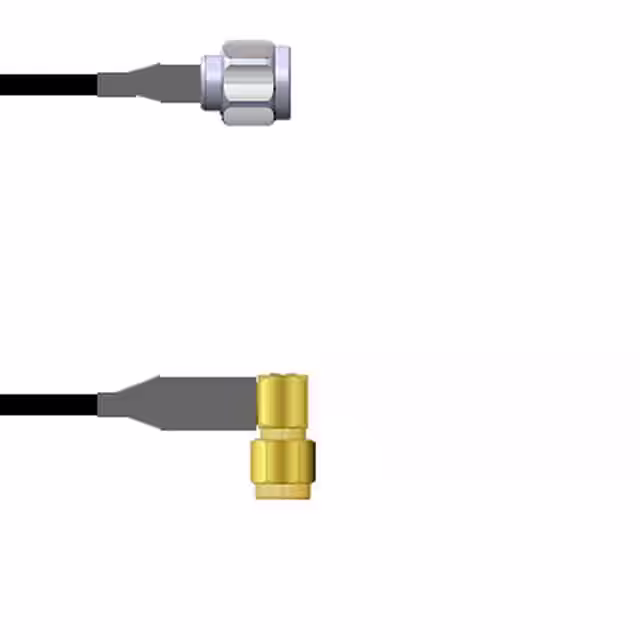

Q-2O037000D1.5MCBL ASSY SMA-N PLUG 1.5M |
3,355 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 59.1 (1.5m) 4.9' | LMR 195 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|
Q-2C00P0003084iCBL ASSY HD-BNC TO N RG174 7' |
3,121 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to N-Type | HD-BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 84.0 (2.1m) 7.0' | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

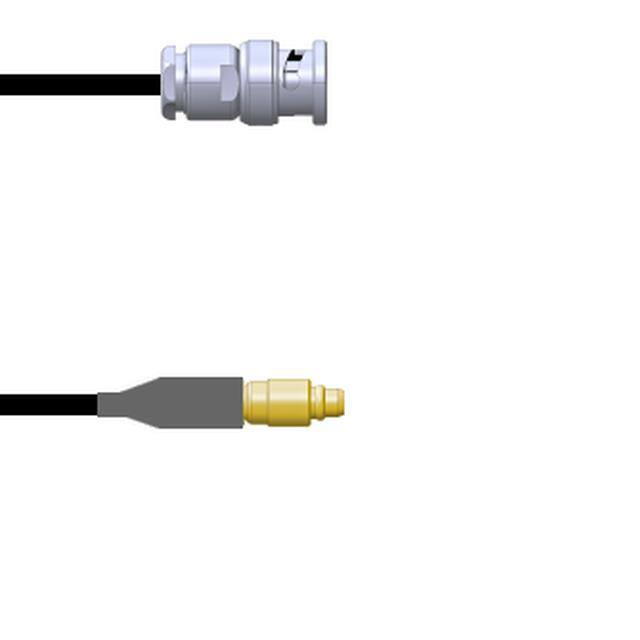

Q-0J01Q0003.75MCBL ASY BNC-MMCX PL RG174 29.53 |
3,538 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Plug | Male | - | - | MMCX Plug | Male | - | - | 29.53 (750.00mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

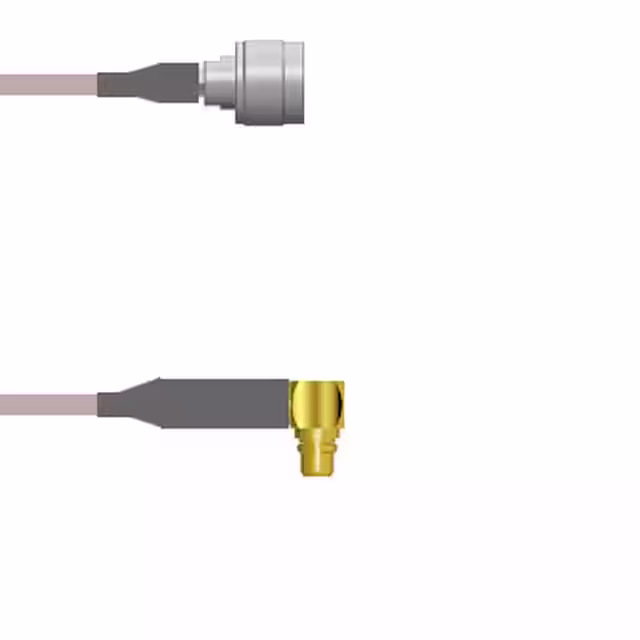

Q-2M01O000R012iCBL ASSY MMCX-N PLG RG316 DB 12 |
2,328 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to N-Type | MMCX Plug, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 12.00 (304.80mm) | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

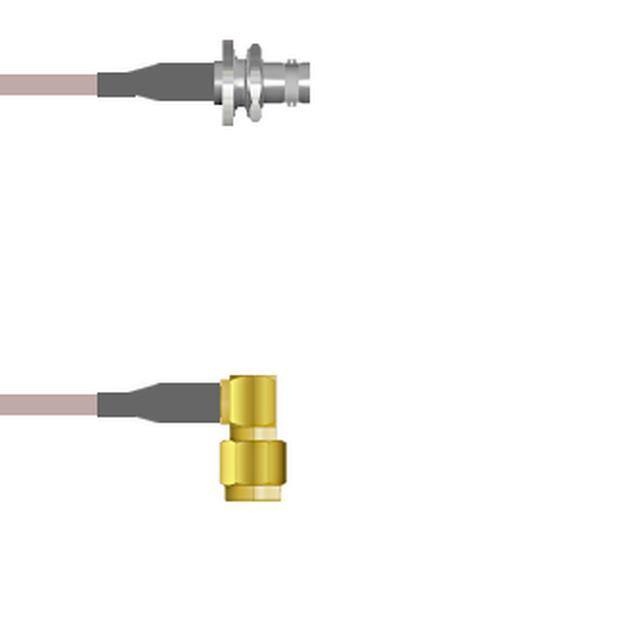

Q-0A038000H1.5MCBL ASY BNC-SMA J-P RG142 1.5M |
3,025 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 59.1 (1.5m) 4.9' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

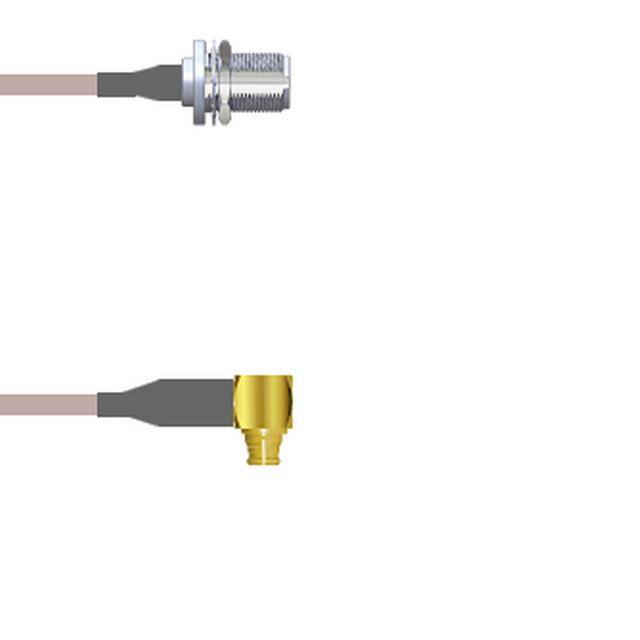

Q-1Z0410001009iCBL ASY SMP-N PLG TO JK RG178 9 |
2,140 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMP to N-Type | SMP Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 9.000 (228.60mm) | RG-178 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|
Q-1V053000R024iCBL ASSY N TO TNC RG316 DB 24 |
3,627 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | - | - | TNC Plug | Male | - | - | 24.00 (609.60mm) | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

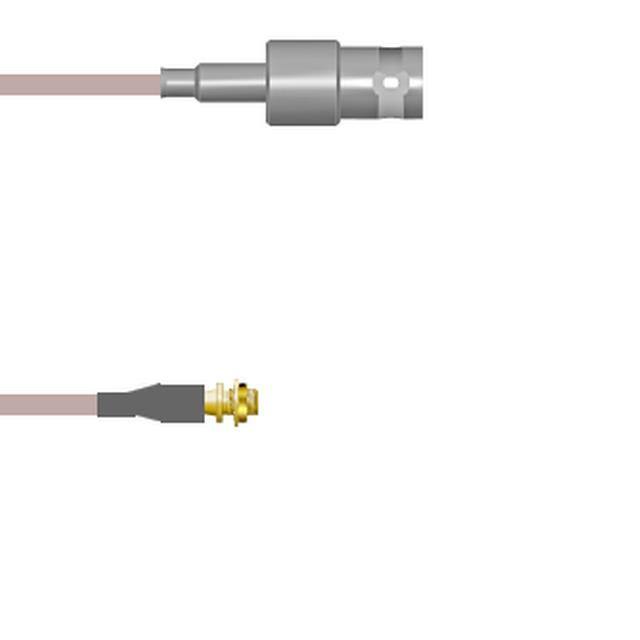

Q-0301I00051.5MCBL ASSY BNC-MMCX JCK RG316 1.5M |
3,715 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Jack | Female | Free Hanging (In-Line) | - | MMCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 59.1 (1.5m) 4.9' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-0405G0005084iCBL ASSY BNC-HD-BNC J-P RG316 7' |
3,693 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | HD-BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 84.0 (2.1m) 7.0' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

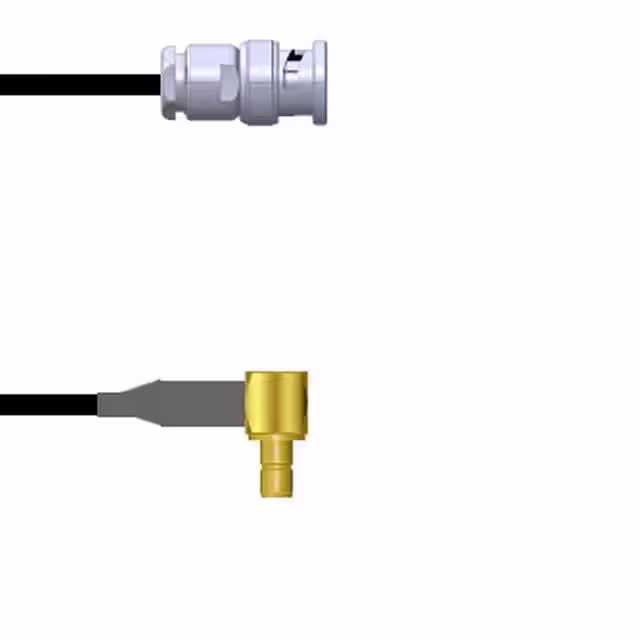

Q-0J03I0003048iCBL ASY BNC-SMB P-J RG174 4' |
3,322 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Plug | Male | - | - | SMB Jack, Right Angle | Female | - | - | 48.0 (1.2m) 4.0' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|
Q-1S0360008018iCBL ASY SMA-N PLG TO JK RG58 18 |
3,529 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 18.00 (457.20mm) | RG-58 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|
Q-1T04F0003006iCBL ASSY N TO TNC JACK RG174 6 |
3,680 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 6.000 (152.40mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

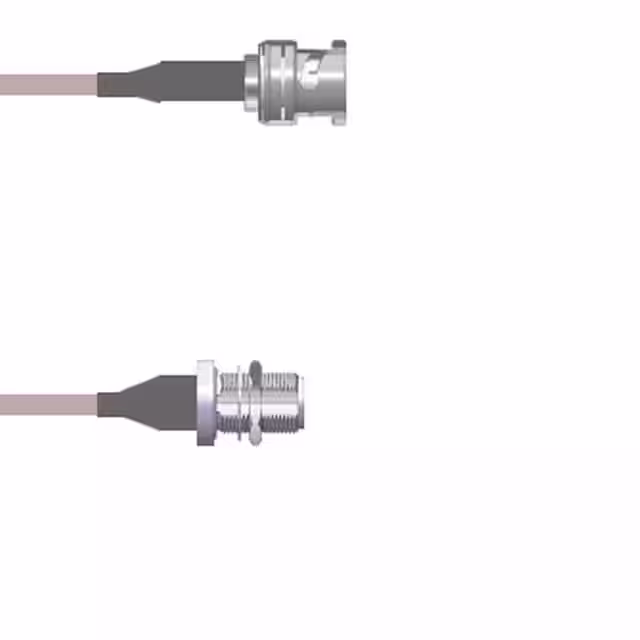

Q-0K022000R1.5MCBL ASY BNC-N-TYPE RG316 DB 1.5M |
3,812 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 59.1 (1.5m) 4.9' | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

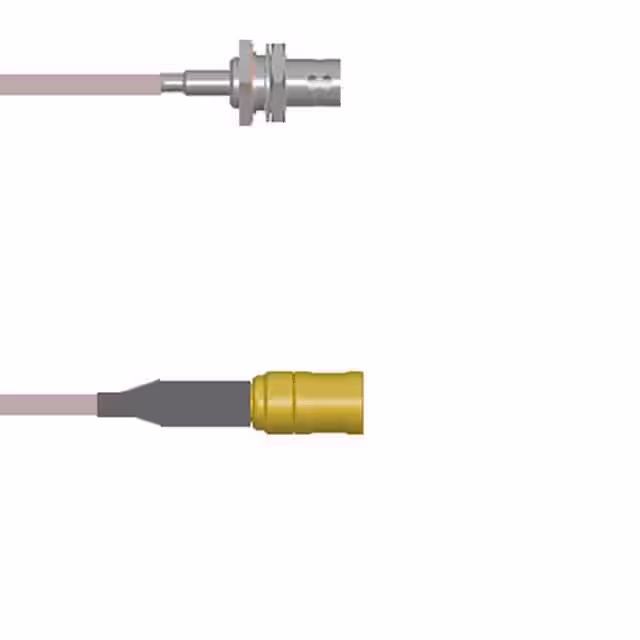

Q-0403W00052.5MCBL ASY BNC-SMB J-P RG316 2.5M |
2,020 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Plug | Male | Free Hanging (In-Line) | - | 98.4 (2.5m) 8.2' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-2104U000R036iCBL ASSY N TO TNC RG316 DB 36 |
2,666 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

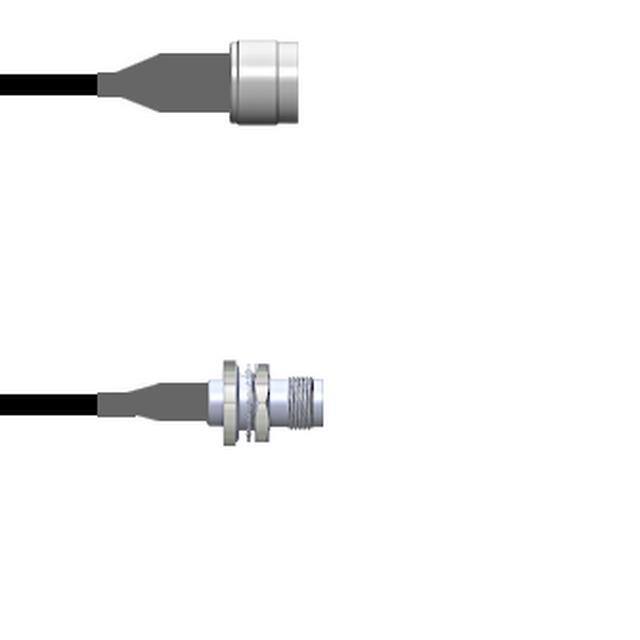

Q-2I04E0003.75MCBL ASSY N TO TNC RG174 29.53 |
3,269 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 29.53 (750.00mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
