| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

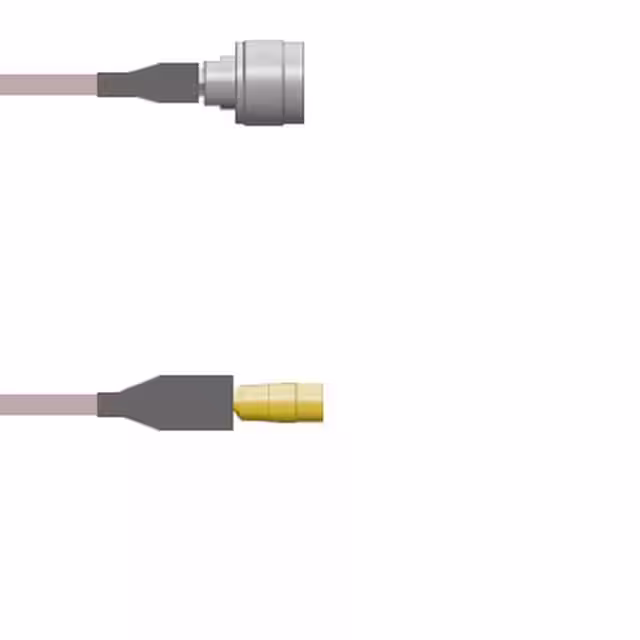

Q-2M01L000R018iCBL ASSY MMCX-N J-P RG316 DB 18 |
2,554 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to N-Type | MMCX Jack | Female | - | - | N-Type Plug | Male | - | - | 18.00 (457.20mm) | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

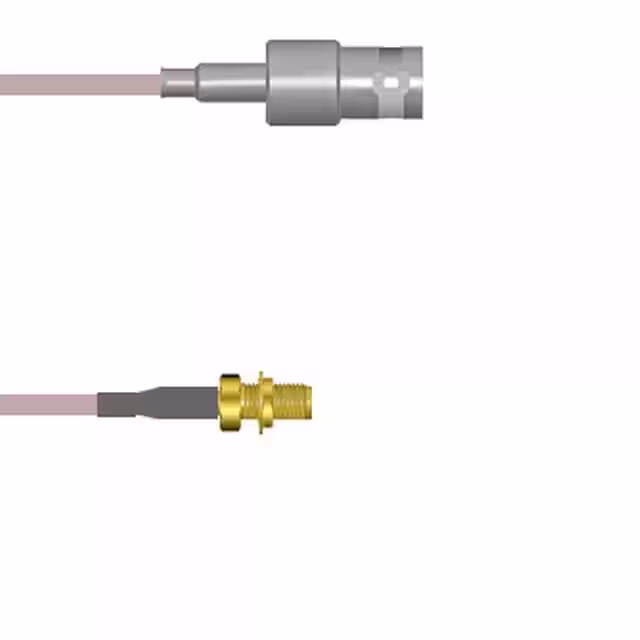

Q-0302W0005001MCBL ASSY BNC-SMA JACK RG316 1M |
2,712 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Jack | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 39.4 (1.0m) 3.3' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

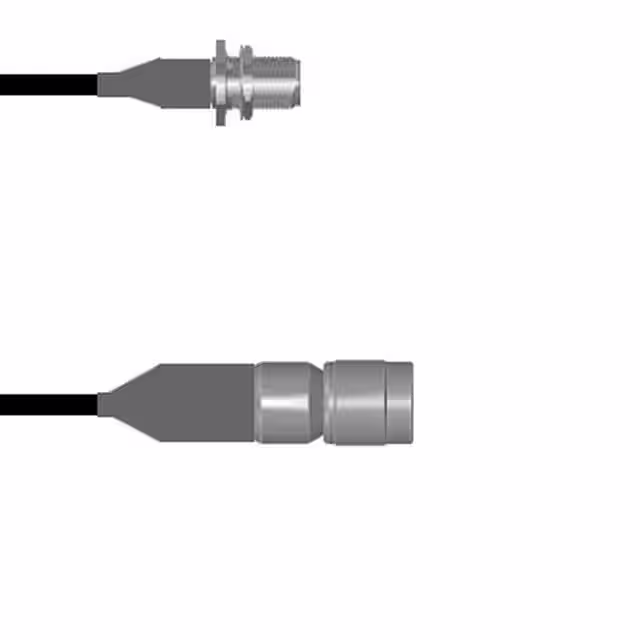

Q-280740013108iCBL ASSY N TO TNC JACK TO PLG 9' |
3,899 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 108.0 (2.7m) 9.0' | LMR 400 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

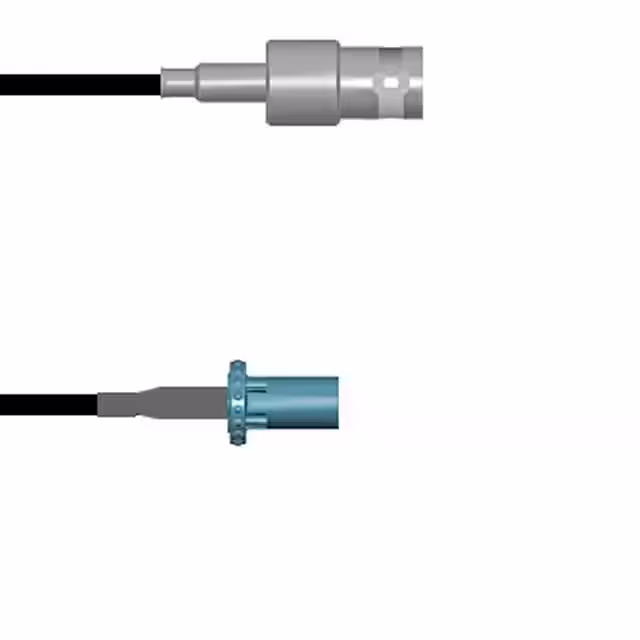

Q-0305A00031.5MCBL ASSY BNC-FAKRA RG174 1.5M |
3,361 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to Fakra | BNC Jack | Female | - | - | Fakra Plug | Male | - | - | 59.1 (1.5m) 4.9' | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - |
|

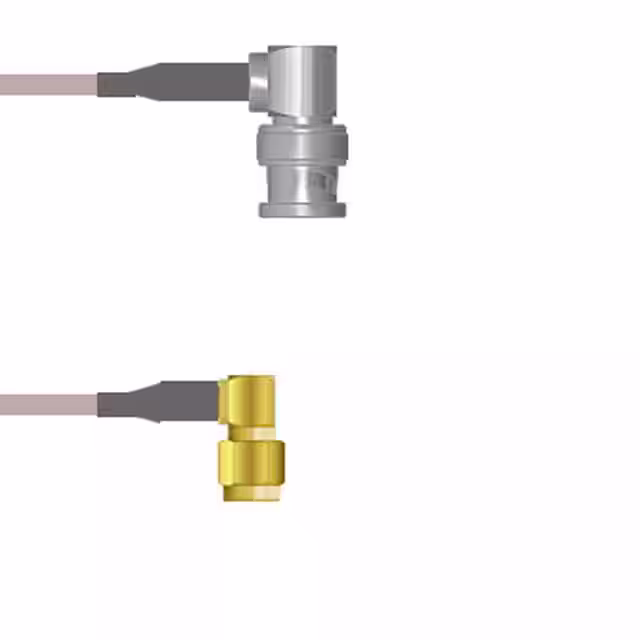

Q-0D0340005024iCBL ASSY BNC-SMA PLUG RG316 24 |
3,106 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Plug, Right Angle | Male | - | - | SMA Plug, Right Angle | Male | - | - | 24.00 (609.60mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

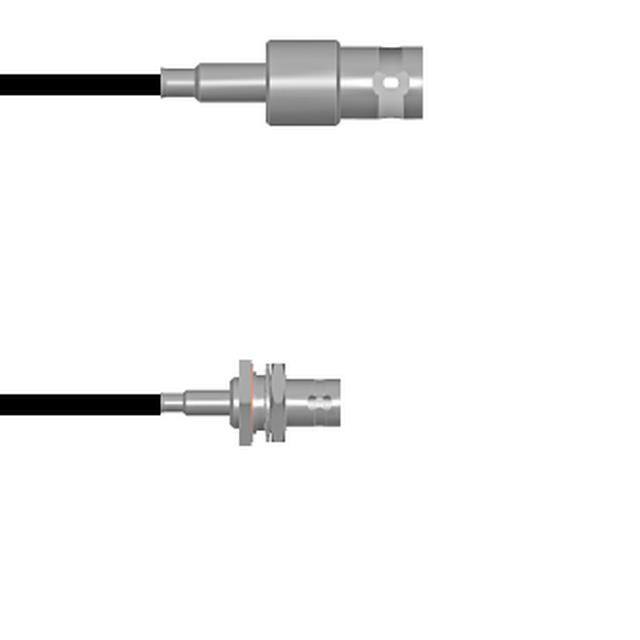

Q-030040003018iCBL ASSY BNC JACK RG174 18 |
3,447 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | BNC Jack | Female | Free Hanging (In-Line) | - | 18.00 (457.20mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

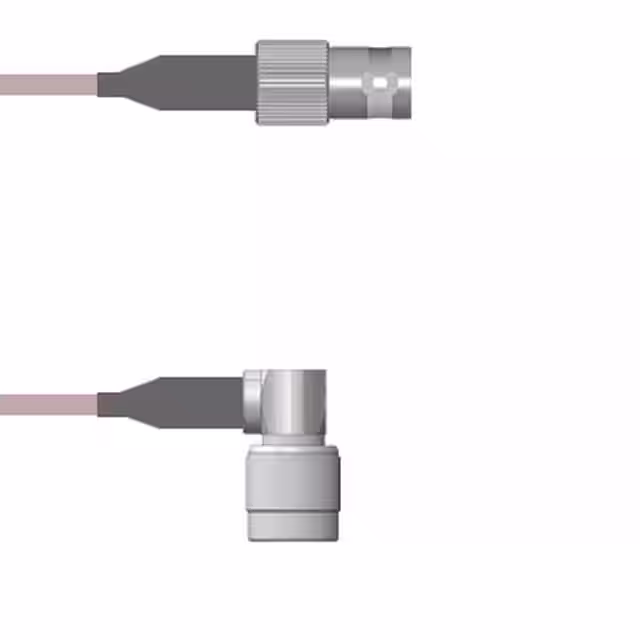

Q-0B04X000H.25MCBL ASSY BNC-TNC RG142 9.843 |
3,915 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Jack | Female | - | - | TNC Plug, Right Angle | Male | - | - | 9.843 (250.00mm) | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

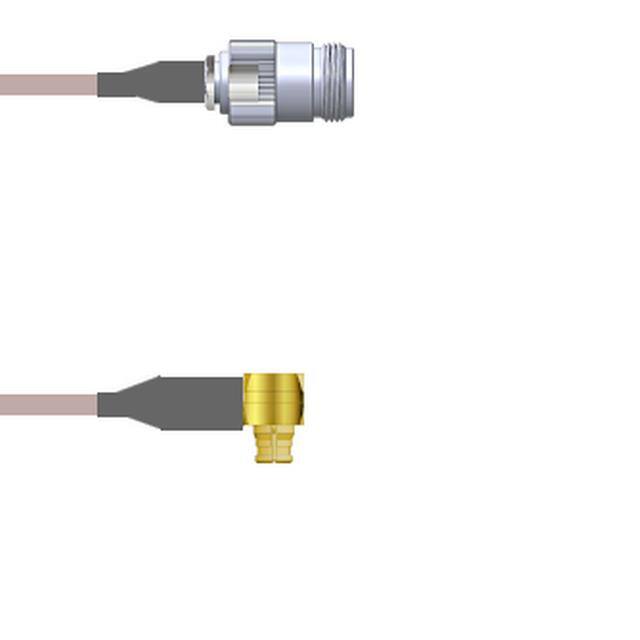

Q-200420005002MCBL ASY SMP-N PLG TO JK RG316 2M |
3,237 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMP to N-Type | SMP Plug, Right Angle | Male | - | - | N-Type Jack | Female | - | - | 78.7 (2.0m) 6.6' | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

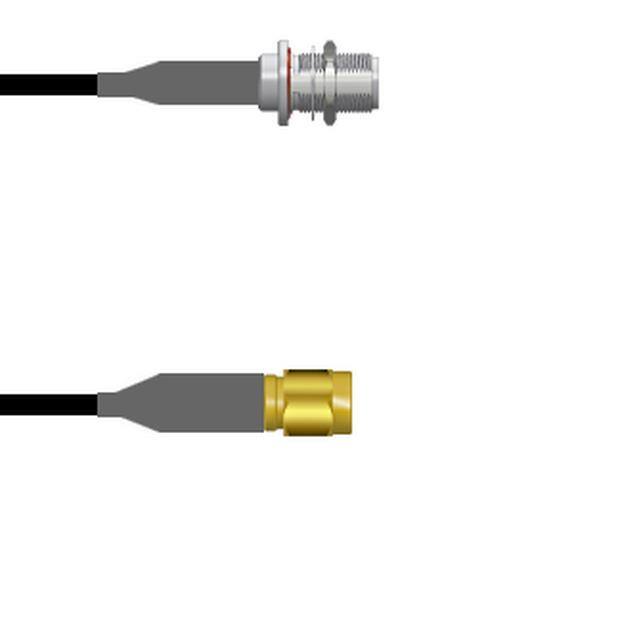

Q-1X06900081.5MCBL ASSY RP-SMA TO N RG58 1.5M |
2,440 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to N-Type | RP-SMA Plug | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Free Hanging (In-Line) | - | 59.1 (1.5m) 4.9' | RG-58 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

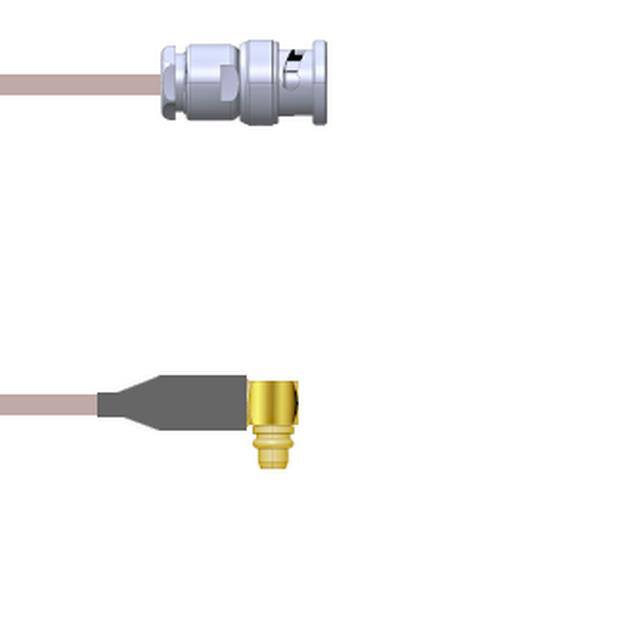

Q-0J01N0005003iCBL ASSY BNC-MMCX PLUG RG316 3 |
2,488 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Plug | Male | - | - | MMCX Plug, Right Angle | Male | - | - | 3.000 (76.20mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

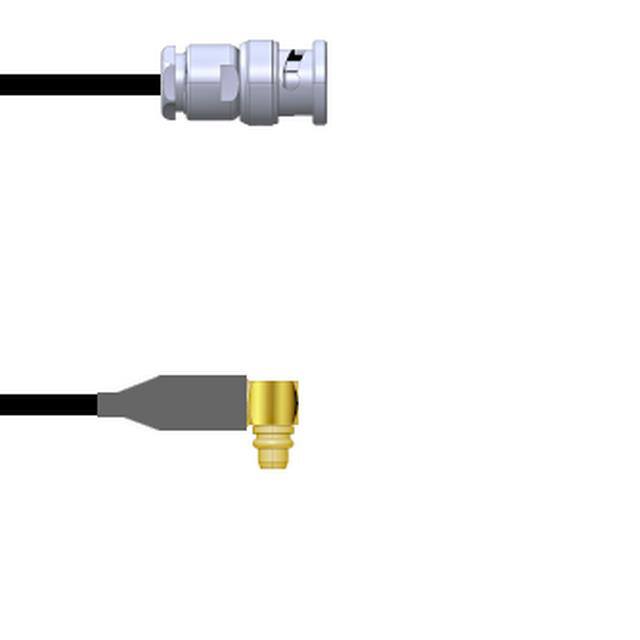

Q-0J01N0003084iCBL ASSY BNC-MMCX PLUG RG174 7' |
3,118 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Plug | Male | - | - | MMCX Plug, Right Angle | Male | - | - | 84.0 (2.1m) 7.0' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

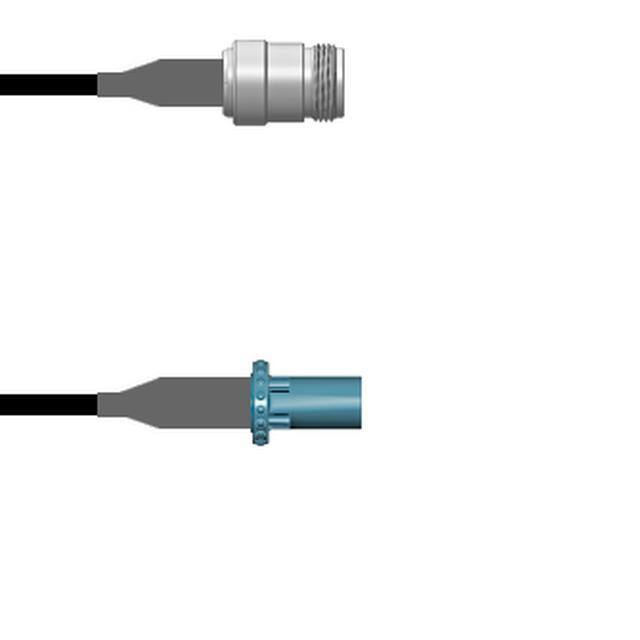

Q-1W05B0008003MCBL ASSY N-FAKRA J TO P RG58 3M |
2,128 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to Fakra | N-Type Jack | Female | - | - | Fakra Plug | Male | - | - | 118.1 (3.0m) 9.8' | RG-58 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - |
|

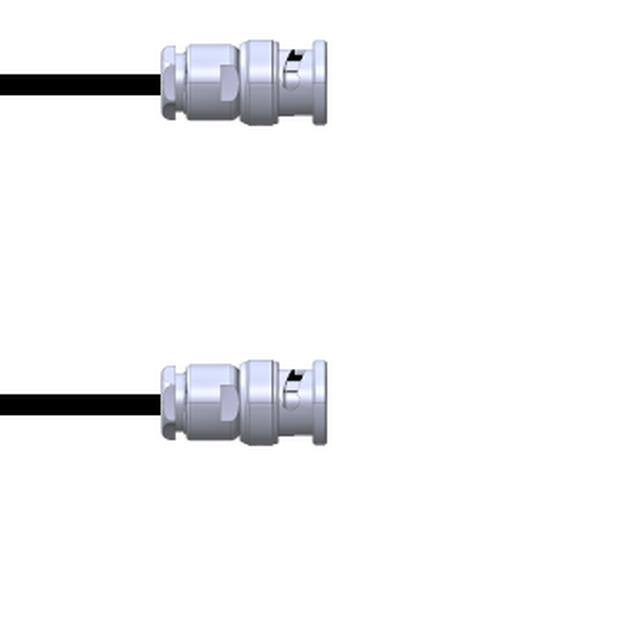

Q-0J00J0003.75MCBL ASSY BNC PLUG RG174 29.53 |
3,287 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | - | - | BNC Plug | Male | - | - | 29.53 (750.00mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

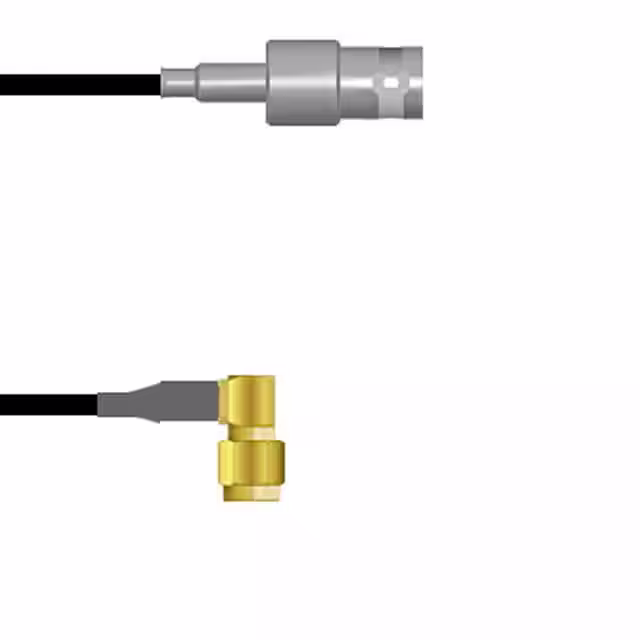

Q-030340003001MCBL ASY BNC-SMA J TO P RG174 1M |
2,051 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Jack | Female | - | - | SMA Plug, Right Angle | Male | - | - | 39.4 (1.0m) 3.3' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|
Q-0302W0005003iCBL ASSY BNC-SMA JACK RG316 3 |
2,394 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Jack | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 3.000 (76.20mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

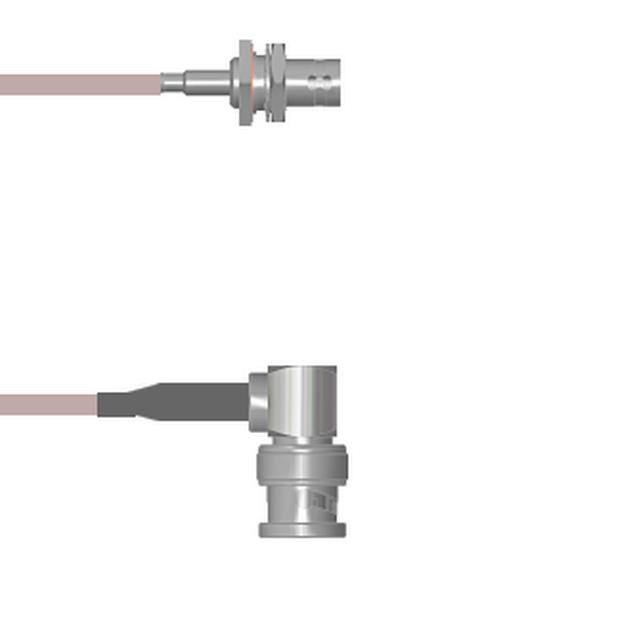

Q-0400D0005048iCBL ASSY BNC JCK TO PLG RG316 4' |
3,815 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0 (1.2m) 4.0' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

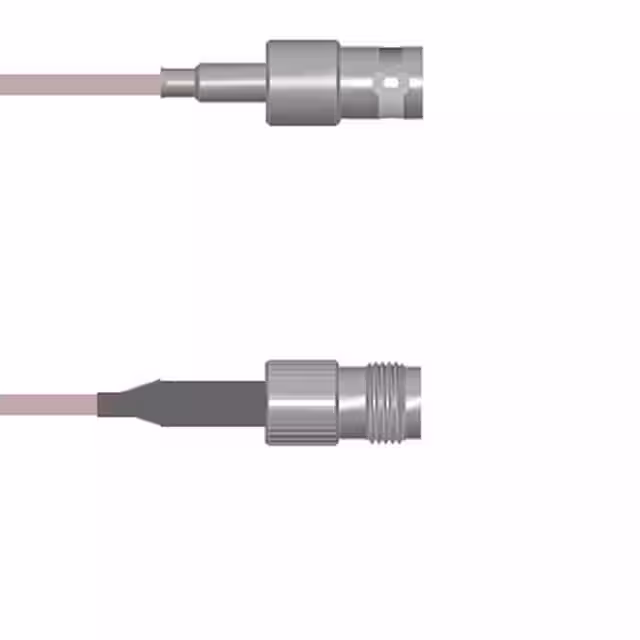

Q-0304G0005012iCBL ASSY BNC-TNC JACK RG316 12 |
3,894 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Jack | Female | - | - | TNC Jack | Female | - | - | 12.00 (304.80mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

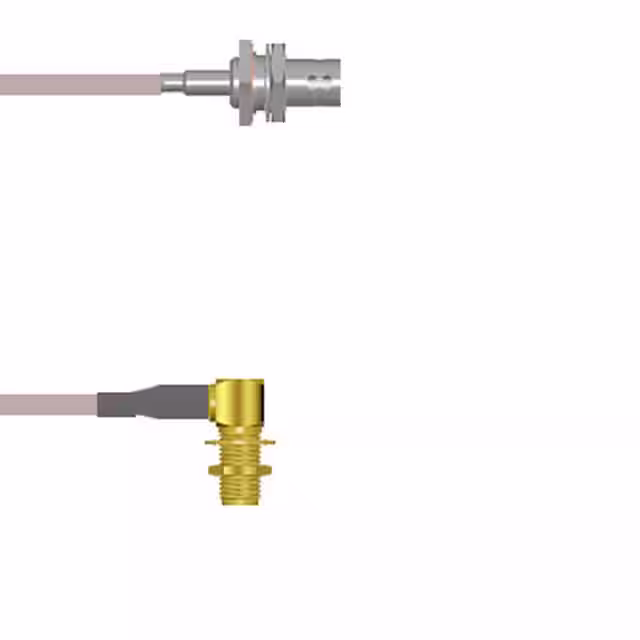

Q-0402P0005.75MCBL ASSY BNC-SMA JK RG316 29.53 |
2,025 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 29.53 (750.00mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

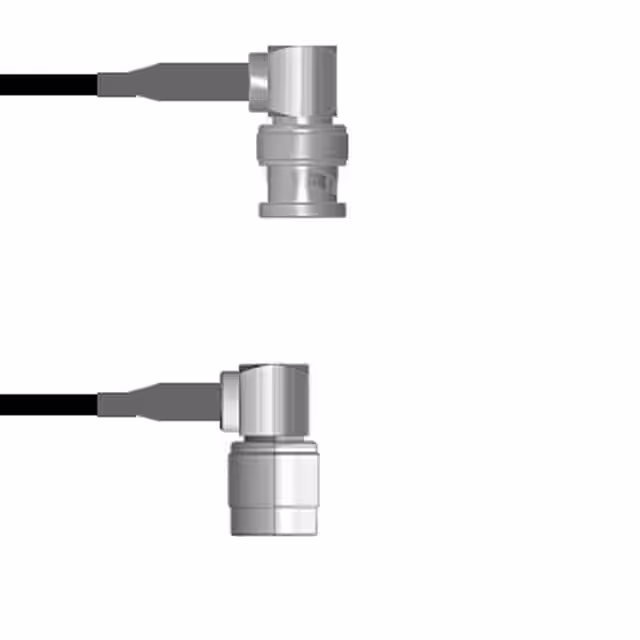

Q-0D04T0003036iCBL ASSY BNC-TNC PLUG RG174 36 |
2,444 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Plug, Right Angle | Male | - | - | TNC Plug, Right Angle | Male | - | - | 36.00 (914.40mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

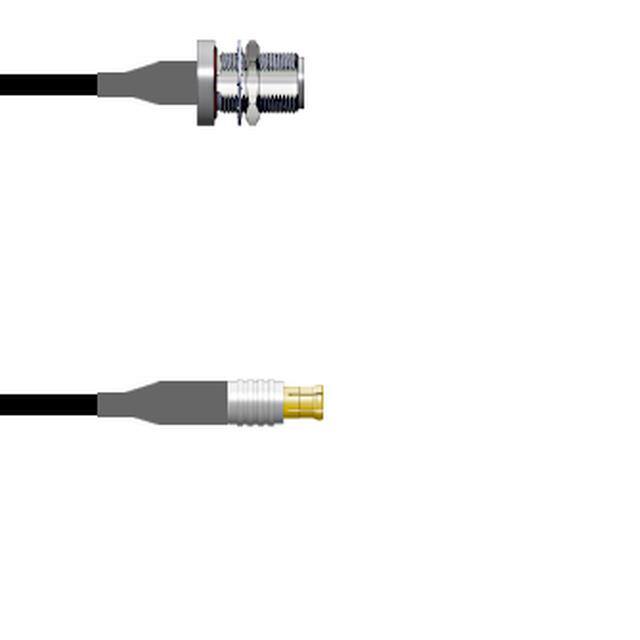

Q-1T01F0003108iCBL ASY MCX-N PLG TO JK RG174 9' |
2,145 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 108.0 (2.7m) 9.0' | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
