| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

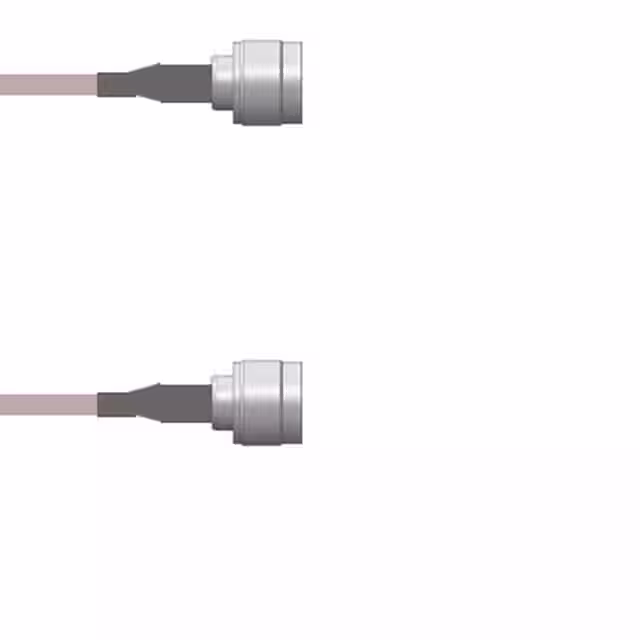

Q-2J02J000H084iCBL ASSY N-TYPE PLUG RG142 7' |
3,428 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Plug | Male | - | - | N-Type Plug | Male | - | - | 84.0 (2.1m) 7.0' | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

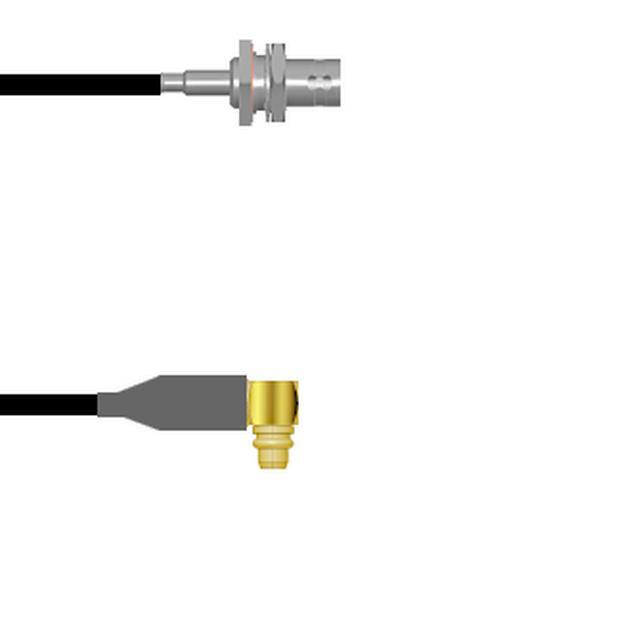

Q-0401N0003060iCBL ASY BNC-MMCX J TO P RG174 5' |
3,791 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 60.0 (1.5m) 5.0' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

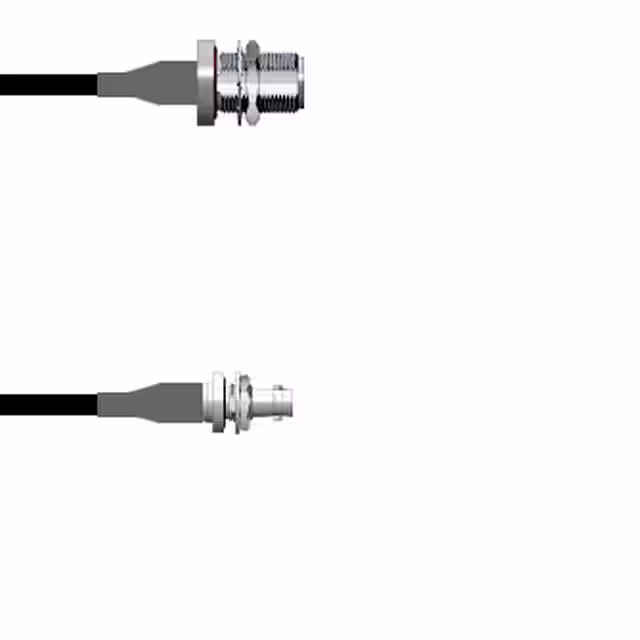

Q-1T00P0003006iCBL ASSY HD-BNC TO N JK RG174 6 |
2,674 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to N-Type | HD-BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 6.000 (152.40mm) | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

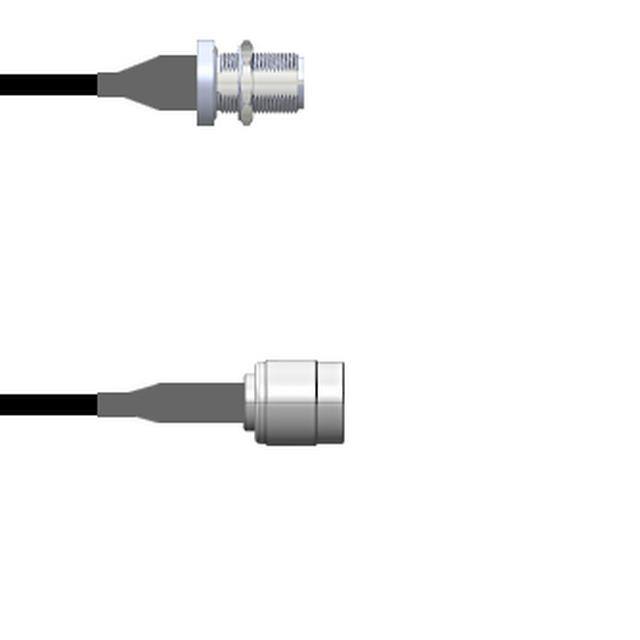

Q-1U0520003024iCBL ASY N-TNC J-P RG174 24 |
3,997 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

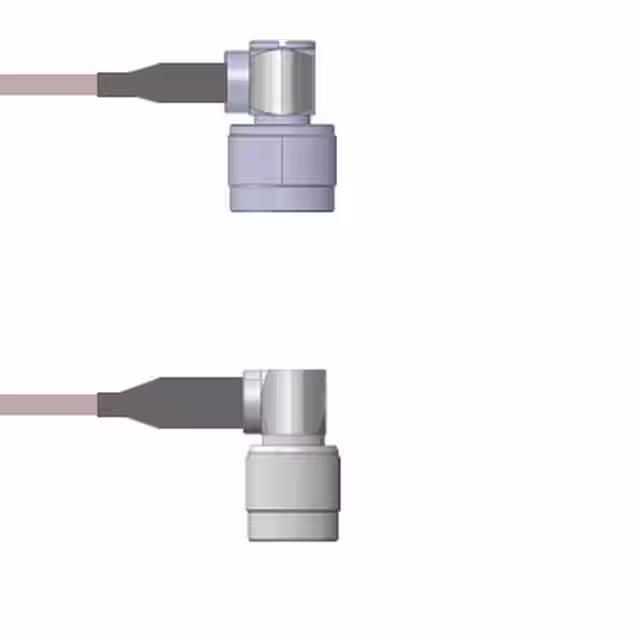

Q-2G04X000H009iCBL ASSY N TO TNC PLUG RG142 9 |
3,962 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug, Right Angle | Male | - | - | TNC Plug, Right Angle | Male | - | - | 9.000 (228.60mm) | RG-142 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

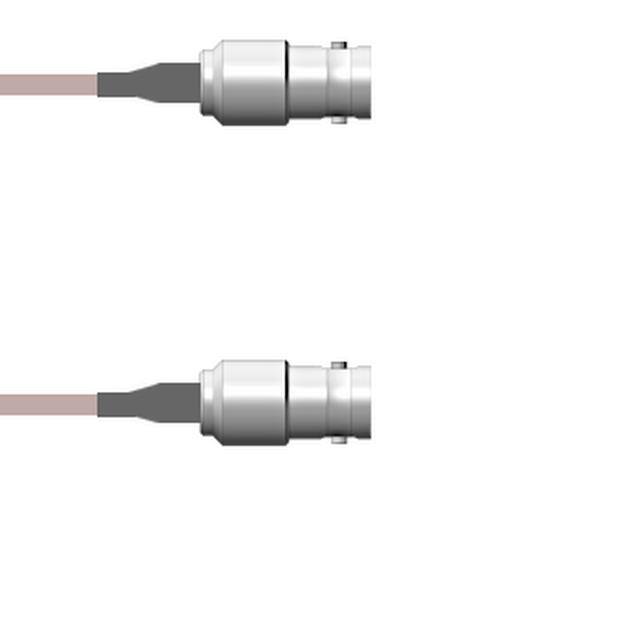

Q-0200200012.5MCBL ASSY BNC JACK RG178 2.5M |
3,821 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | - | - | BNC Jack | Female | - | - | 98.4 (2.5m) 8.2' | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

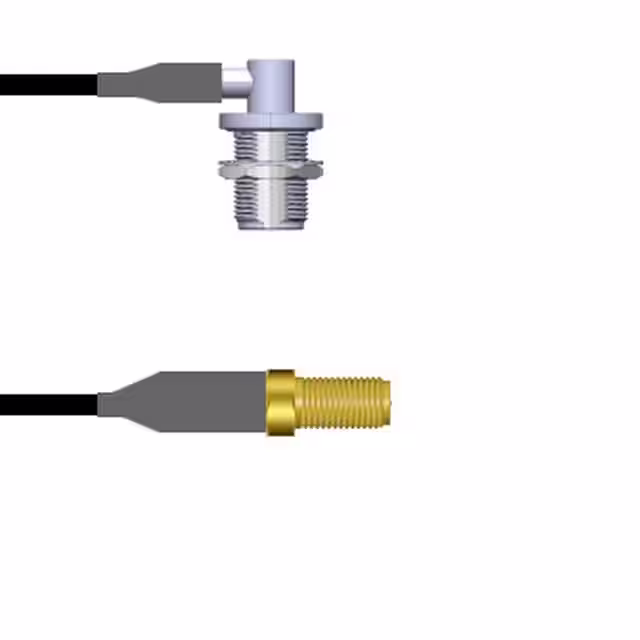

Q-1S07200080.5MCBL ASY RP-SMA-N J RG58 19.69 |
3,217 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to N-Type | RP-SMA Jack | Male | Free Hanging (In-Line) | - | N-Type Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 19.69 (500.00mm) | RG-58 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

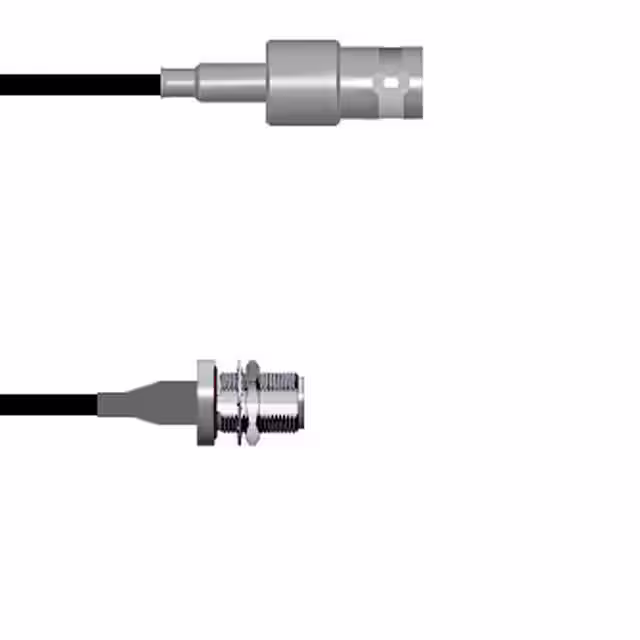

Q-0301T00031.5MCBL ASSY BNC-N-TYP JK RG174 1.5M |
2,624 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 59.1 (1.5m) 4.9' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|
Q-2D03T000R.25MCBL ASSY SMB-N PLUG RG316 9.843 |
3,470 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Plug, Right Angle | Female | - | - | N-Type Plug, Right Angle | Male | - | - | 9.843 (250.00mm) | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

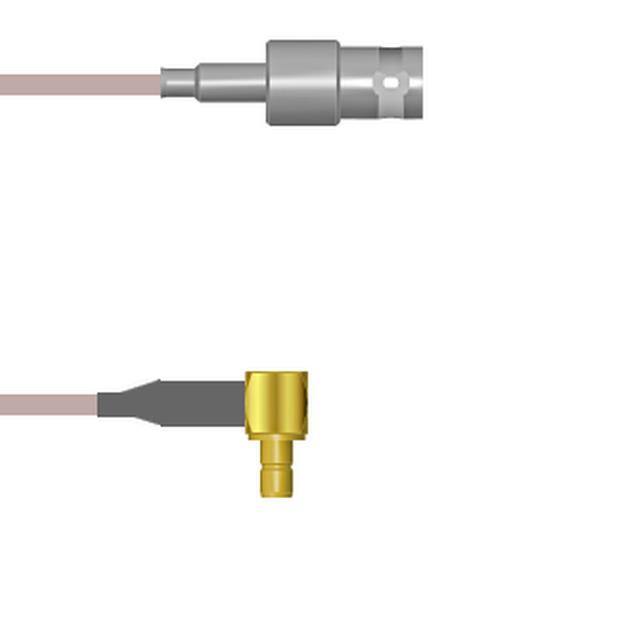

Q-0303I0005048iCBL ASSY BNC-SMB JACK RG316 4' |
3,475 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Jack | Female | - | - | SMB Jack, Right Angle | Female | - | - | 48.0 (1.2m) 4.0' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

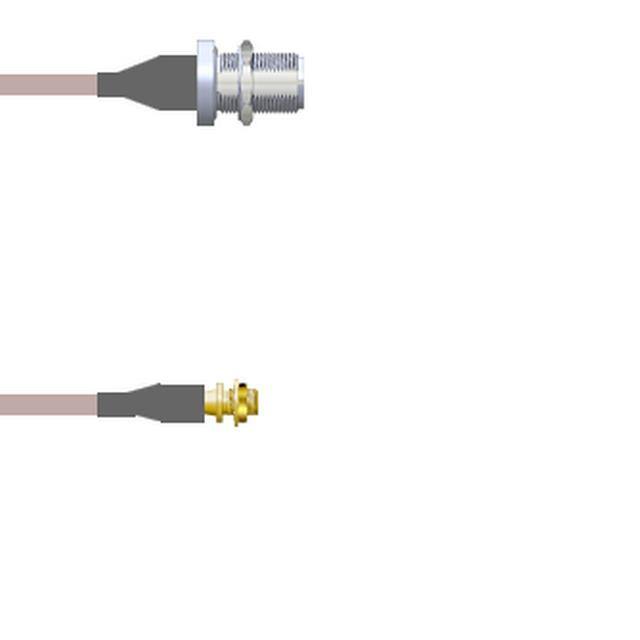

Q-1U01I0005108iCBL ASSY MMCX-N JACK RG316 9' |
2,965 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to N-Type | MMCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 108.0 (2.7m) 9.0' | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

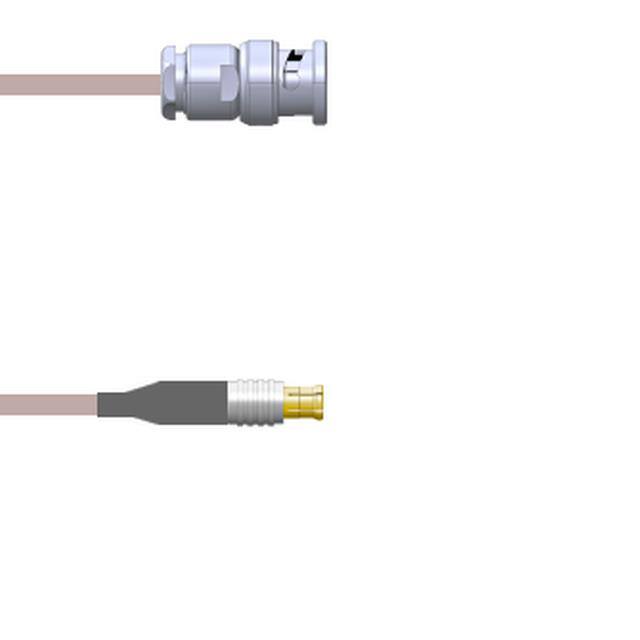

Q-0J01F0005024iCBL ASSY BNC-MCX PLUG RG316 24 |
2,402 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Plug | Male | - | - | MCX Plug | Male | - | - | 24.00 (609.60mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

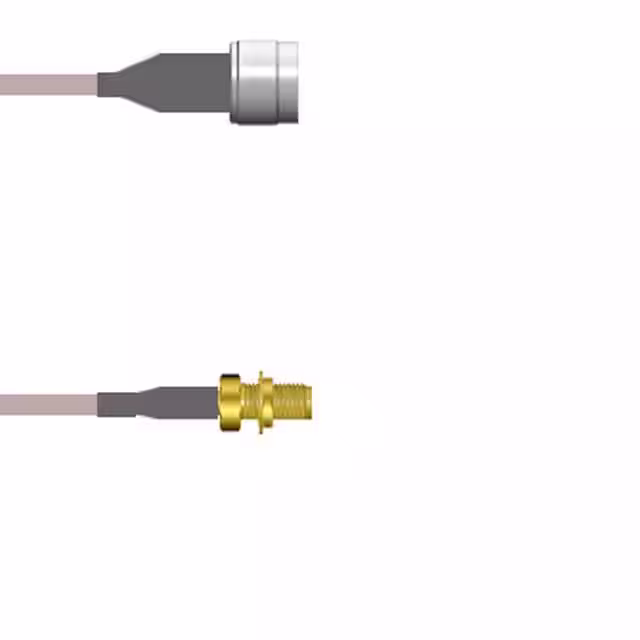

Q-2I02W0005009iCBL ASY SMA-N JK TO PLG RG316 9 |
3,112 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 9.000 (228.60mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - |
|

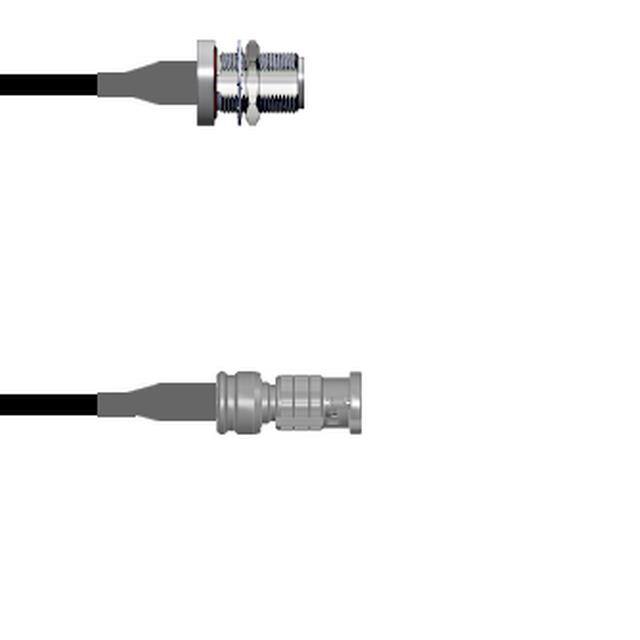

Q-1T05H0003006iCBL ASSY HD-BNC TO N RG174 6 |
2,357 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to N-Type | HD-BNC Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 6.000 (152.40mm) | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

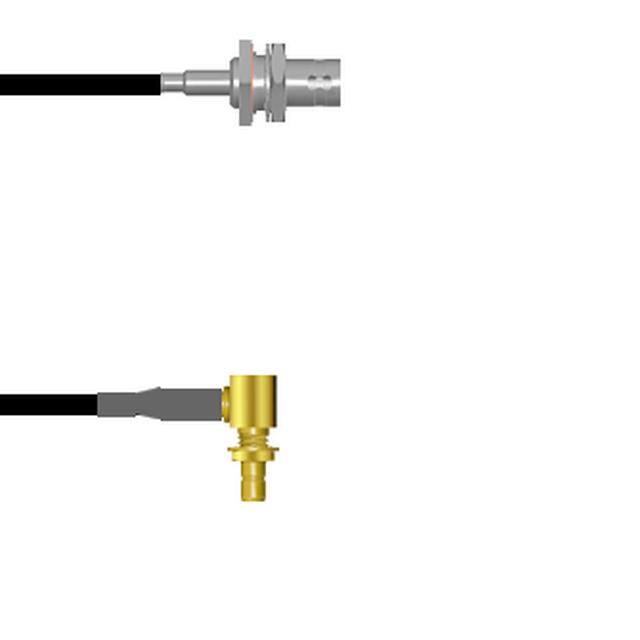

Q-0403H0003003MCBL ASSY BNC-SMB JACK RG174 3M |
2,447 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 118.1 (3.0m) 9.8' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

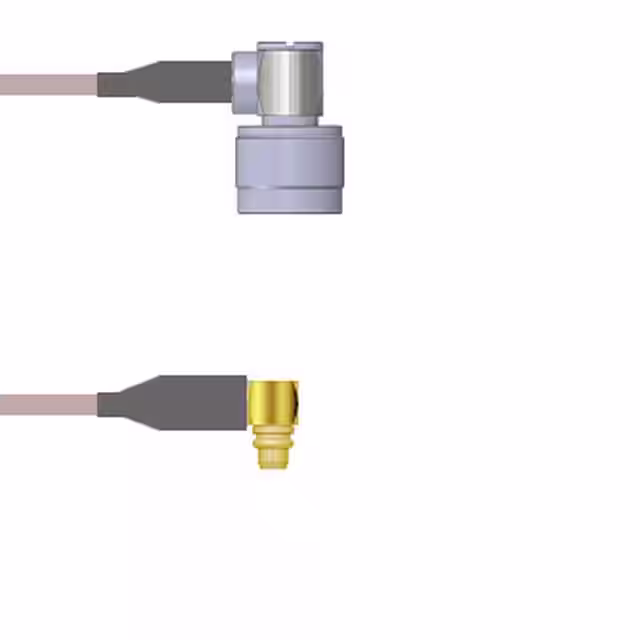

Q-2C01N00050.5MCBL ASSY MMCX-N PLG RG316 19.69 |
3,163 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to N-Type | MMCX Plug, Right Angle | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 19.69 (500.00mm) | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

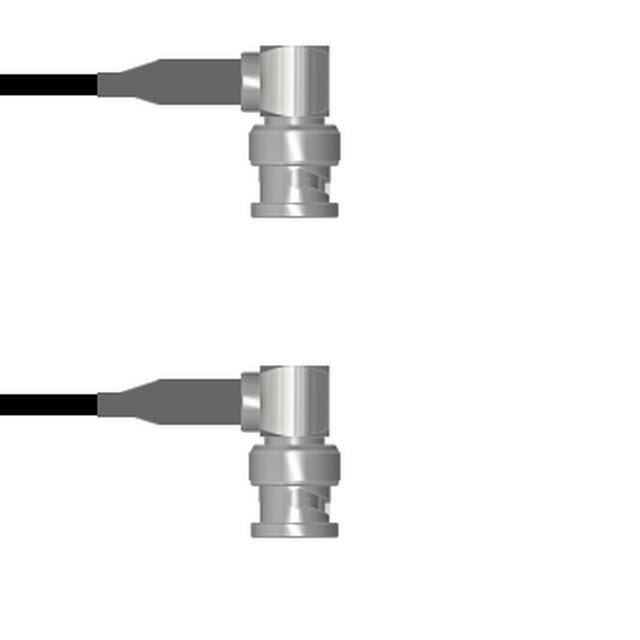

Q-0E00E0008084iCBL ASSY BNC PLUG RG58 7' |
2,474 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug, Right Angle | Male | - | - | BNC Plug, Right Angle | Male | - | - | 84.0 (2.1m) 7.0' | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

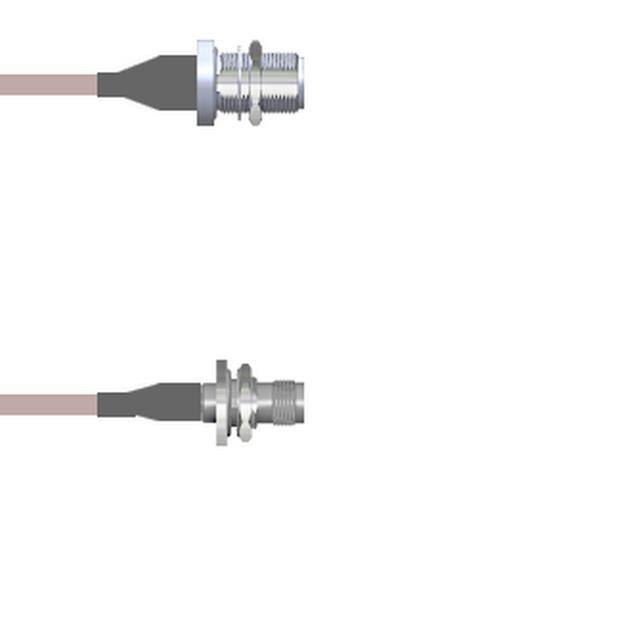

Q-2204H000R0.5MCBL ASY N TO TNC RG316 DB 19.69 |
2,880 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 19.69 (500.00mm) | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

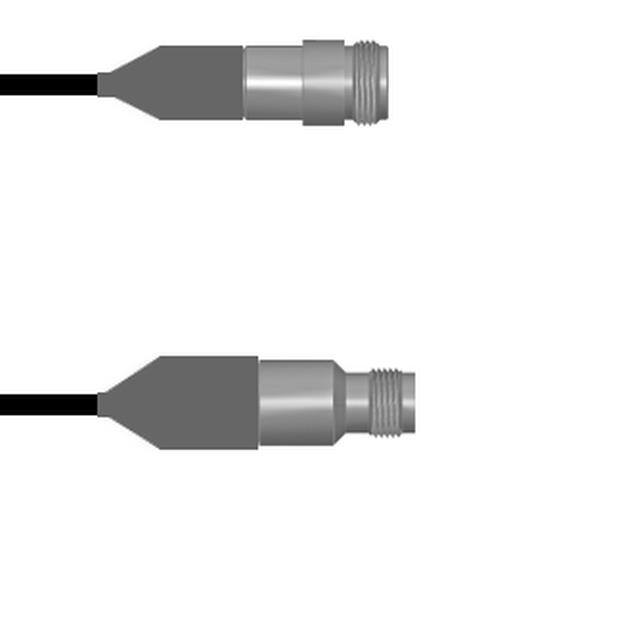

Q-290750013.75MCBL ASY RP-TNC TO N-TYP J 29.53 |
2,980 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-TNC to N-Type | RP-TNC Jack | Male | - | - | N-Type Jack | Female | - | - | 29.53 (750.00mm) | LMR 400 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

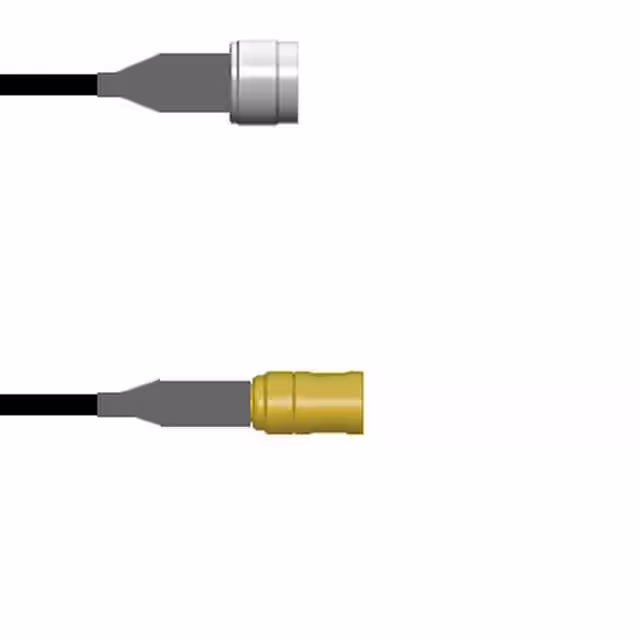

Q-2I03W0003084iCBL ASSY SMB-N PLUG RG174 7' |
2,258 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Plug | Female | - | - | N-Type Plug | Male | - | - | 84.0 (2.1m) 7.0' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
