| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

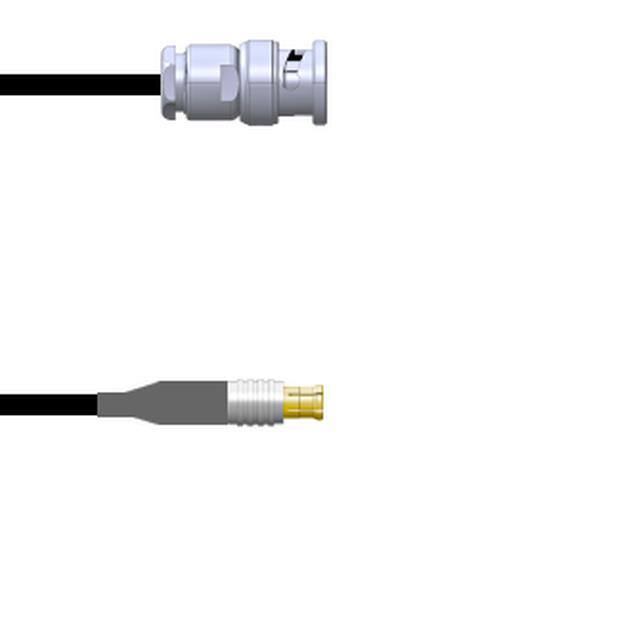

Q-0J01F0003003iCBL ASSY BNC-MCX PLUG RG174 3 |
3,061 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Plug | Male | - | - | MCX Plug | Male | - | - | 3.000 (76.20mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

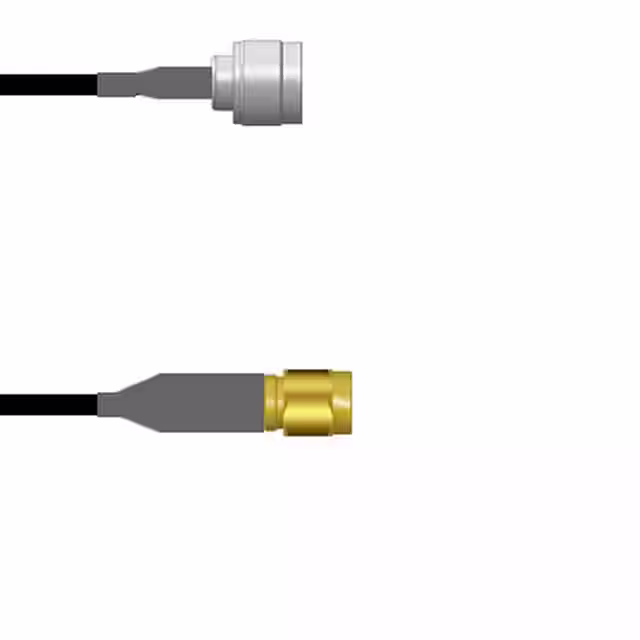

Q-2N0690008024iCBL ASSY RP-SMA TO N PL RG58 24 |
2,520 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to N-Type | RP-SMA Plug | Female | - | - | N-Type Plug | Male | - | - | 24.00 (609.60mm) | RG-58 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

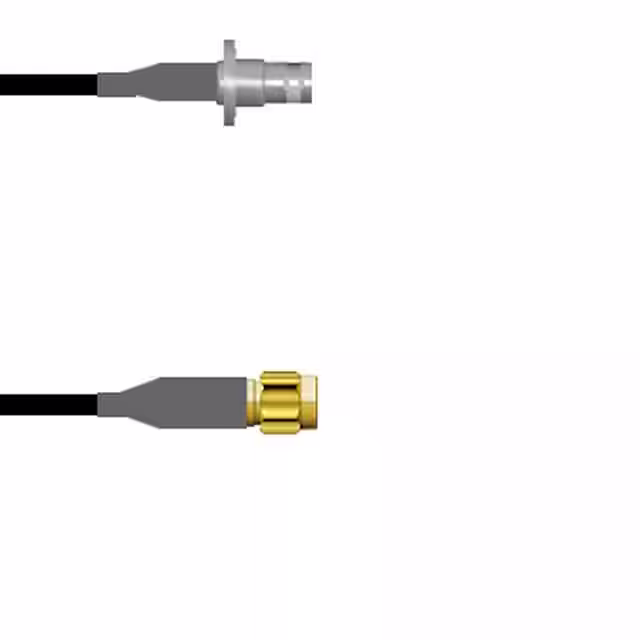

Q-0803D0008.75MCBL ASSY BNC-SMA J-P RG58 29.53 |
3,417 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 29.53 (750.00mm) | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

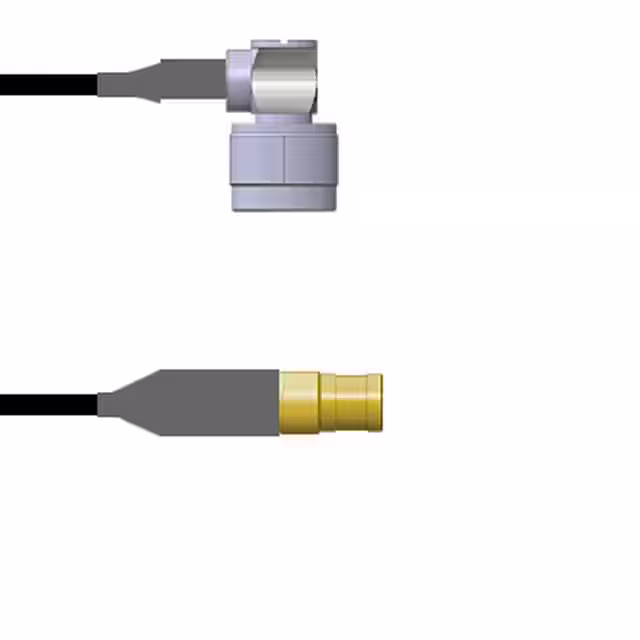

Q-2F03X00080.5MCBL ASSY SMB-N PLUG RG58 19.69 |
3,524 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Plug | Female | - | - | N-Type Plug, Right Angle | Male | - | - | 19.69 (500.00mm) | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

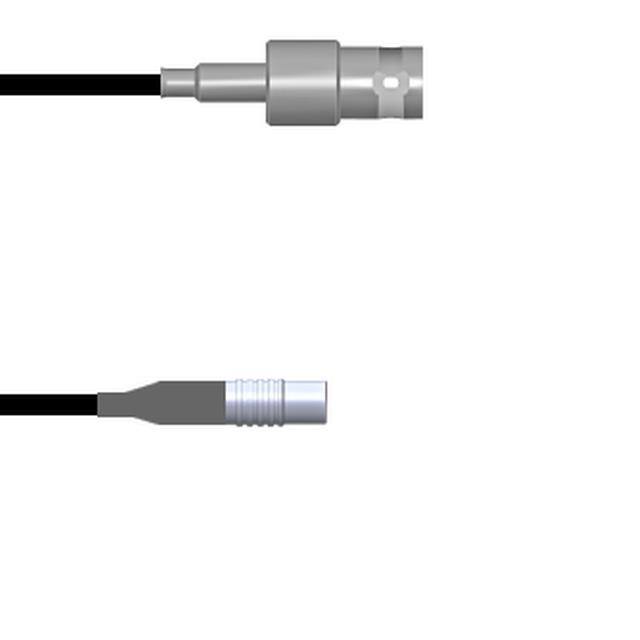

Q-030140003002MCBL ASSY BNC-MCX JACK RG174 2M |
3,368 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Jack | Female | - | - | MCX Jack | Female | - | - | 78.7 (2.0m) 6.6' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

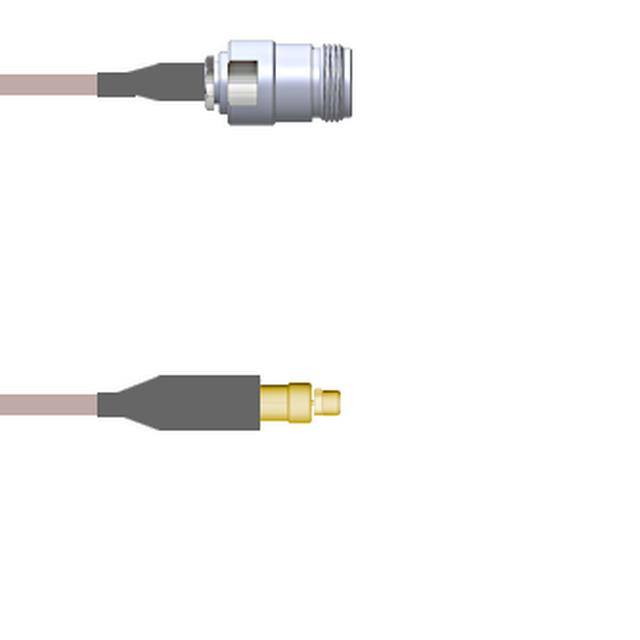

Q-1V01R000R048iCBL ASY MMCX-N P-J RG316 DB 4' |
2,271 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to N-Type | MMCX Plug | Male | - | - | N-Type Jack | Female | - | - | 48.0 (1.2m) 4.0' | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

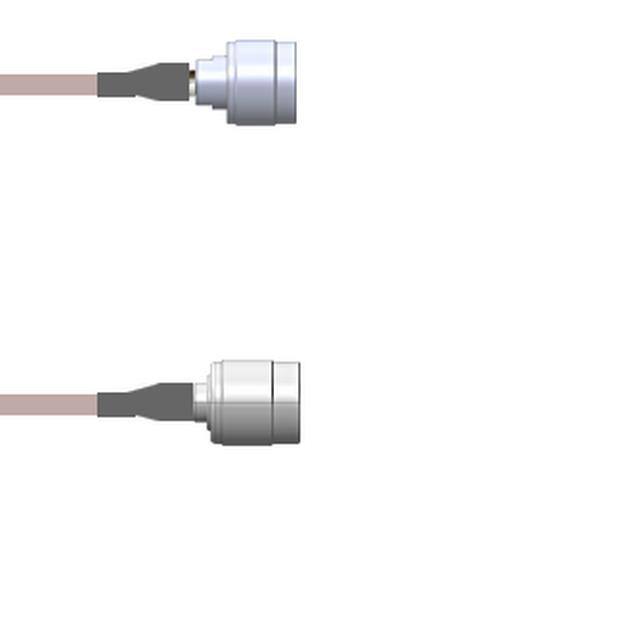

Q-2H0510001003MCBL ASSY N TO TNC PLUG RG178 3M |
3,249 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug | Male | - | - | TNC Plug | Male | - | - | 118.1 (3.0m) 9.8' | RG-178 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

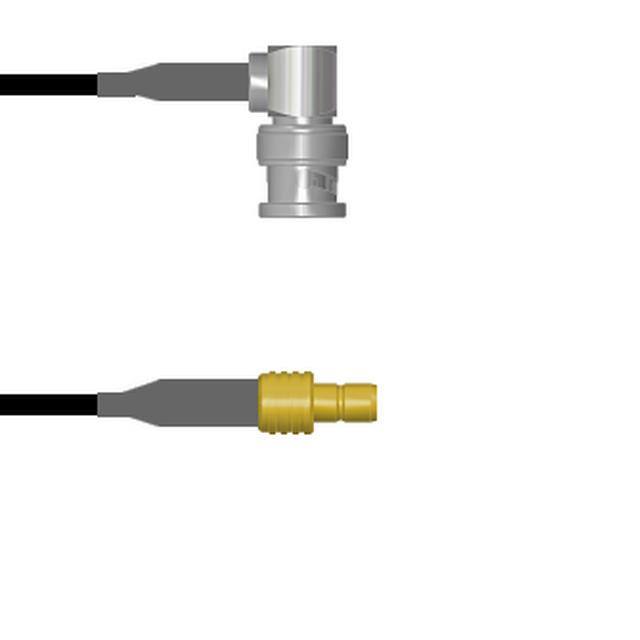

Q-0D03L0003108iCBL ASY BNC-SMB P-J RG174 9' |
3,433 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Plug, Right Angle | Male | - | - | SMB Jack | Female | - | - | 108.0 (2.7m) 9.0' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

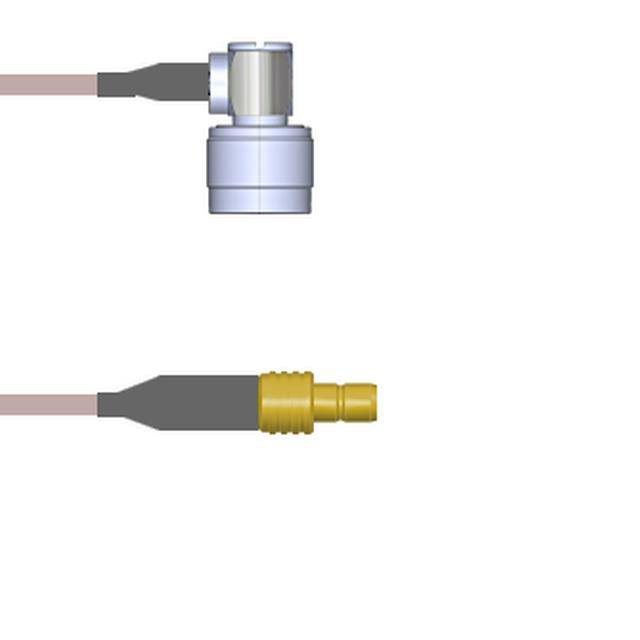

Q-2D03N000R003MCBL ASY SMB-N J TO P RG316 DB 3M |
3,417 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Jack | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 118.1 (3.0m) 9.8' | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

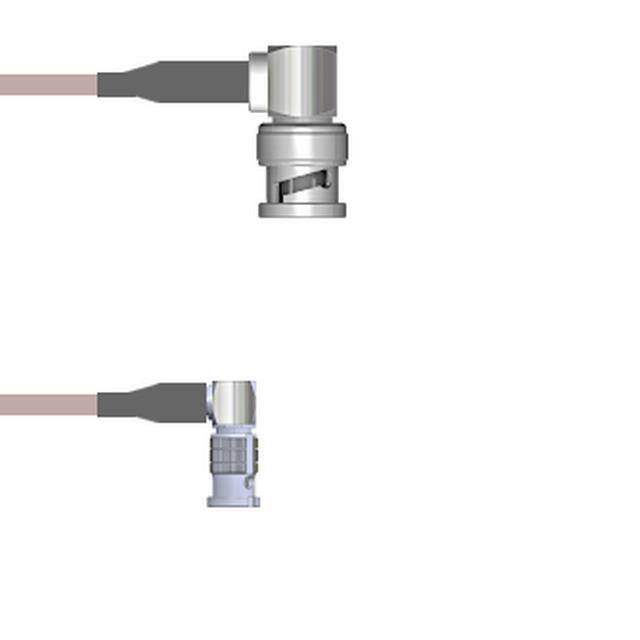

Q-0H00T000S006iCBL ASSY BNC-HD-BNC PLG RG179 6 |
2,788 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Plug, Right Angle | Male | - | - | HD-BNC Plug, Right Angle | Male | - | - | 6.000 (152.40mm) | RG-179 | - | - | 75 Ohms | 4 GHz | Copper | Shielded | - |
|

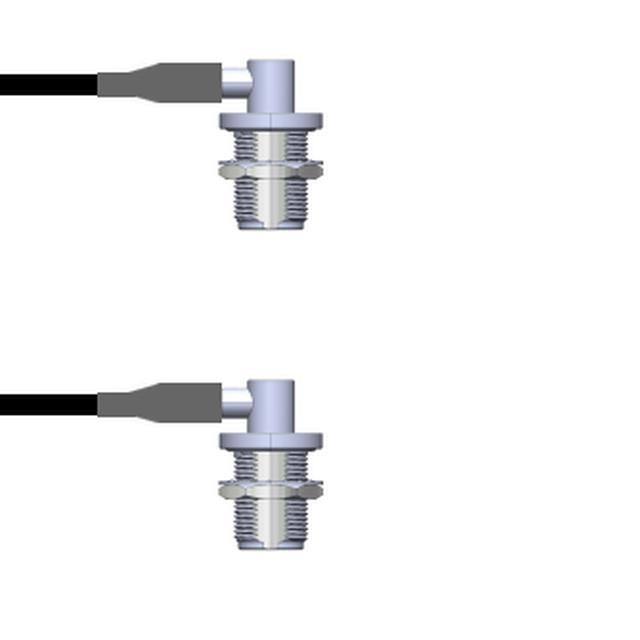

Q-1S01S0008072iCBL ASSY N-TYPE JACK RG58 6' |
3,690 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 72.0 (1.8m) 6.0' | RG-58 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

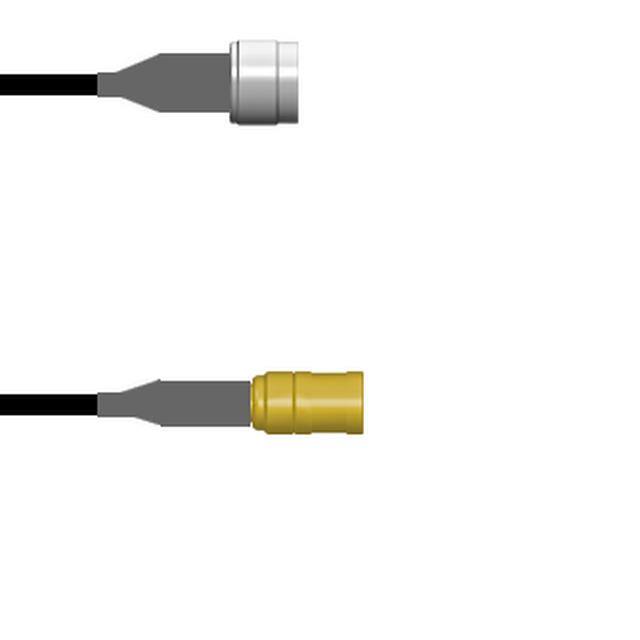

Q-2I03W0003002MCBL ASSY SMB-N PLUG RG174 2M |
2,085 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Plug | Female | - | - | N-Type Plug | Male | - | - | 78.7 (2.0m) 6.6' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

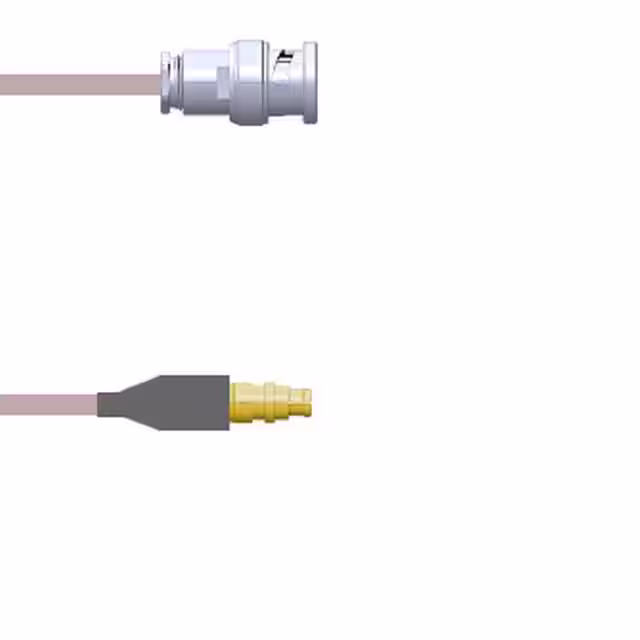

Q-0I0470001.25MCBL ASY BNC-SMPM PL RG178 9.843 |
3,353 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMPM | BNC Plug | Male | - | - | SMPM Plug | Male | - | - | 9.843 (250.00mm) | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

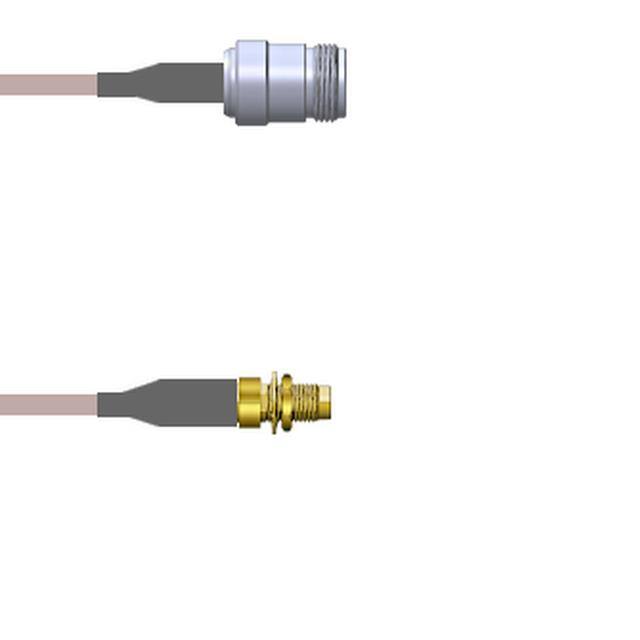

Q-24031000H024iCBL ASSY SMA-N JACK RG142 24 |
2,511 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-142 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

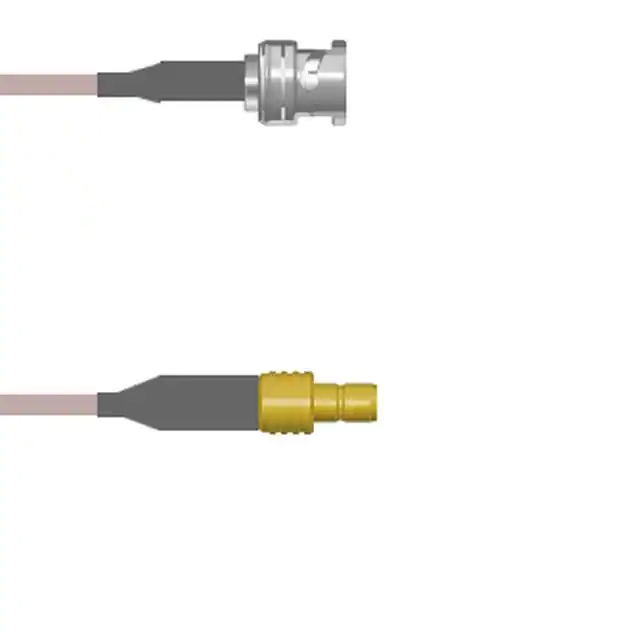

Q-0K03N000R.25MCBL ASSY BNC-SMB RG316 DB 9.843 |
2,496 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Plug | Male | - | - | SMB Jack | Female | - | - | 9.843 (250.00mm) | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

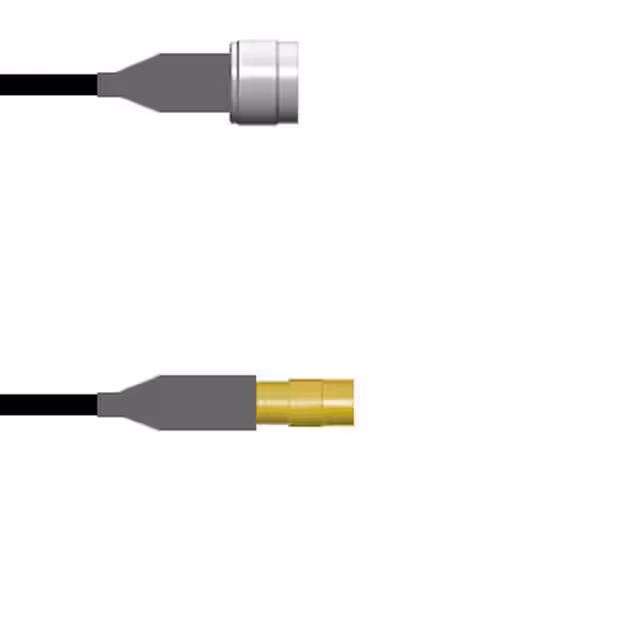

Q-2I01J0003003MCBL ASSY MMCX-N J TO P RG174 3M |
2,945 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to N-Type | MMCX Jack | Female | - | - | N-Type Plug | Male | - | - | 118.1 (3.0m) 9.8' | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

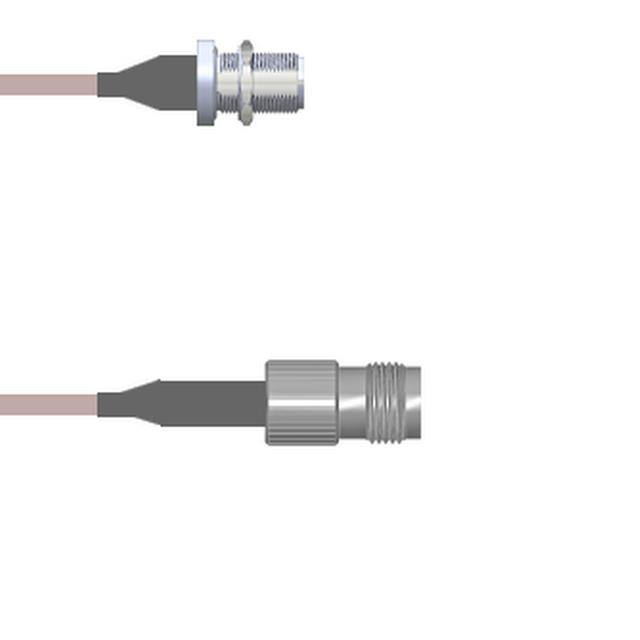

Q-1U04G0005006iCBL ASSY N TO TNC JACK RG316 6 |
3,240 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

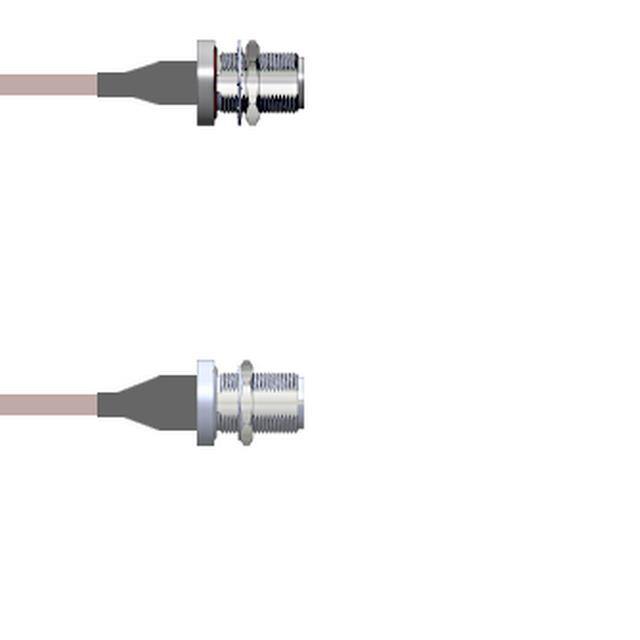

Q-1T01U0005108iCBL ASSY N-TYPE JACK RG316 9' |
3,365 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 108.0 (2.7m) 9.0' | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

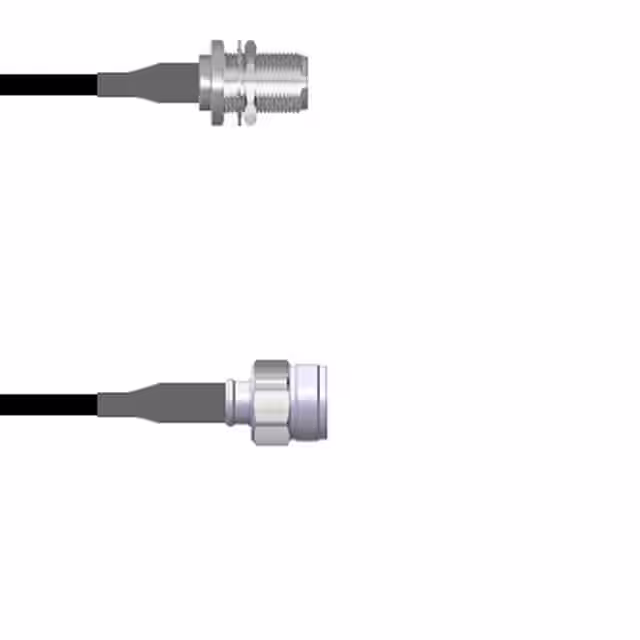

Q-23054000D002MCBL ASSY N TO TNC JACK TO PLG 2M |
3,105 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 78.7 (2.0m) 6.6' | LMR 195 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

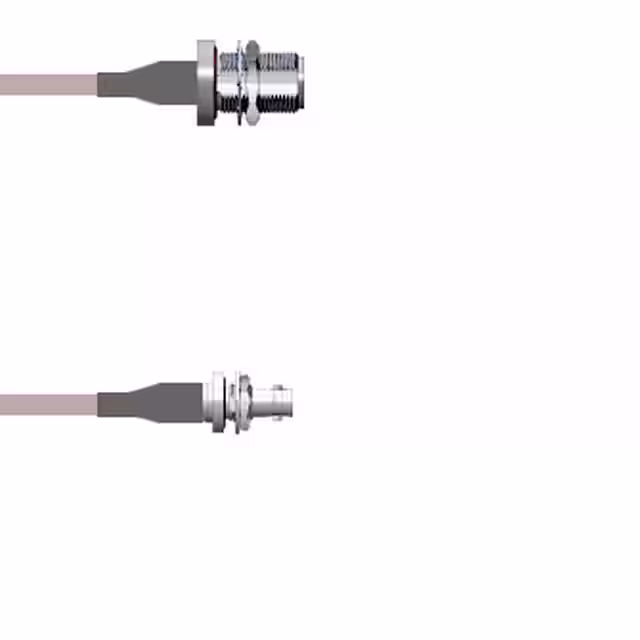

Q-1T00P0005036iCBL ASSY HD-BNC-N JK RG316 36 |
3,429 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to N-Type | HD-BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 36.00 (914.40mm) | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
