| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

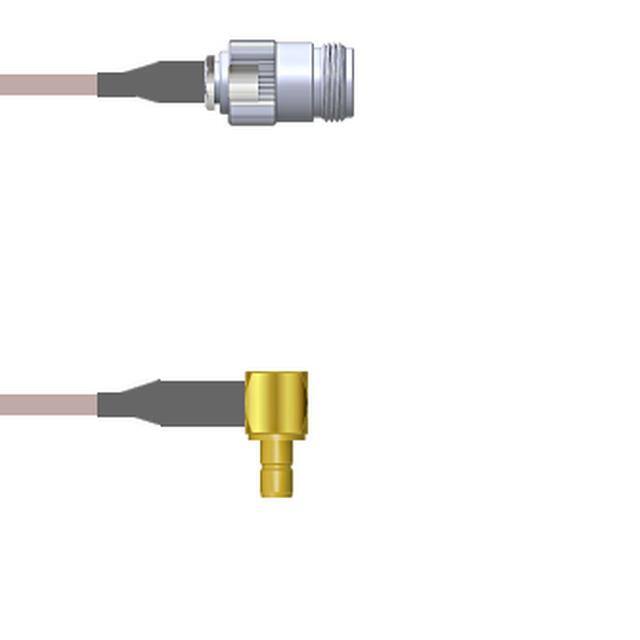

Q-2003I0005.25MCBL ASSY SMB-N JACK RG316 9.843 |
2,280 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Jack, Right Angle | Male | - | - | N-Type Jack | Female | - | - | 9.843 (250.00mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

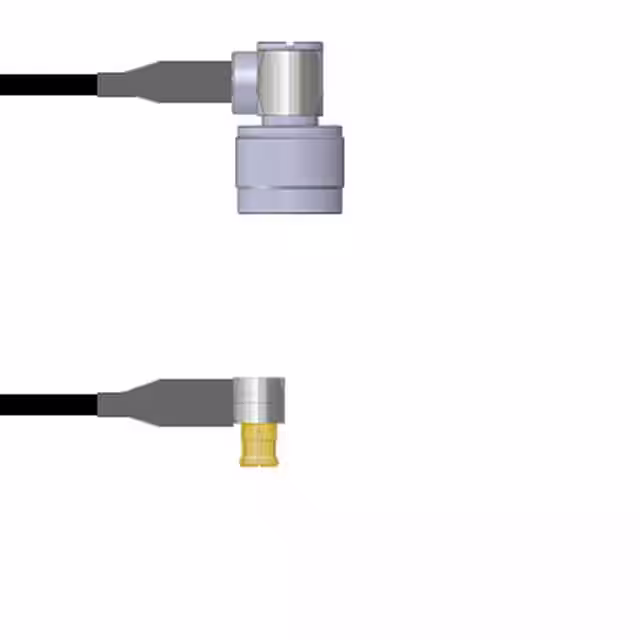

Q-2C01A0003001MCBL ASSY MCX-N PLUG RG174 1M |
3,162 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Plug, Right Angle | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 39.4 (1.0m) 3.3' | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

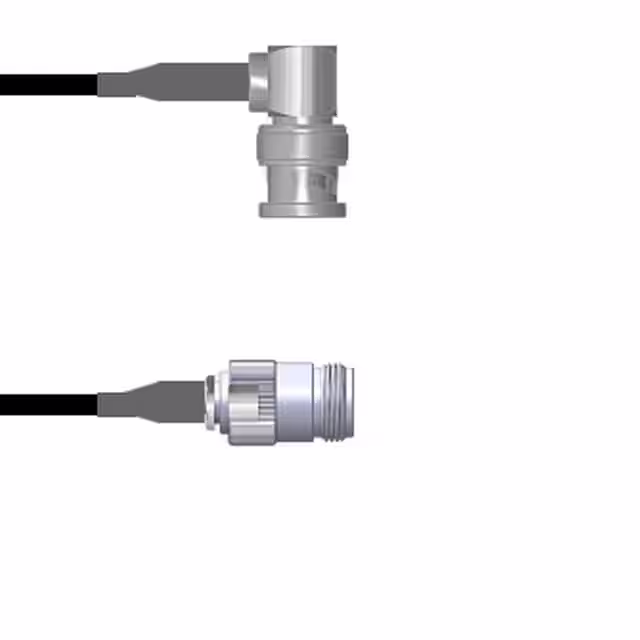

Q-0D02000032.5MCBL ASSY BNC-N-TYPE RG174 2.5M |
2,971 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Plug, Right Angle | Male | - | - | N-Type Jack | Female | - | - | 98.4 (2.5m) 8.2' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

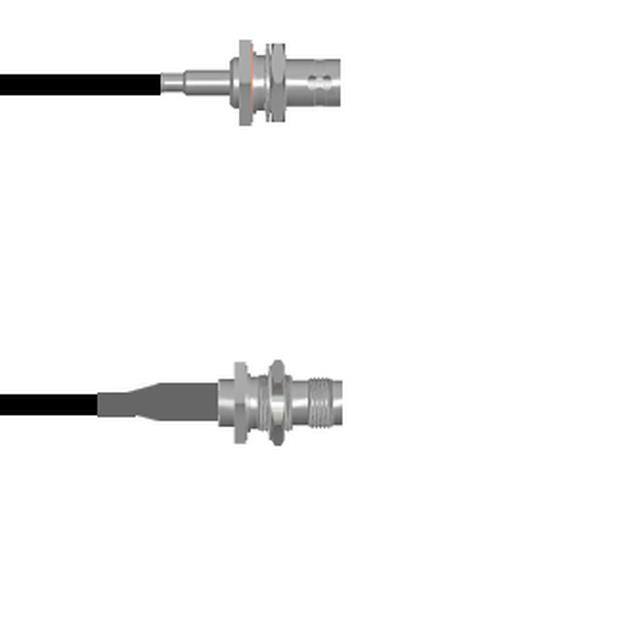

Q-0404F0003060iCBL ASSY BNC-TNC JACK RG174 5' |
3,368 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 60.0 (1.5m) 5.0' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

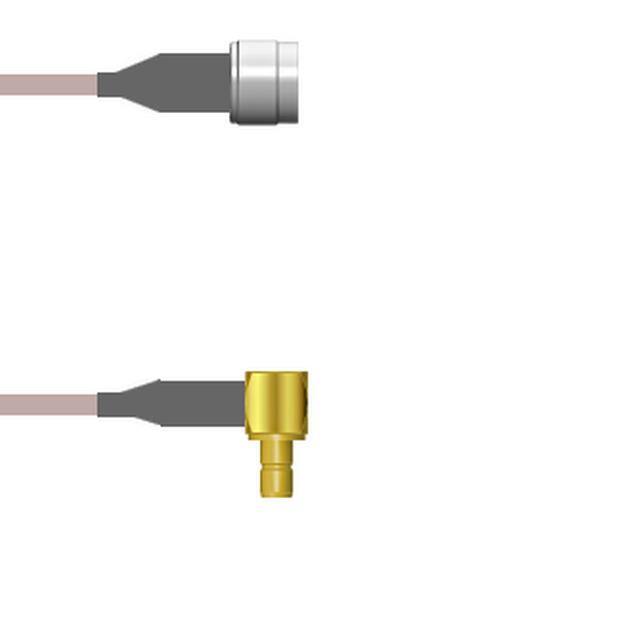

Q-2I03I0005009iCBL ASY SMB-N JK TO PLG RG316 9 |
3,929 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Jack, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 9.000 (228.60mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-2A059000M0.5MCBL ASSY N TO TNC PLUG 19.69 |
3,540 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug, Right Angle | Male | - | - | TNC Plug | Male | - | - | 19.69 (500.00mm) | LMR 240 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

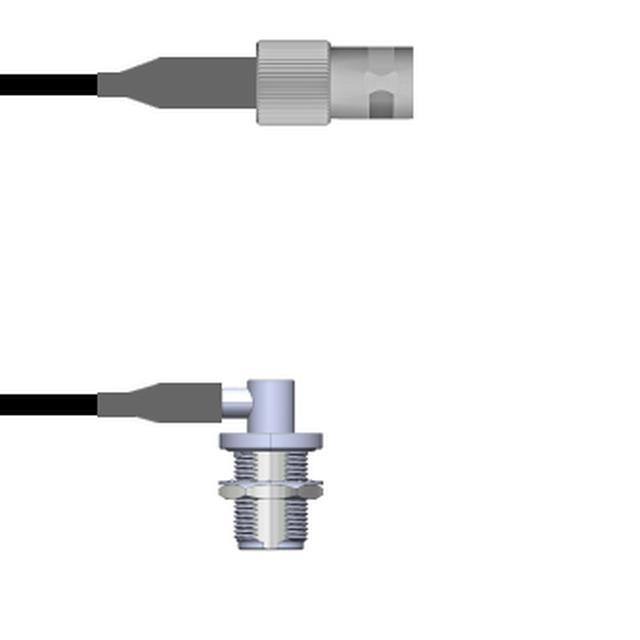

Q-0901S0008006iCBL ASSY BNC-N-TYPE JACK RG58 6 |
3,912 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Jack | Female | Free Hanging (In-Line) | - | N-Type Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 6.000 (152.40mm) | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

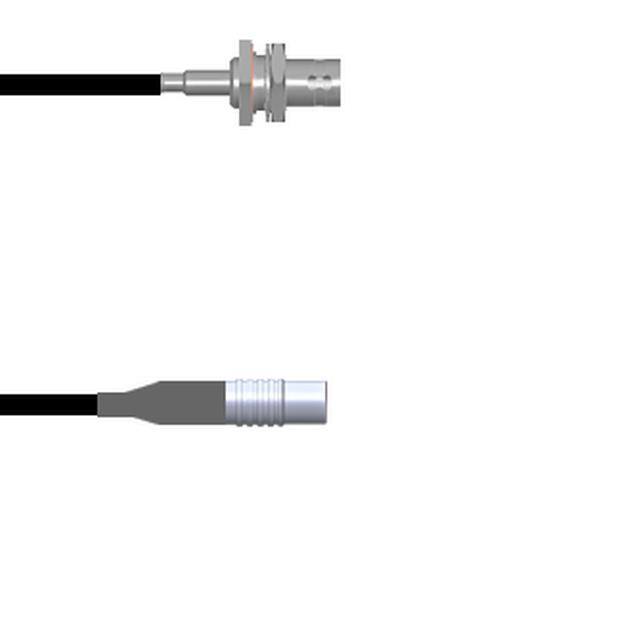

Q-040140003108iCBL ASSY BNC-MCX JACK RG174 9' |
2,941 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Jack | Female | Free Hanging (In-Line) | - | 108.0 (2.7m) 9.0' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

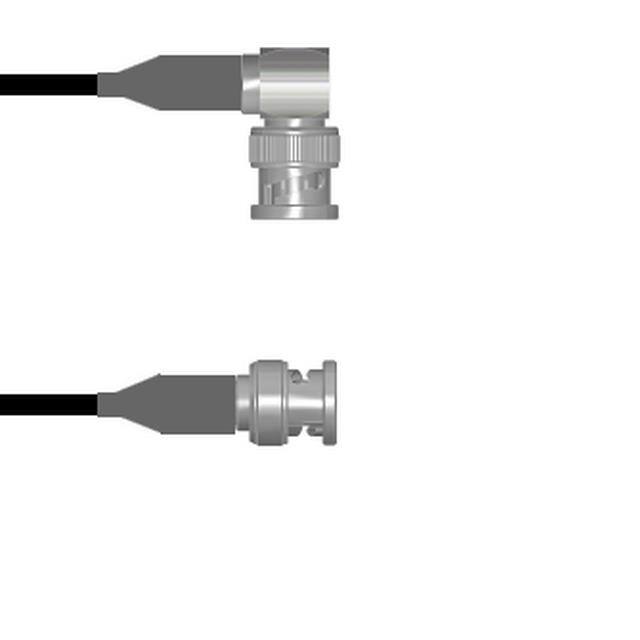

Q-0G00N001A002MCBL ASSY BNC PLUG RG59 2M |
2,969 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug, Right Angle | Male | - | - | BNC Plug | Male | - | - | 78.7 (2.0m) 6.6' | RG-59 | - | - | 75 Ohms | 4 GHz | Black | Shielded | - |
|

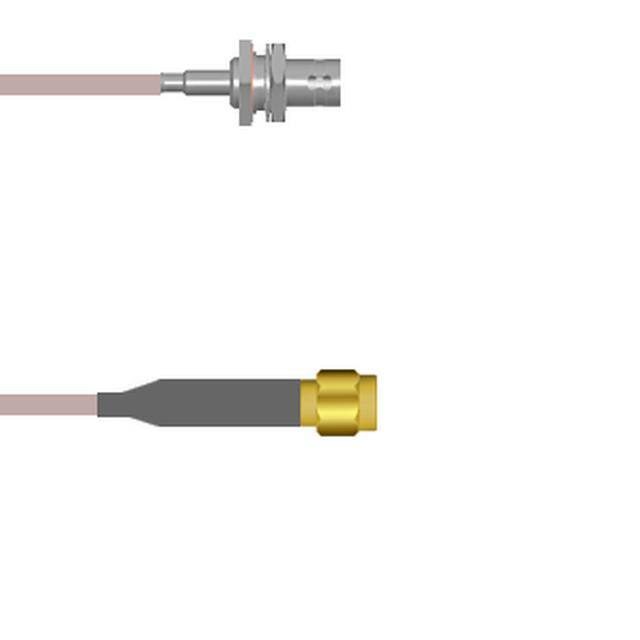

Q-040680005024iCBL ASSY RP-SMA-BNC RG316 24 |
2,022 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to BNC | RP-SMA Plug | Female | Panel Mount | Bulkhead - Front Side Nut | BNC Jack | Female | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

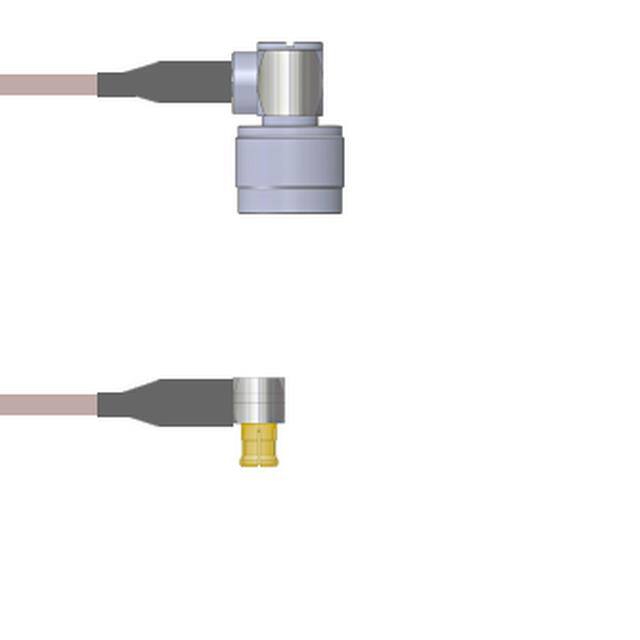

Q-2C01A0005009iCBL ASSY MCX-N PLUG RG316 9 |
3,201 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Plug, Right Angle | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 9.000 (228.60mm) | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|
Q-0A00F000H036iCBL ASSY BNC JK TO PLG RG142 36 |
3,942 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-2C05200030.5MCBL ASY N TO TNC PL RG174 19.69 |
2,106 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug, Right Angle | Male | - | - | TNC Plug | Male | - | - | 19.69 (500.00mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

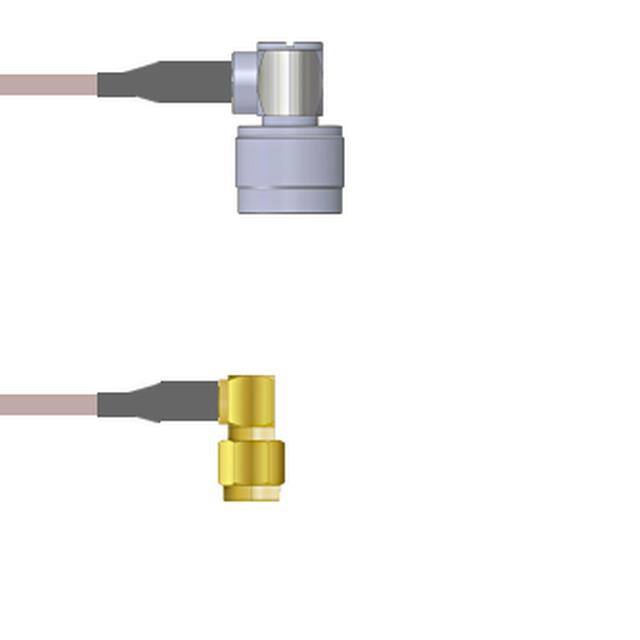

Q-2C0340005048iCBL ASSY SMA-N PLUG RG316 4' |
2,703 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug, Right Angle | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 48.0 (1.2m) 4.0' | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

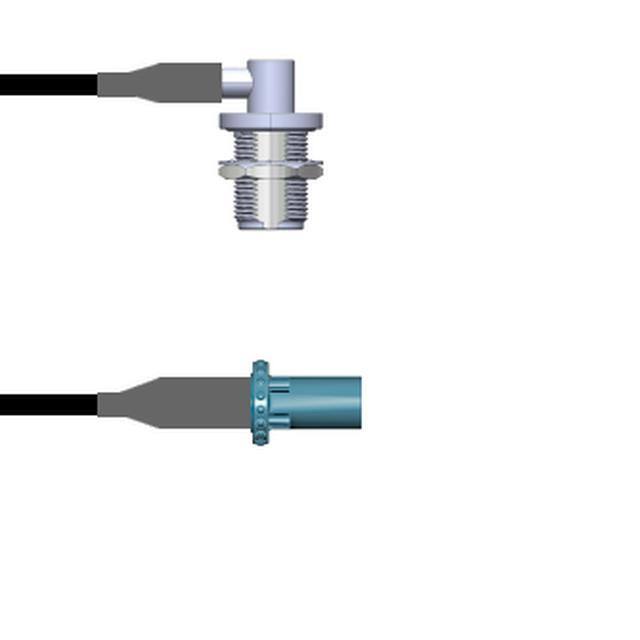

Q-1S05B0008018iCBL ASY N-FAKRA J TO P RG58 18 |
3,198 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to Fakra | N-Type Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | Fakra Plug | Male | Free Hanging (In-Line) | - | 18.00 (457.20mm) | RG-58 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - |
|

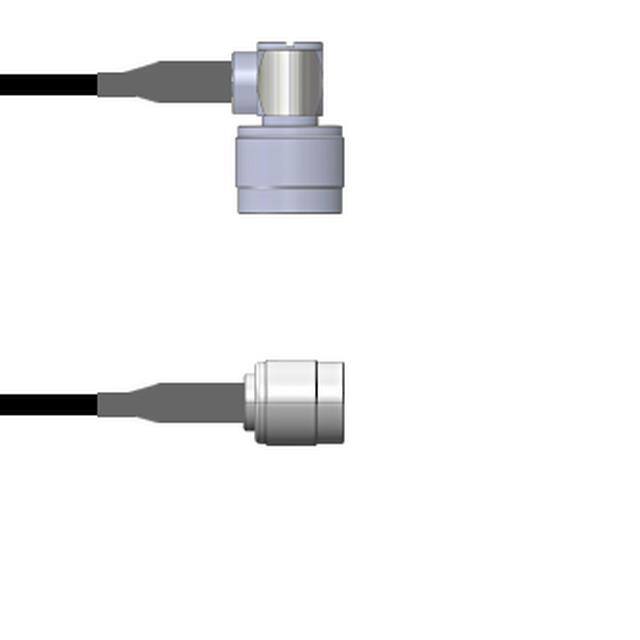

Q-2C0520003006iCBL ASSY N TO TNC PLUG RG174 6 |
3,883 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug, Right Angle | Male | - | - | TNC Plug | Male | - | - | 6.000 (152.40mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

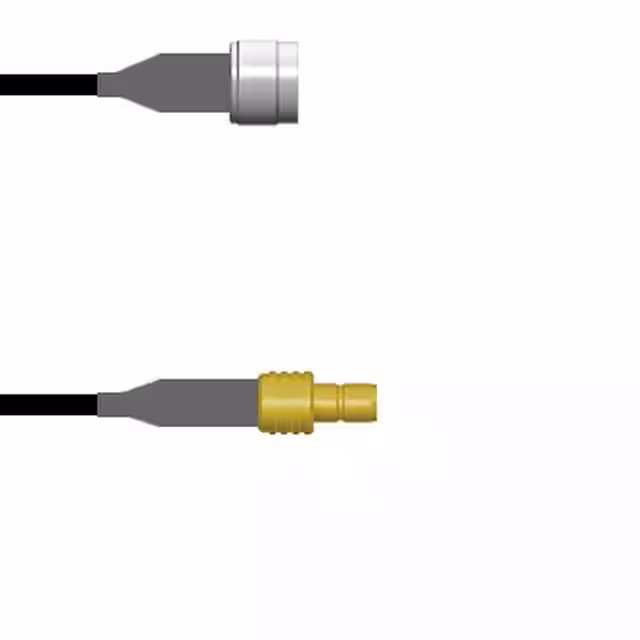

Q-2I03L0003001MCBL ASY SMB-N JK TO PLG RG174 1M |
3,818 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Jack | Male | - | - | N-Type Plug | Male | - | - | 39.4 (1.0m) 3.3' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

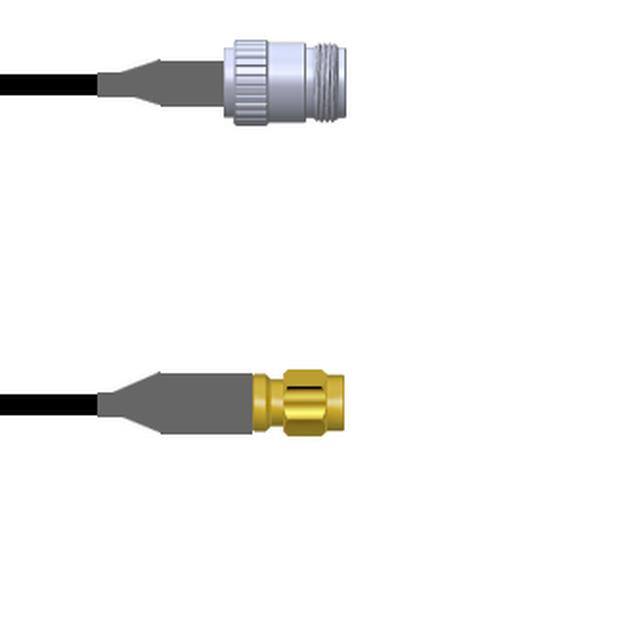

Q-27067000M084iCBL ASY RP-SMA TO N PLG TO JK 7' |
3,444 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to N-Type | RP-SMA Plug | Female | - | - | N-Type Jack | Female | - | - | 84.0 (2.1m) 7.0' | LMR 240 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

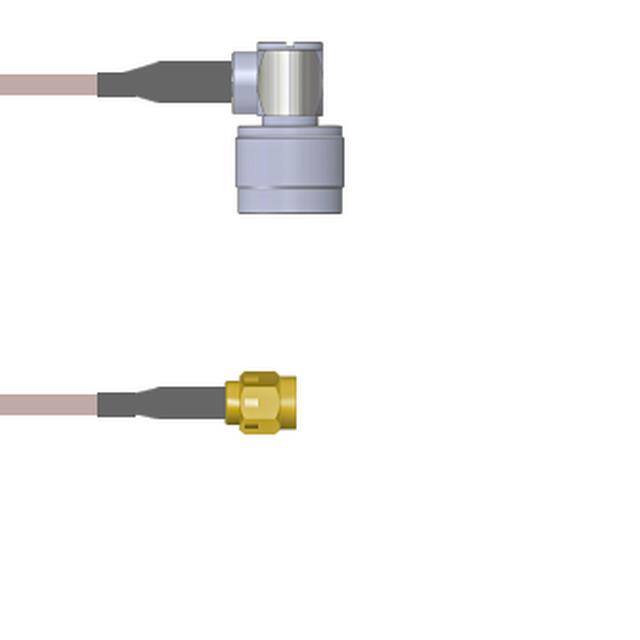

Q-2C03B0005006iCBL ASSY SMA-N PLUG RG316 6 |
3,764 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 6.000 (152.40mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

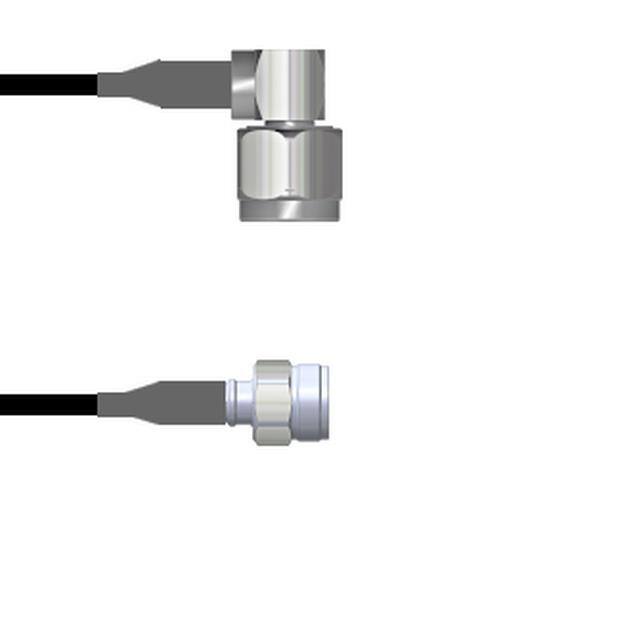

Q-2A059000M012iCBL ASSY N TO TNC PLUG 12 |
2,490 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug, Right Angle | Male | - | - | TNC Plug | Male | - | - | 12.00 (304.80mm) | LMR 240 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
