| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSI-RSFB-100-UFFRCBL ASSY RP-SMA-UMCC 3.937 |
100 | 8.44 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | - |
|

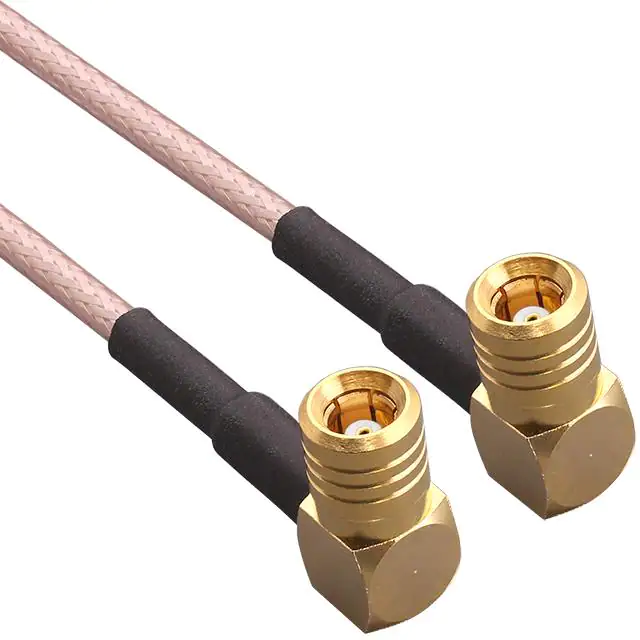

CSE-SBRM-305-SBRMCBL ASSY SMB PLUG RG316 12 |
2,770 | 17.57 |
RFQ |
Datasheet |
Bulk | - | Active | SMB to SMB | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | - | 105°C |
|
CSE-SMBM-152-SMBMCBL ASSY SMB PLUG RG316 6 |
2,505 | 18.01 |
RFQ |
Datasheet |
Bulk | - | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | - | 105°C |
|
|
CSE-SBRM-610-SBRMCBL ASSY SMB PLUG RG316 24 |
3,270 | 19.38 |
RFQ |
Datasheet |
Bulk | - | Active | SMB to SMB | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | - | 105°C |
|
|
CSE-SBRM-152-SBRMCBL ASSY SMB PLUG RG316 6 |
3,576 | 19.41 |
RFQ |
Datasheet |
Bulk | - | Active | SMB to SMB | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | - | 105°C |
|
|
CSE-SMBM-610-SMBMCBL ASSY SMB PLUG RG316 24 |
3,969 | 20.15 |
RFQ |
Datasheet |
Bulk | - | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | - | 105°C |
|
CSI-RGFB-100-UFFRCBL ASSY RP-SMA-UMCC 3.937 |
4,453 | 5.19 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | - |
|
CSI-RGFI-100-UFFRCBL ASSY RP-SMA-UMCC 3.937 |
1,873 | 6.95 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | - |
|

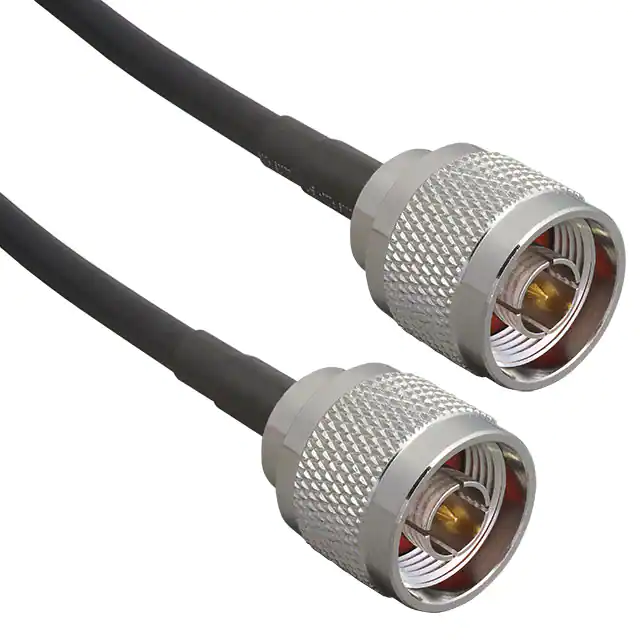

CSD-NM-914-NMCBL ASSY N TYPE PLUG RG58 36 |
102 | 17.63 |
RFQ |
Datasheet |
Bulk | - | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | RG-58 | 50 Ohms | - | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C |
|

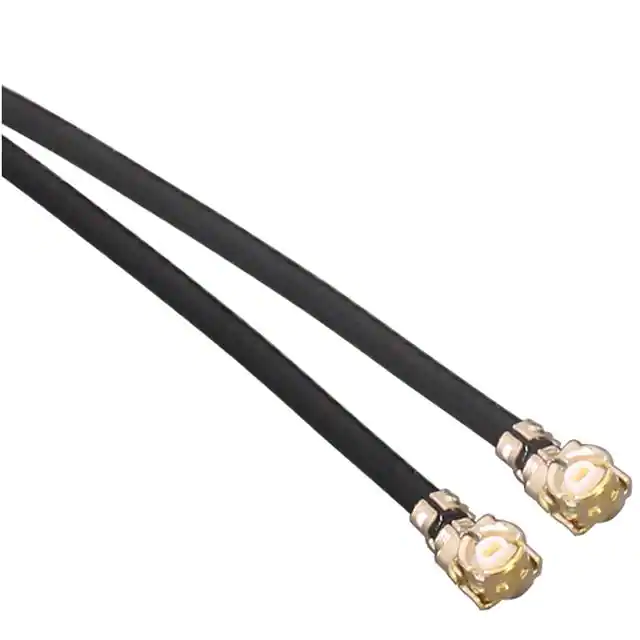

CSG-UFFR-100-UFFRCBL ASSY UFL PLUG-PLUG 3.937 |
4,895 | 2.48 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.940 (100.08mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | 200°C |
|
CSB-RGFB-102-UFFRCBL ASSY RP-SMA-UFL RG178 4 |
1,973 | 5.39 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 4.010 (101.85mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | - | 105°C |
|
CSE-SGAM-305-SGFBCBL ASSY SMA JACK-PLUG RG316 12 |
250 | 13.84 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | 12.4 GHz | Copper | - | 105°C |
|

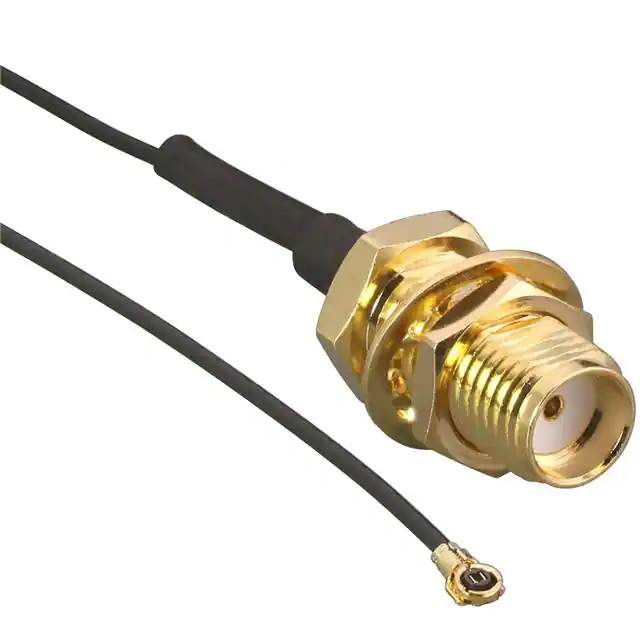

CSI-SGFI-150-UFFRCBL ASSY SMA-UFL 5.906 |
996 | 15.93 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.191 (131.85mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
|
CSE-SGAM-610-SGFBCBL ASSY SMA JACK-PLUG RG316 24 |
243 | 17.24 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | 12.4 GHz | Copper | - | 105°C |
|
|
CSE-SGAM-914-SGFBCBL ASSY SMA JACK-PLUG RG316 36 |
250 | 17.83 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 12.4 GHz | Copper | - | 105°C |
|
CSS-SGAF-050-STTNCBL ASSY SMA JACK 1.969 |
989 | 17.96 |
RFQ |
Datasheet |
Bag | - | Active | SMA to Cable | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Cable (Round) | - | - | - | 2.000 (50.80mm) | 0.047 Semi-Rigid Cable | - | - | 50 Ohms | 8 GHz | White | - | -55°C ~ 125°C |
|

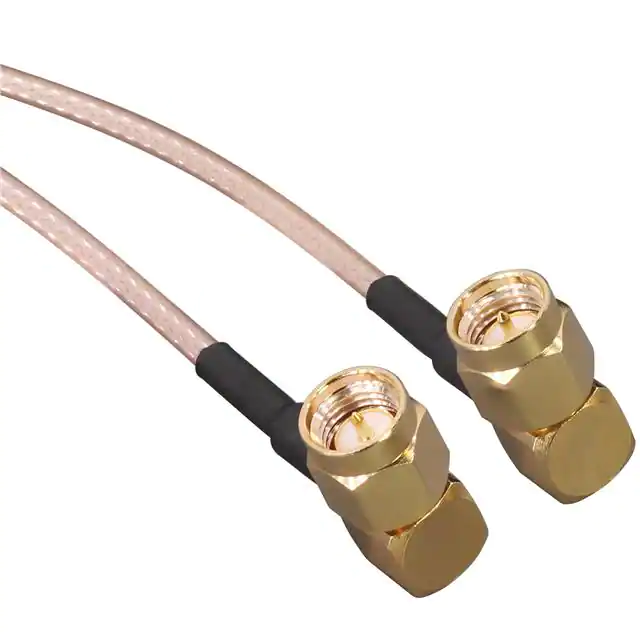

CSE-SGMR-152-SGMRCBL ASSY SMA PLUG-PLUG RG316 6 |
694 | 19.68 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | - | -40°C ~ 120°C |
|

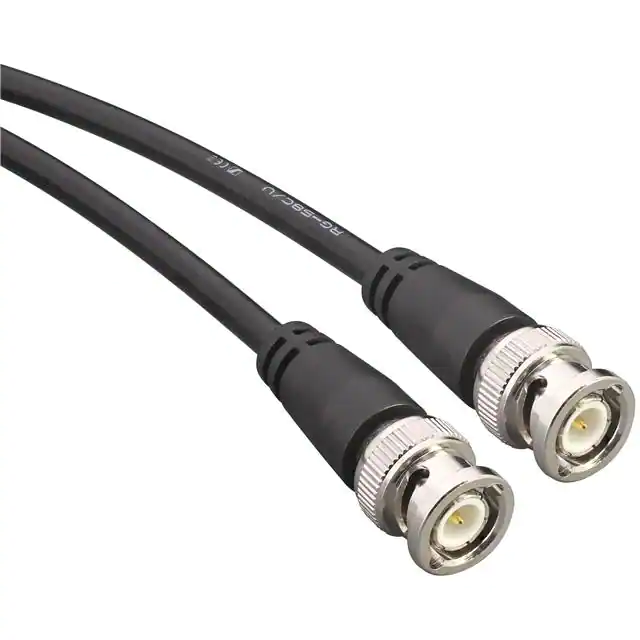

CSC-BNCM-914-BNCMCBL ASSY BNC PLUG RG58C 36 |
245 | 22.90 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 35.98 (914.00mm) | RG-58C/U | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | - |
|
|
CSC-BNCM-1500-BNCMCBL ASSY BNC PLUG-PLUG RG58C 5' |
245 | 24.90 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 59.1 (1.5m) 4.9' | RG-58C/U | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | - |
|
|
CSC-BNCM-1800-BNCMCBL ASSY BNC PLUG-PLUG RG58C 6' |
250 | 25.55 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 70.9 (1.8m) 5.9' | RG-58C/U | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | - |
