| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R-CX-1002-60RG400 SMAR/A(M) - SMAR/A(M) 5' |
3,796 | 162.46 |
RFQ |
Datasheet |
Bag | R-CX-1002 | Active | SMA to SMA | SMA Plug, Right Angle | Male | - | - | SMA Plug, Right Angle | Male | - | - | 60.0 (1.5m) 5.0' | RG-400 | - | - | 50 Ohms | 12.4 GHz | Tan | Shielded | -55°C ~ 165°C |
|

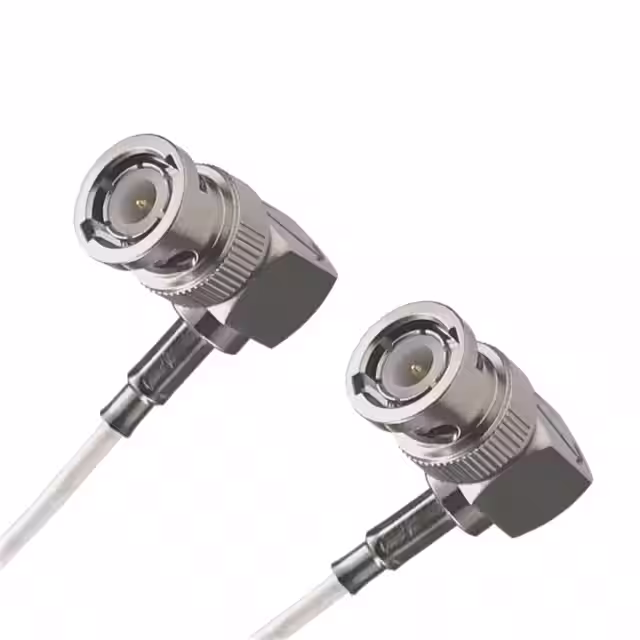

R-CX-1202-300RG-188A BNCR/A(M)-BNCR/A(M) 25' |
3,399 | 164.40 |
RFQ |
Datasheet |
Box | R-CX-1202 | Active | BNC to BNC | BNC Plug, Right Angle | Male | - | - | BNC Plug, Right Angle | Male | - | - | 300.0 (7.6m) 25.0' | RG-188A | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | White | Shielded | -40°C ~ 85°C |
|

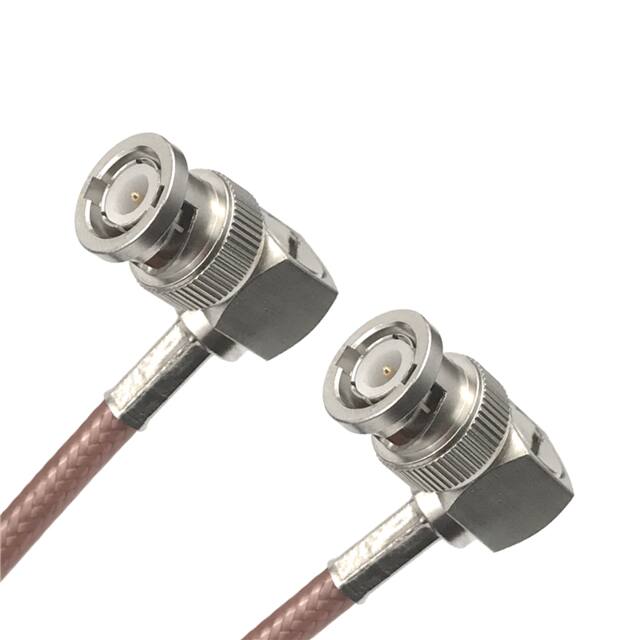

R-CX-1005-144RG-400 BNCR/A(M) - BNCR/A(M) 12' |
3,720 | 165.64 |
RFQ |
Datasheet |
Box | R-CX-1005 | Active | BNC to BNC | BNC Plug, Right Angle | Male | - | - | BNC Plug, Right Angle | Male | - | - | 144.0 (3.7m) 12.0' | RG-400 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Tan | Shielded | -40°C ~ 85°C |
|
|
R-CX-1002-72RG400 SMAR/A(M) - SMAR/A(M) 6' |
2,086 | 167.03 |
RFQ |
Datasheet |
Bag | R-CX-1002 | Active | SMA to SMA | SMA Plug, Right Angle | Male | - | - | SMA Plug, Right Angle | Male | - | - | 72.0 (1.8m) 6.0' | RG-400 | - | - | 50 Ohms | 12.4 GHz | Tan | Shielded | -55°C ~ 165°C |
|

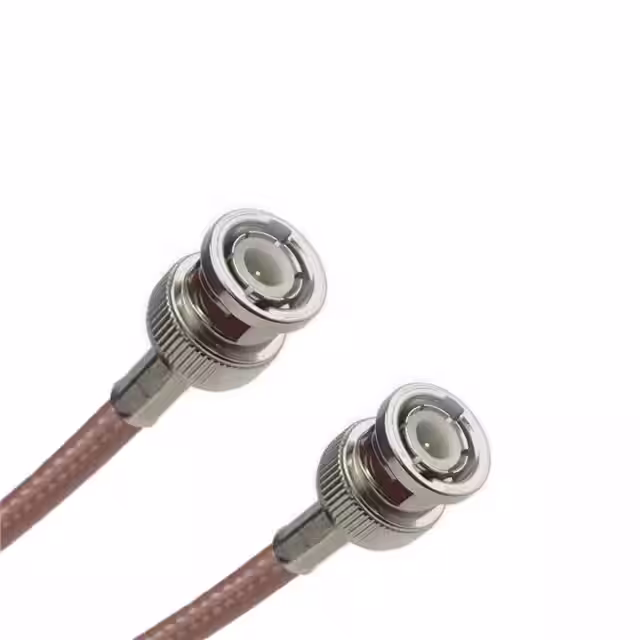

R-CX-1003-240RG-400 BNC(M) - BNC(M) 20' |
2,146 | 167.95 |
RFQ |
Datasheet |
Box | R-CX-1003 | Active | BNC to BNC | BNC Plug | Male | - | - | BNC Plug | Male | - | - | 240.0 (6.1m) 20.0' | RG-400 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Tan | Shielded | -40°C ~ 85°C |
|
R-CX-1302-144RG223 BNCR/A(M) - BNCR/A(M) 12' |
2,488 | 170.53 |
RFQ |
Datasheet |
Bag | R-CX-1302 | Active | BNC to BNC | BNC Plug, Right Angle | Male | - | - | BNC Plug, Right Angle | Male | - | - | 144.0 (3.7m) 12.0' | RG-223 DS | - | - | 50 Ohms | 4 GHz | Black | Shielded | -40°C ~ 85°C |
|
R-CX-1000-120RG400 SMA(M) - SMA(M) 10' |
2,673 | 171.08 |
RFQ |
Datasheet |
Bag | R-CX-1000 | Active | SMA to SMA | SMA Plug | Male | - | - | SMA Plug | Male | - | - | 120.0 (3.0m) 10.0' | RG-400 | - | - | 50 Ohms | 12.4 GHz | Tan | Shielded | -55°C ~ 165°C |
|
R-CX-1001-96RG400 SMA(M) - SMAR/A(M) 8' |
2,001 | 171.25 |
RFQ |
Datasheet |
Bag | R-CX-1001 | Active | SMA to SMA | SMA Plug | Male | - | - | SMA Plug, Right Angle | Male | - | - | 96.0 (2.4m) 8.0' | RG-400 | - | - | 50 Ohms | 12.4 GHz | Tan | Shielded | -55°C ~ 165°C |
|
R-CX-1101-600RG58C SMA(M) - N-TYPE(F) 50' |
2,543 | 171.46 |
RFQ |
Datasheet |
Bag | R-CX-1101 | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 600.0 (15.2m) 50.0' | RG-58C | - | - | 50 Ohms | 1 GHz | Black | Shielded | -40°C ~ 80°C |
|
|
R-CX-1001-180RG400 SMA(M) - SMAR/A(M) 15' |
3,494 | 218.67 |
RFQ |
Datasheet |
Bag | R-CX-1001 | Active | SMA to SMA | SMA Plug | Male | - | - | SMA Plug, Right Angle | Male | - | - | 180.0 (4.6m) 15.0' | RG-400 | - | - | 50 Ohms | 12.4 GHz | Tan | Shielded | -55°C ~ 165°C |
|
R-CX-1301-240RG223 BNC(M) - BNCR/A(M) 20' |
3,693 | 222.77 |
RFQ |
Datasheet |
Bag | R-CX-1301 | Active | BNC to BNC | BNC Plug | Male | - | - | BNC Plug, Right Angle | Male | - | - | 240.0 (6.1m) 20.0' | RG-223 DS | - | - | 50 Ohms | 4 GHz | Black | Shielded | -40°C ~ 85°C |
|
R-CX-1005-180RG-400 BNCR/A(M) - BNCR/A(M) 15' |
2,832 | 172.51 |
RFQ |
Datasheet |
Box | R-CX-1005 | Active | BNC to BNC | BNC Plug, Right Angle | Male | - | - | BNC Plug, Right Angle | Male | - | - | 180.0 (4.6m) 15.0' | RG-400 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Tan | Shielded | -40°C ~ 85°C |
|
R-CX-1300-180RG223 BNC(M) - BNC(M) 15' |
2,561 | 172.83 |
RFQ |
Datasheet |
Bag | R-CX-1300 | Active | BNC to BNC | BNC Plug | Male | - | - | BNC Plug | Male | - | - | 180.0 (4.6m) 15.0' | RG-223 DS | - | - | 50 Ohms | 4 GHz | Black | Shielded | -40°C ~ 85°C |
|
R-CX-1104-600RG-58C SMA(M) - SMAR/A(M) 50' |
2,577 | 176.58 |
RFQ |
Datasheet |
Box | R-CX-1104 | Active | SMA to SMA | SMA Plug | Male | - | - | SMA Plug, Right Angle | Male | - | - | 600.0 (15.2m) 50.0' | RG-58C | 50 Ohms | 50 Ohms | 50 Ohms | 5 GHz | Black | Shielded | -40°C ~ 85°C |
|

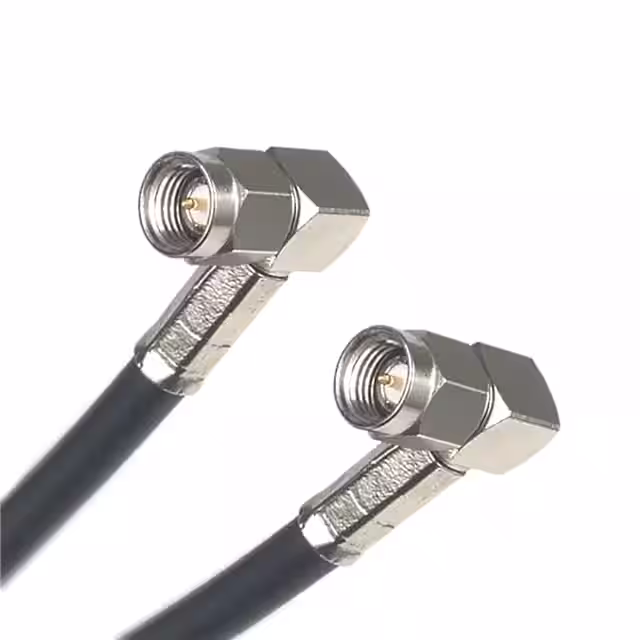

R-CX-1103-600RG-58C SMAR/A(M) - SMAR/A(M) 50' |
3,480 | 181.65 |
RFQ |
Datasheet |
Box | R-CX-1103 | Active | SMA to SMA | SMA Plug, Right Angle | Male | - | - | SMA Plug, Right Angle | Male | - | - | 600.0 (15.2m) 50.0' | RG-58C | 50 Ohms | 50 Ohms | 50 Ohms | 5 GHz | Black | Shielded | -40°C ~ 85°C |
|
|
R-CX-1001-120RG400 SMA(M) - SMAR/A(M) 10' |
2,671 | 182.18 |
RFQ |
Datasheet |
Bag | R-CX-1001 | Active | SMA to SMA | SMA Plug | Male | - | - | SMA Plug, Right Angle | Male | - | - | 120.0 (3.0m) 10.0' | RG-400 | - | - | 50 Ohms | 12.4 GHz | Tan | Shielded | -55°C ~ 165°C |
|
R-CX-1102-600RG58C N-TYPE(F) - N-TYPE(F) 50' |
2,918 | 182.18 |
RFQ |
Datasheet |
Bag | R-CX-1102 | Active | N-Type to N-Type | - | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 600.0 (15.2m) 50.0' | RG-58C | - | - | 50 Ohms | 1 GHz | Black | Shielded | -40°C ~ 80°C |
|
|
R-CX-1002-96RG400 SMAR/A(M) - SMAR/A(M) 8' |
2,576 | 182.39 |
RFQ |
Datasheet |
Bag | R-CX-1002 | Active | SMA to SMA | SMA Plug, Right Angle | Male | - | - | SMA Plug, Right Angle | Male | - | - | 96.0 (2.4m) 8.0' | RG-400 | - | - | 50 Ohms | 12.4 GHz | Tan | Shielded | -55°C ~ 165°C |
|
|
R-CX-1301-180RG223 BNC(M) - BNCR/A(M) 15' |
2,900 | 184.95 |
RFQ |
Datasheet |
Bag | R-CX-1301 | Active | BNC to BNC | BNC Plug | Male | - | - | BNC Plug, Right Angle | Male | - | - | 180.0 (4.6m) 15.0' | RG-223 DS | - | - | 50 Ohms | 4 GHz | Black | Shielded | -40°C ~ 85°C |
|
|
R-CX-1000-144RG400 SMA(M) - SMA(M) 12' |
3,733 | 186.50 |
RFQ |
Datasheet |
Bag | R-CX-1000 | Active | SMA to SMA | SMA Plug | Male | - | - | SMA Plug | Male | - | - | 144.0 (3.7m) 12.0' | RG-400 | - | - | 50 Ohms | 12.4 GHz | Tan | Shielded | -55°C ~ 165°C |
