| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-900-545M025CBL ASSY MCX PLUG RG174 9.843 |
3,923 | 15.86 |
RFQ |
Datasheet |
Bag | MCX | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 9.843 (250.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C |
|
095-850-164-018CBL ASSY BNC PLUG-PLUG 18 |
2,851 | 15.89 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 18.00 (457.20mm) | Belden 1855A | - | - | 75 Ohms | 4 GHz | Black | Shielded | - |
|
095-850-249-024BNC STRAIGHT PLUG TO SMA STRAIGH |
2,485 | 15.89 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|
115103-04-M0.10BNC RIGHT ANGLE PLUG TO BNC STRA |
3,870 | 15.89 |
RFQ |
Datasheet |
Bag | BNC | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 3.937 (100.00mm) | RG-58 | 50 Ohms | - | - | - | Black | - | - |
|
095-850-283-050AMC RIGHT ANGLE PLUG TO TNC STRA |
3,897 | 15.91 |
RFQ |
Bag | - | Active | U.FL (UMCC), AMC to TNC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 1.969 (50.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | |
|
095Z820-161-018FAKRA STRAIGHT JACK TO SMA STRAI |
3,873 | 15.91 |
RFQ |
Datasheet |
Bag | - | Active | SMA to Fakra III | SMA Plug | Male | Free Hanging (In-Line) | - | Fakra III (Gen 3.0) Jack | Female | Free Hanging (In-Line) | - | 18.00 (457.20mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - |
|
095-900-550M050CBL ASSY MMCX PLUG RG174 19.69 |
3,673 | 15.94 |
RFQ |
Datasheet |
Bag | MMCX | Active | MMCX to MMCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 19.69 (500.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C |
|

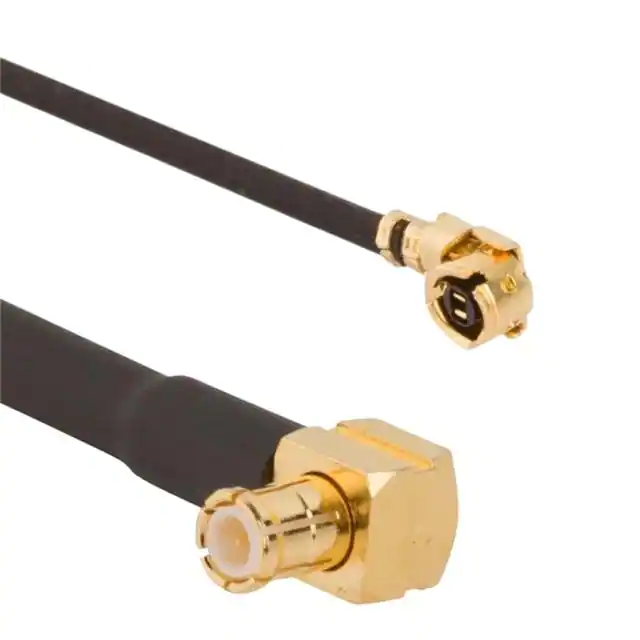

095-900-559-250AMC RIGHT ANGLE PLUG TO MCX RIGH |
2,747 | 15.94 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC), AMC to MCX | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.843 (250.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C |
|
135110-02-18.00CBL ASSY SMA JACK-PLUG RG174 18 |
2,717 | 15.95 |
RFQ |
Datasheet |
Bulk | - | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 18.00 (457.20mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | Shielded | - |
|
095-850-287-050AMC4 RIGHT ANGLE PLUG TO TNC STR |
3,344 | 15.98 |
RFQ |
Bag | - | Active | AMC4 to TNC | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969 (50.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | |
|

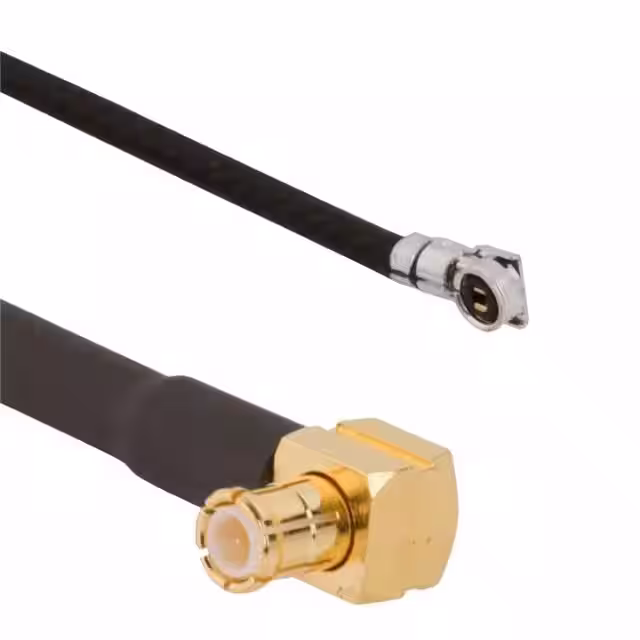

095-900-561-250AMC4 RIGHT ANGLE PLUG TO MCX RIG |
2,570 | 15.99 |
RFQ |
Datasheet |
Bag | - | Active | AMC4 to MCX | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.843 (250.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C |
|
115101-22-12.00CBL ASSY BNC PLUG LMR 240 12 |
2,372 | 16.02 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | LMR 240 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - |
|
095Z820-164-006FAKRA STRAIGHT PLUG TO SMA STRAI |
3,411 | 16.02 |
RFQ |
Datasheet |
Bag | - | Active | SMA to Fakra II | SMA Jack | Female | Free Hanging (In-Line) | - | Fakra II (Gen 2.0) Jack | Female | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - |
|
115101-30-12.00CBL ASSY BNC PLUG LMR 100 12 |
3,465 | 16.03 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | LMR 100 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - |
|
095-900-549-048CBL ASSY MMCX PLUG RG174 4' |
3,507 | 16.03 |
RFQ |
Datasheet |
Bag | MMCX | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0 (1.2m) 4.0' | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C |
|
135103-02-18.00CBL ASSY SMA PLUG RG174 18 |
3,137 | 16.03 |
RFQ |
Datasheet |
Bulk | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00 (457.20mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Brown | Shielded | - |
|
|
095-900-550-024CBL ASSY MMCX PLUG RG174 24 |
3,166 | 16.05 |
RFQ |
Datasheet |
Bag | MMCX | Active | MMCX to MMCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C |
|
095FPZFJZSH-024RF CABLE ASSEMBLY FAKRA STRAIGHT |
2,419 | 16.05 |
RFQ |
Datasheet |
Bag | - | Active | Fakra to Fakra | Fakra III (Gen 3.0) Jack | Female | Free Hanging (In-Line) | - | Fakra II (Gen 2.0) Plug | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | Shielded, Z Code | -40°C ~ 85°C |
|
095-900-563-150AMC4 RIGHT ANGLE PLUG TO MMCX RI |
3,734 | 16.08 |
RFQ |
Datasheet |
Bag | - | Active | AMC4 to MMCX | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.906 (150.00mm) | 0.81mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 9 GHz | Black | - | -40°C ~ 90°C |
|
095-850-277M025CBL ASSY BNC PLUG 9.843 |
2,873 | 16.08 |
RFQ |
Datasheet |
Bag | BNC | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 9.843 (250.00mm) | LMR 195 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | -40°C ~ 85°C |
