| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
135110-07-48.00CBL ASSY SMA JACK-PLUG RG142 4' |
3,516 | 47.54 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0 (1.2m) 4.0' | RG-142 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|
095-850-188M075CBL ASSY HD-BNC PLUG 29.53 |
2,722 | 47.66 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 29.53 (750.00mm) | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - |
|
095-725-108-120CBL ASSY SMP PLUG-PLUG .085 12 |
3,527 | 47.80 |
RFQ |
Datasheet |
Bag | - | Active | SMP to SMP | SMP Plug | Female | Free Hanging (In-Line) | - | SMP Plug | Female | Free Hanging (In-Line) | - | 12.00 (304.80mm) | Hand Formable .085 | - | - | 50 Ohms | 20 GHz | Gray | - | - |
|

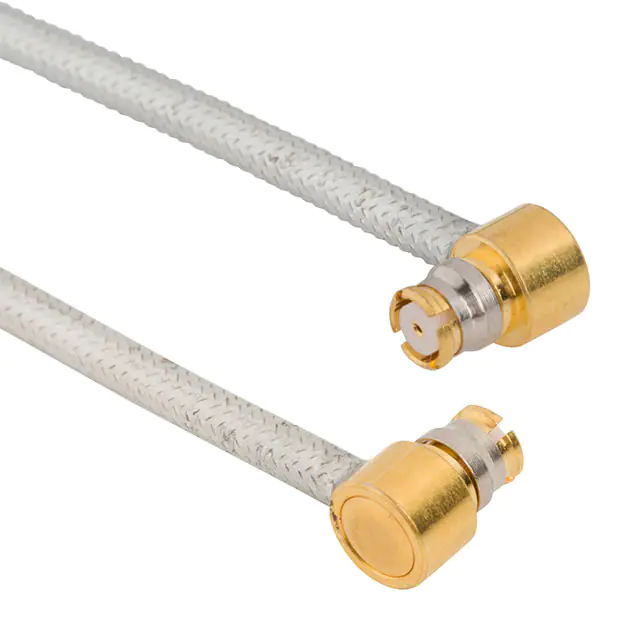

095-725-117-012SMP RA PLUG TO SMP RA PLUG ON 0. |
2,527 | 47.82 |
RFQ |
Datasheet |
Bag | - | Active | SMP to SMP | SMP Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMP Plug, Right Angle | Female | Free Hanging (In-Line) | - | 12.00 (304.80mm) | 0.085 Semi-Rigid Cable | - | - | 50 Ohms | 20 GHz | Gray | - | - |
|
095-850-214-024HD-BNC STRAIGHT PLUG TO HD-BNC S |
3,467 | 47.84 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | Belden 4794R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - |
|
095-850-218-048BNC STRAIGHT PLUG TO HD-BNC STRA |
2,757 | 48.33 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 48.0 (1.2m) 4.0' | Belden 4694R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - |
|
095-850-217M100BNC STRAIGHT PLUG TO HD-BNC STRA |
3,382 | 48.45 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 39.4 (1.0m) 3.3' | Belden 4505R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - |
|
095-850-239M075HD-BNC STRAIGHT PLUG TO BNC STRA |
2,639 | 48.93 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 29.53 (750.00mm) | Belden 1855A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - |
|
095-850-222-012TNC RA PLUG TO TNC BULKHEAD JACK |
3,049 | 49.11 |
RFQ |
Datasheet |
Bag | ARC | Active | TNC to TNC | TNC Jack | Female | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Panel Mount | Bulkhead - Front Side Nut | 12.00 (304.80mm) | LMR 200 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|
095-725-107-070CBL ASSY SMP PLUG TFLEX-405 7 |
3,329 | 49.23 |
RFQ |
Datasheet |
Bag | - | Active | SMP to SMP | SMP Plug | Female | Free Hanging (In-Line) | - | SMP Plug | Female | Free Hanging (In-Line) | - | 7.000 (177.80mm) | TFlex-405 | - | - | 50 Ohms | 20 GHz | Blue | Shielded | - |
|

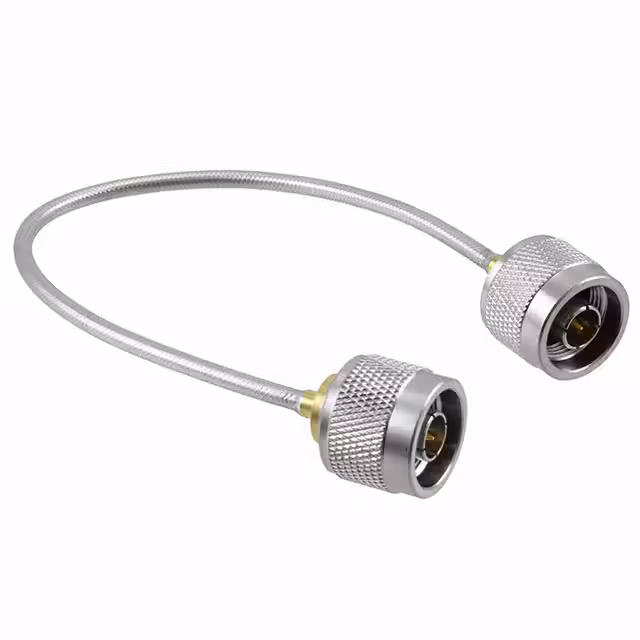

175101-R2-M0.25CBL ASSY N TYPE PLUG .141 9.843 |
3,497 | 49.79 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 9.843 (250.00mm) | Hand Formable .141 | - | - | 50 Ohms | - | Gray | - | - |
|

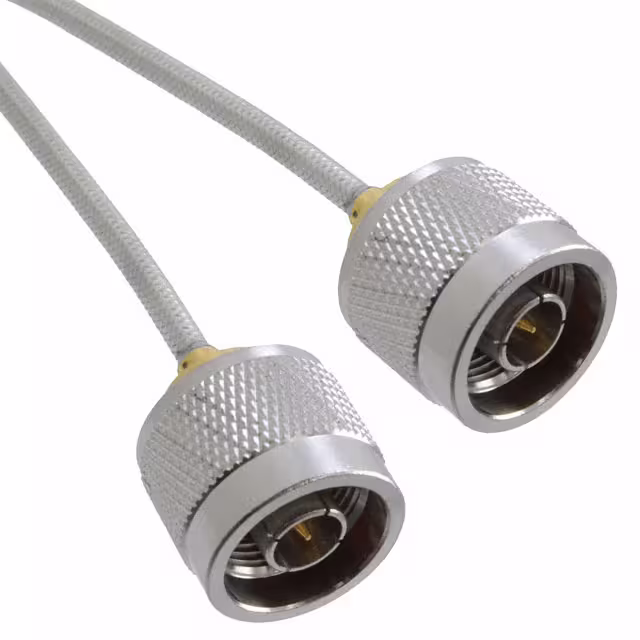

175101-R2-10.00CBL ASSY N TYPE PLUG .141 10 |
3,499 | 50.19 |
RFQ |
Datasheet |
Bulk | - | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 10.000 (254.00mm) | Hand Formable .141 | - | - | 50 Ohms | - | Gray | - | - |
|
095-850-215-048BNC STRAIGHT JACK TO HD-BNC STRA |
3,003 | 50.48 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 48.0 (1.2m) 4.0' | Belden 4505R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - |
|
095-725-121-024SMP RIGHT ANGLE PLUG TO SMP RIGH |
2,517 | 50.60 |
RFQ |
Datasheet |
Bag | - | Active | SMP to SMP | SMP Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMP Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | Hand Formable .047 | - | - | 50 Ohms | 20 GHz | Gray | - | - |
|
|
095-850-239-036HD-BNC STRAIGHT PLUG TO BNC STRA |
2,940 | 50.74 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | Belden 1855A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - |
|
|
095-850-214M075HD-BNC STRAIGHT PLUG TO HD-BNC S |
3,577 | 50.82 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 29.53 (750.00mm) | Belden 4794R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - |
|
095-725-118-036SMP STRAIGHT PLUG TO SMP RIGHT A |
2,336 | 51.54 |
RFQ |
Datasheet |
Bag | - | Active | SMP to SMP | SMP Plug | Male | Free Hanging (In-Line) | - | SMP Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | Hand Formable .086 | - | - | 50 Ohms | 20 GHz | Gray | - | - |
|
|
095-850-239M100HD-BNC STRAIGHT PLUG TO BNC STRA |
2,948 | 51.70 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 39.4 (1.0m) 3.3' | Belden 1855A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - |
|
|
095-850-217-048BNC STRAIGHT PLUG TO HD-BNC STRA |
3,731 | 51.77 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 48.0 (1.2m) 4.0' | Belden 4505R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - |
|
|
095-725-107M025CBL ASSY SMP TFLEX405 9.843 |
3,811 | 51.80 |
RFQ |
Datasheet |
Bag | - | Active | SMP to SMP | SMP Plug | Female | Free Hanging (In-Line) | - | SMP Plug | Female | Free Hanging (In-Line) | - | 9.843 (250.00mm) | TFlex-405 | - | - | 50 Ohms | 20 GHz | Blue | Shielded | - |
