| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
336314-14-0100CBL ASSY RP-SMA-UMC 3.937 |
137 | 9.57 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|

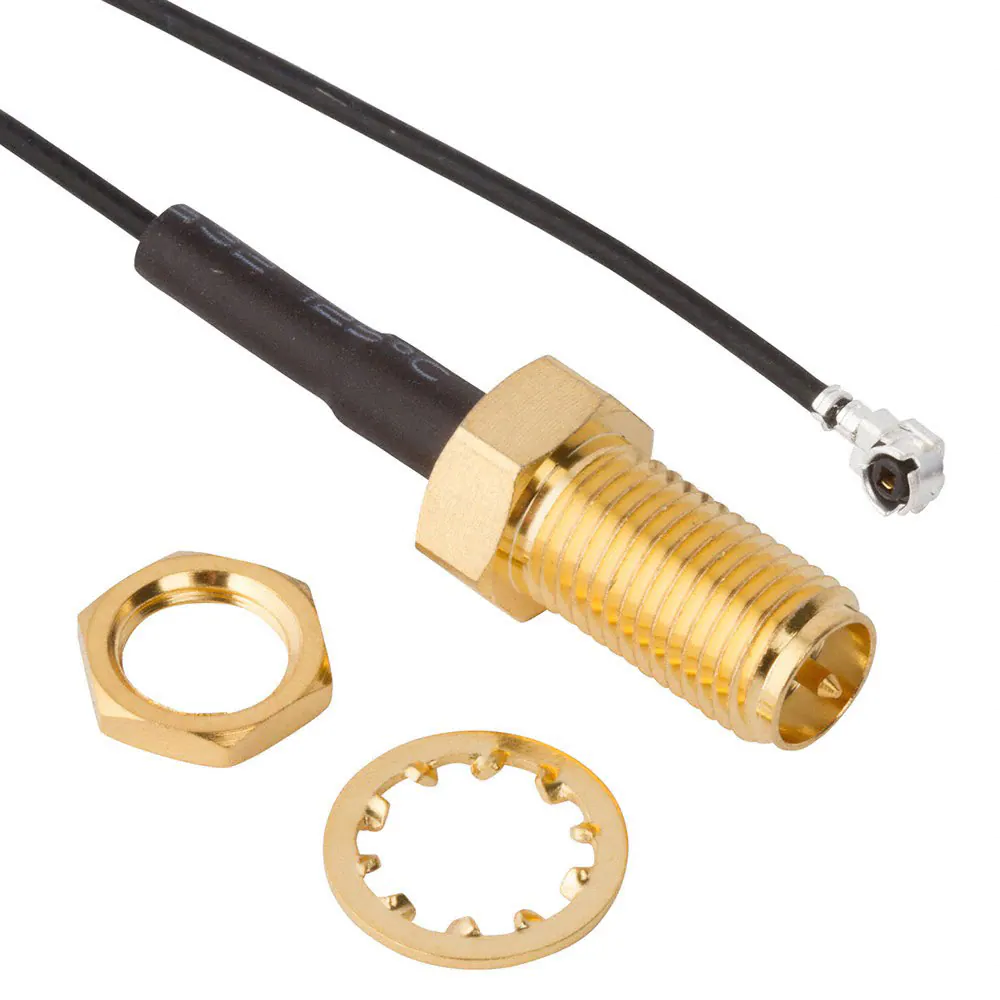

336314-13-0100CBL ASSY RP-SMA-UMC 3.937 |
2,772 | 9.71 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
336313-12-0250CBL ASSY SMA-UMC 9.843 |
3,202 | 10.04 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843 (250.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
|
336314-12-0250CBL ASSY RP-SMA-UMC 9.843 |
110 | 10.04 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843 (250.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
|
336314-14-0200CBL ASSY RP-SMA-UMC 7.874 |
3,554 | 10.04 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
336313-13-0300CBL ASSY SMA-UMC 11.811 |
3,452 | 10.62 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811 (300.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
115101-20-06.00CBL ASSY BNC PLUG-PLUG RG59 6 |
3,748 | 12.80 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-59 | 75 Ohms | - | 75 Ohms | - | Black | - | - |
|
115101-20-M1.00CBL ASSY BNC PLUG RG59 3.3' |
2,743 | 15.93 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 39.4 (1.0m) 3.3' | RG-59 | 75 Ohms | - | 75 Ohms | - | Black | - | - |
|
|
115101-20-36.00CBL ASSY BNC PLUG-PLUG RG59 36 |
3,988 | 15.98 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | RG-59 | 75 Ohms | - | 75 Ohms | - | Black | - | - |
|
115101-06-12.00CBL ASSY BNC PLUG-PLUG 12 |
2,045 | 16.20 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | Belden 8218 | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | Shielded | - |
|
095-902-502-050AMC4 PLUG TO SMA STRAIGHT BULKHE |
2,647 | 16.44 |
RFQ |
Datasheet |
Bag | - | Active | AMC4 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969 (50.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
|
115101-20-48.00CBL ASSY BNC PLUG-PLUG RG59 4' |
2,710 | 16.46 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0 (1.2m) 4.0' | RG-59 | 75 Ohms | - | 75 Ohms | - | Black | - | - |
|
135101-04-M0.25CBL ASSY SMA PLUG RG58 9.843 |
2,198 | 17.54 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 9.843 (250.00mm) | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - |
|
115101-19-M1.50CBL ASSY BNC PLUG RG58 4.9' |
3,245 | 18.18 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 59.1 (1.5m) 4.9' | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - |
|
265104-08-06.00CBL ASSY MMCX PLUG RG178 6 |
2,653 | 18.43 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to MMCX | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-178 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|
245101-04-M0.50CBL ASSY SMA-BNC RG58 19.69 |
3,502 | 18.66 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 19.69 (500.00mm) | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - |
|
245106-02-03.00CBL ASSY SMA-MMCX RG174 3 |
3,079 | 18.68 |
RFQ |
Datasheet |
Bulk | - | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 3.000 (76.20mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - |
|
|
115101-20-60.00CBL ASSY BNC PLUG-PLUG RG59 5' |
3,384 | 18.75 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0 (1.5m) 5.0' | RG-59 | 75 Ohms | - | 75 Ohms | - | Black | - | - |
|
095-902-463-003CONN SMA JACK STR 50 OHM SOLDER |
2,589 | 19.17 |
RFQ |
Datasheet |
Bulk | - | Active | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 3.000 (76.20mm) | UT-085C | - | - | 50 Ohms | 18 GHz | Gray | Shielded | -20°C ~ 75°C |
|
265101-01-12.00CBL ASSY MMCX PLUG RG316 12 |
2,861 | 19.26 |
RFQ |
Datasheet |
Bulk | - | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
