| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-850-162M20LCBL ASSY HD-BNC PLUG-PLUG 65.6' |
2,066 | 97.49 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 787.4 (20.0m) 65.6' | Belden 1505A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - |
|
095-909-174-108N-TYPE STRAIGHT PLUG TO N-TYPE B |
2,601 | 98.34 |
RFQ |
Datasheet |
Bag | ARC | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 108.0 (2.7m) 9.0' | LMR 400 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|
|
175101-R1-M4.00N STRAIGHT PLUG TO N STRAIGHT PL |
3,875 | 99.52 |
RFQ |
Datasheet |
Bulk | - | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 157.5 (4.0m) 13.1' | Hand Formable .085 | - | - | 50 Ohms | - | Gray | - | - |
|
|
095-909-174M300N-TYPE STRAIGHT PLUG TO N-TYPE B |
2,601 | 100.51 |
RFQ |
Datasheet |
Bag | ARC | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 118.1 (3.0m) 9.8' | LMR 400 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|
095-850-157L050HD-BNC STRAIGHT PLUG TO 1.0/2.3 |
3,668 | 100.54 |
RFQ |
Datasheet |
Bulk | - | Active | 1.0/2.3 to HD-BNC | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 600.0 (15.2m) 50.0' | Belden 1694A | - | - | 75 Ohms | 4 GHz | Black | Shielded | - |
|
|
095-909-174-120N-TYPE STRAIGHT PLUG TO N-TYPE B |
2,537 | 100.93 |
RFQ |
Datasheet |
Bag | ARC | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 120.0 (3.0m) 10.0' | LMR 400 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|
095-850-186-180BNC STRAIGHT PLUG TO BNC STRAIGH |
3,815 | 102.35 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 180.0 (4.6m) 15.0' | Belden 4794R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - |
|
|
095-850-159L050HD-BNC STRAIGHT PLUG TO HD-BNC S |
2,145 | 102.46 |
RFQ |
Datasheet |
Bulk | - | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 600.0 (15.2m) 50.0' | Belden 1505A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - |
|
095-850-165L075CBL ASSY BNC PLUG-PLUG 75' |
3,863 | 103.54 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 900.0 (22.9m) 75.0' | Belden 1505A | - | - | 75 Ohms | 4 GHz | Black | Shielded | - |
|
095-909-175M400N-TYPE RA PLUG TO N-TYPE BULKHEA |
3,356 | 103.82 |
RFQ |
Datasheet |
Bag | ARC | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 157.5 (4.0m) 13.1' | LMR 400 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|
|
095-850-162L075CBL ASSY HD-BNC PLUG-PLUG 75' |
3,598 | 103.96 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 900.0 (22.9m) 75.0' | Belden 1505A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - |
|

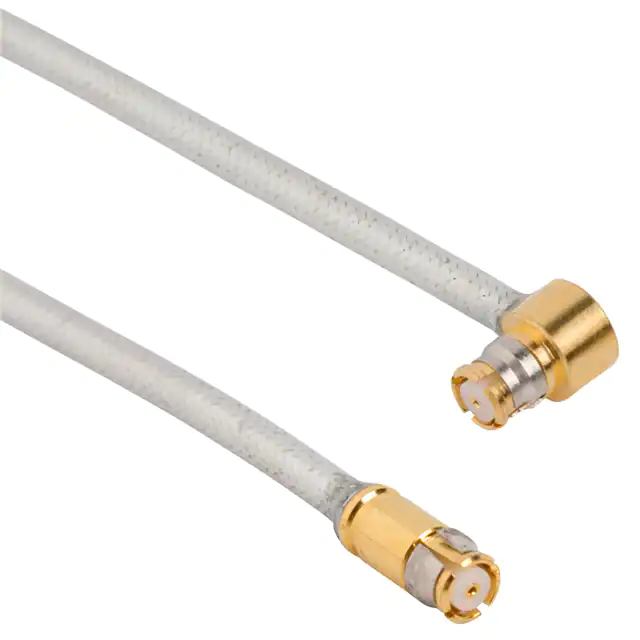

095-725-118M400SMP STRAIGHT PLUG TO SMP RIGHT A |
2,731 | 104.81 |
RFQ |
Datasheet |
Bag | - | Active | SMP to SMP | SMP Plug | Male | Free Hanging (In-Line) | - | SMP Plug, Right Angle | Male | Free Hanging (In-Line) | - | 157.5 (4.0m) 13.1' | Hand Formable .086 | - | - | 50 Ohms | 20 GHz | Gray | - | - |
|
095-850-160L050HD-BNC STRAIGHT PLUG TO HD-BNC S |
2,523 | 106.11 |
RFQ |
Datasheet |
Bulk | - | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 600.0 (15.2m) 50.0' | Belden 1694A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - |
|
|
095-725-114M200SMPM STRAIGHT PLUG TO SMPM RIGHT |
2,422 | 106.94 |
RFQ |
Datasheet |
Bag | - | Active | SMPM to SMPM | SMPM Plug | Female | Free Hanging (In-Line) | - | SMPM Plug, Right Angle | Female | Free Hanging (In-Line) | - | 78.7 (2.0m) 6.6' | 0.085 Semi-Rigid Cable | - | - | 50 Ohms | 18 GHz | Gray | - | - |
|
095-850-192-144CABLE BNC JACK-HD-BNC PLUG 144 |
3,537 | 107.99 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 144.0 (3.7m) 12.0' | Belden 4794R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - |
|
095-850-295M20LTNC STRAIGHT PLUG IP67 TO TNC ST |
2,112 | 108.99 |
RFQ |
Datasheet |
Bag | TNC | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 787.4 (20.0m) 65.6' | RG-58 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | - |
|
|
095-909-174M400N-TYPE STRAIGHT PLUG TO N-TYPE B |
2,545 | 109.02 |
RFQ |
Datasheet |
Bag | ARC | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 157.5 (4.0m) 13.1' | LMR 400 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|
095-850-216-300BNC STRAIGHT JACK TO HD-BNC STRA |
3,092 | 110.28 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 300.0 (7.6m) 25.0' | Belden 4694R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - |
|
095-850-218-300BNC STRAIGHT PLUG TO HD-BNC STRA |
3,912 | 111.64 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 300.0 (7.6m) 25.0' | Belden 4694R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - |
|

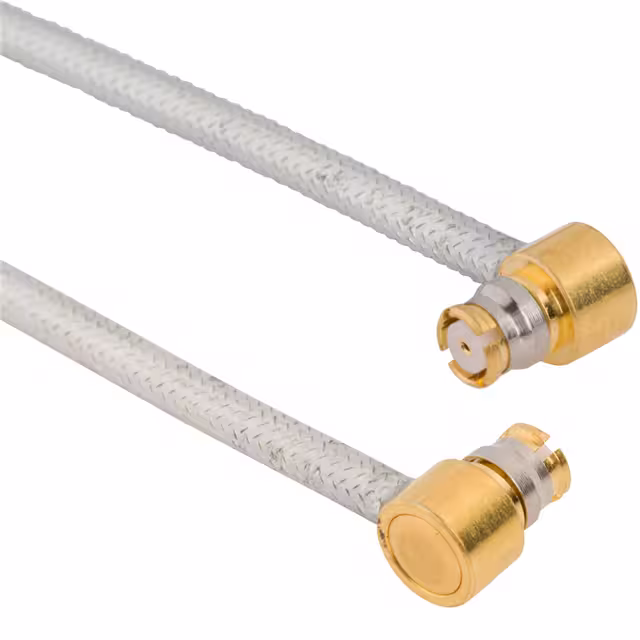

095-725-117M400SMP RA PLUG TO SMP RA PLUG ON 0. |
2,960 | 117.08 |
RFQ |
Datasheet |
Bag | - | Active | SMP to SMP | SMP Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMP Plug, Right Angle | Female | Free Hanging (In-Line) | - | 157.5 (4.0m) 13.1' | 0.085 Semi-Rigid Cable | - | - | 50 Ohms | 20 GHz | Gray | - | - |
