| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Ratings | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WSL0805R0200DEA18RES 0.02 OHM 0.5% 1/4W 0805 |
3,892 | 1.87 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | WSL-HP | Active | 20 mOhms | ±0.5% | 0.25W, 1/4W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.080 L x 0.050 W (2.03mm x 1.27mm) | 0.023 (0.58mm) | |
|

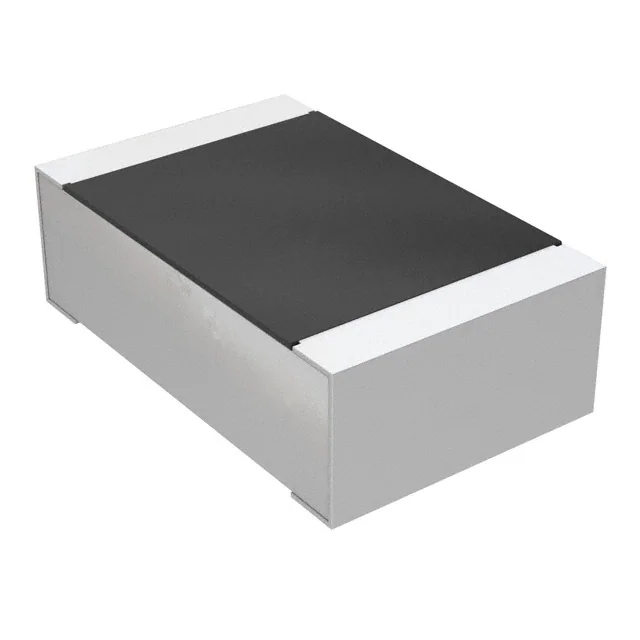

M32159B06MS3RES SMD 0 OHM JUMP 0.15W 0705 |
3,664 | 1.40 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | Military, MIL-PRF-32159, RCZ0705 | Active | 0 Ohms | Jumper | 0.15W | Thick Film | Military | - | -55°C ~ 150°C | - | 0.080 L x 0.050 W (2.03mm x 1.27mm) | 0.033 (0.84mm) | |
|
WSLP3921L7000FEARES 700 UOHM 1% 9W 3921 |
2,409 | 2.13 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | WSLP3921 | Active | 700 µOhms | ±1% | 9W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±175ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.394 L x 0.205 W (10.00mm x 5.20mm) | 0.020 (0.50mm) | |
|
WSL3637R0100DEARES 0.01 OHM 0.5% 3W 3637 |
3,052 | 2.02 |
RFQ |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | WSL | Active | 10 mOhms | ±0.5% | 3W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.360 L x 0.370 W (9.14mm x 9.40mm) | 0.035 (0.89mm) | ||
|
TNPU0603499RBZEN00RES SMD 499 OHM 0.1% 1/10W 0603 |
2,289 | 2.23 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 499 Ohms | ±0.1% | 0.1W, 1/10W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.063 L x 0.033 W (1.60mm x 0.85mm) | 0.022 (0.55mm) | |
|
|
TNPU060347K5BZEN00RES SMD 47.5KOHM 0.1% 1/10W 0603 |
3,707 | 2.23 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 47.5 kOhms | ±0.1% | 0.1W, 1/10W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.063 L x 0.033 W (1.60mm x 0.85mm) | 0.022 (0.55mm) | |
|
TNPU060349R9BZEN00TNPU0603 49R9 0.1% T-16 E52 E3 |
3,670 | 2.23 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 49.9 Ohms | ±0.1% | 0.1W, 1/10W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.063 L x 0.033 W (1.60mm x 0.85mm) | 0.022 (0.55mm) | |
|
|
TNPU060375R0BZEN00TNPU0603 75R0 0.1% T-16 E52 E3 |
3,229 | 2.23 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 75 Ohms | ±0.1% | 0.1W, 1/10W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.063 L x 0.033 W (1.60mm x 0.85mm) | 0.022 (0.55mm) | |
|
TNPU060391R0BZEN00TNPU0603 91R0 0.1% T-16 E52 E3 |
3,135 | 2.23 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 91 Ohms | ±0.1% | 0.1W, 1/10W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.063 L x 0.033 W (1.60mm x 0.85mm) | 0.022 (0.55mm) | |
|
|
TNPU060324R9BZEN00TNPU0603 24R9 0.1% T-16 E52 E3 |
3,986 | 2.23 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 24.9 Ohms | ±0.1% | 0.1W, 1/10W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.063 L x 0.033 W (1.60mm x 0.85mm) | 0.022 (0.55mm) | |
|
|
TNPU060350R0BZEN00TNPU0603 50R0 0.1% T-16 E52 E3 |
2,525 | 2.23 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 50 Ohms | ±0.1% | 0.1W, 1/10W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.063 L x 0.033 W (1.60mm x 0.85mm) | 0.022 (0.55mm) | |
|
WSLP0603R0500DEARES 0.05 OHM 0.5% 2/5W 0603 |
2,669 | 2.16 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | WSLP | Active | 50 mOhms | ±0.5% | 0.4W, 2/5W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.060 L x 0.030 W (1.52mm x 0.76mm) | 0.023 (0.58mm) | |
|
TNPU080530K1BZEN00RES SMD 30.1K OHM 0.1% 1/8W 0805 |
3,770 | 2.28 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 30.1 kOhms | ±0.1% | 0.125W, 1/8W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.022 (0.55mm) | |
|
|
TNPU0805200RBZEN00RES SMD 200 OHM 0.1% 1/8W 0805 |
2,841 | 2.28 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 200 Ohms | ±0.1% | 0.125W, 1/8W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.022 (0.55mm) | |
|
|
TNPU080547K5BZEN00RES SMD 47.5K OHM 0.1% 1/8W 0805 |
2,896 | 2.28 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 47.5 kOhms | ±0.1% | 0.125W, 1/8W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.022 (0.55mm) | |
|
|
TNPU08053K01BZEN00RES SMD 3.01K OHM 0.1% 1/8W 0805 |
3,959 | 2.28 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 3.01 kOhms | ±0.1% | 0.125W, 1/8W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.022 (0.55mm) | |
|
WSR21R000FTARES 1 OHM 1% 2W 4527 |
3,163 | 2.45 |
RFQ |
Datasheet |
4527 J-Lead | Tape & Reel (TR),Cut Tape (CT) | WSR | Active | 1 Ohms | ±1% | 2W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 275°C | AEC-Q200 | 0.455 L x 0.275 W (11.56mm x 6.98mm) | 0.100 (2.54mm) | |
|
|
WSR3R0100DEARES 0.01 OHM 0.5% 3W 4527 |
3,765 | 2.81 |
RFQ |
Datasheet |
4527 J-Lead | Tape & Reel (TR),Cut Tape (CT) | WSR | Active | 10 mOhms | ±0.5% | 3W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 275°C | AEC-Q200 | 0.455 L x 0.275 W (11.56mm x 6.98mm) | 0.100 (2.54mm) | |
|
WSL2010R1500FEKRES 0.15 OHM 1% 1/2W 2010 |
100 | 1.22 |
RFQ |
2010 (5025 Metric) | Bulk | WSL | Active | 150 mOhms | ±1% | 0.5W, 1/2W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.200 L x 0.100 W (5.08mm x 2.54mm) | 0.035 (0.89mm) | ||
|
TNPU12064K70BZEN00RES SMD 4.7K OHM 0.1% 1/4W 1206 |
3,993 | 3.05 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 4.7 kOhms | ±0.1% | 0.25W, 1/4W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.026 (0.65mm) |
