| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Ratings | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
TNPV1210820KBEENRES SMD 820K OHM 0.1% 1/3W 1210 |
436 | 2.32 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPV | Active | 820 kOhms | ±0.1% | 0.333W, 1/3W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, High Voltage, Moisture Resistant | ±25ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.126 L x 0.100 W (3.20mm x 2.55mm) | 0.030 (0.75mm) | |
|
|
TNPV1210220KBEENRES SMD 220K OHM 0.1% 1/3W 1210 |
2,521 | 2.32 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPV | Active | 220 kOhms | ±0.1% | 0.333W, 1/3W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, High Voltage, Moisture Resistant | ±25ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.126 L x 0.100 W (3.20mm x 2.55mm) | 0.030 (0.75mm) | |
|
|
TNPV1210560KBEENRES SMD 560K OHM 0.1% 1/3W 1210 |
2,923 | 2.32 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPV | Active | 560 kOhms | ±0.1% | 0.333W, 1/3W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, High Voltage, Moisture Resistant | ±25ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.126 L x 0.100 W (3.20mm x 2.55mm) | 0.030 (0.75mm) | |
|
CRHA2512AF51M0FKEFCRHA2512 51M 1% EF E3 |
515 | 2.35 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | CRHA | Active | 51 MOhms | ±1% | 1W | Thick Film | Automotive AEC-Q200, High Voltage | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.250 L x 0.126 W (6.35mm x 3.20mm) | 0.029 (0.74mm) | |
|
RCP0603W75R0GEBRES SMD 75 OHM 2% 1.5W 0603 |
824 | 2.40 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | RCP | Active | 75 Ohms | ±2% | 1.5W | Thick Film | Moisture Resistant | ±150ppm/°C | -65°C ~ 155°C | - | 0.063 L x 0.032 W (1.60mm x 0.81mm) | 0.023 (0.58mm) | |
|
TNPU0603130RAYEN00RES 130 OHM 0.05% 1/10W 0603 |
150 | 2.41 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 130 Ohms | ±0.05% | 0.1W, 1/10W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±10ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.063 L x 0.033 W (1.60mm x 0.85mm) | 0.022 (0.55mm) | |
|
|
TNPV1210390KBEENRES SMD 390K OHM 0.1% 1/3W 1210 |
975 | 2.44 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPV | Active | 390 kOhms | ±0.1% | 0.333W, 1/3W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, High Voltage, Moisture Resistant | ±25ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.126 L x 0.100 W (3.20mm x 2.55mm) | 0.030 (0.75mm) | |
|
WSL2512R0140FTBRES 0.014 OHM 1% 1W 2512 |
962 | 2.45 |
RFQ |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | WSL | Active | 14 mOhms | ±1% | 1W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.250 L x 0.125 W (6.35mm x 3.18mm) | 0.035 (0.89mm) | ||
|
|
TNPV12101M80BEENRES SMD 1.8M OHM 0.1% 1/3W 1210 |
924 | 2.56 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPV | Active | 1.8 MOhms | ±0.1% | 0.333W, 1/3W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, High Voltage, Moisture Resistant | ±25ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.126 L x 0.100 W (3.20mm x 2.55mm) | 0.030 (0.75mm) | |
|
WSLP27261L300FEARES 0.0013 OHM 1% 7W 2726 |
340 | 2.66 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | WSLP2726 | Active | 1.3 mOhms | ±1% | 7W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.272 L x 0.260 W (6.90mm x 6.60mm) | 0.113 (2.88mm) | |
|
WSLT27262L000FEARES 0.002 OHM 1% 3W 2726 |
623 | 2.67 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | WSLT | Active | 2 mOhms | ±1% | 3W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 275°C | AEC-Q200 | 0.272 L x 0.260 W (6.90mm x 6.60mm) | 0.126 (3.20mm) | |
|
WSLT40262L000FEARES 0.002 OHM 1% 3W 4026 |
150 | 2.67 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | WSLT | Active | 2 mOhms | ±1% | 3W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 275°C | AEC-Q200 | 0.400 L x 0.260 W (10.16mm x 6.60mm) | 0.126 (3.20mm) | |
|

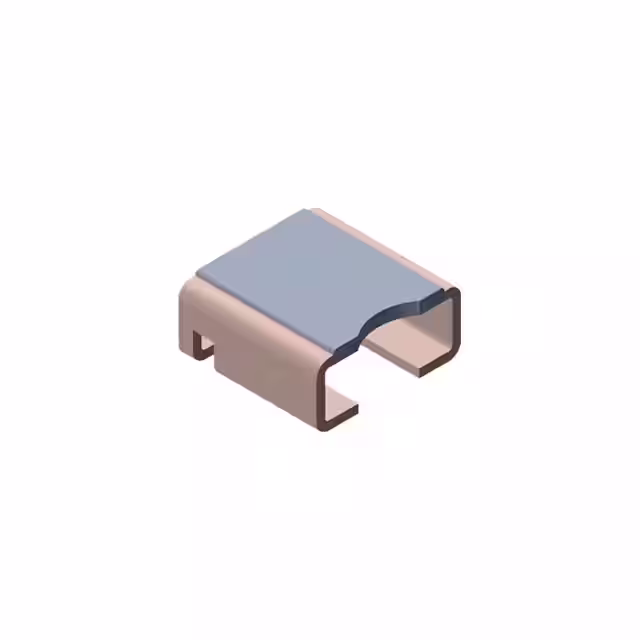

WSLT27265L000FEARES 0.005 OHM 1% 3W 2726 |
123 | 2.67 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | WSLT | Active | 5 mOhms | ±1% | 3W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 275°C | AEC-Q200 | 0.272 L x 0.260 W (6.90mm x 6.60mm) | 0.126 (3.20mm) | |
|
WSR57L500FEARES 0.0075 OHM 1% 5W 4527 |
767 | 2.68 |
RFQ |
Datasheet |
4527 J-Lead | Tape & Reel (TR),Cut Tape (CT) | WSR | Active | 7.5 mOhms | ±1% | 5W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±110ppm/°C | -65°C ~ 275°C | AEC-Q200 | 0.455 L x 0.275 W (11.56mm x 6.98mm) | 0.100 (2.54mm) | |
|
|
TNPV12102M13BEENRES SMD 2.13M OHM 0.1% 1/3W 1210 |
113 | 2.69 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPV | Active | 2.13 MOhms | ±0.1% | 0.333W, 1/3W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, High Voltage, Moisture Resistant | ±25ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.126 L x 0.096 W (3.20mm x 2.45mm) | 0.030 (0.75mm) | |
|
RCP0505W75R0GEBRES SMD 75 OHM 2% 1.4W 0505 |
884 | 2.73 |
RFQ |
Datasheet |
0505 (1412 Metric) | Tape & Reel (TR),Cut Tape (CT) | RCP | Active | 75 Ohms | ±2% | 1.4W | Thick Film | Moisture Resistant | ±150ppm/°C | -65°C ~ 155°C | - | 0.055 L x 0.050 W (1.40mm x 1.27mm) | 0.025 (0.64mm) | |
|
|
RCP0505W100RGEBRES SMD 100 OHM 2% 1.4W 0505 |
825 | 2.73 |
RFQ |
Datasheet |
0505 (1412 Metric) | Tape & Reel (TR),Cut Tape (CT) | RCP | Active | 100 Ohms | ±2% | 1.4W | Thick Film | Moisture Resistant | ±150ppm/°C | -65°C ~ 155°C | - | 0.055 L x 0.050 W (1.40mm x 1.27mm) | 0.025 (0.64mm) | |
|
WSLP59313L000FEARES 0.003 OHM 1% 7W 5931 |
321 | 2.76 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | WSLP5931 | Active | 3 mOhms | ±1% | 7W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.591 L x 0.305 W (15.00mm x 7.75mm) | 0.020 (0.50mm) | |
|
|
WSLP59312L000FEARES 0.002 OHM 1% 8W 5931 |
177 | 2.76 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | WSLP5931 | Active | 2 mOhms | ±1% | 8W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.591 L x 0.305 W (15.00mm x 7.75mm) | 0.020 (0.50mm) | |
|
TNPU080520K0AZEN00RES SMD 20K OHM 0.05% 1/8W 0805 |
193 | 2.80 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 20 kOhms | ±0.05% | 0.125W, 1/8W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.022 (0.55mm) |
