| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Ratings | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
TNPV1206560KBEENRES SMD 560K OHM 0.1% 1/4W 1206 |
922 | 1.29 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPV | Active | 560 kOhms | ±0.1% | 0.25W, 1/4W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, High Voltage, Moisture Resistant | ±25ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.026 (0.65mm) | |
|
|
TNPV1206220KBEENRES SMD 220K OHM 0.1% 1/4W 1206 |
896 | 1.29 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPV | Active | 220 kOhms | ±0.1% | 0.25W, 1/4W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, High Voltage, Moisture Resistant | ±25ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.026 (0.65mm) | |
|
WSL2010R0600FEA18RES 0.06 OHM 1% 1W 2010 |
951 | 1.32 |
RFQ |
Datasheet |
2010 (5025 Metric) | Tape & Reel (TR),Cut Tape (CT) | WSL-HP | Active | 60 mOhms | ±1% | 1W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.200 L x 0.100 W (5.08mm x 2.54mm) | 0.035 (0.89mm) | |
.jpg)
|
TNPV12102M00DEEARES 2 MOHM 0.5% 1/3W 1210 |
232 | 1.33 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPV | Active | 2 MOhms | ±0.5% | 0.333W, 1/3W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, High Voltage, Moisture Resistant | ±25ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.126 L x 0.096 W (3.20mm x 2.45mm) | 0.030 (0.75mm) | |
|
WSLP0603R0330FEBRES 0.033 OHM 1% 0.4W 0603 |
990 | 1.34 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | WSLP | Active | 33 mOhms | ±1% | 0.4W, 2/5W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.060 L x 0.030 W (1.52mm x 0.76mm) | 0.023 (0.58mm) | |
|
WSL2010R0400FEBRES 0.04 OHM 1% 1/2W 2010 |
960 | 1.34 |
RFQ |
2010 (5025 Metric) | Tape & Reel (TR),Cut Tape (CT) | WSL | Active | 40 mOhms | ±1% | 0.5W, 1/2W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.200 L x 0.100 W (5.08mm x 2.54mm) | 0.035 (0.89mm) | ||
|
|
WSL2010R0100FEBRES 0.01 OHM 1% 1/2W 2010 |
905 | 1.34 |
RFQ |
2010 (5025 Metric) | Tape & Reel (TR),Cut Tape (CT) | WSL | Active | 10 mOhms | ±1% | 0.5W, 1/2W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.200 L x 0.100 W (5.08mm x 2.54mm) | 0.035 (0.89mm) | ||
|
|
WSLP0603R0300FEBRES 0.03 OHM 1% 0.4W 0603 |
200 | 1.34 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | WSLP | Active | 30 mOhms | ±1% | 0.4W, 2/5W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.060 L x 0.030 W (1.52mm x 0.76mm) | 0.023 (0.58mm) | |
|
|
WSL2010R0150FEBRES 0.015 OHM 1% 1/2W 2010 |
530 | 1.34 |
RFQ |
2010 (5025 Metric) | Tape & Reel (TR),Cut Tape (CT) | WSL | Active | 15 mOhms | ±1% | 0.5W, 1/2W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.200 L x 0.100 W (5.08mm x 2.54mm) | 0.035 (0.89mm) | ||
|
|
WSLP0603R0680FEBRES 0.068 OHM 1% 0.4W 0603 |
476 | 1.34 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | WSLP | Active | 68 mOhms | ±1% | 0.4W, 2/5W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.060 L x 0.030 W (1.52mm x 0.76mm) | 0.023 (0.58mm) | |
|
|
WSLP0805R0260FEBRES 0.026 OHM 1% 1/2W 0805 |
476 | 1.34 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | WSLP | Active | 26 mOhms | ±1% | 0.5W, 1/2W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.080 L x 0.050 W (2.03mm x 1.27mm) | 0.023 (0.58mm) | |
|
|
WSLP0603R0200FEBRES 0.02 OHM 1% 0.4W 0603 |
425 | 1.34 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | WSLP | Active | 20 mOhms | ±1% | 0.4W, 2/5W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.060 L x 0.030 W (1.52mm x 0.76mm) | 0.023 (0.58mm) | |
|

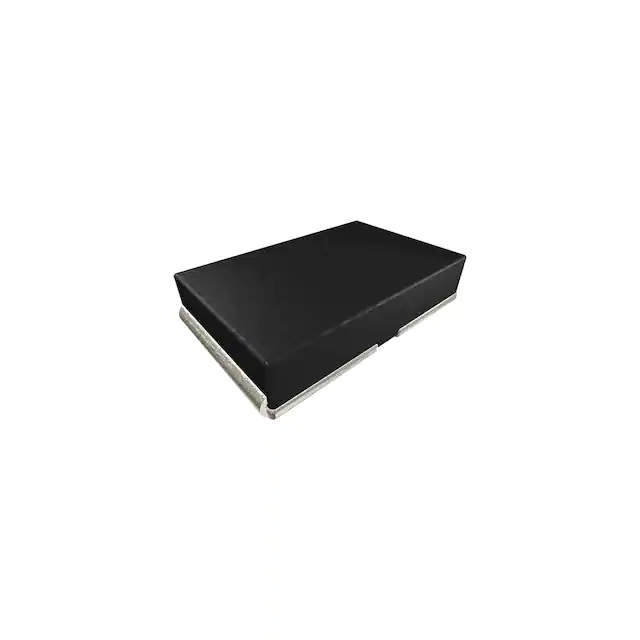

WSHP2818R0100FEBRES 10M OHM 1% 10W 2818 |
956 | 1.87 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | Power Metal Strip® | Active | 10 mOhms | ±1% | 10W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.280 L x 0.181 W (7.10mm x 4.60mm) | 0.069 (1.75mm) | |
|
|
WSHP2818R0500FEBRES 50M OHM 1% 10W 2818 |
2,671 | 1.87 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | Power Metal Strip® | Active | 50 mOhms | ±1% | 10W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.280 L x 0.181 W (7.10mm x 4.60mm) | 0.069 (1.75mm) | |
|
|
WSHP2818R1000FEBRES 100M OHM 1% 10W 2818 |
383 | 1.87 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | Power Metal Strip® | Active | 100 mOhms | ±1% | 10W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.280 L x 0.181 W (7.10mm x 4.60mm) | 0.069 (1.75mm) | |
|
|
WSL2512R0680FEBRES 0.068 OHM 1% 1W 2512 |
1,000 | 1.38 |
RFQ |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | WSL | Active | 68 mOhms | ±1% | 1W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.250 L x 0.125 W (6.35mm x 3.18mm) | 0.035 (0.89mm) | ||
|
|
WSL2010R1000FEB18RES 0.1 OHM 1% 1W 2010 |
999 | 1.46 |
RFQ |
Datasheet |
2010 (5025 Metric) | Tape & Reel (TR),Cut Tape (CT) | WSL-HP | Active | 100 mOhms | ±1% | 1W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.200 L x 0.100 W (5.08mm x 2.54mm) | 0.035 (0.89mm) | |
|
WSC00026R000FEARES 6 OHM 1% 2W 4527 |
807 | 1.54 |
RFQ |
Datasheet |
4527 J-Lead | Tape & Reel (TR),Cut Tape (CT) | WSC | Active | 6 Ohms | ±1% | 2W | Wirewound | Automotive AEC-Q200, Pulse Withstanding | ±50ppm/°C | -65°C ~ 275°C | AEC-Q200 | 0.455 L x 0.275 W (11.56mm x 6.98mm) | 0.177 (4.49mm) | |
|
|
WSC000210R00FEARES 10 OHM 1% 2W 4527 |
688 | 1.54 |
RFQ |
Datasheet |
4527 J-Lead | Tape & Reel (TR),Cut Tape (CT) | WSC | Active | 10 Ohms | ±1% | 2W | Wirewound | Automotive AEC-Q200, Pulse Withstanding | ±20ppm/°C | -65°C ~ 275°C | AEC-Q200 | 0.455 L x 0.275 W (11.56mm x 6.98mm) | 0.177 (4.49mm) | |
|
|
WSC000224R90FEARES 24.9 OHM 1% 2W 4527 |
297 | 1.54 |
RFQ |
Datasheet |
4527 J-Lead | Tape & Reel (TR),Cut Tape (CT) | WSC | Active | 24.9 Ohms | ±1% | 2W | Wirewound | Automotive AEC-Q200, Pulse Withstanding | ±20ppm/°C | -65°C ~ 275°C | AEC-Q200 | 0.455 L x 0.275 W (11.56mm x 6.98mm) | 0.177 (4.49mm) |
