| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Ratings | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.JPG)
|
TNPW1206383KBEEARES 383K OHM 0.1% 1/4W 1206 |
4,239 | 0.76 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPW e3 | Active | 383 kOhms | ±0.1% | 0.25W, 1/4W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±25ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.026 (0.65mm) | |
|
RCL1020220KJNEFRCL1020 200 220K 5% E02 E3 |
3,950 | 0.73 |
RFQ |
Datasheet |
Wide 2010 (5025 Metric), 1020 | Tape & Reel (TR),Cut Tape (CT) | RCL e3 | Active | 220 kOhms | ±5% | 1W | Thick Film | Automotive AEC-Q200 | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.098 L x 0.197 W (2.50mm x 5.00mm) | 0.026 (0.65mm) | |
|
|
RCL102022R0JNEFRCL1020 200 22R 5% E02 E3 |
3,900 | 0.73 |
RFQ |
Datasheet |
Wide 2010 (5025 Metric), 1020 | Tape & Reel (TR),Cut Tape (CT) | RCL e3 | Active | 22 Ohms | ±5% | 1W | Thick Film | Automotive AEC-Q200 | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.098 L x 0.197 W (2.50mm x 5.00mm) | 0.026 (0.65mm) | |
|
|
RCL10202K20JNEFRCL1020 200 2K2 5% E02 E3 |
2,860 | 0.73 |
RFQ |
Datasheet |
Wide 2010 (5025 Metric), 1020 | Tape & Reel (TR),Cut Tape (CT) | RCL e3 | Active | 2.2 kOhms | ±5% | 1W | Thick Film | Automotive AEC-Q200 | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.098 L x 0.197 W (2.50mm x 5.00mm) | 0.026 (0.65mm) | |
|
CRMA1210AF4K70FKEFRES 4.7K OHM 1% 350MW 1210 |
2,887 | 0.76 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | CRMA | Active | 4.7 kOhms | ±1% | 0.35W | Thick Film | Automotive AEC-Q200, High Voltage | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.125 L x 0.100 W (3.18mm x 2.54mm) | 0.029 (0.73mm) | |
|
|
TNPW1206365KBEEARES 365K OHM 0.1% 1/4W 1206 |
6,676 | 0.76 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPW e3 | Active | 365 kOhms | ±0.1% | 0.25W, 1/4W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±25ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.026 (0.65mm) | |
.JPG)
|
TNPW04023K01BETDRES 3.01K OHM 0.1% 1/16W 0402 |
9,626 | 0.77 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPW | Active | 3.01 kOhms | ±0.1% | 0.063W, 1/16W | Thin Film | Military | ±25ppm/°C | -55°C ~ 125°C | - | 0.039 L x 0.020 W (1.00mm x 0.50mm) | 0.016 (0.40mm) | |
|
|
TNPW0402100RBETDRES 100 OHM 0.1% 1/16W 0402 |
6,488 | 0.77 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPW | Active | 100 Ohms | ±0.1% | 0.063W, 1/16W | Thin Film | Military | ±25ppm/°C | -55°C ~ 125°C | - | 0.039 L x 0.020 W (1.00mm x 0.50mm) | 0.016 (0.40mm) | |
|
|
TNPW0402499RBETDRES 499 OHM 0.1% 1/16W 0402 |
7,474 | 0.77 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPW | Active | 499 Ohms | ±0.1% | 0.063W, 1/16W | Thin Film | Military | ±25ppm/°C | -55°C ~ 125°C | - | 0.039 L x 0.020 W (1.00mm x 0.50mm) | 0.016 (0.40mm) | |
|
WSLP0603R1000FEARES 0.1 OHM 1% 2/5W 0603 |
5,000 | 0.83 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | WSLP | Active | 100 mOhms | ±1% | 0.4W, 2/5W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.060 L x 0.030 W (1.52mm x 0.76mm) | 0.021 (0.53mm) | |
|
TNPV08051M00BEEATNPV0805 1M0 0.1 % T-9 ET1 E3 |
3,530 | 0.83 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPV e3 | Active | 1 MOhms | ±0.1% | 0.2W, 1/5W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, High Voltage, Moisture Resistant | ±25ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.022 (0.55mm) | |
|
|
WSLP0603R0800FEARES 0.08 OHM 1% 2/5W 0603 |
2,640 | 0.83 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | WSLP | Active | 80 mOhms | ±1% | 0.4W, 2/5W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.060 L x 0.030 W (1.52mm x 0.76mm) | 0.021 (0.53mm) | |
|

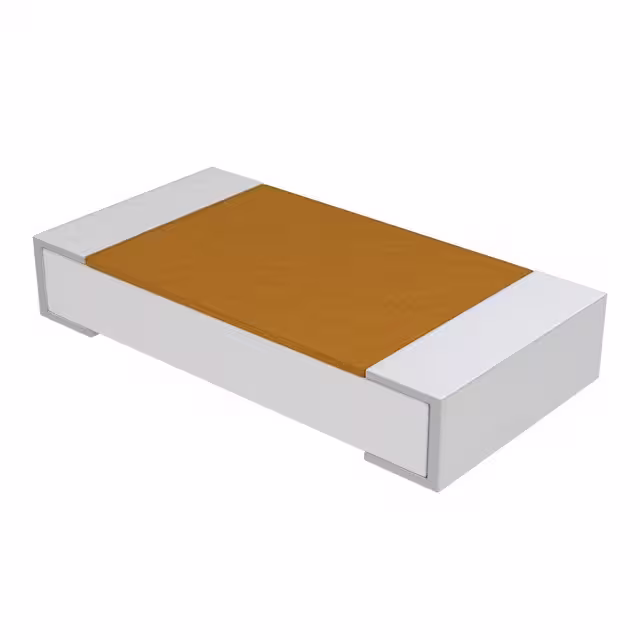

RCWE251250L0FKEARCWE-2512 .05 1% 100 EA E3 |
2,000 | 0.77 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | RCWE | Active | 50 mOhms | ±1% | 2W | Thick Film | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.248 L x 0.124 W (6.30mm x 3.15mm) | 0.028 (0.70mm) | |
.JPG)
|
TNPW080556K0BEEARES 56K OHM 0.1% 1/8W 0805 |
7,647 | 0.78 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPW e3 | Active | 56 kOhms | ±0.1% | 0.125W, 1/8W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±25ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.022 (0.55mm) | |
|
|
TNPW080560R4BEEARES 60.4 OHM 0.1% 1/8W 0805 |
7,664 | 0.78 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPW e3 | Active | 60.4 Ohms | ±0.1% | 0.125W, 1/8W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±25ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.022 (0.55mm) | |
|
|
TNPW080582K5BEEARES 82.5K OHM 0.1% 1/8W 0805 |
6,418 | 0.78 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPW e3 | Active | 82.5 kOhms | ±0.1% | 0.125W, 1/8W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±25ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.022 (0.55mm) | |
|
|
TNPW080564K9BEEARES 64.9K OHM 0.1% 1/8W 0805 |
6,513 | 0.78 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPW e3 | Active | 64.9 kOhms | ±0.1% | 0.125W, 1/8W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±25ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.022 (0.55mm) | |
|
|
TNPW0805191KBEEARES 191K OHM 0.1% 1/8W 0805 |
11,115 | 0.78 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPW e3 | Active | 191 kOhms | ±0.1% | 0.125W, 1/8W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±25ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.022 (0.55mm) | |
|
|
TNPW080586K6BEEARES 86.6K OHM 0.1% 1/8W 0805 |
2,400 | 0.78 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPW e3 | Active | 86.6 kOhms | ±0.1% | 0.125W, 1/8W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±25ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.022 (0.55mm) | |
|
|
TNPW0805680RBEEARES 680 OHM 0.1% 1/8W 0805 |
4,961 | 0.78 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPW e3 | Active | 680 Ohms | ±0.1% | 0.125W, 1/8W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±25ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.022 (0.55mm) |
