| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Ratings | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RL1632R-R820-FRES 0.82 OHM 1% 1/2W 1206 |
7,440 | 0.59 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | RL | Active | 820 mOhms | ±1% | 0.5W, 1/2W | Thin Film | Current Sense | 0/ +100ppm/°C | -55°C ~ 125°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.026 (0.65mm) | |
|
|
RL1632R-3R90-FRES SMD 3.9 OHM 1% 1/2W 1206 |
6,346 | 0.59 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | RL | Active | 3.9 Ohms | ±1% | 0.5W, 1/2W | Thin Film | Current Sense | 0/ +100ppm/°C | -55°C ~ 125°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.026 (0.65mm) | |
|
RG3216P-4700-B-T1RES SMD 470 OHM 0.1% 1/4W 1206 |
4,779 | 0.60 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | RG | Active | 470 Ohms | ±0.1% | 0.25W, 1/4W | Thin Film | Anti-Sulfur, Automotive AEC-Q200 | ±25ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.020 (0.50mm) | |
|
|
RG3216P-4991-B-T1RES SMD 4.99K OHM 0.1% 1/4W 1206 |
3,071 | 0.62 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | RG | Active | 4.99 kOhms | ±0.1% | 0.25W, 1/4W | Thin Film | Anti-Sulfur, Automotive AEC-Q200 | ±25ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.020 (0.50mm) | |
|
|
RG3216P-8871-B-T1RES SMD 8.87K OHM 0.1% 1/4W 1206 |
2,161 | 0.62 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | RG | Active | 8.87 kOhms | ±0.1% | 0.25W, 1/4W | Thin Film | Anti-Sulfur, Automotive AEC-Q200 | ±25ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.020 (0.50mm) | |
|
RL3720T-R018-FRES 0.018 OHM 1/2W 1508 WIDE |
15,624 | 0.70 |
RFQ |
Datasheet |
Wide 1508 (3720 Metric), 0815 | Tape & Reel (TR),Cut Tape (CT) | RL | Active | 18 mOhms | ±1% | 0.5W, 1/2W | Thin Film | Current Sense | 0/ +350ppm/°C | -55°C ~ 125°C | - | 0.079 L x 0.148 W (2.00mm x 3.75mm) | 0.028 (0.70mm) | |
|
|
RL3720WT-R012-GRES 0.012 OHM 1W 1508 WIDE |
80,322 | 0.71 |
RFQ |
Datasheet |
Wide 1508 (3720 Metric), 0815 | Tape & Reel (TR),Cut Tape (CT) | RL | Active | 12 mOhms | ±2% | 1W | Thin Film | Current Sense | 0/ +350ppm/°C | -55°C ~ 125°C | - | 0.079 L x 0.148 W (2.00mm x 3.75mm) | 0.028 (0.70mm) | |
|
|
RL3720WT-R033-GRES 0.033 OHM 1W 1508 WIDE |
15,900 | 0.71 |
RFQ |
Datasheet |
Wide 1508 (3720 Metric), 0815 | Tape & Reel (TR),Cut Tape (CT) | RL | Active | 33 mOhms | ±2% | 1W | Thin Film | Current Sense | 0/ +350ppm/°C | -55°C ~ 125°C | - | 0.079 L x 0.148 W (2.00mm x 3.75mm) | 0.028 (0.70mm) | |
|
|
RL3720WT-R028-GRES 0.028 OHM 1W 1508 WIDE |
8,876 | 0.71 |
RFQ |
Datasheet |
Wide 1508 (3720 Metric), 0815 | Tape & Reel (TR),Cut Tape (CT) | RL | Active | 28 mOhms | ±2% | 1W | Thin Film | Current Sense | 0/ +350ppm/°C | -55°C ~ 125°C | - | 0.079 L x 0.148 W (2.00mm x 3.75mm) | 0.028 (0.70mm) | |
|
|
RG3216P-2704-B-T1RES 2.7M OHM 0.1% 1/4W 1206 |
3,772 | 0.69 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | RG | Active | 2.7 MOhms | ±0.1% | 0.25W, 1/4W | Thin Film | Anti-Sulfur, Automotive AEC-Q200 | ±25ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.020 (0.50mm) | |
|
|
RL1220S-680-FRES SMD 68 OHM 1% 1/3W 0805 |
10,352 | 0.34 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | RL | Active | 68 Ohms | ±1% | 0.333W, 1/3W | Thin Film | Current Sense | 0/ +200ppm/°C | -55°C ~ 125°C | - | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.020 (0.50mm) | |
|
|
RL1220S-910-FRES SMD 91 OHM 1% 1/3W 0805 |
16,165 | 0.36 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | RL | Active | 91 Ohms | ±1% | 0.333W, 1/3W | Thin Film | Current Sense | 0/ +200ppm/°C | -55°C ~ 125°C | - | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.020 (0.50mm) | |
|
|
RL3720WS-1R0-FRES SMD 1 OHM 1W 1508 WIDE |
3,913 | 0.56 |
RFQ |
Datasheet |
Wide 1508 (3720 Metric), 0815 | Tape & Reel (TR),Cut Tape (CT) | RL | Active | 1 Ohms | ±1% | 1W | Thin Film | Current Sense | 0/ +200ppm/°C | -55°C ~ 125°C | - | 0.079 L x 0.148 W (2.00mm x 3.75mm) | 0.028 (0.70mm) | |
|

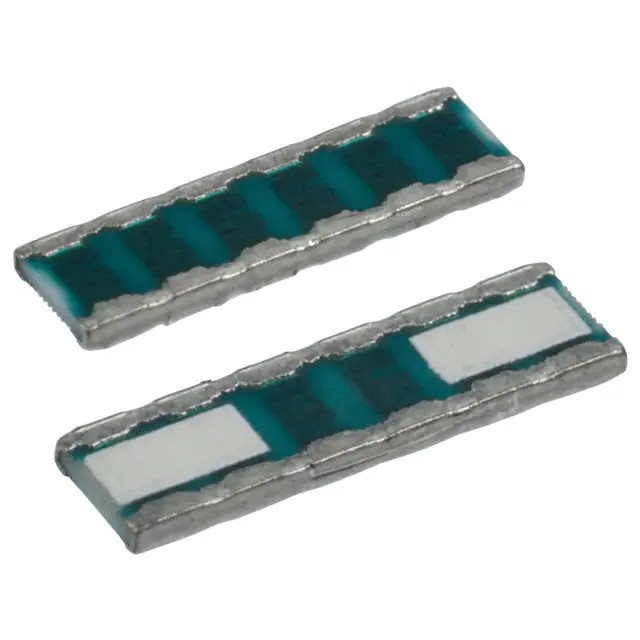

RL7520WS-R22-FRES 0.22 OHM 2W 3008 WIDE |
8,277 | 0.61 |
RFQ |
Datasheet |
Wide 3008 (2075 Metric), 0830 | Tape & Reel (TR),Cut Tape (CT) | RL | Active | 220 mOhms | ±1% | 2W | Thin Film | Current Sense | 0/ +200ppm/°C | -55°C ~ 125°C | - | 0.079 L x 0.295 W (2.00mm x 7.50mm) | 0.028 (0.70mm) | |
|
PRL1632-R062-F-T1RES 0.062 OHM 1W 1206 WIDE |
1,346 | 0.60 |
RFQ |
Datasheet |
Wide 1206 (3216 Metric), 0612 | Tape & Reel (TR),Cut Tape (CT) | PRL | Active | 62 mOhms | ±1% | 1W | Thin Film | Current Sense | ±50ppm/°C | -55°C ~ 125°C | - | 0.063 L x 0.126 W (1.60mm x 3.20mm) | 0.024 (0.60mm) | |
|
|
RL0510S-390-FRES SMD 39 OHM 1% 1/6W 0402 |
43,915 | 0.37 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | RL | Active | 39 Ohms | ±1% | 0.167W, 1/6W | Thin Film | Current Sense | 0/ +200ppm/°C | -55°C ~ 125°C | - | 0.039 L x 0.020 W (1.00mm x 0.50mm) | 0.018 (0.45mm) | |
|
|
RL0816S-8R2-FRES SMD 8.2 OHM 1% 1/5W 0603 |
49,990 | 0.38 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | RL | Active | 8.2 Ohms | ±1% | 0.2W, 1/5W | Thin Film | Current Sense | 0/ +200ppm/°C | -55°C ~ 125°C | - | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0.022 (0.55mm) | |
|
|
RL0816S-200-FRES SMD 20 OHM 1% 1/5W 0603 |
46,814 | 0.40 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | RL | Active | 20 Ohms | ±1% | 0.2W, 1/5W | Thin Film | Current Sense | 0/ +200ppm/°C | -55°C ~ 125°C | - | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0.022 (0.55mm) | |
|
RG2012N-243-W-T1RES SMD 24K OHM 0.05% 1/8W 0805 |
3,584 | 0.92 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | RG | Active | 24 kOhms | ±0.05% | 0.125W, 1/8W | Thin Film | Anti-Sulfur, Automotive AEC-Q200 | ±10ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.020 (0.50mm) | |
|
KRL6432E-M-R068-F-T1RES 0.068 OHM 3W 2512 WIDE |
2,908 | 0.89 |
RFQ |
Datasheet |
Wide 2512 (6432 Metric), 1225 | Tape & Reel (TR),Cut Tape (CT) | KRL | Active | 68 mOhms | ±1% | 3W | Metal Foil | Automotive AEC-Q200, Current Sense | ±50ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.122 L x 0.248 W (3.10mm x 6.30mm) | 0.028 (0.70mm) |
