| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Ratings | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RG3216P-2204-B-T1RES 2.2M OHM 0.1% 1/4W 1206 |
3,403 | 0.62 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | RG | Active | 2.2 MOhms | ±0.1% | 0.25W, 1/4W | Thin Film | Anti-Sulfur, Automotive AEC-Q200 | ±25ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.020 (0.50mm) | |
|
|
RG3216P-1204-B-T1RES 1.2M OHM 0.1% 1/4W 1206 |
16,457 | 0.62 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | RG | Active | 1.2 MOhms | ±0.1% | 0.25W, 1/4W | Thin Film | Anti-Sulfur, Automotive AEC-Q200 | ±25ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.020 (0.50mm) | |
|
KRL2012E-M-R010-F-T5RES 0.01 OHM 1W 0805 WIDE |
187,891 | 0.58 |
RFQ |
Datasheet |
Wide 0805 (2012 Metric), 0508 | Tape & Reel (TR),Cut Tape (CT) | KRL | Active | 10 mOhms | ±1% | 1W | Metal Foil | Automotive AEC-Q200, Current Sense | ±50ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.049 L x 0.079 W (1.25mm x 2.00mm) | 0.028 (0.70mm) | |
|
|
KRL2012E-M-R003-F-T5RES 0.003 OHM 1W 0805 WIDE |
107,071 | 0.58 |
RFQ |
Datasheet |
Wide 0805 (2012 Metric), 0508 | Tape & Reel (TR),Cut Tape (CT) | KRL | Active | 3 mOhms | ±1% | 1W | Metal Foil | Automotive AEC-Q200, Current Sense | ±50ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.049 L x 0.079 W (1.25mm x 2.00mm) | 0.028 (0.70mm) | |
|
|
KRL2012E-M-R470-F-T5RES 0.47 OHM 1W 0805 WIDE |
103,215 | 0.58 |
RFQ |
Datasheet |
Wide 0805 (2012 Metric), 0508 | Tape & Reel (TR),Cut Tape (CT) | KRL | Active | 470 mOhms | ±1% | 1W | Metal Foil | Automotive AEC-Q200, Current Sense | ±50ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.049 L x 0.079 W (1.25mm x 2.00mm) | 0.028 (0.70mm) | |
|
|
KRL2012E-M-R100-F-T5RES 0.1 OHM 1W 0805 WIDE |
96,184 | 0.58 |
RFQ |
Datasheet |
Wide 0805 (2012 Metric), 0508 | Tape & Reel (TR),Cut Tape (CT) | KRL | Active | 100 mOhms | ±1% | 1W | Metal Foil | Automotive AEC-Q200, Current Sense | ±50ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.049 L x 0.079 W (1.25mm x 2.00mm) | 0.028 (0.70mm) | |
|
|
KRL2012E-M-R033-F-T5RES 0.033 OHM 1W 0805 WIDE |
78,479 | 0.58 |
RFQ |
Datasheet |
Wide 0805 (2012 Metric), 0508 | Tape & Reel (TR),Cut Tape (CT) | KRL | Active | 33 mOhms | ±1% | 1W | Metal Foil | Automotive AEC-Q200, Current Sense | ±50ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.049 L x 0.079 W (1.25mm x 2.00mm) | 0.028 (0.70mm) | |
|
|
KRL2012E-M-R022-F-T5RES 0.022 OHM 1W 0805 WIDE |
76,214 | 0.58 |
RFQ |
Datasheet |
Wide 0805 (2012 Metric), 0508 | Tape & Reel (TR),Cut Tape (CT) | KRL | Active | 22 mOhms | ±1% | 1W | Metal Foil | Automotive AEC-Q200, Current Sense | ±50ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.049 L x 0.079 W (1.25mm x 2.00mm) | 0.028 (0.70mm) | |
|
|
KRL2012E-M-R001-J-T5RES 0.001 OHM 1W 0805 WIDE |
28,960 | 0.58 |
RFQ |
Datasheet |
Wide 0805 (2012 Metric), 0508 | Tape & Reel (TR),Cut Tape (CT) | KRL | Active | 1 mOhms | ±5% | 1W | Metal Foil | Automotive AEC-Q200, Current Sense | ±150ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.049 L x 0.079 W (1.25mm x 2.00mm) | 0.028 (0.70mm) | |
|
|
KRL2012E-M-R015-F-T5RES 0.015 OHM 1W 0805 WIDE |
24,743 | 0.58 |
RFQ |
Datasheet |
Wide 0805 (2012 Metric), 0508 | Tape & Reel (TR),Cut Tape (CT) | KRL | Active | 15 mOhms | ±1% | 1W | Metal Foil | Automotive AEC-Q200, Current Sense | ±50ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.049 L x 0.079 W (1.25mm x 2.00mm) | 0.028 (0.70mm) | |
|
|
KRL2012E-M-R330-F-T5RES 0.33 OHM 1W 0805 WIDE |
16,052 | 0.58 |
RFQ |
Datasheet |
Wide 0805 (2012 Metric), 0508 | Tape & Reel (TR),Cut Tape (CT) | KRL | Active | 330 mOhms | ±1% | 1W | Metal Foil | Automotive AEC-Q200, Current Sense | ±50ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.049 L x 0.079 W (1.25mm x 2.00mm) | 0.028 (0.70mm) | |
|
|
KRL2012E-M-R220-F-T5RES 0.22 OHM 1W 0805 WIDE |
98,725 | 0.58 |
RFQ |
Datasheet |
Wide 0805 (2012 Metric), 0508 | Tape & Reel (TR),Cut Tape (CT) | KRL | Active | 220 mOhms | ±1% | 1W | Metal Foil | Automotive AEC-Q200, Current Sense | ±50ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.049 L x 0.079 W (1.25mm x 2.00mm) | 0.028 (0.70mm) | |
|

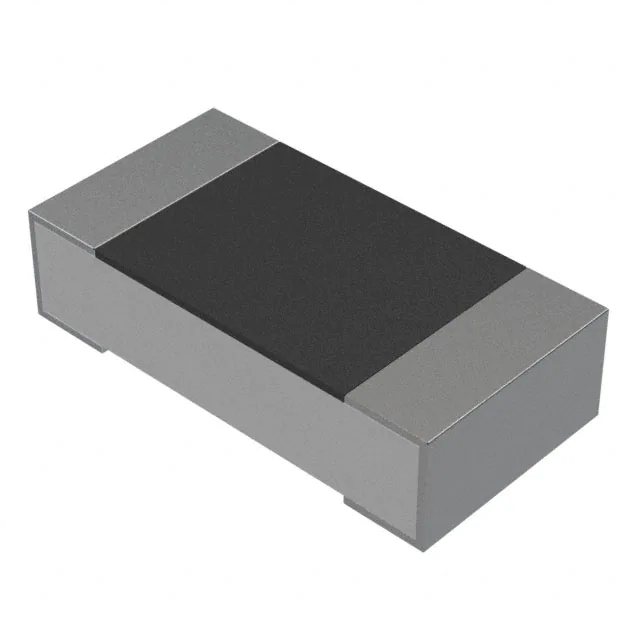

RGT1608P-104-B-T5RES 100 KOHM 0.1% 1/16W 0603 |
24,875 | 0.51 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | RGT | Active | 100 kOhms | ±0.1% | 0.063W, 1/16W | Thin Film | Anti-Sulfur, Automotive AEC-Q200 | ±25ppm/°C | -55°C ~ 175°C | AEC-Q200 | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0.022 (0.55mm) | |
|
RGT2012P-275-B-T5RES 2.7 MOHM 0.1% 1/10W 0805 |
10,539 | 0.51 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | RGT | Active | 2.7 MOhms | ±0.1% | 0.1W, 1/10W | Thin Film | Anti-Sulfur, Automotive AEC-Q200 | ±25ppm/°C | -55°C ~ 175°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.022 (0.55mm) | |
|
|
RGT1608P-152-B-T5RES 1.5 KOHM 0.1% 1/16W 0603 |
5,677 | 0.51 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | RGT | Active | 1.5 kOhms | ±0.1% | 0.063W, 1/16W | Thin Film | Anti-Sulfur, Automotive AEC-Q200 | ±25ppm/°C | -55°C ~ 175°C | AEC-Q200 | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0.022 (0.55mm) | |
|
|
RGT1608P-103-B-T5RES 10 KOHM 0.1% 1/16W 0603 |
4,727 | 0.51 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | RGT | Active | 10 kOhms | ±0.1% | 0.063W, 1/16W | Thin Film | Anti-Sulfur, Automotive AEC-Q200 | ±25ppm/°C | -55°C ~ 175°C | AEC-Q200 | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0.022 (0.55mm) | |
|
|
RGT1608P-133-B-T5RES 13 KOHM 0.1% 1/16W 0603 |
6,765 | 0.51 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | RGT | Active | 13 kOhms | ±0.1% | 0.063W, 1/16W | Thin Film | Anti-Sulfur, Automotive AEC-Q200 | ±25ppm/°C | -55°C ~ 175°C | AEC-Q200 | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0.022 (0.55mm) | |
|
|
RGT2012P-103-B-T5RES 10 KOHM 0.1% 1/10W 0805 |
5,653 | 0.51 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | RGT | Active | 10 kOhms | ±0.1% | 0.1W, 1/10W | Thin Film | Anti-Sulfur, Automotive AEC-Q200 | ±25ppm/°C | -55°C ~ 175°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.022 (0.55mm) | |
|

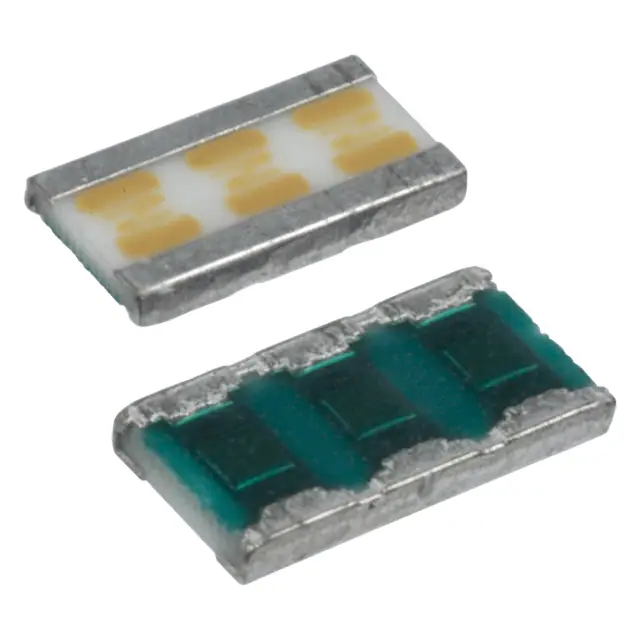

RL3720WT-R025-GRES 0.025 OHM 1W 1508 WIDE |
17,564 | 0.71 |
RFQ |
Datasheet |
Wide 1508 (3720 Metric), 0815 | Tape & Reel (TR),Cut Tape (CT) | RL | Active | 25 mOhms | ±2% | 1W | Thin Film | Current Sense | 0/ +350ppm/°C | -55°C ~ 125°C | - | 0.079 L x 0.148 W (2.00mm x 3.75mm) | 0.028 (0.70mm) | |
|
|
RL3720WT-R010-GRES 0.01 OHM 1W 1508 WIDE |
7,440 | 0.71 |
RFQ |
Datasheet |
Wide 1508 (3720 Metric), 0815 | Tape & Reel (TR),Cut Tape (CT) | RL | Active | 10 mOhms | ±2% | 1W | Thin Film | Current Sense | 0/ +350ppm/°C | -55°C ~ 125°C | - | 0.079 L x 0.148 W (2.00mm x 3.75mm) | 0.028 (0.70mm) |
