| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Ratings | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

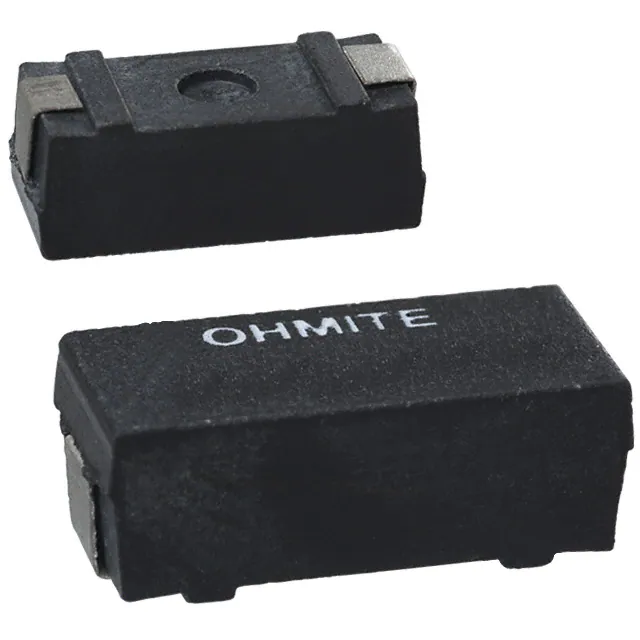

RW3R0DB100RJERES SMD 100 OHM 5% 3W J LEAD |
3,982 | 1.32 |
RFQ |
Datasheet |
6327 J-Lead | Bulk,Bulk | RW | Active | 100 Ohms | ±5% | 3W | Wirewound | Current Sense | ±20ppm/°C | -55°C ~ 150°C | - | 0.625 L x 0.273 W (15.88mm x 6.93mm) | 0.231 (5.87mm) | |
|
RW3R0DB5R00JERES SMD 5 OHM 5% 3W J LEAD |
2,161 | 3.04 |
RFQ |
Datasheet |
6327 J-Lead | Bulk | RW | Active | 5 Ohms | ±5% | 3W | Wirewound | Current Sense | ±50ppm/°C | -55°C ~ 150°C | - | 0.625 L x 0.273 W (15.88mm x 6.93mm) | 0.231 (5.87mm) | |
|
RW2S0DA100RJTRES SMD 100 OHM 5% 2W J LEAD |
3,779 | 3.08 |
RFQ |
Datasheet |
4524 J-Lead | Tape & Reel (TR) | RW | Active | 100 Ohms | ±5% | 2W | Wirewound | Current Sense | ±20ppm/°C | -55°C ~ 150°C | - | 0.455 L x 0.240 W (11.56mm x 6.10mm) | 0.231 (5.87mm) | |
|
RW1S5CAR080JTRES 0.08 OHM 5% 1.5W J LEAD |
2,232 | 3.09 |
RFQ |
Datasheet |
3916 J-Lead | Tape & Reel (TR) | RW | Active | 80 mOhms | ±5% | 1.5W | Wirewound | Current Sense | - | -55°C ~ 150°C | - | 0.394 L x 0.159 W (10.01mm x 4.04mm) | 0.164 (4.17mm) | |
|
|
RW1S5CAR100JTRES 0.1 OHM 5% 1.5W J LEAD |
3,443 | 3.09 |
RFQ |
Datasheet |
3916 J-Lead | Tape & Reel (TR) | RW | Active | 100 mOhms | ±5% | 1.5W | Wirewound | Current Sense | ±90ppm/°C | -55°C ~ 150°C | - | 0.394 L x 0.159 W (10.01mm x 4.04mm) | 0.164 (4.17mm) | |
|
RW2S0DAR100FERES 0.1 OHM 1% 2W J LEAD |
2,615 | 3.10 |
RFQ |
Datasheet |
4524 J-Lead | Bulk | RW | Active | 100 mOhms | ±1% | 2W | Wirewound | Current Sense | ±90ppm/°C | -55°C ~ 150°C | - | 0.455 L x 0.240 W (11.56mm x 6.10mm) | 0.231 (5.87mm) | |
|
RW2S0CBR200JTRES 0.2 OHM 5% 2W J LEAD |
3,655 | 3.16 |
RFQ |
Datasheet |
4122 J-Lead | Tape & Reel (TR) | RW | Active | 200 mOhms | ±5% | 2W | Wirewound | Current Sense | ±90ppm/°C | -55°C ~ 150°C | - | 0.407 L x 0.226 W (10.34mm x 5.74mm) | 0.227 (5.77mm) | |
|
|
RW2S0CBR300JTRES 0.3 OHM 5% 2W J LEAD |
3,996 | 3.16 |
RFQ |
Datasheet |
4122 J-Lead | Tape & Reel (TR) | RW | Active | 300 mOhms | ±5% | 2W | Wirewound | Current Sense | ±90ppm/°C | -55°C ~ 150°C | - | 0.407 L x 0.226 W (10.34mm x 5.74mm) | 0.227 (5.77mm) | |
|
|
RW2S0CBR500JTRES 0.5 OHM 5% 2W J LEAD |
3,016 | 3.16 |
RFQ |
Datasheet |
4122 J-Lead | Tape & Reel (TR) | RW | Active | 500 mOhms | ±5% | 2W | Wirewound | Current Sense | ±90ppm/°C | -55°C ~ 150°C | - | 0.407 L x 0.226 W (10.34mm x 5.74mm) | 0.227 (5.77mm) | |
|
|
RW3R0DBR025JTRES 0.025 OHM 5% 3W J LEAD |
3,622 | 3.18 |
RFQ |
Datasheet |
6327 J-Lead | Tape & Reel (TR) | RW | Active | 25 mOhms | ±5% | 3W | Wirewound | Current Sense | - | -55°C ~ 150°C | - | 0.625 L x 0.273 W (15.88mm x 6.93mm) | 0.231 (5.87mm) | |
|
|
RW3R0DBR500JTRES 0.5 OHM 5% 3W J LEAD |
2,482 | 3.18 |
RFQ |
Datasheet |
6327 J-Lead | Tape & Reel (TR) | RW | Active | 500 mOhms | ±5% | 3W | Wirewound | Current Sense | ±90ppm/°C | -55°C ~ 150°C | - | 0.625 L x 0.273 W (15.88mm x 6.93mm) | 0.231 (5.87mm) | |
|
|
RW3R0DB150RJTRES SMD 150 OHM 5% 3W J LEAD |
3,545 | 3.18 |
RFQ |
Datasheet |
6327 J-Lead | Tape & Reel (TR) | RW | Active | 150 Ohms | ±5% | 3W | Wirewound | Current Sense | ±20ppm/°C | -55°C ~ 150°C | - | 0.625 L x 0.273 W (15.88mm x 6.93mm) | 0.231 (5.87mm) | |
 Series.jpg)
|
HVC0805Z2506JETRES SMD 250M OHM 5% 1/8W 0805 |
2,741 | 3.34 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 250 MOhms | ±5% | 0.125W, 1/8W | Thick Film | High Voltage | ±250ppm/°C | -55°C ~ 155°C | - | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.022 (0.55mm) | |
|
HVC4020V5006JETRES SMD 500M OHM 5% 1.5W 4020 |
3,222 | 6.32 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 500 MOhms | ±5% | 1.5W | Thick Film | High Voltage | ±50ppm/°C | -55°C ~ 155°C | - | 0.402 L x 0.201 W (10.20mm x 5.10mm) | 0.031 (0.80mm) | |
|
RW1S0BAR036JRES 0.036 OHM 5% 1W J LEAD |
440 | 3.79 |
RFQ |
Datasheet |
2512 J-Lead | Bulk,Bulk | RW | Active | 36 mOhms | ±5% | 1W | Wirewound | Current Sense | - | -55°C ~ 150°C | - | 0.246 L x 0.136 W (6.25mm x 3.45mm) | 0.141 (3.58mm) | |
|
RC0S2CA15R0JERES SMD 15 OHM 5% 1/4W J LEAD |
2,535 | 1.40 |
RFQ |
Datasheet |
3916 J-Lead | Bulk,Bulk | RC | Active | 15 Ohms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | ±400ppm/°C | -55°C ~ 150°C | - | 0.394 L x 0.159 W (10.01mm x 4.04mm) | 0.164 (4.17mm) | |
|
RC0S2CA20R0JERES SMD 20 OHM 5% 1/4W J LEAD |
2,986 | 4.16 |
RFQ |
Datasheet |
3916 J-Lead | Bulk | RC | Active | 20 Ohms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | ±400ppm/°C | -55°C ~ 150°C | - | 0.394 L x 0.159 W (10.01mm x 4.04mm) | 0.164 (4.17mm) | |
|
|
RC0S2CA30R0JERES SMD 30 OHM 5% 1/4W J LEAD |
3,883 | 1.40 |
RFQ |
Datasheet |
3916 J-Lead | Bulk,Bulk | RC | Active | 30 Ohms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | ±400ppm/°C | -55°C ~ 150°C | - | 0.394 L x 0.159 W (10.01mm x 4.04mm) | 0.164 (4.17mm) | |
|
|
RC0S2CA6R80JERES SMD 6.8 OHM 5% 1/4W J LEAD |
3,322 | 4.16 |
RFQ |
Datasheet |
3916 J-Lead | Bulk | RC | Active | 6.8 Ohms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | ±400ppm/°C | -55°C ~ 150°C | - | 0.394 L x 0.159 W (10.01mm x 4.04mm) | 0.164 (4.17mm) | |
|
|
RC0S2CA1K00JERES SMD 1K OHM 5% 1/4W J LEAD |
3,652 | 4.16 |
RFQ |
Datasheet |
3916 J-Lead | Bulk | RC | Active | 1 kOhms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | ±400ppm/°C | -55°C ~ 150°C | - | 0.394 L x 0.159 W (10.01mm x 4.04mm) | 0.164 (4.17mm) |
