| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Ratings | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DZ0805L6R0EIGNITOR RESISTOR 6 OHM |
1,000 | 1.41 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | DZ | Active | 6 Ohms | ±7% | - | Ceramic | - | ±150ppm/°C | -40°C ~ 85°C | - | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.024 (0.60mm) | |
|
|
DZ0805L4R0EIGNITOR RESISTOR 4 OHM |
973 | 1.41 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | DZ | Active | 4 Ohms | ±7% | - | Ceramic | - | ±150ppm/°C | -40°C ~ 85°C | - | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.024 (0.60mm) | |
|
|
DZ0805L8R0EIGNITOR RESISTOR 8 OHM |
950 | 1.41 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | DZ | Active | 8 Ohms | ±7% | - | Ceramic | - | ±150ppm/°C | -40°C ~ 85°C | - | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.024 (0.60mm) | |
|
FC4L64R001JERRES 0.001 OHM 2W 2512 WIDE |
786 | 1.82 |
RFQ |
Datasheet |
Wide 2512 (6432 Metric), 1225 | Tape & Reel (TR),Cut Tape (CT) | FC4L | Active | 1 mOhms | ±5% | 2W | Metal Foil | Current Sense, Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | - | 0.126 L x 0.252 W (3.20mm x 6.40mm) | 0.028 (0.70mm) | |
|
|
FC4L90R002FERCURRENT SENSE CHIP 1% 0.002 OHM |
810 | 1.85 |
RFQ |
Datasheet |
Wide 3518 (9045 Metric), 1835 | Tape & Reel (TR),Cut Tape (CT) | FC4L | Active | 2 mOhms | ±1% | 4W | Metal Foil | Current Sense, Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | - | 0.177 L x 0.354 W (4.50mm x 9.00mm) | 0.031 (0.80mm) | |
|
ALX12W49R9BET1206 ALNI CHIP 0.1% |
990 | 1.37 |
RFQ |
- | Tape & Reel (TR),Cut Tape (CT) | - | Active | - | - | - | - | - | - | - | - | - | - | ||
|
LVK20R020CER0.75W 0.020 OHM 0.25% LVK(2010) |
910 | 1.38 |
RFQ |
Datasheet |
2010 (5025 Metric) | Tape & Reel (TR),Cut Tape (CT) | LVK | Active | 20 mOhms | ±0.25% | 0.75W, 3/4W | Thick Film | Current Sense, Moisture Resistant | ±50ppm/°C | -40°C ~ 125°C | - | 0.197 L x 0.098 W (5.00mm x 2.50mm) | 0.026 (0.65mm) | |
|
|
LVK20R030CER0.75W 0.030 OHM 0.25% LVK(2010) |
796 | 1.38 |
RFQ |
Datasheet |
2010 (5025 Metric) | Tape & Reel (TR),Cut Tape (CT) | LVK | Active | 30 mOhms | ±0.25% | 0.75W, 3/4W | Thick Film | Current Sense, Moisture Resistant | ±50ppm/°C | -40°C ~ 125°C | - | 0.197 L x 0.098 W (5.00mm x 2.50mm) | 0.026 (0.65mm) | |
|
|
LVK20R050CER0.75W 0.050 OHM 0.25% LVK(2010) |
773 | 1.38 |
RFQ |
Datasheet |
2010 (5025 Metric) | Tape & Reel (TR),Cut Tape (CT) | LVK | Active | 50 mOhms | ±0.25% | 0.75W, 3/4W | Thick Film | Current Sense, Moisture Resistant | ±50ppm/°C | -40°C ~ 125°C | - | 0.197 L x 0.098 W (5.00mm x 2.50mm) | 0.026 (0.65mm) | |
|
|
DZ0805L2R0EIGNITOR RESISTOR 2 OHM |
1,000 | 1.41 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | DZ | Active | 2 Ohms | ±7% | - | Ceramic | - | ±150ppm/°C | -40°C ~ 85°C | - | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.024 (0.60mm) | |
|
LVK25R003FERRES 0.003 OHM 2W 2512 WIDE |
102 | 2.00 |
RFQ |
Datasheet |
Wide 2512 (6432 Metric), 1225 | Tape & Reel (TR),Cut Tape (CT) | LVK | Active | 3 mOhms | ±1% | 2W | Thick Film | Anti-Corrosive, Current Sense, Moisture Resistant | ±200ppm/°C | -40°C ~ 125°C | - | 0.126 L x 0.252 W (3.20mm x 6.40mm) | 0.028 (0.70mm) | |
|
FCSL76R025FERRES 0.025 OHM 3W 3015 WIDE |
184 | 1.48 |
RFQ |
Datasheet |
Wide 3015 (7638 Metric), 1530 | Tape & Reel (TR),Cut Tape (CT) | FCSL | Active | 25 mOhms | ±1% | 3W | Metal Foil | Current Sense, Moisture Resistant | ±50ppm/°C | -55°C ~ 155°C | - | 0.150 L x 0.299 W (3.80mm x 7.60mm) | 0.028 (0.70mm) | |
|
GKM5R0010FE-TR5W 1% 0.001 OHM |
798 | 2.22 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | GK | Active | 1 mOhms | ±1% | 5W | Metal Film | Current Sense | ±70ppm/°C | -55°C ~ 155°C | - | 0.272 L x 0.260 W (6.90mm x 6.60mm) | 0.138 (3.50mm) | |
|
GKM5R0005FE-TR5W 1% 0.0005 OHM |
701 | 2.22 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | GK | Active | 500 µOhms | ±1% | 5W | Metal Film | Current Sense | ±70ppm/°C | -55°C ~ 155°C | - | 0.272 L x 0.260 W (6.90mm x 6.60mm) | 0.138 (3.50mm) | |
|
FKK5R0030FE-TR5W 1% 0.003 OHM |
737 | 2.22 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | FK | Active | 3 mOhms | ±1% | 5W | Metal Film | Current Sense | ±40ppm/°C | -55°C ~ 155°C | - | 0.272 L x 0.260 W (6.90mm x 6.60mm) | 0.138 (3.50mm) | |
|
|
FKM5R0005FE-TR5W 1% 0.0005 OHM |
401 | 2.22 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | FK | Active | 500 µOhms | ±1% | 5W | Metal Film | Current Sense | ±70ppm/°C | -55°C ~ 155°C | - | 0.272 L x 0.260 W (6.90mm x 6.60mm) | 0.138 (3.50mm) | |
|
|
FKM5R0010FE-TR5W 1% 0.001 OHM |
642 | 2.22 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | FK | Active | 1 mOhms | ±1% | 5W | Metal Film | Current Sense | ±70ppm/°C | -55°C ~ 155°C | - | 0.272 L x 0.260 W (6.90mm x 6.60mm) | 0.138 (3.50mm) | |
|
HVC1206Z2504JETRES SMD 2.5M OHM 5% 1/4W 1206 |
468 | 2.00 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 2.5 MOhms | ±5% | 0.25W, 1/4W | Thick Film | High Voltage | ±250ppm/°C | -55°C ~ 155°C | - | 0.126 L x 0.059 W (3.20mm x 1.50mm) | 0.022 (0.55mm) | |
|
|
HVC1206Z2505JETRES SMD 25M OHM 5% 1/4W 1206 |
221 | 2.00 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 25 MOhms | ±5% | 0.25W, 1/4W | Thick Film | High Voltage | ±250ppm/°C | -55°C ~ 155°C | - | 0.126 L x 0.059 W (3.20mm x 1.50mm) | 0.022 (0.55mm) | |
|

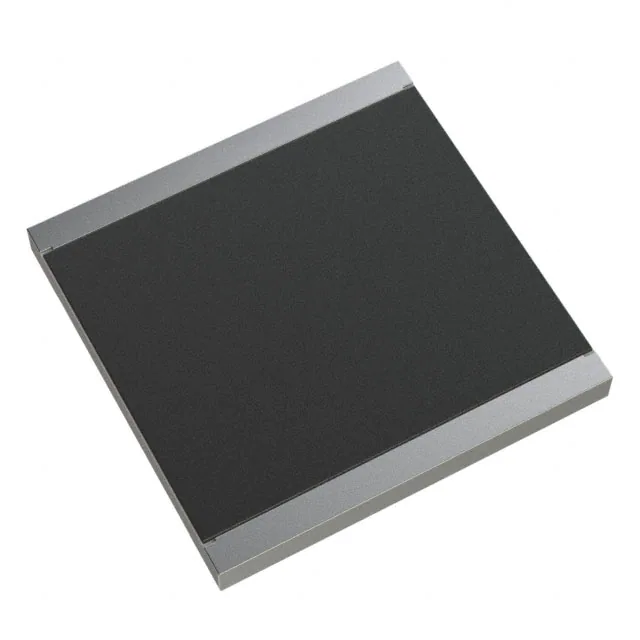

PCS2728DR0100ET4W 0.010 OHMS 0.5% 2728 |
355 | 2.79 |
RFQ |
Datasheet |
Wide 2827 (7067 Metric), 2728 | Tape & Reel (TR),Cut Tape (CT) | PCS | Active | 10 mOhms | ±0.5% | 4W | Metal Film | Current Sense | ±50ppm/°C | -55°C ~ 170°C | - | 0.260 L x 0.264 W (6.60mm x 6.70mm) | 0.034 (0.87mm) |
