| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Ratings | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PWR163S-25-2R50FRES SMD 2.5 OHM 1% 25W DPAK |
300 | 3.94 |
RFQ |
Datasheet |
TO-252-3, DPak (2 Leads + Tab), SC-63 | Tube | PWR163 | Active | 2.5 Ohms | ±1% | 25W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.320 L x 0.324 W (8.13mm x 8.22mm) | 0.125 (3.17mm) | |
|
|
PWR163S-25-4R70JRES SMD 4.7 OHM 5% 25W DPAK |
268 | 3.99 |
RFQ |
Datasheet |
TO-252-3, DPak (2 Leads + Tab), SC-63 | Tube | PWR163 | Active | 4.7 Ohms | ±5% | 25W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.320 L x 0.324 W (8.13mm x 8.22mm) | 0.125 (3.17mm) | |
.jpg)
|
CRM2010-JW-3R3ELFRES SMD 3.3 OHM 5% 1W 2010 |
5,411 | 0.46 |
RFQ |
Datasheet |
2010 (5025 Metric) | Tape & Reel (TR),Cut Tape (CT) | CRM2010 | Active | 3.3 Ohms | ±5% | 1W | Thick Film | Current Sense | ±200ppm/°C | -55°C ~ 155°C | - | 0.197 L x 0.098 W (5.00mm x 2.50mm) | 0.028 (0.70mm) | |
|
PWR263S-20-20R0FRES SMD 20 OHM 1% 20W D2PAK |
136 | 4.02 |
RFQ |
Datasheet |
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | Tube | PWR263S-20 | Active | 20 Ohms | ±1% | 20W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.398 L x 0.409 W (10.10mm x 10.40mm) | 0.192 (4.88mm) | |
|
|
PWR263S-20-1000FRES SMD 100 OHM 1% 20W D2PAK |
103 | 4.02 |
RFQ |
Datasheet |
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | Tube | PWR263S-20 | Active | 100 Ohms | ±1% | 20W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.398 L x 0.409 W (10.10mm x 10.40mm) | 0.192 (4.88mm) | |
|
|
PWR263S-20-1R00FRES SMD 1 OHM 1% 20W D2PAK |
101 | 4.83 |
RFQ |
Datasheet |
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | Tube | PWR263S-20 | Active | 1 Ohms | ±1% | 20W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.398 L x 0.409 W (10.10mm x 10.40mm) | 0.192 (4.88mm) | |
|
|
PWR163S-25-R050JRES 0.05 OHM 5% 25W DPAK |
353 | 4.97 |
RFQ |
Datasheet |
TO-252-3, DPak (2 Leads + Tab), SC-63 | Tube | PWR163 | Active | 50 mOhms | ±5% | 25W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.320 L x 0.324 W (8.13mm x 8.22mm) | 0.125 (3.17mm) | |
|
PWR263S-35-4R70FRES SMD 4.7 OHM 1% 35W D2PAK |
138 | 5.10 |
RFQ |
Datasheet |
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | Tube | PWR263S-35 | Active | 4.7 Ohms | ±1% | 35W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.398 L x 0.409 W (10.10mm x 10.40mm) | 0.177 (4.50mm) | |
.jpg)
|
CRL2010-JW-R100ELFRES 0.1 OHM 5% 1/2W 2010 |
13,597 | 0.67 |
RFQ |
Datasheet |
2010 (5025 Metric) | Tape & Reel (TR),Cut Tape (CT) | CRL | Active | 100 mOhms | ±5% | 0.5W, 1/2W | Thick Film | - | ±200ppm/°C | -55°C ~ 125°C | - | 0.197 L x 0.098 W (5.00mm x 2.50mm) | 0.028 (0.70mm) | |
.jpg)
|
CR0402-JW-822GLFRES SMD 8.2K OHM 5% 1/16W 0402 |
34,333 | 0.10 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | CR0402 | Active | 8.2 kOhms | ±5% | 0.063W, 1/16W | Thick Film | - | ±200ppm/°C | -55°C ~ 155°C | - | 0.039 L x 0.020 W (1.00mm x 0.50mm) | 0.016 (0.40mm) | |
|
|
CR0402-JW-623GLFRES SMD 62K OHM 5% 1/16W 0402 |
27,764 | 0.10 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | CR0402 | Active | 62 kOhms | ±5% | 0.063W, 1/16W | Thick Film | - | ±200ppm/°C | -55°C ~ 155°C | - | 0.039 L x 0.020 W (1.00mm x 0.50mm) | 0.016 (0.40mm) | |
|
|
CR0402-JW-514GLFRES SMD 510K OHM 5% 1/16W 0402 |
26,115 | 0.10 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | CR0402 | Active | 510 kOhms | ±5% | 0.063W, 1/16W | Thick Film | - | ±200ppm/°C | -55°C ~ 155°C | - | 0.039 L x 0.020 W (1.00mm x 0.50mm) | 0.016 (0.40mm) | |
.jpg)
|
CR0603-FX-7322ELFRES SMD 73.2K OHM 1% 1/10W 0603 |
26,948 | 0.10 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | CR0603 | Active | 73.2 kOhms | ±1% | 0.1W, 1/10W | Thick Film | Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | - | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0.022 (0.55mm) | |
.jpg)
|
CR1206-FX-5110ELFRES SMD 511 OHM 1% 1/4W 1206 |
19,835 | 0.10 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | CR1206 | Active | 511 Ohms | ±1% | 0.25W, 1/4W | Thick Film | Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.030 (0.75mm) | |
|

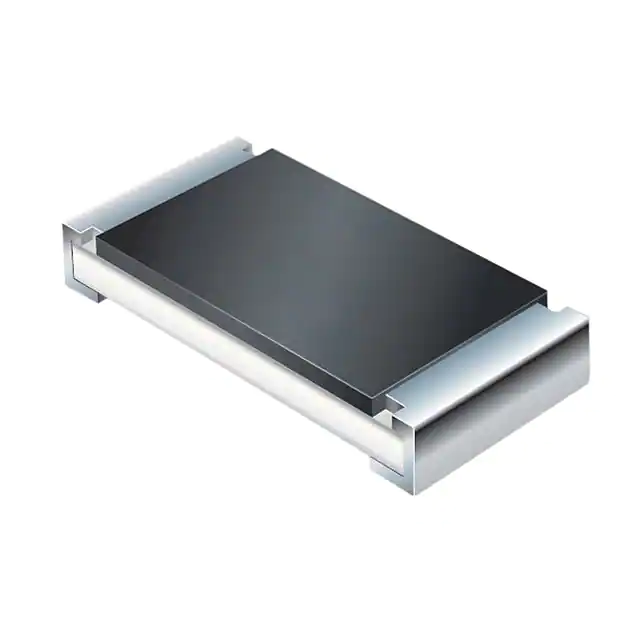

CR0603-FX-2001EPFRES 0603 2K 1% 100MW TC100 LOW L |
39,882 | 0.10 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | CR-PF | Active | 2 kOhms | ±1% | 0.1W, 1/10W | Thick Film | - | ±100ppm/°C | -55°C ~ 155°C | - | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0.022 (0.55mm) | |
|
|
CR1206-FX-6811ELFRES SMD 6.81K OHM 1% 1/4W 1206 |
28,480 | 0.10 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | CR1206 | Active | 6.81 kOhms | ±1% | 0.25W, 1/4W | Thick Film | Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.030 (0.75mm) | |
|
|
CR1206-FX-3012ELFRES SMD 30.1K OHM 1% 1/4W 1206 |
60,814 | 0.10 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | CR1206 | Active | 30.1 kOhms | ±1% | 0.25W, 1/4W | Thick Film | Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.030 (0.75mm) | |
|
|
CR1206-FX-51R1ELFRES SMD 51.1 OHM 1% 1/4W 1206 |
103,564 | 0.10 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | CR1206 | Active | 51.1 Ohms | ±1% | 0.25W, 1/4W | Thick Film | Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.030 (0.75mm) | |
|
|
CR1206-FX-6800ELFRES SMD 680 OHM 1% 1/4W 1206 |
57,403 | 0.10 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | CR1206 | Active | 680 Ohms | ±1% | 0.25W, 1/4W | Thick Film | Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.030 (0.75mm) | |
|
|
CR1206-FX-3013ELFRES SMD 301K OHM 1% 1/4W 1206 |
49,991 | 0.10 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | CR1206 | Active | 301 kOhms | ±1% | 0.25W, 1/4W | Thick Film | Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.030 (0.75mm) |
