| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Ratings | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

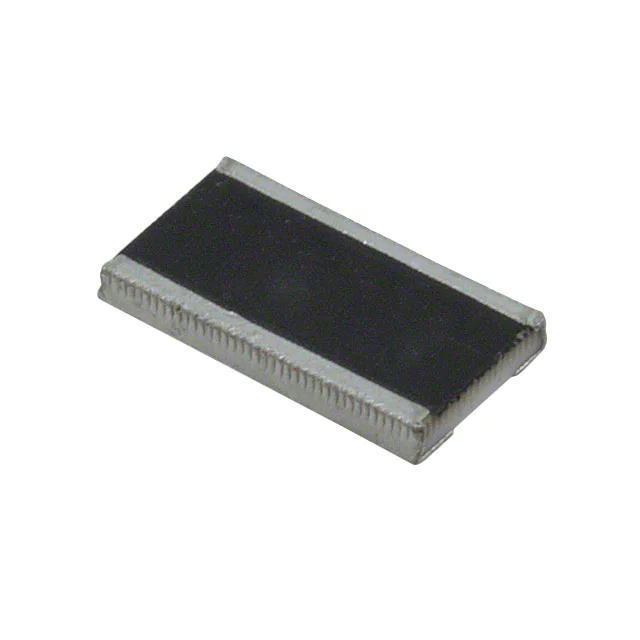

LTR100JZPF11R0RES SMD 11 OHM 2W 2512 WIDE |
23,846 | 0.74 |
RFQ |
Datasheet |
Wide 2512 (6432 Metric), 1225 | Tape & Reel (TR),Cut Tape (CT) | LTR | Active | 11 Ohms | ±1% | 2W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.126 L x 0.252 W (3.20mm x 6.40mm) | 0.026 (0.65mm) | |
|
PMR50HZPJ000ULTRA-LOW OHMIC JUMPER RESISTORS |
5,384 | 0.74 |
RFQ |
Datasheet |
2010 (5025 Metric) | Tape & Reel (TR),Cut Tape (CT) | PMR | Active | 0 Ohms | Jumper | - | Metal Element | Automotive AEC-Q200, Current Sense | - | -55°C ~ 155°C | AEC-Q200 | 0.197 L x 0.098 W (5.00mm x 2.50mm) | 0.019 (0.47mm) | |
|
PMR10EZPJV2L0RES 0.002 OHM 5% 1/2W 0805 |
5,496 | 0.57 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | PMR | Active | 2 mOhms | ±5% | 0.5W, 1/2W | Metal Element | Automotive AEC-Q200, Current Sense | ±150ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.079 L x 0.047 W (2.00mm x 1.20mm) | 0.019 (0.47mm) | |
|
PMR100HZPFU9L00RES 0.009 OHM 1% 2W 2512 |
13,038 | 0.60 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | PMR | Active | 9 mOhms | ±1% | 2W | Metal Element | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.252 L x 0.126 W (6.40mm x 3.20mm) | 0.019 (0.47mm) | |
|
|
PMR10EZPFV3L00RES 0.003 OHM 1% 1/2W 0805 |
182,446 | 0.66 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | PMR | Active | 3 mOhms | ±1% | 0.5W, 1/2W | Metal Element | Automotive AEC-Q200, Current Sense | ±150ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.079 L x 0.047 W (2.00mm x 1.20mm) | 0.019 (0.47mm) | |
|
|
PMR10EZPFV4L00RES 0.004 OHM 1% 1/2W 0805 |
26,696 | 0.66 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | PMR | Active | 4 mOhms | ±1% | 0.5W, 1/2W | Metal Element | Automotive AEC-Q200, Current Sense | ±150ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.079 L x 0.047 W (2.00mm x 1.20mm) | 0.019 (0.47mm) | |
|
|
PMR50HZPFU9L00RES 0.009 OHM 1% 1W 2010 |
3,615 | 0.67 |
RFQ |
Datasheet |
2010 (5025 Metric) | Tape & Reel (TR),Cut Tape (CT) | PMR | Active | 9 mOhms | ±1% | 1W | Metal Element | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.197 L x 0.098 W (5.00mm x 2.50mm) | 0.019 (0.47mm) | |
|
PMR25HZPFV3L00RES 0.003 OHM 1% 1W 1210 |
10,540 | 0.68 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | PMR | Active | 3 mOhms | ±1% | 1W | Metal Element | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.126 L x 0.098 W (3.20mm x 2.50mm) | 0.019 (0.47mm) | |
|
|
PMR25HZPFV2L00RES 0.002 OHM 1% 1W 1210 |
6,924 | 0.68 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | PMR | Active | 2 mOhms | ±1% | 1W | Metal Element | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.126 L x 0.098 W (3.20mm x 2.50mm) | 0.019 (0.47mm) | |
|
|
PMR50HZPFV1L00RES 0.001 OHM 1% 1W 2010 |
11,068 | 0.71 |
RFQ |
Datasheet |
2010 (5025 Metric) | Tape & Reel (TR),Cut Tape (CT) | PMR | Active | 1 mOhms | ±1% | 1W | Metal Element | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.197 L x 0.098 W (5.00mm x 2.50mm) | 0.019 (0.47mm) | |
, 1225.jpg)
|
PML100HZPJV1L5RES 0.0015 OHM 2W 2512 WIDE |
8,244 | 0.94 |
RFQ |
Datasheet |
Wide 2512 (6432 Metric), 1225 | Tape & Reel (TR),Cut Tape (CT) | PML | Active | 1.5 mOhms | ±5% | 2W | Thick Film | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.126 L x 0.252 W (3.20mm x 6.40mm) | 0.028 (0.70mm) | |
|
|
PML100HZPJV2L2RES 0.0022 OHM 2W 2512 WIDE |
3,743 | 0.94 |
RFQ |
Datasheet |
Wide 2512 (6432 Metric), 1225 | Tape & Reel (TR),Cut Tape (CT) | PML | Active | 2.2 mOhms | ±5% | 2W | Thick Film | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.126 L x 0.252 W (3.20mm x 6.40mm) | 0.028 (0.70mm) | |
|
GMR100HTBFMR033RES 0.033 OHM 1% 7W 2512 |
6,113 | 1.53 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | GMR | Active | 33 mOhms | ±1% | 7W | Metal Element | Automotive AEC-Q200 | ±20ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.252 L x 0.126 W (6.40mm x 3.20mm) | 0.022 (0.55mm) | |
|
|
GMR100HTBFIR022RES 0.022 OHM 1% 7W 2512 |
3,860 | 1.53 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | GMR | Active | 22 mOhms | ±1% | 7W | Metal Element | Automotive AEC-Q200 | ±20ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.252 L x 0.126 W (6.40mm x 3.20mm) | 0.022 (0.55mm) | |
|
|
GMR100HTCFAR100RES 0.1 OHM 1% 7W 2512 |
1,703 | 1.52 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | GMR | Active | 100 mOhms | ±1% | 7W | Metal Element | Automotive AEC-Q200 | ±20ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.252 L x 0.126 W (6.40mm x 3.20mm) | 0.022 (0.55mm) | |
|
PSR400ITQFF0L50RES SMD 500 UOHM 1% 4W 3921 |
15,288 | 1.67 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | PSR | Active | 500 µOhms | ±1% | 4W | Metal Element | Automotive AEC-Q200, Current Sense | ±175ppm/°C | -55°C ~ 170°C | AEC-Q200 | 0.394 L x 0.205 W (10.00mm x 5.20mm) | - | |
|
|
PSR400ITQFD0L30RES SMD 300 UOHM 1% 4W 3921 |
15,290 | 1.67 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | PSR | Active | 300 µOhms | ±1% | 4W | Metal Element | Automotive AEC-Q200, Current Sense | ±175ppm/°C | -55°C ~ 170°C | AEC-Q200 | 0.394 L x 0.205 W (10.00mm x 5.20mm) | - | |
|
|
PSR400ITQFH1L00RES 0.001 OHM 1% 4W 3921 |
9,458 | 1.67 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | PSR | Active | 1 mOhms | ±1% | 4W | Metal Element | Automotive AEC-Q200, Current Sense | ±75ppm/°C | -55°C ~ 170°C | AEC-Q200 | 0.394 L x 0.205 W (10.00mm x 5.20mm) | - | |
|
PSR500HTQFC0L20RES SMD 200 UOHM 1% 5W 5931 |
21,403 | 1.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | PSR | Active | 200 µOhms | ±1% | 5W | Metal Element | Automotive AEC-Q200, Current Sense | ±225ppm/°C | -55°C ~ 170°C | AEC-Q200 | 0.591 L x 0.305 W (15.00mm x 7.75mm) | - | |
|
SFR01MZPJ332RES 3.3K OHM 5% 1/16W 0402 |
39,899 | 0.11 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | SFR | Active | 3.3 kOhms | ±5% | 0.063W, 1/16W | Thick Film | Anti-Sulfur | ±200ppm/°C | -55°C ~ 155°C | - | 0.039 L x 0.020 W (1.00mm x 0.50mm) | 0.016 (0.40mm) |
