| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Ratings | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HVCB1206BKE100MRES 100M OHM 0.1% 0.33W 1206 |
1,212 | 11.45 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 100 MOhms | ±0.1% | 0.333W, 1/3W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±25ppm/°C | -55°C ~ 150°C | - | 0.125 L x 0.063 W (3.18mm x 1.60mm) | 0.030 (0.76mm) | |
|
UHVB4020FCD1G00RES 1 GOHM 1% 4020 16KV |
496 | 19.08 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | UHV | Active | 1 GOhms | ±1% | - | - | High Voltage | ±100ppm/°C | -55°C ~ 150°C | - | 0.400 L x 0.200 W (10.16mm x 5.08mm) | 0.030 (0.76mm) | |
|
|
UHVB4020FCD2G00RES 2 GOHM 1% 4020 16KV |
488 | 19.08 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | UHV | Active | 2 GOhms | ±1% | - | - | High Voltage | ±100ppm/°C | -55°C ~ 150°C | - | 0.400 L x 0.200 W (10.16mm x 5.08mm) | 0.030 (0.76mm) | |
|

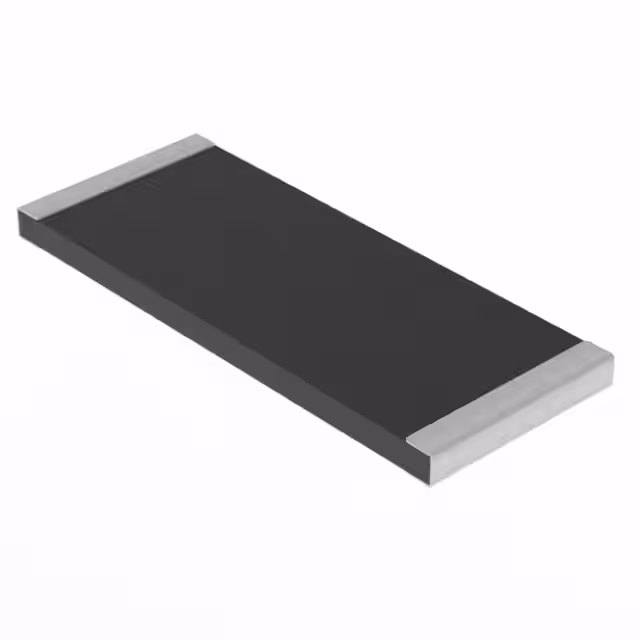

UHVB5020FCD2G00RES 2 GOHM 1% 5020 20KV |
429 | 20.78 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | UHV | Active | 2 GOhms | ±1% | - | - | High Voltage | ±100ppm/°C | -55°C ~ 150°C | - | 0.500 L x 0.200 W (12.70mm x 5.08mm) | 0.030 (0.76mm) | |
 (3).jpg)
|
RMCS0402FT11K0RES, AS, 0402, 11 KOHM, 1%, 0.06 |
20,000 | 0.00 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | RMCS | Active | 11 kOhms | ±1% | 0.063W, 1/16W | Thick Film | Anti-Sulfur | ±100ppm/°C | -55°C ~ 155°C | - | 0.039 L x 0.020 W (1.00mm x 0.50mm) | 0.018 (0.45mm) | |
|
RPC0805JT3K00RES 3K OHM 5% 1/4W 0805 |
5,000 | 0.02 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | RPC | Active | 3 kOhms | ±5% | 0.25W, 1/4W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.024 (0.60mm) | |
|
RGC2010FTC7K32RES 7.32K OHM 1% 3/4W 2010 |
4,000 | 0.06 |
RFQ |
Datasheet |
2010 (5025 Metric) | Tape & Reel (TR) | RGC | Active | 7.32 kOhms | ±1% | 0.75W, 3/4W | Thick Film | - | ±50ppm/°C | -55°C ~ 155°C | - | 0.197 L x 0.098 W (5.00mm x 2.50mm) | 0.026 (0.65mm) | |
|
RPC2010JT180RRES 180 OHM 5% 3/4W 2010 |
4,000 | 0.08 |
RFQ |
Datasheet |
2010 (5025 Metric) | Tape & Reel (TR),Cut Tape (CT) | RPC | Active | 180 Ohms | ±5% | 0.75W, 3/4W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.197 L x 0.098 W (5.00mm x 2.50mm) | 0.026 (0.65mm) | |
|
RMCP2010FT13R3RES 13.3 OHM 1% 1W 2010 |
4,000 | 0.08 |
RFQ |
Datasheet |
2010 (5025 Metric) | Tape & Reel (TR) | RMCP | Active | 13.3 Ohms | ±1% | 1W | Thick Film | Automotive AEC-Q200 | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.197 L x 0.098 W (5.00mm x 2.50mm) | 0.028 (0.70mm) | |
|
RMCF2010FTR390RES 0.39 OHM 1% 3/4W 2010 |
16,000 | 0.22 |
RFQ |
Datasheet |
2010 (5025 Metric) | Tape & Reel (TR) | RMCF | Active | 390 mOhms | ±1% | 0.75W, 3/4W | Thick Film | Automotive AEC-Q200 | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.197 L x 0.098 W (5.00mm x 2.50mm) | 0.028 (0.70mm) | |
|
|
RNCF1206TKY100RRES 100 OHM 0.01% 1/4W 1206 |
587 | 2.12 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | RNCF | Active | 100 Ohms | ±0.01% | 0.25W, 1/4W | Thin Film | Automotive AEC-Q200 | ±5ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.120 L x 0.061 W (3.05mm x 1.55mm) | 0.026 (0.65mm) | |
|
RNCP0603FTD20R0RES 20 OHM 1% 1/8W 0603 |
9,800 | 0.10 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | RNCP | Active | 20 Ohms | ±1% | 0.125W, 1/8W | Thin Film | Anti-Sulfur | ±100ppm/°C | -55°C ~ 155°C | - | 0.061 L x 0.031 W (1.55mm x 0.80mm) | 0.022 (0.55mm) | |
|
|
RNCP0603FTD2K74RES 2.74K OHM 1% 1/8W 0603 |
6,272 | 0.10 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | RNCP | Active | 2.74 kOhms | ±1% | 0.125W, 1/8W | Thin Film | Anti-Sulfur | ±100ppm/°C | -55°C ~ 155°C | - | 0.061 L x 0.031 W (1.55mm x 0.80mm) | 0.022 (0.55mm) | |
|
|
RNCP0603FTD5K11RES 5.11K OHM 1% 1/8W 0603 |
9,080 | 0.10 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | RNCP | Active | 5.11 kOhms | ±1% | 0.125W, 1/8W | Thin Film | Anti-Sulfur | ±100ppm/°C | -55°C ~ 155°C | - | 0.061 L x 0.031 W (1.55mm x 0.80mm) | 0.022 (0.55mm) | |
|
|
RNCP0805FTD8K25RES 8.25K OHM 1% 1/4W 0805 |
8,510 | 0.10 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | RNCP | Active | 8.25 kOhms | ±1% | 0.25W, 1/4W | Thin Film | Anti-Sulfur | ±100ppm/°C | -55°C ~ 155°C | - | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.025 (0.65mm) | |
|
|
RNCP0805FTD11K0RES 11K OHM 1% 1/4W 0805 |
9,960 | 0.10 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | RNCP | Active | 11 kOhms | ±1% | 0.25W, 1/4W | Thin Film | Anti-Sulfur | ±100ppm/°C | -55°C ~ 155°C | - | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.025 (0.65mm) | |
|
|
RNCP0805FTD33K2RES 33.2K OHM 1% 1/4W 0805 |
9,875 | 0.10 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | RNCP | Active | 33.2 kOhms | ±1% | 0.25W, 1/4W | Thin Film | Anti-Sulfur | ±100ppm/°C | -55°C ~ 155°C | - | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.025 (0.65mm) | |
|
|
RNCP1206FTD22K1RES 22.1K OHM 1% 1/2W 1206 |
9,836 | 0.10 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | RNCP | Active | 22.1 kOhms | ±1% | 0.5W, 1/2W | Thin Film | Anti-Sulfur | ±100ppm/°C | -55°C ~ 155°C | - | 0.122 L x 0.059 W (3.10mm x 1.50mm) | 0.025 (0.65mm) | |
|
RMCF0402FT1K47RES 1.47K OHM 1% 1/16W 0402 |
10,000 | 0.10 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | RMCF | Active | 1.47 kOhms | ±1% | 0.063W, 1/16W | Thick Film | Automotive AEC-Q200 | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.039 L x 0.020 W (1.00mm x 0.50mm) | 0.016 (0.40mm) | |
|
RMCF0603JT3M30RES 3.3M OHM 5% 1/10W 0603 |
7,134 | 0.10 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | RMCF | Active | 3.3 MOhms | ±5% | 0.1W, 1/10W | Thick Film | Automotive AEC-Q200 | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.061 L x 0.031 W (1.55mm x 0.80mm) | 0.022 (0.55mm) |
