| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Ratings | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

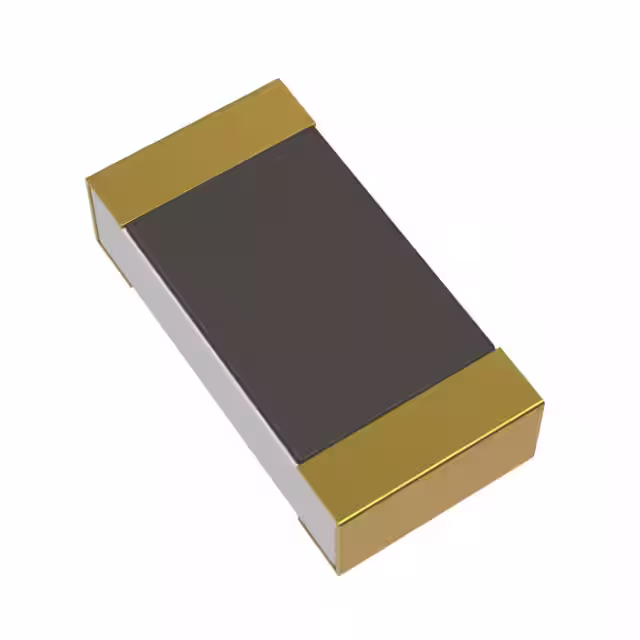

HGCB0603FTC180MRES 180M OHM 1% 0.06W 0603 |
4,745 | 2.46 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | HGC | Active | 180 MOhms | ±1% | 0.06W | Thick Film | Moisture Resistant | ±50ppm/°C | -55°C ~ 150°C | - | 0.063 L x 0.031 W (1.60mm x 0.79mm) | 0.020 (0.51mm) | |
|
|
HGCB0603FTC47M0RES 47M OHM 1% 0.06W 0603 |
1,377 | 2.46 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | HGC | Active | 47 MOhms | ±1% | 0.06W | Thick Film | Moisture Resistant | ±50ppm/°C | -55°C ~ 150°C | - | 0.063 L x 0.031 W (1.60mm x 0.79mm) | 0.020 (0.51mm) | |
|
HVCB1206FDC250MRES SMD 250 MOHMS 1% 1/3W 1206 |
1,756 | 6.61 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 250 MOhms | ±1% | 0.333W, 1/3W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.030 (0.76mm) | |
|
HVCB0805JDE22M0RES 22M OHM 5% 1/5W 0805 |
105 | 3.56 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 22 MOhms | ±5% | 0.2W, 1/5W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±25ppm/°C | -55°C ~ 150°C | - | 0.079 L x 0.050 W (2.01mm x 1.27mm) | 0.025 (0.64mm) | |
|
CSS4527FT2L00RES 0.002 OHM 1% 5W 4527 |
1,297 | 2.97 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | CSS | Active | 2 mOhms | ±1% | 5W | Metal Element | Automotive AEC-Q200, Current Sense | ±50ppm/°C | -55°C ~ 225°C | AEC-Q200 | 0.450 L x 0.270 W (11.43mm x 6.85mm) | 0.069 (1.75mm) | |
.jpg)
|
HVCB2512KDD50M0RES 50M OHM 10% 2W 2512 |
213 | 4.13 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 50 MOhms | ±10% | 2W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±100ppm/°C | -55°C ~ 150°C | - | 0.250 L x 0.125 W (6.35mm x 3.18mm) | 0.030 (0.76mm) | |
|
|
HVCB0603JDC220MRES 220M OHM 5% 0.06W 0603 |
435 | 4.16 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 220 MOhms | ±5% | 0.06W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.063 L x 0.031 W (1.60mm x 0.79mm) | 0.020 (0.51mm) | |
|
HVCB2512FTC2M49RES, HV, 2512, 2.49 MOHM, 1%, 50 |
4,000 | 4.43 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 2.49 MOhms | ±1% | 2W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.250 L x 0.125 W (6.35mm x 3.18mm) | 0.030 (0.76mm) | |
|
|
HVCB2512FKC250KRES 250K OHM 1% 2W 2512 |
6,000 | 4.51 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR) | HVC | Active | 250 kOhms | ±1% | 2W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.250 L x 0.125 W (6.35mm x 3.18mm) | 0.030 (0.76mm) | |
|
HVCB0805BDC50M0RES HV 0805 50 MOHM 0.1% 50PPM |
2,117 | 8.14 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 50 MOhms | ±0.1% | 0.2W, 1/5W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.079 L x 0.050 W (2.01mm x 1.27mm) | 0.025 (0.64mm) | |
|
|
HVCB1206GDC430MRES 430M OHM 2% 1/3W 1206 |
227 | 4.96 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 430 MOhms | ±2% | 0.333W, 1/3W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.030 (0.75mm) | |
|
|
HVCB0805BDC500MRES HV 0805 500 MOHM 0.1% 50PPM |
1,038 | 8.90 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 500 MOhms | ±0.1% | 0.2W, 1/5W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.079 L x 0.050 W (2.01mm x 1.27mm) | 0.025 (0.64mm) | |
|
|
HVCB0805FDC47M0RES SMD 47 MOHMS 1% 1/5W 0805 |
467 | 5.51 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 47 MOhms | ±1% | 0.2W, 1/5W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.079 L x 0.050 W (2.01mm x 1.27mm) | 0.025 (0.64mm) | |
|
|
HVCB2512FDD20M0RES 20M OHM 1% 2W 2512 |
110 | 5.51 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 20 MOhms | ±1% | 2W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±100ppm/°C | -55°C ~ 150°C | - | 0.250 L x 0.125 W (6.35mm x 3.18mm) | 0.030 (0.76mm) | |
|
|
HVCB0805FDC2M21RES 2.21M OHM 1% 1/5W 0805 |
396 | 6.06 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 2.21 MOhms | ±1% | 0.2W, 1/5W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.079 L x 0.050 W (2.01mm x 1.27mm) | 0.025 (0.64mm) | |
.jpg)
|
HVCB0603FDC47M0RES SMD 47 MOHMS 1% 0.06W 0603 |
833 | 6.20 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 47 MOhms | ±1% | 0.06W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.063 L x 0.031 W (1.60mm x 0.79mm) | 0.020 (0.51mm) | |
|
|
HVCB1206FDC75M0RES SMD 75 MOHMS 1% 1/3W 1206 |
595 | 6.20 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 75 MOhms | ±1% | 0.333W, 1/3W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.030 (0.76mm) | |
|
|
HVCB1206FDC47M0RES SMD 47 MOHMS 1% 1/3W 1206 |
278 | 6.20 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 47 MOhms | ±1% | 0.333W, 1/3W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.030 (0.76mm) | |
|
|
HVCB2512FDD30M0RES 30M OHM 1% 2W 2512 |
379 | 6.36 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 30 MOhms | ±1% | 2W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±100ppm/°C | -55°C ~ 150°C | - | 0.250 L x 0.125 W (6.35mm x 3.18mm) | 0.030 (0.76mm) | |
|
|
HVCB1206JDD1G00RES 1G OHM 5% 1/3W 1206 |
308 | 6.36 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 1 GOhms | ±5% | 0.333W, 1/3W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±100ppm/°C | -55°C ~ 150°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.030 (0.75mm) |
