| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | TemperatureCoefficient | OperatingTemperature | Features | Ratings | Applications | FailureRate | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) | LeadSpacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
564R30TSD27CAP CER 2700PF 3KV X7R RADIAL |
3,980 | 1.69 |
RFQ |
Datasheet |
Radial, Disc | Bulk | Cera-Mite 564R | Active | 2700 pF | ±10% | 3000V (3kV) | X7R | -25°C ~ 105°C | - | - | General Purpose | - | Through Hole | 0.618 Dia (15.70mm) | 0.807 (20.50mm) | - | 0.252 (6.40mm) |
|
564RC0GAJ602EJ240JCAP CER 24PF 6KV NP0 RADIAL |
3,012 | 1.72 |
RFQ |
Radial, Disc | Bulk | Cera-Mite 564R | Active | 24 pF | ±5% | 6000V (6kV) | C0G, NP0 | -25°C ~ 105°C | Low Dissipation Factor | - | General Purpose | - | Through Hole | - | - | - | - | |
|
|
564R60GAD15CAP CER 1500PF 6KV Z5U RADIAL |
3,716 | 1.77 |
RFQ |
Datasheet |
Radial, Disc | Bulk | Cera-Mite 564R | Active | 1500 pF | ±20% | 6000V (6kV) | Z5U | -25°C ~ 105°C | - | - | General Purpose | - | Through Hole | 0.461 Dia (11.70mm) | 0.650 (16.50mm) | - | 0.374 (9.50mm) |
|
|
564RX5RAJ402EG911MCAP CER 910PF 4KV X5R RADIAL |
2,246 | 1.77 |
RFQ |
Radial, Disc | Bulk | Cera-Mite 564R | Active | 910 pF | ±20% | 4000V (4kV) | X5R | -25°C ~ 105°C | Low Dissipation Factor | - | General Purpose | - | Through Hole | - | - | - | - | |
|
440LD47-RCAP CER 4700PF 760VAC Y5U RADIAL |
3,528 | 1.91 |
RFQ |
Datasheet |
Radial, Disc | Bulk | Cera-Mite 440L | Active | 4700 pF | ±20% | 760VAC | Y5U (E) | -30°C ~ 125°C | - | X1, Y1 | Safety | - | Through Hole | 0.618 Dia (15.70mm) | 0.744 (18.90mm) | - | 0.374 (9.50mm) |
|
|
564R75GAD10CAP CER 1000PF 7.5KV Y5U RADIAL |
2,104 | 2.23 |
RFQ |
Datasheet |
Radial, Disc | Bulk | Cera-Mite 564R | Active | 1000 pF | -20%, +80% | 7500V (7.5kV) | Y5U (E) | -25°C ~ 105°C | - | - | General Purpose | - | Through Hole | 0.618 Dia (15.70mm) | 0.807 (20.50mm) | - | 0.500 (12.70mm) |
|
|
565R10HKS50CAP CER 0.05UF 1KV RADIAL |
3,431 | 2.31 |
RFQ |
Datasheet |
Radial, Disc | Bulk | Cera-Mite 565R | Active | 0.05 µF | ±20% | 1000V (1kV) | - | -25°C ~ 105°C | - | - | General Purpose | - | Through Hole | - | - | - | - |
|
|
564R30GAD47CAP CER 4700PF 3KV Z5U RADIAL |
3,545 | 2.44 |
RFQ |
Datasheet |
Radial, Disc | Bulk | Cera-Mite 564R | Active | 4700 pF | ±20% | 3000V (3kV) | Z5U | -25°C ~ 105°C | - | - | General Purpose | - | Through Hole | 0.618 Dia (15.70mm) | 0.807 (20.50mm) | - | 0.374 (9.50mm) |
|
|
561R10TCCT27CAP CER 270PF 1KV NP0 RADIAL |
2,189 | 2.46 |
RFQ |
Datasheet |
Radial, Disc | Bulk | Cera-Mite 561R | Active | 270 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 105°C | Low Dissipation Factor | - | General Purpose | - | Through Hole | 0.890 Dia (22.61mm) | 1.008 (25.60mm) | - | - |
|
|
564R60GAD33CAP CER 3300PF 6KV Z5U RADIAL |
2,962 | 2.53 |
RFQ |
Datasheet |
Radial, Disc | Bulk | Cera-Mite 564R | Active | 3300 pF | ±20% | 6000V (6kV) | Z5U | -25°C ~ 105°C | - | - | General Purpose | - | Through Hole | 0.618 Dia (15.70mm) | 0.807 (20.50mm) | - | 0.374 (9.50mm) |
|
|
564R30TSD47CAP CER 4700PF 3KV X7R RADIAL |
2,720 | 2.86 |
RFQ |
Datasheet |
Radial, Disc | Bulk | Cera-Mite 564R | Active | 4700 pF | ±10% | 3000V (3kV) | X7R | -25°C ~ 105°C | - | - | General Purpose | - | Through Hole | 0.720 Dia (18.30mm) | 0.909 (23.10mm) | - | 0.374 (9.50mm) |
|
20VLS20-RCAP CER 0.02UF 400VAC Y5V RADIAL |
3,941 | 2.86 |
RFQ |
Datasheet |
Radial, Disc | Bulk | Cera-Mite 20VL | Active | 0.02 µF | ±20% | 400VAC | Y5V (F) | -30°C ~ 125°C | - | X2 | Safety | - | Through Hole | 0.720 Dia (18.30mm) | 0.846 (21.50mm) | - | 0.374 (9.50mm) |
|
|
564R30GAS10GJCAP CER 10000PF 3KV Y5U RADIAL |
3,546 | 2.86 |
RFQ |
Datasheet |
Radial, Disc | Bulk | Cera-Mite 564R | Active | 10000 pF | ±20% | 3000V (3kV) | Y5U | -25°C ~ 105°C | - | - | General Purpose | - | Through Hole | 0.787 Dia (20.00mm) | 0.976 (24.80mm) | - | 0.374 (9.50mm) |
|
|
125LS30-RCAP CER 0.03UF 400VAC Y5V RADIAL |
2,779 | 3.01 |
RFQ |
Datasheet |
Radial, Disc | Bulk | Cera-Mite 125L | Active | 0.03 µF | ±20% | 400VAC | Y5V (F) | -30°C ~ 125°C | - | X1, Y4 | Safety | - | Through Hole | 0.720 Dia (18.30mm) | 0.846 (21.50mm) | - | 0.374 (9.50mm) |
|
|
564R30TSSD56CAP CER 5600PF 3KV Y5S RADIAL |
3,959 | 3.03 |
RFQ |
Datasheet |
Radial, Disc | Bulk | Cera-Mite 564R | Active | 5600 pF | ±20% | 3000V (3kV) | Y5S | -25°C ~ 105°C | - | - | General Purpose | - | Through Hole | 0.787 Dia (20.00mm) | 0.976 (24.80mm) | - | 0.374 (9.50mm) |
|

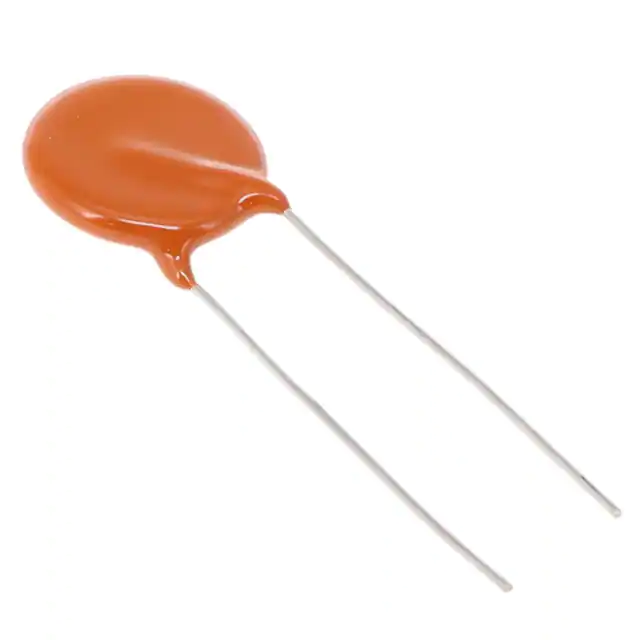

125LS22-RCAP CER 0.022UF 400VAC Y5V RDL |
3,218 | 3.03 |
RFQ |
Datasheet |
Radial, Disc | Bulk | Cera-Mite 125L | Active | 0.022 µF | ±20% | 400VAC | Y5V (F) | -30°C ~ 125°C | - | X1, Y4 | Safety | - | Through Hole | 0.791 Dia (20.10mm) | 0.917 (23.30mm) | - | 0.374 (9.50mm) |
|
|
30LVS10-RCAP CER 10000PF 400VAC Y5U RDL |
2,211 | 3.03 |
RFQ |
Datasheet |
Radial, Disc | Bulk | Cera-Mite 30LVS | Active | 10000 pF | ±20% | 400VAC | Y5U (E) | -30°C ~ 125°C | - | X1, Y2 | Safety | - | Through Hole | 0.791 Dia (20.10mm) | 0.917 (23.30mm) | - | 0.374 (9.50mm) |
|
|
564R60GAD47CAP CER 4700PF 6KV Z5U RADIAL |
2,048 | 3.23 |
RFQ |
Datasheet |
Radial, Disc | Bulk | Cera-Mite 564R | Active | 4700 pF | ±20% | 6000V (6kV) | Z5U | -25°C ~ 105°C | - | - | General Purpose | - | Through Hole | 0.787 Dia (20.00mm) | 0.976 (24.80mm) | - | 0.374 (9.50mm) |
|
|
564R75GAD25CAP CER 2500PF 7.5KV Z5U RADIAL |
2,082 | 3.38 |
RFQ |
Datasheet |
Radial, Disc | Bulk | Cera-Mite 564R | Active | 2500 pF | -20%, +80% | 7500V (7.5kV) | Z5U | -25°C ~ 105°C | - | - | General Purpose | - | Through Hole | 0.618 Dia (15.70mm) | 0.807 (20.50mm) | - | 0.500 (12.70mm) |
|
|
564R60GAD68CAP CER 6800PF 6KV RADIAL |
2,265 | 3.44 |
RFQ |
Datasheet |
Radial, Disc | Bulk | Cera-Mite 564R | Active | 6800 pF | ±20% | 6000V (6kV) | - | -25°C ~ 105°C | - | - | General Purpose | - | Through Hole | - | - | - | - |
