Audio Transformers(733)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | TurnsRatio-Primary:Secondary | Impedance-Primary(Ohms) | Impedance-Secondary(Ohms) | DCResistance(DCR)-Primary | DCResistance(DCR)-Secondary | TransformerType | FrequencyRange | FrequencyResponse | Voltage-Isolation | InsertionLoss | ReturnLoss | PowerLevel | OperatingTemperature | ApprovalAgency | MountingType | Size/Dimension | Height-Seated(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H4004FNLMDL SIN 2.5GPP 1:1 SM TU |
2,619 | 6.95 |
RFQ |
Tube | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
H4009FNLMDL SIN 2.5GPP 1:1 SMT TU |
3,019 | 6.95 |
RFQ |
Tube | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
MET-44TRANSFORMER 300CT:12 7.0MADC |
3,238 | 7.04 |
RFQ |
Datasheet |
Tube | MET | Active | 5.07:1 | 300CT | 12 | 42Ohm | 3.4Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 40mW | -20°C ~ 85°C | - | Through Hole | 0.409 L x 0.310 W (10.40mm x 7.87mm) | 0.465 (11.80mm) |
|
|
MET-36AUDIO TRANSFORMER |
3,132 | 7.12 |
RFQ |
Datasheet |
Tube | MET | Active | 13.7:1 | 600CT | 3.2 | 60Ohm | 700mOhm | - | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409 L x 0.310 W (10.40mm x 7.87mm) | 0.465 (11.80mm) |
|
|
TTC-118TRANSF TELE COUP 600:600 OHM |
3,947 | 7.18 |
RFQ |
Datasheet |
Bulk | TTC | Active | 1:1.06 | 600 | 600 | 46Ohm | 63Ohm | - | 300Hz ~ 3.5kHz | ±0.5dB | 1500VRMS @ 1 Minute | 1.2dB Max @ 1kHz | 26dB Min @ 300Hz | -45dB ~ 7dB | - | CSA-C22.2 No. 66-M1988, UL1459 | Through Hole | 0.799 L x 0.650 W (20.30mm x 16.50mm) | 0.488 (12.40mm) |
|
MET-45TRANSFORMER 10K:10KCT 1.0MADC |
2,337 | 7.19 |
RFQ |
Datasheet |
Tube | MET | Active | 1:0.5:0.5 | 10k | 10k, 2.5k/2.5k | 1.3kOhm | 735 ~ 390Ohm, 850 ~ 455Ohm | Data/Voice Coupling | 300Hz ~ 20kHz | ±3dB | 500VRMS @ 30 Seconds | - | - | 75mW | -20°C ~ 85°C | - | Through Hole | 0.409 L x 0.310 W (10.40mm x 7.87mm) | 0.465 (11.80mm) |
|
|
MET-37AUDIO TRANSFORMER |
3,844 | 7.22 |
RFQ |
Datasheet |
Tube | MET | Active | 0.918:1 | 500CT | 600 | 65Ohm | 95Ohm | - | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409 L x 0.310 W (10.40mm x 7.87mm) | 0.465 (11.80mm) |
|
|
TTC-03TRANSF TELE COUP 600CT:600CT |
2,209 | 7.29 |
RFQ |
Datasheet |
Bulk | TTC | Active | 1:1.06 | 600CT | 600CT | 46Ohm | 63Ohm | - | 300Hz ~ 3.5kHz | ±0.5dB | 1500VRMS @ 1 Minute | 1.2dB Max @ 1kHz | 26dB Min @ 300Hz | -45dB ~ 7dB | - | CSA-C22.2 No. 66-M1988, UL1459 | Through Hole | 0.799 L x 0.650 W (20.30mm x 16.50mm) | 0.488 (12.40mm) |
|
|
MET-43TRANSFORMER 120CT:3.2 10.0MADC |
3,515 | 7.36 |
RFQ |
Datasheet |
Tube | MET | Active | 6.12:1 | 120CT | 3.2 | 13Ohm | 700mOhm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 1 Minute | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409 L x 0.310 W (10.40mm x 7.87mm) | 0.465 (11.80mm) |
|
|
MET-24TRANSFORMER 1.5KCT:600 3.0MADC |
2,946 | 7.56 |
RFQ |
Datasheet |
Tube | MET | Active | 1.58:1 | 1.5kCT | 600 | 160Ohm | 95Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 1 Minute | 2dB Max @ 1kHz | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409 L x 0.310 W (10.40mm x 7.87mm) | 0.465 (11.80mm) |
|
|
MET-10AUDIO TRANSFORMER |
2,186 | 7.56 |
RFQ |
Datasheet |
Tube | MET | Active | 1.58:1 | 10kCT | 4kCT | 1kOhm | 500Ohm | - | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 40mW | -20°C ~ 85°C | - | Through Hole | 0.409 L x 0.310 W (10.40mm x 7.87mm) | 0.465 (11.80mm) |
|
|
MET-18TRANSFORMER 10KCT:4.0 1.0MADC |
2,090 | 7.58 |
RFQ |
Datasheet |
Tube | MET | Active | 1:0.02 | 10kCT | 4 | 1.2kOhm | 1Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 40mW | -20°C ~ 85°C | - | Through Hole | 0.409 L x 0.310 W (10.40mm x 7.87mm) | 0.465 (11.80mm) |
|
|
ATT-81AUDIO TRANSFORMER |
3,894 | 7.63 |
RFQ |
Bulk | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
MET-29TRANSFORMER 900CT:600 3.0MA |
3,200 | 7.70 |
RFQ |
Datasheet |
Tube | MET | Active | 1.22:1 | 900CT | 600 | 80Ohm | 95Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 30 Seconds | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409 L x 0.310 W (10.40mm x 7.87mm) | 0.465 (11.80mm) |
|

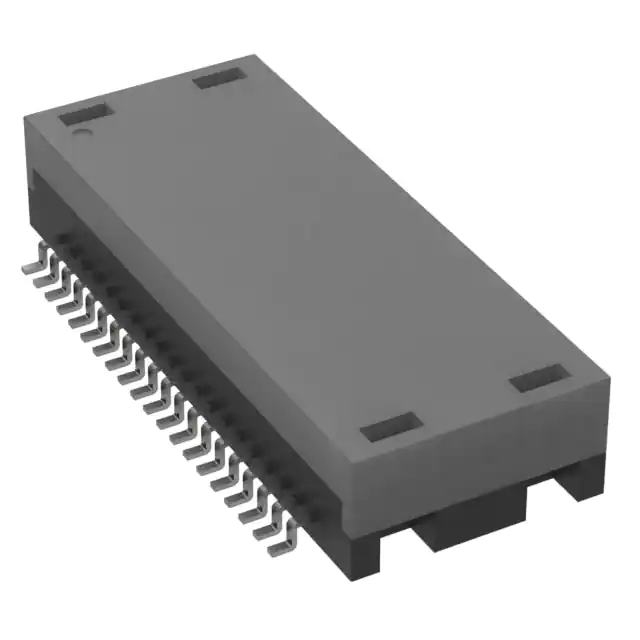

5-2337826-1DISCRETE ETHERNET MAGNETICS QUAD |
2,319 | 7.74 |
RFQ |
Datasheet |
Tube | - | Active | 1CT:1CT | - | - | - | - | - | - | - | 1500Vrms | -1dB Max @ 100kHz ~ 100MHz | -18dB Min @ 1MHz ~ 30MHz | - | -40°C ~ 105°C | - | Surface Mount | 1.232 L x 0.482 W (31.30mm x 12.25mm) | 0.285 (7.24mm) |
|
|
MET-27TRANSFORMER 1KCT:600CT 3.0MADC |
3,994 | 7.76 |
RFQ |
Datasheet |
Tube | MET | Active | 1.29:1 | 1kCT | 600CT | 95Ohm | 85Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409 L x 0.310 W (10.40mm x 7.87mm) | 0.465 (11.80mm) |
|
|
MET-26TRANSFORMER 1KCT:1KCT 3.0MADC |
3,013 | 7.77 |
RFQ |
Datasheet |
Tube | MET | Active | 1:1 | 1kCT | 1kCT | 95Ohm | 110Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409 L x 0.310 W (10.40mm x 7.87mm) | 0.465 (11.80mm) |
|
|
MET-22TRANSFORMR 2.5KCT:2.5KCT 1.0MADC |
3,083 | 8.11 |
RFQ |
Datasheet |
Tube | MET | Active | 1:1 | 2.5kCT | 2.5kCT | 280Ohm | 350Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 40mW | -20°C ~ 85°C | - | Through Hole | 0.409 L x 0.310 W (10.40mm x 7.87mm) | 0.465 (11.80mm) |
|
MET-05-TAUDIO COUPLING ENCAPSULATED TRAN |
2,374 | 8.12 |
RFQ |
Datasheet |
Bulk | MET | Active | 5:1 | 25kCT | 1kCT | 1.6kOhm | 95Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 1 Second | - | - | 30mW | -20°C ~ 85°C | - | Through Hole | 0.410 L x 0.310 W (10.41mm x 7.87mm) | 0.465 (11.80mm) |
|
|
MET-05TRANSFORMER 25KCT:1KCT 0.5MADC |
2,624 | 8.59 |
RFQ |
Datasheet |
Tube | MET | Active | 5:1 | 25kCT | 1kCT | 1.6kOhm | 95Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 30mW | -20°C ~ 85°C | - | Through Hole | 0.409 L x 0.310 W (10.40mm x 7.87mm) | 0.465 (11.80mm) |
