| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofCoils | Inductance-ConnectedInParallel | Inductance-ConnectedInSeries | Tolerance | CurrentRating-Parallel | CurrentRating-Series | CurrentSaturation-Parallel | CurrentSaturation-Series | DCResistance(DCR)-Parallel | DCResistance(DCR)-Series | Shielding | Ratings | OperatingTemperature | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRQ125-680-RINDUCT ARRAY 2 COIL 67.91UH SMD |
2,535 | 2.20 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DRQ | Active | 2 | 67.91 µH | 271.6 µH | ±20% | 2.22 A | 1.11 A | 2.7 A | 1.35 A | 101mOhm | 440mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | Nonstandard |
|
CTX02-18714-RINDUCT ARRAY 2 COIL SMD |
3,735 | 2.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OCTA-PAC® | Obsolete | 2 | - | - | - | - | - | - | - | - | - | Unshielded | - | -40°C ~ 85°C | Surface Mount | Nonstandard |
|
CTX8-1P-RINDUCT ARRAY 2 COIL 8.08UH SMD |
864 | 3.15 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Econo-Pac™ | Active | 2 | 8.08 µH | 32.33 µH | ±20% | 1.8 A | 900 mA | - | - | 52mOhm Max | 207mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | Nonstandard |
|
SDQ12-6R2-RINDUCT ARRAY 2 COIL 6.25UH SMD |
3,878 | 3.18 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SDQ | Active | 2 | 6.25 µH | 25 µH | ±20% | 1.02 A | 512 mA | 1.22 A | 608 mA | 238.7mOhm | 954.8mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | Nonstandard |
|
CTX10-1P-RINDUCT ARRAY 2 COIL 9.62UH SMD |
955 | 3.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Econo-Pac™ | Active | 2 | 9.62 µH | 38.48 µH | ±20% | 1.7 A | 850 mA | - | - | 57mOhm Max | 227mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | Nonstandard |
|
|
SDQ12-150-RINDUCT ARRAY 2 COIL 15.21UH SMD |
3,799 | 3.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SDQ | Active | 2 | 15.21 µH | 60.84 µH | ±20% | 658 mA | 329 mA | 779 mA | 390 mA | 576.6mOhm | 2.31Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | Nonstandard |
|
CTX100-2P-RINDUCT ARRAY 2 COIL 99.14UH SMD |
3,736 | 4.16 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Econo-Pac™ | Active | 2 | 99.14 µH | 396.58 µH | ±20% | 620 mA | 310 mA | - | - | 541mOhm Max | 2.162Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | Nonstandard |
|
|
CTX20-1P-RINDUCT ARRAY 2 COIL 20.46UH SMD |
3,282 | 4.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Econo-Pac™ | Active | 2 | 20.46 µH | 81.83 µH | ±20% | 1 A | 500 mA | - | - | 158mOhm Max | 634mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | Nonstandard |
|
SDQ25-100-RINDUCT ARRAY 2 COIL 9.8UH SMD |
373 | 4.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SDQ | Active | 2 | 9.8 µH | 39.2 µH | ±20% | 1.53 A | 765 mA | 1.29 A | 643 mA | 106.8mOhm | 427.3mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | Nonstandard |
|
CTX10-2A-RINDUCT ARRAY 2 COIL 11.38UH SMD |
797 | 5.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OCTA-PAC® PLUS | Obsolete | 2 | 11.38 µH | 45.5 µH | ±25% | 2.89 A | 1.45 A | 3.13 A | 1.56 A | 47mOhm Max | 188mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | Nonstandard |
|
CTX5-4A-RINDUCT ARRAY 2 COIL 4.26UH SMD |
205 | 5.79 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OCTA-PAC® PLUS | Active | 2 | 4.26 µH | 17.05 µH | ±25% | 7.21 A | 3.61 A | 6.43 A | 3.21 A | 8.5mOhm Max | 33.9mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | Nonstandard |
|
|
CTX50-3P-RINDUCT ARRAY 2 COIL 50.02UH SMD |
632 | 5.94 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Econo-Pac™ | Active | 2 | 50.02 µH | 200.1 µH | ±20% | 920 mA | 460 mA | - | - | 277mOhm Max | 1.108Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | Nonstandard |
|
CTX20-4A-RINDUCT ARRAY 2 COIL 19.58UH SMD |
319 | 5.97 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OCTA-PAC® PLUS | Active | 2 | 19.58 µH | 78.3 µH | ±25% | 3.62 A | 1.81 A | 3 A | 1.5 A | 34mOhm Max | 135mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | Nonstandard |
|
CTX100-1-RINDUCT ARRAY 2 COIL 99.23UH SMD |
326 | 5.98 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OCTA-PAC® | Active | 2 | 99.23 µH | 396.9 µH | ±20% | 440 mA | 220 mA | - | - | 784mOhm Max | 3.137Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | Nonstandard |
|

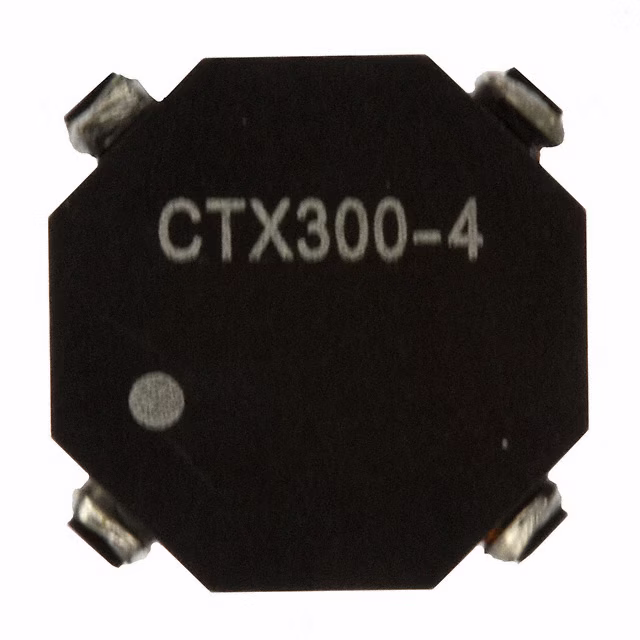

CTX300-4-RINDUCT ARRAY 2 COIL 298.12UH SMD |
864 | 6.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OCTA-PAC® | Active | 2 | 298.12 µH | 1.2 mH | ±20% | 620 mA | 310 mA | - | - | 672mOhm Max | 2.687Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | Nonstandard |
|
CTX10-3-RINDUCT ARRAY 2 COIL 9.6UH SMD |
723 | 6.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OCTA-PAC® | Active | 2 | 9.6 µH | 38.4 µH | ±20% | 2.7 A | 1.35 A | - | - | 28mOhm Max | 111mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | Nonstandard |
|
DRAQ127-470-RINDUCT ARRAY 2 COIL 47.9UH SMD |
147 | 1.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DRAQ127 | Active | 2 | 47.9 µH | 192 µH | ±25% | 2.62 A | 1.31 A | 4.07 A | 2.03 A | 110mOhm Max | 440mOhm Max | Shielded | AEC-Q200 | -40°C ~ 165°C | Surface Mount | Nonstandard |
|
DRQ73-101-RINDUCT ARRAY 2 COIL 101.4UH SMD |
961 | 1.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DRQ | Active | 2 | 101.4 µH | 405.6 µH | ±20% | 730 mA | 367 mA | 790 mA | 390 mA | 527mOhm | 2.11Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | Nonstandard |
|
DRQ125-R47-RINDUCT ARRAY 2 COIL 456NH SMD |
513 | 2.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DRQ | Active | 2 | 456 nH | 1.824 µH | ±20% | 17.6 A | 8.8 A | 33 A | 16.5 A | 1.8mOhm | 7.8mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | Nonstandard |
|
DRQ125-4R7-RINDUCT ARRAY 2 COIL 5.274UH SMD |
324 | 2.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DRQ | Active | 2 | 5.274 µH | 21.1 µH | ±20% | 7.18 A | 3.59 A | 9.71 A | 4.86 A | 10.5mOhm | 42mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | Nonstandard |
