| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQR2V822MSEGBBCAP ALUM 8200UF 20% 350V SCREW |
3,060 | 66.66 |
RFQ |
Datasheet |
Bulk | LQR | Active | 8200 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 27.1 A @ 120 Hz | 37.94 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 7.598 (193.00mm) | - | Chassis Mount |
|
|
LQR2V822MSEGBNCAP ALUM 8200UF 20% 350V SCREW |
2,464 | 66.66 |
RFQ |
Datasheet |
Bulk | LQR | Active | 8200 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 27.1 A @ 120 Hz | 37.94 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 7.598 (193.00mm) | - | Chassis Mount |
|
|
LNU2G392MSEGBNCAP ALUM 3900UF 20% 400V SCREW |
2,145 | 66.85 |
RFQ |
Datasheet |
Bulk | LNU | Active | 3900 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 14.6 A @ 120 Hz | 20.44 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 4.055 (103.00mm) | - | Chassis Mount |
|
|
LNU2G392MTEGCAP ALUM 3900UF 20% 400V SCREW |
3,785 | 66.85 |
RFQ |
Datasheet |
Bulk | LNU | Active | 3900 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 14.6 A @ 120 Hz | 20.44 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 4.055 (103.00mm) | - | Chassis Mount |
|
|
LNX2V682MSEGBBCAP ALUM 6800UF 20% 350V SCREW |
3,952 | 66.89 |
RFQ |
Datasheet |
Bulk | LNX | Active | 6800 µF | ±20% | 350 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 16.3 A @ 120 Hz | 22.82 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 6.811 (173.00mm) | - | Chassis Mount |
|
|
LNX2V682MSEGBNCAP ALUM 6800UF 20% 350V SCREW |
2,513 | 66.89 |
RFQ |
Datasheet |
Bulk | LNX | Active | 6800 µF | ±20% | 350 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 16.3 A @ 120 Hz | 22.82 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 6.811 (173.00mm) | - | Chassis Mount |
|

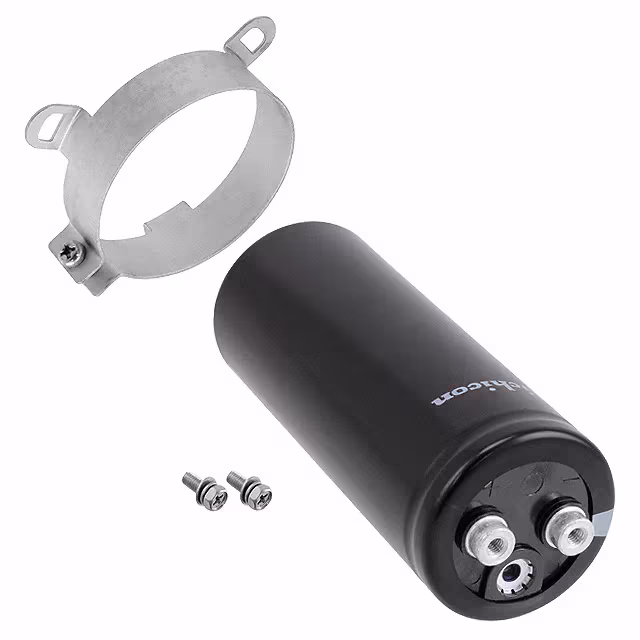

LNK2H152MSEFCAP ALUM 1500UF 20% 500V SCREW |
2,707 | 49.90 |
RFQ |
Datasheet |
Bulk | LNK | Active | 1500 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.3 A @ 120 Hz | 10.22 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 5.118 (130.00mm) | - | Chassis Mount |
|
|
LNX2G562MSEGBBCAP ALUM 5600UF 20% 400V SCREW |
3,996 | 67.02 |
RFQ |
Datasheet |
Bulk | LNX | Active | 5600 µF | ±20% | 400 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 14.7 A @ 120 Hz | 20.58 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 7.598 (193.00mm) | - | Chassis Mount |
|
|
LNX2G562MSEGBNCAP ALUM 5600UF 20% 400V SCREW |
3,861 | 67.02 |
RFQ |
Datasheet |
Bulk | LNX | Active | 5600 µF | ±20% | 400 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 14.7 A @ 120 Hz | 20.58 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 7.598 (193.00mm) | - | Chassis Mount |
|
|
LNX2V682MSEHBBCAP ALUM 6800UF 20% 350V SCREW |
3,314 | 67.05 |
RFQ |
Datasheet |
Bulk | LNX | Active | 6800 µF | ±20% | 350 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 16 A @ 120 Hz | 22.4 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 5.236 (133.00mm) | - | Chassis Mount |
|
|
LNX2V682MSEHBNCAP ALUM 6800UF 20% 350V SCREW |
2,988 | 67.05 |
RFQ |
Datasheet |
Bulk | LNX | Active | 6800 µF | ±20% | 350 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 16 A @ 120 Hz | 22.4 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 5.236 (133.00mm) | - | Chassis Mount |
|
|
LNR1K104MSEBCAP ALUM 100000UF 20% 80V SCREW |
3,252 | 68.09 |
RFQ |
Datasheet |
Bulk | LNR | Active | 100000 µF | ±20% | 80 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 21.3 A @ 120 Hz | 24.495 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 5.630 (143.00mm) | - | Chassis Mount |
|
|
LNR1K104MSENCAP ALUM 100000UF 20% 80V SCREW |
2,995 | 68.09 |
RFQ |
Datasheet |
Bulk | LNR | Active | 100000 µF | ±20% | 80 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 21.3 A @ 120 Hz | 24.495 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 5.630 (143.00mm) | - | Chassis Mount |
|
|
LNY2W562MSEGBBCAP ALUM 5600UF 20% 450V SCREW |
3,218 | 68.10 |
RFQ |
Datasheet |
Bulk | LNY | Active | 5600 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17 A @ 120 Hz | 23.8 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 6.614 (168.00mm) | - | Chassis Mount |
|
|
LNY2W562MSEGBNCAP ALUM 5600UF 20% 450V SCREW |
3,105 | 68.10 |
RFQ |
Datasheet |
Bulk | LNY | Active | 5600 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17 A @ 120 Hz | 23.8 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 6.614 (168.00mm) | - | Chassis Mount |
|
|
LNT1V224MSEBCAP ALUM 220000UF 20% 35V SCREW |
3,147 | 70.44 |
RFQ |
Datasheet |
Bulk | LNT | Active | 220000 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17.4 A @ 120 Hz | 26.1 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 5.630 (143.00mm) | - | Chassis Mount |
|
|
LNR1V334MSEBCAP ALUM 330000UF 20% 35V SCREW |
3,323 | 67.22 |
RFQ |
Datasheet |
Bulk | LNR | Active | 330000 µF | ±20% | 35 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24.8 A @ 120 Hz | 28.52 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 5.630 (143.00mm) | - | Chassis Mount |
|
|
LNR1V334MSENCAP ALUM 330000UF 20% 35V SCREW |
3,627 | 67.22 |
RFQ |
Datasheet |
Bulk | LNR | Active | 330000 µF | ±20% | 35 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24.8 A @ 120 Hz | 28.52 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 5.630 (143.00mm) | - | Chassis Mount |
|
|
LNUN7182MSEGBBCAP ALUM 1800UF 20% 525V SCREW |
3,315 | 67.37 |
RFQ |
Datasheet |
Bulk | LNU | Active | 1800 µF | ±20% | 525 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 8 A @ 120 Hz | 11.2 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 4.252 (108.00mm) | - | Chassis Mount |
|
|
LNUN7182MSEGBNCAP ALUM 1800UF 20% 525V SCREW |
3,907 | 67.37 |
RFQ |
Datasheet |
Bulk | LNU | Active | 1800 µF | ±20% | 525 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 8 A @ 120 Hz | 11.2 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 4.252 (108.00mm) | - | Chassis Mount |
