| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UHW1H821MHD6TNCAP ALUM 820UF 20% 50V RADIAL |
2,638 | 1.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | UHW | Not For New Designs | 820 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.842 A @ 120 Hz | 3.07 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
UHW1A472MHD6TNCAP ALUM 4700UF 20% 10V RADIAL |
3,820 | 1.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | UHW | Not For New Designs | 4700 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | 3.575 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
UPJ0J332MHD6CAP ALUM 3300UF 20% 6.3V RADIAL |
3,185 | 0.75 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 3300 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.44 A @ 120 Hz | 1.6 A @ 10 kHz | 65 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
UPA1V122MHDCAP ALUM 1200UF 20% 35V RADIAL |
2,781 | 0.75 |
RFQ |
Datasheet |
Bulk | UPA | Active | 1200 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.938 A @ 120 Hz | 2.28 A @ 100 kHz | 22 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
URS2C680MHDCAP ALUM 68UF 20% 160V RADIAL |
2,289 | 0.75 |
RFQ |
Datasheet |
Bulk | URS | Active | 68 µF | ±20% | 160 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 490 mA @ 120 Hz | 784 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
UEP1E331MHD1TOCAP ALUM 330UF 20% 25V RADIAL |
2,058 | 0.75 |
RFQ |
Datasheet |
Tape & Reel (TR) | UEP | Not For New Designs | 330 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Bi-Polar | - | General Purpose | - | - | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
UEP1V221MHD1TOCAP ALUM 220UF 20% 35V RADIAL |
3,993 | 0.75 |
RFQ |
Datasheet |
Tape & Reel (TR) | UEP | Not For New Designs | 220 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Bi-Polar | - | General Purpose | 290 mA @ 120 Hz | 435 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
UHD1C272MHD6CAP ALUM 2700UF 20% 16V RADIAL |
2,979 | 0.78 |
RFQ |
Datasheet |
Bulk | UHD | Not For New Designs | 2700 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.512 A @ 120 Hz | 3.14 A @ 100 kHz | 18 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
UHD1C272MHD6TNCAP ALUM 2700UF 20% 16V RADIAL |
3,518 | 0.78 |
RFQ |
Datasheet |
Tape & Reel (TR) | UHD | Not For New Designs | 2700 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.512 A @ 120 Hz | 3.14 A @ 100 kHz | 18 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
UEP2A330MHD1TOCAP ALUM 33UF 20% 100V RADIAL |
3,718 | 0.75 |
RFQ |
Datasheet |
Tape & Reel (TR) | UEP | Not For New Designs | 33 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Bi-Polar | - | General Purpose | 140 mA @ 120 Hz | 280 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
UFG1C222MHM1TNCAP ALUM 2200UF 20% 16V RADIAL |
3,401 | 1.09 |
RFQ |
Datasheet |
Tape & Box (TB) | UFG | Not For New Designs | 2200 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.29 A @ 120 Hz | 1.4835 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
UBY1E302MHLCAP ALUM 3000UF 20% 25V RADIAL |
3,497 | 1.10 |
RFQ |
Datasheet |
Bulk | UBY | Active | 3000 µF | ±20% | 25 V | 33mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | Automotive | 2.61 A @ 120 Hz | 3.48 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.043 (26.50mm) | - | Through Hole |
|
URZ0J472MHDCAP ALUM 4700UF 20% 6.3V RADIAL |
3,567 | 0.76 |
RFQ |
Datasheet |
Bulk | URZ | Active | 4700 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.01 A @ 120 Hz | 1.1615 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
UPJ1E152MHD6CAP ALUM 1500UF 20% 25V RADIAL |
3,341 | 0.76 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 1500 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.59 A @ 120 Hz | 1.77 A @ 10 kHz | 50 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.846 (21.50mm) | - | Through Hole |
|

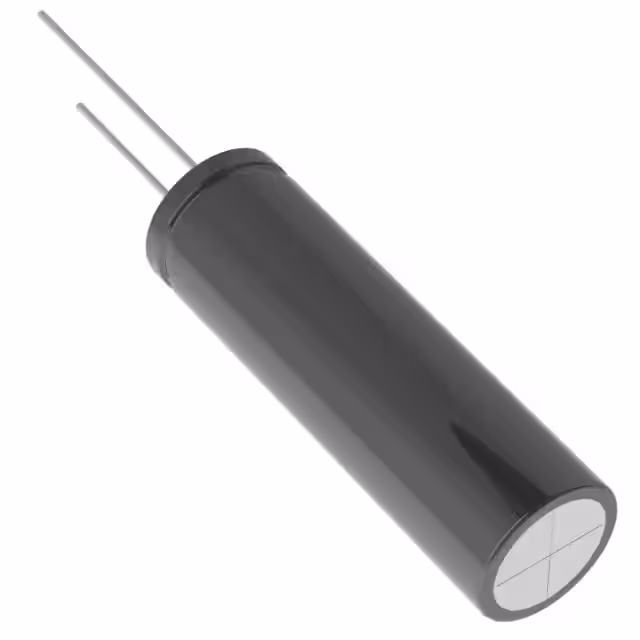

UAQ2D470MPDCAP ALUM 47UF 20% 200V RADIAL |
2,005 | 0.76 |
RFQ |
Datasheet |
Bulk | UAQ | Active | 47 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 195 mA @ 120 Hz | 312 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
UBX2V4R7MPLCAP ALUM 4.7UF 20% 350V RADIAL |
2,515 | 0.76 |
RFQ |
Datasheet |
Bulk | UBX | Active | 4.7 µF | ±20% | 350 V | - | 1000 Hrs @ 150°C | -25°C ~ 150°C | Polar | - | Automotive | 77 mA @ 120 Hz | 138.6 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
UPM1C152MHD6CAP ALUM 1500UF 20% 16V RADIAL |
3,833 | 0.76 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 1500 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.56 A @ 10 kHz | 41 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
|
UHW1H122MHD1TNCAP ALUM 1200UF 20% 50V RADIAL |
3,370 | 1.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | UHW | Not For New Designs | 1200 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.962 A @ 120 Hz | 3.27 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
UHW0J682MHD6TNCAP ALUM 6800UF 20% 6.3V RADIAL |
3,351 | 1.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | UHW | Not For New Designs | 6800 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.039 A @ 120 Hz | 3.575 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
UHW1A562MHD6TNCAP ALUM 5600UF 20% 10V RADIAL |
2,646 | 1.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | UHW | Not For New Designs | 5600 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.2385 A @ 120 Hz | 3.81 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
