| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UHD1H561MHD1TOCAP ALUM 560UF 20% 50V RADIAL |
3,192 | 0.65 |
RFQ |
Datasheet |
Tape & Reel (TR) | UHD | Not For New Designs | 560 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.808 A @ 120 Hz | 2.41 A @ 100 kHz | 23 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
UKZ2A101MHM1TNCAP ALUM 100UF 20% 100V RADIAL |
2,568 | 0.65 |
RFQ |
Datasheet |
Tape & Box (TB) | UKZ | Active | 100 µF | ±20% | 100 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | - | - | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
UBT2W100MHD8TOCAP ALUM 10UF 20% 450V RADIAL |
3,401 | 0.89 |
RFQ |
Datasheet |
Tape & Reel (TR) | UBT | Active | 10 µF | ±20% | 450 V | - | 2000 Hrs @ 125°C | -25°C ~ 125°C | Polar | - | Automotive | 86 mA @ 120 Hz | 154.8 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
UAQ2D330MHD6TOCAP ALUM 33UF 20% 200V RADIAL |
2,838 | 0.65 |
RFQ |
Datasheet |
Tape & Box (TB) | UAQ | Active | 33 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 160 mA @ 120 Hz | 256 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
UBY1E202MHLCAP ALUM 2000UF 20% 25V RADIAL |
2,629 | 0.89 |
RFQ |
Datasheet |
Bulk | UBY | Active | 2000 µF | ±20% | 25 V | 42mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | Automotive | 1.656 A @ 120 Hz | 2.76 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.846 (21.50mm) | - | Through Hole |
|
UKL1C152MHDCAP ALUM 1500UF 20% 16V RADIAL |
2,634 | 0.65 |
RFQ |
Datasheet |
Bulk | UKL | Not For New Designs | 1500 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.15 A @ 120 Hz | 1.3225 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
UKL1H331MHDCAP ALUM 330UF 20% 50V RADIAL |
3,283 | 0.65 |
RFQ |
Datasheet |
Bulk | UKL | Not For New Designs | 330 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 600 mA @ 120 Hz | 900 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.846 (21.50mm) | - | Through Hole |
|
|
UKL1J221MHDCAP ALUM 220UF 20% 63V RADIAL |
2,512 | 0.65 |
RFQ |
Datasheet |
Bulk | UKL | Not For New Designs | 220 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 550 mA @ 120 Hz | 825 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.846 (21.50mm) | - | Through Hole |
|
|
UBT1J471MHD8CAP ALUM 470UF 20% 63V RADIAL |
2,534 | 0.89 |
RFQ |
Datasheet |
Bulk | UBT | Active | 470 µF | ±20% | 63 V | - | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 730 mA @ 120 Hz | 1.46 A @ 100 kHz | 97 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.319 (33.50mm) | - | Through Hole |
|
UPM1E122MHDCAP ALUM 1200UF 20% 25V RADIAL |
3,071 | 0.65 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 1200 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 1.76 A @ 10 kHz | 32 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
UPA1A222MHD3CAP ALUM 2200UF 20% 10V RADIAL |
2,522 | 0.65 |
RFQ |
Datasheet |
Bulk | UPA | Active | 2200 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.607 A @ 120 Hz | 1.89 A @ 100 kHz | 29 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
UPA1A182MPD6CAP ALUM 1800UF 20% 10V RADIAL |
3,870 | 0.66 |
RFQ |
Datasheet |
Bulk | UPA | Active | 1800 µF | ±20% | 10 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.428 A @ 120 Hz | 1.68 A @ 100 kHz | 33 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UBX1C331MPLCAP ALUM 330UF 20% 16V RADIAL |
2,259 | 0.66 |
RFQ |
Datasheet |
Bulk | UBX | Active | 330 µF | ±20% | 16 V | - | 1000 Hrs @ 150°C | -55°C ~ 150°C | Polar | - | Automotive | 200 mA @ 120 Hz | 400 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
URZ1J101MPDCAP ALUM 100UF 20% 63V RADIAL |
2,527 | 0.66 |
RFQ |
Datasheet |
Bulk | URZ | Obsolete | 100 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 215 mA @ 120 Hz | 322.5 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | - | Through Hole |
|
UHV1V122MHD1TOCAP ALUM 1200UF 20% 35V RADIAL |
2,546 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR) | UHV | Not For New Designs | 1200 µF | ±20% | 35 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.914 A @ 120 Hz | 3.19 A @ 100 kHz | 14 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
UHW1E222MHD1TOCAP ALUM 2200UF 20% 25V RADIAL |
2,246 | 0.93 |
RFQ |
Datasheet |
Tape & Reel (TR) | UHW | Not For New Designs | 2200 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 3.2 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
UHE0J682MHD3CAP ALUM 6800UF 20% 6.3V RADIAL |
3,071 | 0.94 |
RFQ |
Datasheet |
Bulk | UHE | Not For New Designs | 6800 µF | ±20% | 6.3 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.288 A @ 120 Hz | 2.86 A @ 100 kHz | 26 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.787 (20.00mm) | - | Through Hole |
|
UPJ1A182MHD6CAP ALUM 1800UF 20% 10V RADIAL |
3,064 | 0.68 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 1800 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.27 A @ 120 Hz | 1.42 A @ 10 kHz | 72 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
|
UBT2V220MHD8CAP ALUM 22UF 20% 350V RADIAL |
2,567 | 0.96 |
RFQ |
Datasheet |
Bulk | UBT | Active | 22 µF | ±20% | 350 V | - | 2000 Hrs @ 125°C | -25°C ~ 125°C | Polar | - | Automotive | 139 mA @ 120 Hz | 250.2 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|

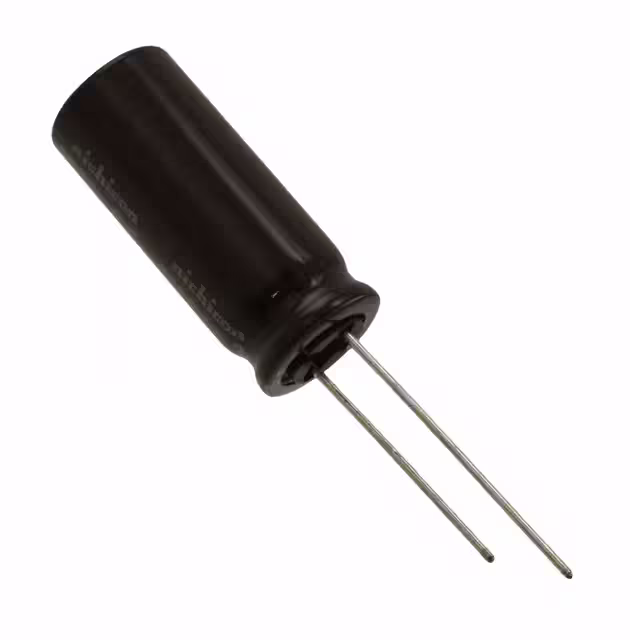

UPJ0J392MHDCAP ALUM 3900UF 20% 6.3V RADIAL |
2,727 | 0.66 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 3900 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.71 A @ 120 Hz | 1.91 A @ 10 kHz | 37 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.299 (33.00mm) | - | Through Hole |
