| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UHE1V272MHD6CAP ALUM 2700UF 20% 35V RADIAL |
5,887 | 2.99 |
RFQ |
Datasheet |
Bulk | UHE | Not For New Designs | 2700 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.336 A @ 120 Hz | 4.17 A @ 100 kHz | 15 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.240 (31.50mm) | - | Through Hole |
|
|
UHE1V332MHDCAP ALUM 3300UF 20% 35V RADIAL |
3,959 | 3.02 |
RFQ |
Datasheet |
Bulk | UHE | Not For New Designs | 3300 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.264 A @ 120 Hz | 4.08 A @ 100 kHz | 13 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.575 (40.00mm) | - | Through Hole |
|
UPW2A102MHDCAP ALUM 1000UF 20% 100V RADIAL |
5,409 | 3.56 |
RFQ |
Datasheet |
Bulk | UPW | Not For New Designs | 1000 µF | ±20% | 100 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.14 A @ 120 Hz | 1.52 A @ 100 kHz | 47 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.575 (40.00mm) | - | Through Hole |
|

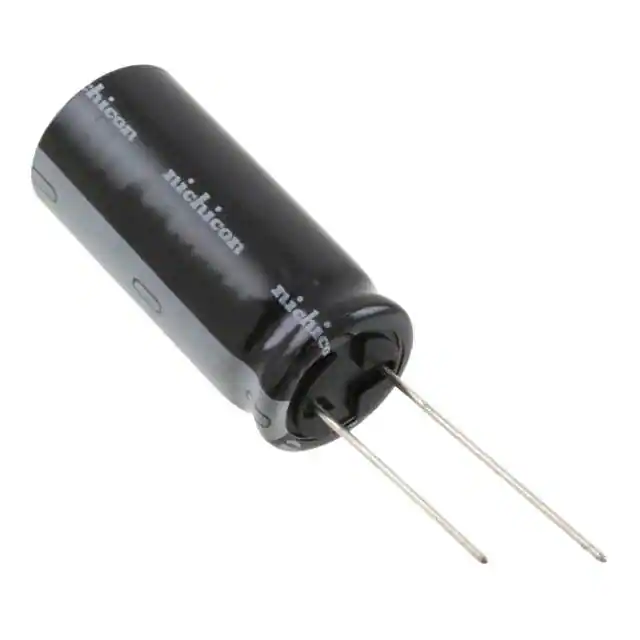

UHW1H222MHDCAP ALUM 2200UF 20% 50V RADIAL |
3,964 | 3.70 |
RFQ |
Datasheet |
Bulk | UHW | Not For New Designs | 2200 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.573 A @ 120 Hz | 3.43 A @ 100 kHz | 19 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
LLS2W391MELCCAP ALUM 390UF 20% 450V SNAP |
9,607 | 8.11 |
RFQ |
Datasheet |
Bulk | LLS | Active | 390 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.38 A @ 120 Hz | 3.4034 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.575 (40.00mm) | - | Through Hole |
|
UVZ1J222MHDCAP ALUM 2200UF 20% 63V RADIAL |
3,720 | 3.73 |
RFQ |
Datasheet |
Bulk | UVZ | Not For New Designs | 2200 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.65 A @ 120 Hz | 1.8975 A @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
LGU2D471MELZCAP ALUM 470UF 20% 200V SNAP |
12,402 | 3.81 |
RFQ |
Datasheet |
Bulk | LGU | Active | 470 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.25 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.378 (35.00mm) | - | Through Hole |
|
LLG2G221MELA30CAP ALUM 220UF 20% 400V SNAP |
2,489 | 5.08 |
RFQ |
Datasheet |
Bulk | LLG | Active | 220 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 2.002 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
UVR1V101MED1TDCAP ALUM 100UF 20% 35V RADIAL |
12,096 | 0.38 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVR | Not For New Designs | 100 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 210 mA @ 120 Hz | 315 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
UWT1E4R7MCL1GBCAP ALUM 4.7UF 20% 25V SMD |
13,570 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWT | Active | 4.7 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 13 mA @ 120 Hz | 19.5 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.213 (5.40mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
UWX1C220MCL1GBCAP ALUM 22UF 20% 16V SMD |
2,553 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWX | Not For New Designs | 22 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 37 mA @ 120 Hz | 55.5 mA @ 10 kHz | - | - | 0.197 Dia (5.00mm) | 0.213 (5.40mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
LGU2D102MELBCAP ALUM 1000UF 20% 200V SNAP |
21,339 | 5.34 |
RFQ |
Datasheet |
Bulk | LGU | Active | 1000 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.45 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.378 (35.00mm) | - | Through Hole |
|
LGW2G101MELZ25CAP ALUM 100UF 20% 400V SNAP |
218 | 3.67 |
RFQ |
Datasheet |
Bulk | LGW | Active | 100 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.02 A @ 120 Hz | 1.4586 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
UCY2V221MHDCAP ALUM 220UF 20% 350V RADIAL |
756 | 5.86 |
RFQ |
Datasheet |
Bulk | UCY | Active | 220 µF | ±20% | 350 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 2.6 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.870 (47.50mm) | - | Through Hole |
|
UVR1E223MRDCAP ALUM 22000UF 20% 25V RADIAL |
9,103 | 6.05 |
RFQ |
Datasheet |
Bulk | UVR | Not For New Designs | 22000 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.5 A @ 120 Hz | 5.175 A @ 10 kHz | - | 0.492 (12.50mm) | 0.984 Dia (25.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
LLS2G471MELCCAP ALUM 470UF 20% 400V SNAP |
2,832 | 6.59 |
RFQ |
Datasheet |
Bulk | LLS | Active | 470 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.51 A @ 120 Hz | 3.5893 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.378 (35.00mm) | - | Through Hole |
|
LGU2G391MELCCAP ALUM 390UF 20% 400V SNAP |
2,264 | 6.90 |
RFQ |
Datasheet |
Bulk | LGU | Active | 390 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 120 Hz | 2.288 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.378 (35.00mm) | - | Through Hole |
|
UHW2A102MHDCAP ALUM 1000UF 20% 100V RADIAL |
297 | 4.81 |
RFQ |
Datasheet |
Bulk | UHW | Not For New Designs | 1000 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.316 A @ 120 Hz | 3.86 A @ 100 kHz | 27 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
UCY2G121MHDCAP ALUM 120UF 20% 400V RADIAL |
6,060 | 4.89 |
RFQ |
Datasheet |
Bulk | UCY | Active | 120 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 940 mA @ 120 Hz | 1.88 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
LGN2G221MELA35CAP ALUM 220UF 20% 400V SNAP |
600 | 4.95 |
RFQ |
Datasheet |
Bulk | LGN | Active | 220 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.573 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.457 (37.00mm) | - | Through Hole |
