| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UUJ1E222MNQ1MSCAP ALUM 2200UF 20% 25V SMD |
322 | 3.25 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUJ | Not For New Designs | 2200 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.05 A @ 120 Hz | - | - | - | 0.709 Dia (18.00mm) | 0.886 (22.50mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|

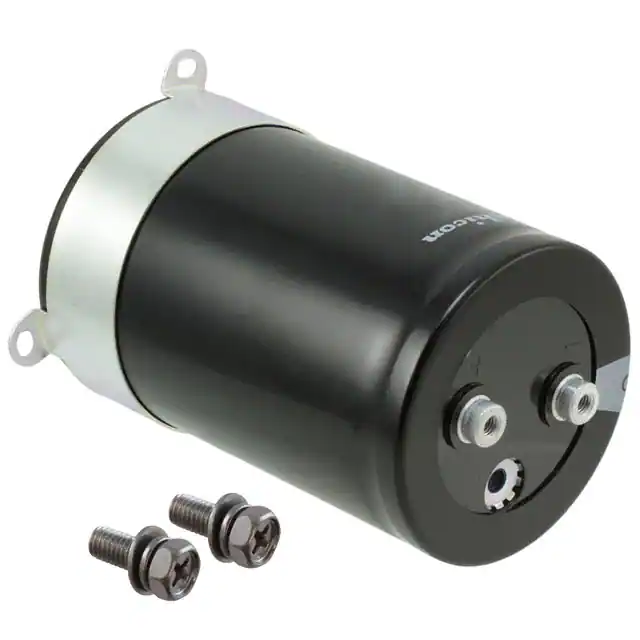

LNT2V222MSEFCAP ALUM 2200UF 20% 350V SCREW |
3,095 | 64.07 |
RFQ |
Datasheet |
Bulk | LNT | Active | 2200 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 11 A @ 120 Hz | 15.4 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 4.843 (123.00mm) | - | Chassis Mount |
|

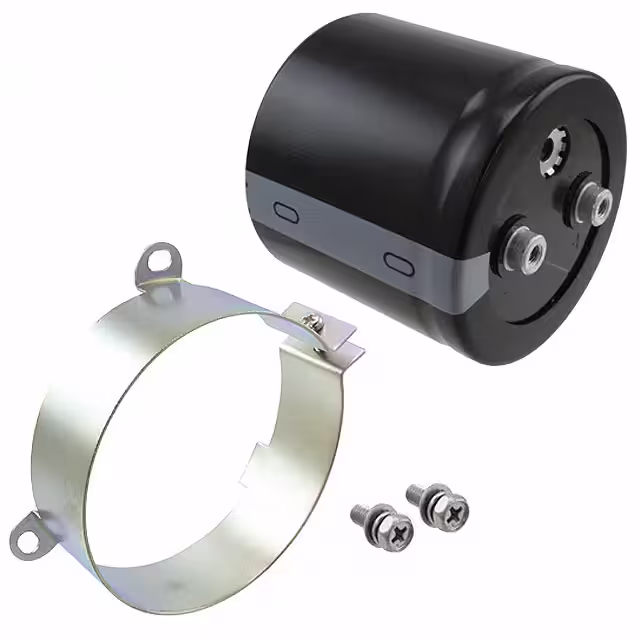

LNC2V392MSEHCAP ALUM 3900UF 20% 350V SCREW |
2,113 | 65.27 |
RFQ |
Datasheet |
Bulk | LNC | Active | 3900 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.3 A @ 120 Hz | 20.02 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 2.874 (73.00mm) | - | Chassis Mount |
|

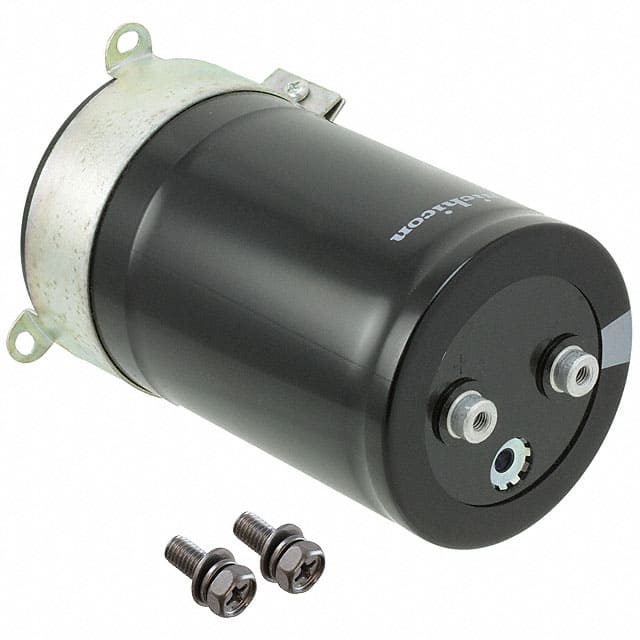

LNT1A224MSECAP ALUM 220000UF 20% 10V SCREW |
3,629 | 67.69 |
RFQ |
Datasheet |
Bulk | LNT | Active | 220000 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 13.2 A @ 120 Hz | 15.18 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 4.843 (123.00mm) | - | Chassis Mount |
|
UPW0J822MHDCAP ALUM 8200UF 20% 6.3V RADIAL |
201 | 2.37 |
RFQ |
Datasheet |
Bulk | UPW | Not For New Designs | 8200 µF | ±20% | 6.3 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.559 A @ 120 Hz | 3.01 A @ 100 kHz | 18 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.240 (31.50mm) | - | Through Hole |
|
LNC2W332MSEGCAP ALUM 3300UF 20% 450V SCREW |
3,582 | 68.13 |
RFQ |
Datasheet |
Bulk | LNC | Active | 3300 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.6 A @ 120 Hz | 21.84 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 4.646 (118.00mm) | - | Chassis Mount |
|
|
LNC2V392MSEGCAP ALUM 3900UF 20% 350V SCREW |
3,652 | 68.38 |
RFQ |
Datasheet |
Bulk | LNC | Active | 3900 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.9 A @ 120 Hz | 20.86 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 3.465 (88.00mm) | - | Chassis Mount |
|
UHW1A472MHDCAP ALUM 4700UF 20% 10V RADIAL |
190 | 2.38 |
RFQ |
Datasheet |
Bulk | UHW | Not For New Designs | 4700 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.036 A @ 120 Hz | 3.795 A @ 100 kHz | 12 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.319 (33.50mm) | - | Through Hole |
|

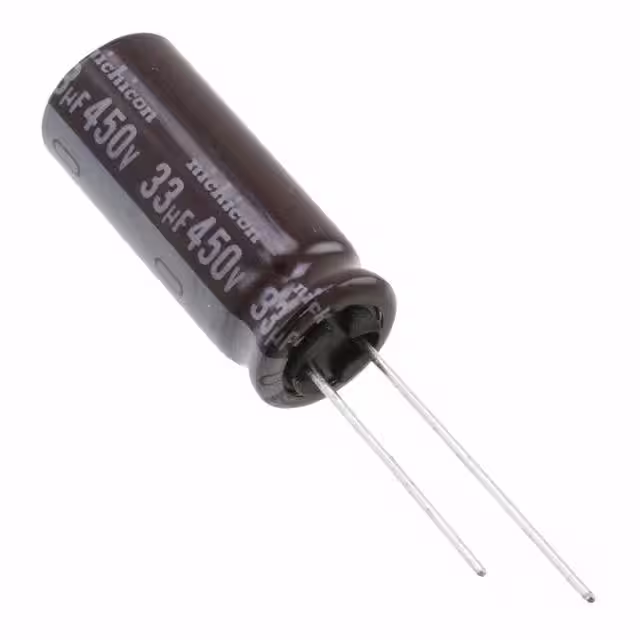

UCY2W330MHDCAP ALUM 33UF 20% 450V RADIAL |
183 | 2.39 |
RFQ |
Datasheet |
Bulk | UCY | Active | 33 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 400 mA @ 120 Hz | 800 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.299 (33.00mm) | - | Through Hole |
|
|
UHW0J682MHDCAP ALUM 6800UF 20% 6.3V RADIAL |
259 | 2.40 |
RFQ |
Datasheet |
Bulk | UHW | Not For New Designs | 6800 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.036 A @ 120 Hz | 3.795 A @ 100 kHz | 11 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.319 (33.50mm) | - | Through Hole |
|
|
LNC2H182MSEGCAP ALUM 1800UF 20% 500V SCREW |
3,028 | 73.01 |
RFQ |
Datasheet |
Bulk | LNC | Active | 1800 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.7 A @ 120 Hz | 17.78 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 3.661 (93.00mm) | - | Chassis Mount |
|

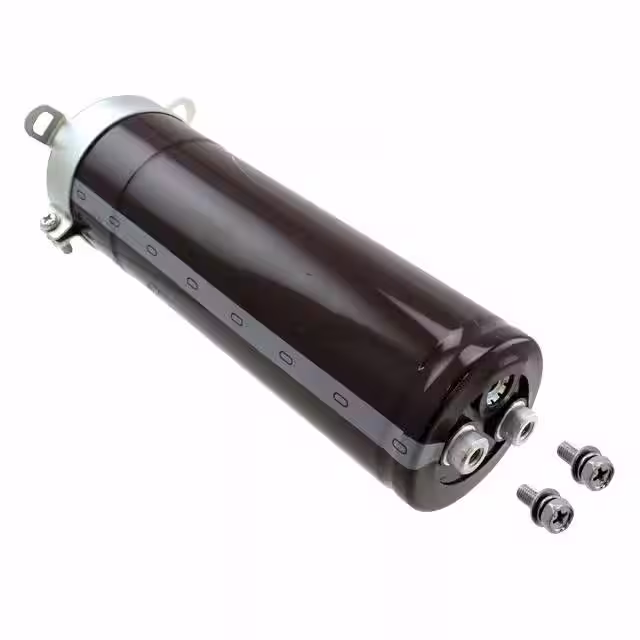

LQR2V472MSEFCAP ALUM 4700UF 20% 350V SCREW |
2,864 | 73.07 |
RFQ |
Datasheet |
Bulk | LQR | Active | 4700 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 17 A @ 120 Hz | 23.8 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 6.811 (173.00mm) | - | Chassis Mount |
|
UHW1A562MHD6CAP ALUM 5600UF 20% 10V RADIAL |
3,642 | 2.45 |
RFQ |
Datasheet |
Bulk | UHW | Not For New Designs | 5600 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.048 A @ 120 Hz | 3.81 A @ 100 kHz | 13 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|

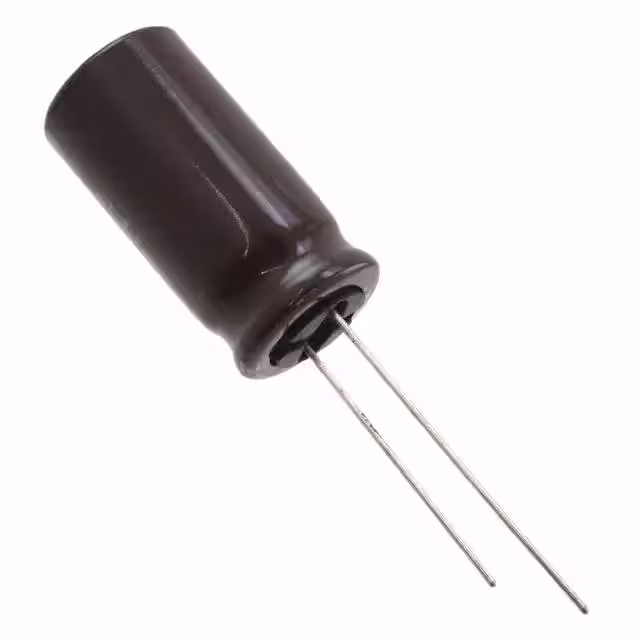

UAS2G270MHDCAP ALUM 27UF 20% 400V RADIAL |
2,381 | 2.46 |
RFQ |
Datasheet |
Bulk | UAS | Active | 27 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 200 mA @ 120 Hz | 320 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|

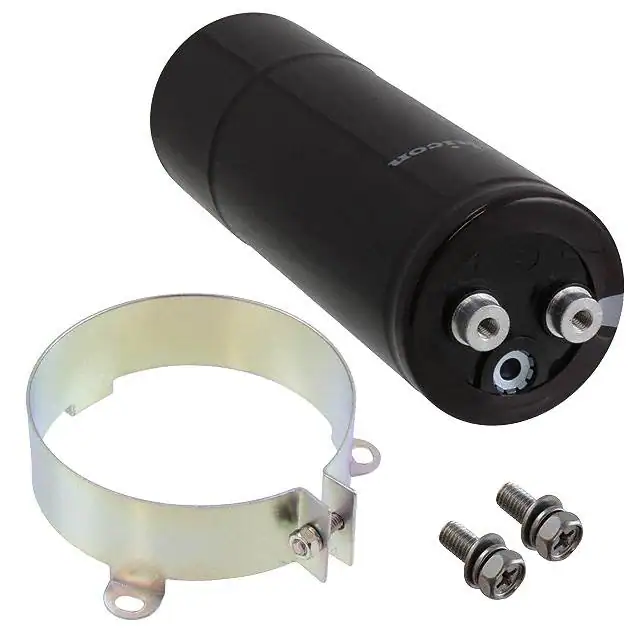

LQR2G332MSEFCAP ALUM 3300UF 20% 400V SCREW |
3,759 | 75.59 |
RFQ |
Datasheet |
Bulk | LQR | Active | 3300 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 13.7 A @ 120 Hz | 19.18 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 6.024 (153.00mm) | - | Chassis Mount |
|
LNT1A334MSECAP ALUM 330000UF 20% 10V SCREW |
3,074 | 76.00 |
RFQ |
Datasheet |
Bulk | LNT | Active | 330000 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15.8 A @ 120 Hz | 18.17 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 4.843 (123.00mm) | - | Chassis Mount |
|
LQR2V562MSEGCAP ALUM 5600UF 20% 350V SCREW |
3,126 | 76.09 |
RFQ |
Datasheet |
Bulk | LQR | Active | 5600 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 20.4 A @ 120 Hz | 28.56 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 6.024 (153.00mm) | - | Chassis Mount |
|
UCY2H150MHD3CAP ALUM 15UF 20% 500V RADIAL |
145 | 2.50 |
RFQ |
Datasheet |
Bulk | UCY | Active | 15 µF | ±20% | 500 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 220 mA @ 120 Hz | 440 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
UVZ0J153MHDCAP ALUM 15000UF 20% 6.3V RADIAL |
2,467 | 2.54 |
RFQ |
Datasheet |
Bulk | UVZ | Not For New Designs | 15000 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.01 A @ 120 Hz | 2.3115 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.457 (37.00mm) | - | Through Hole |
|

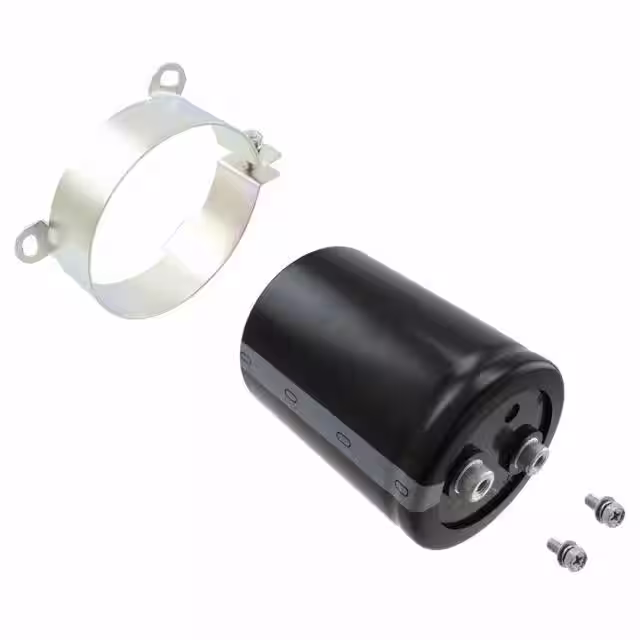

LNY2G392MSEHCAP ALUM 3900UF 20% 400V SCREW |
3,804 | 80.12 |
RFQ |
Datasheet |
Bulk | LNY | Active | 3900 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.6 A @ 120 Hz | 20.44 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 3.346 (85.00mm) | - | Chassis Mount |
